Plan 22073SL Plenty of Storage

0 0 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Plenty of Storage

Plan 22073SL

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 3

    Cars

  • Are you looking for extra space to park the family cars with plenty of room for storage? Check out this three-car garage plan with loft.
  • The garage area features 880 square feet of sheltered parking, three 9'x8' overhead doors and interior stairs leading to the loft above.
  • Perfect for storage or even a finished space in the future, the upper level provides 742 square feet of storage space brightened with an array of windows.
  • This garage plan with loft is the perfect complement to any home.
  • Related Plans: Get a finished upstairs apartment with house plan 22104SL and 22105SL (two bedrooms) and 22116SL (one bedroom).

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

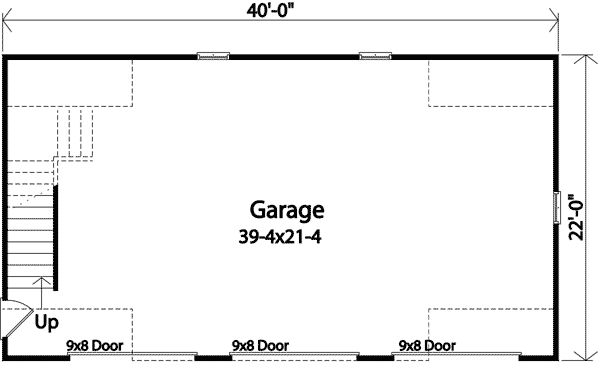

Plenty of Storage - 22073SL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

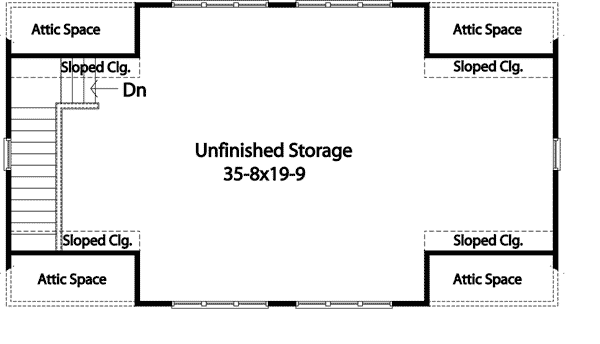

Plenty of Storage - 22073SL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Loft: 764 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 24' 6"
  • Max ridge height: 24' 6"

Garage

  • Type: Detached
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss

Special features

Plenty of Storage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $365
  • PDF - Single-Build $390
  • 8 Sets $415
  • CAD - Single-Build $545
  • PDF - Unlimited Build $1,140
  • CAD - Unlimited Build $1,295
  • View all purchase option online

About This Plan

  • Are you looking for extra space to park the family cars with plenty of room for storage? Check out this three-car garage plan with loft.
  • The garage area features 880 square feet of sheltered parking, three 9'x8' overhead doors and interior stairs leading to the loft above.
  • Perfect for storage or even a finished space in the future, the upper level provides 742 square feet of storage space brightened with an array of windows.
  • This garage plan with loft is the perfect complement to any home.
  • Related Plans: Get a finished upstairs apartment with house plan 22104SL and 22105SL (two bedrooms) and 22116SL (one bedroom).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Loft: 764 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 24' 6"
  • Max ridge height: 24' 6"

Garage

  • Type: Detached
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
Plan 22073SL
View this and more for this plan by visiting www.architechtecturaldesigns.com/22073SL
|
Need Help? 800-854-7852
|
Plan 22073SL
