Plan 22116SL One Bedroom Carriage House Plan

741 1 1 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One Bedroom Carriage House Plan

Plan 22116SL

  • 741

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

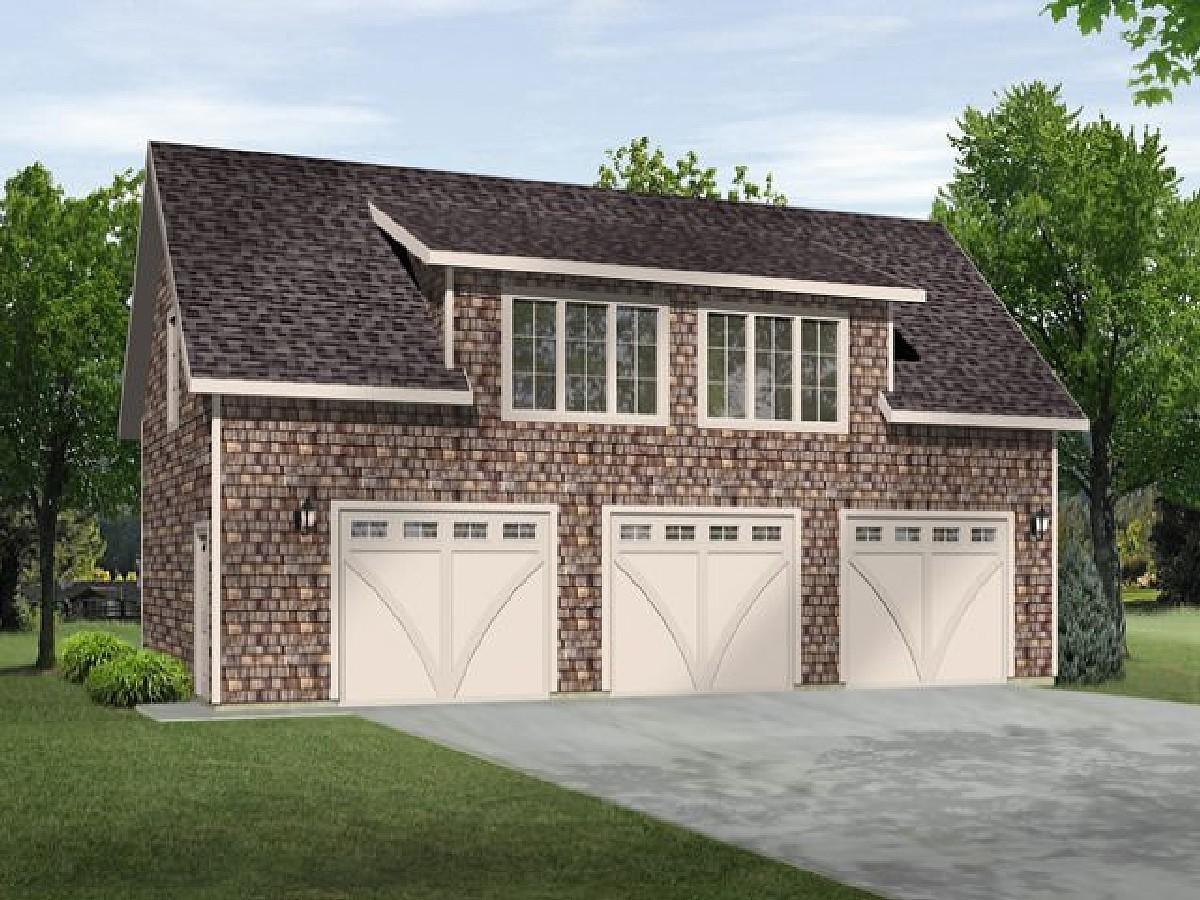

  • Are you looking for extra space to park the family cars and in-law or guest quarters? Check out this three-car carriage house plan with two bedrooms.
  • The garage area features 880 square feet of sheltered parking, three 9'x8' overhead doors and stairs leading to the living quarters above.
  • An open kitchen and sitting area greet you upstairs as well as a bedroom with full bath.
  • Related Plans: For a two bedroom version see carriage house plan 22104SL and 22105SL.
  • Finish the upstairs later with garage plan 22073SL with an unfinished loft space.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

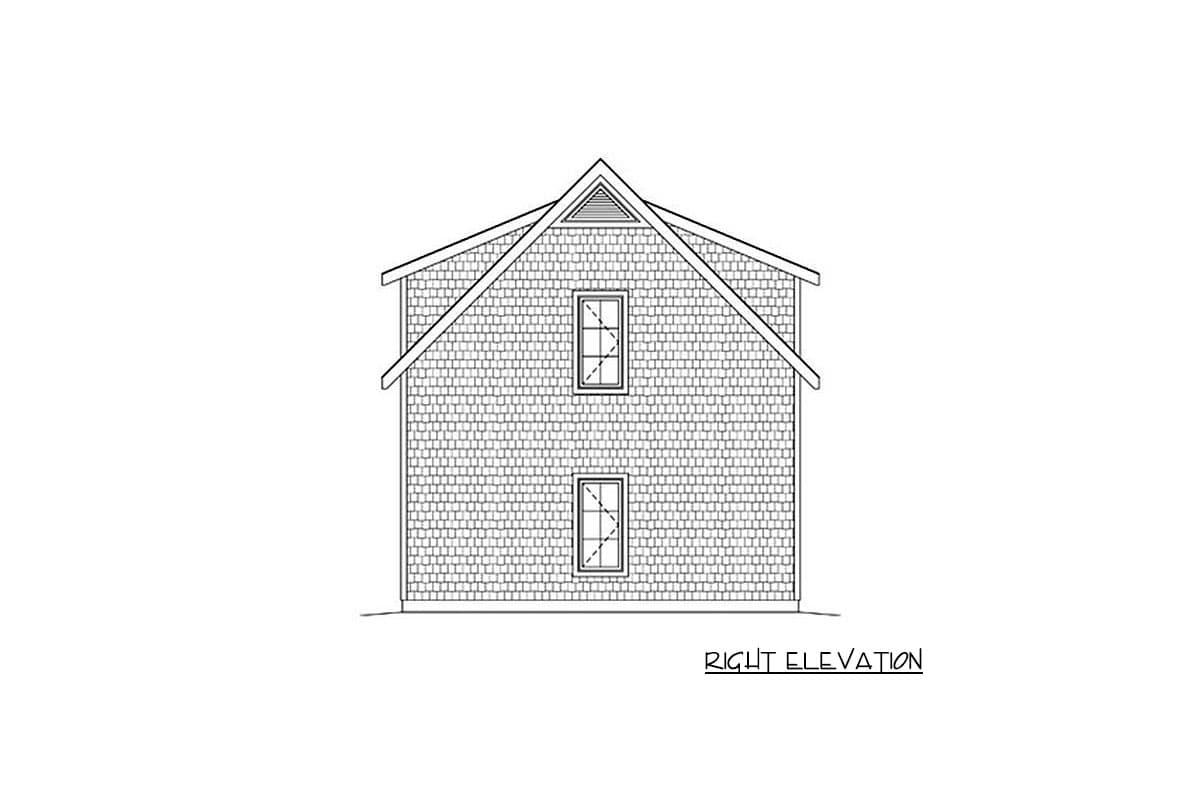

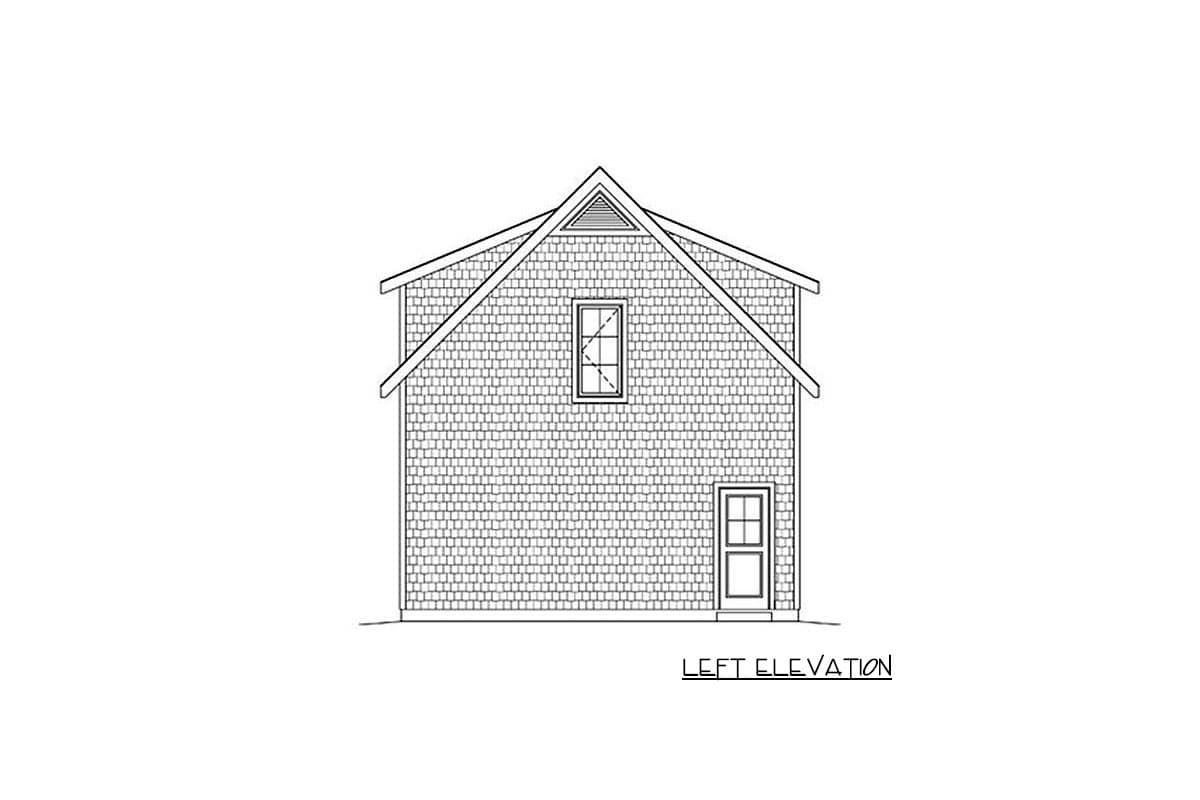

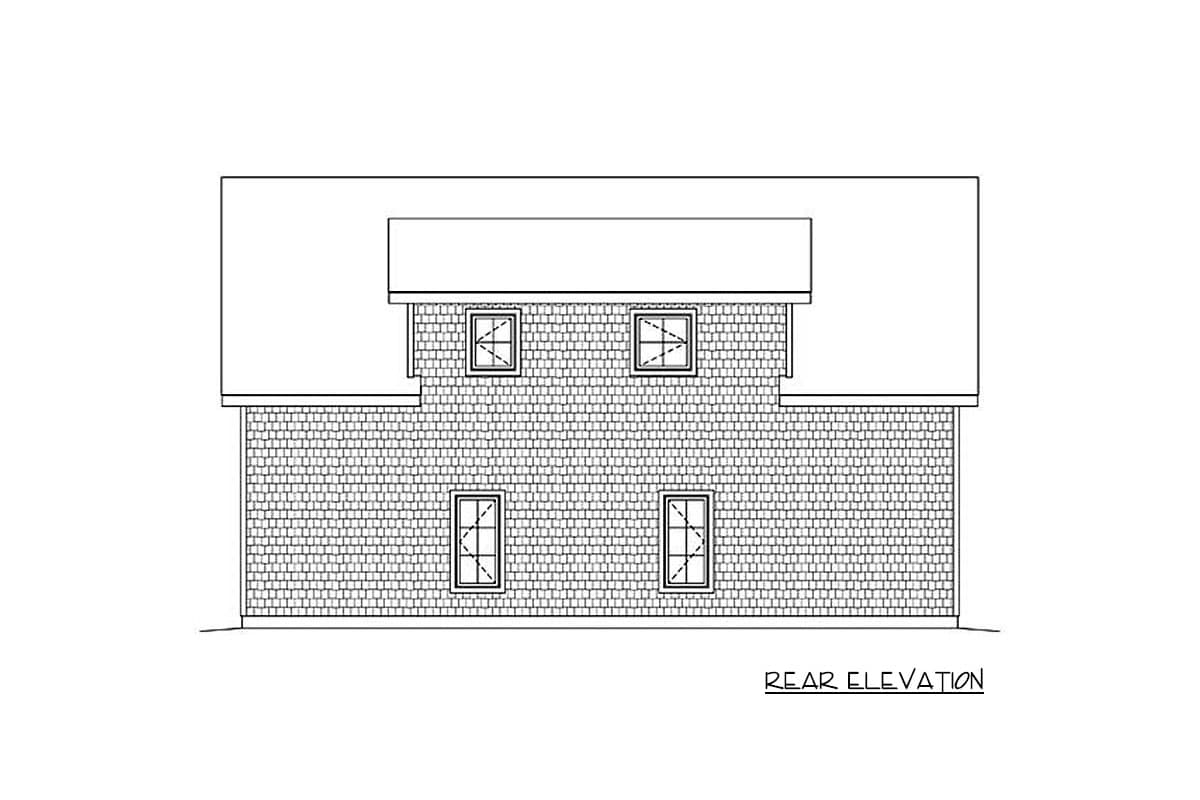

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One Bedroom Carriage House Plan - 22116SL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One Bedroom Carriage House Plan - 22116SL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 741 sq. ft.
  • 1st Floor: 741 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 22' 0"
  • Max ridge height: 25' 2"

Garage

  • Type: Detached
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

One Bedroom Carriage House Plan

  • 741

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $495
  • 8 Sets $545
  • PDF - Single-Build $545
  • CAD - Single-Build $645
  • PDF - Unlimited Build $1,445
  • CAD - Unlimited Build $1,545
  • View all purchase option online

About This Plan

  • Are you looking for extra space to park the family cars and in-law or guest quarters? Check out this three-car carriage house plan with two bedrooms.
  • The garage area features 880 square feet of sheltered parking, three 9'x8' overhead doors and stairs leading to the living quarters above.
  • An open kitchen and sitting area greet you upstairs as well as a bedroom with full bath.
  • Related Plans: For a two bedroom version see carriage house plan 22104SL and 22105SL.
  • Finish the upstairs later with garage plan 22073SL with an unfinished loft space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 741 sq. ft.
  • 1st Floor: 741 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 22' 0"
  • Max ridge height: 25' 2"

Garage

  • Type: Detached
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
Plan 22116SL
