Plan 270053AF Pool House with Lounge Area

104 0 0.5 1
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Pool House with Lounge Area

Plan 270053AF

  • 104

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Stories

  • The simple deign of this pool house gives it versatility while staying within budget.
  • With a total of 104 square feet, the pool bath doubles as a changing room with its built-in bench and hooks for towels or clothes.
  • A quick rinse after your swim is provided by the outdoor shower, and a pergola-covered lounge area creates the perfect atmosphere when entertaining.
  • The pool's mechanical room is located next to the bathroom.

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.

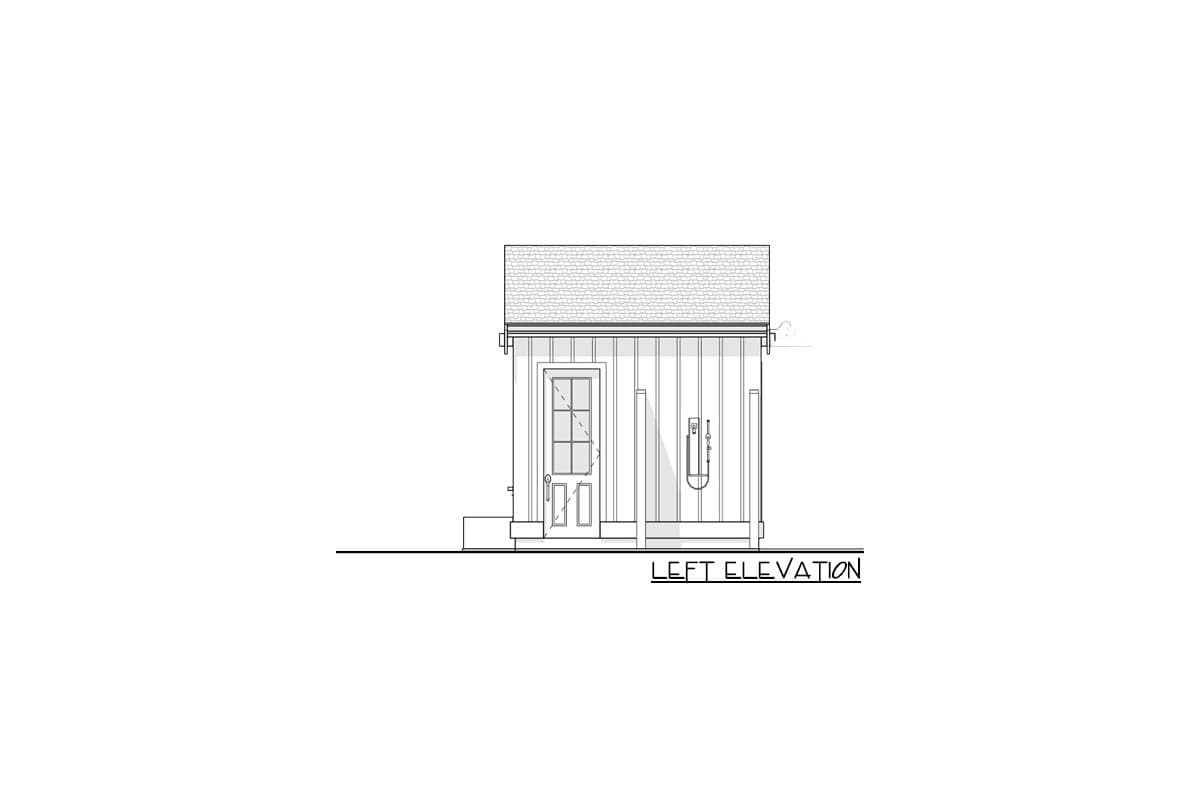

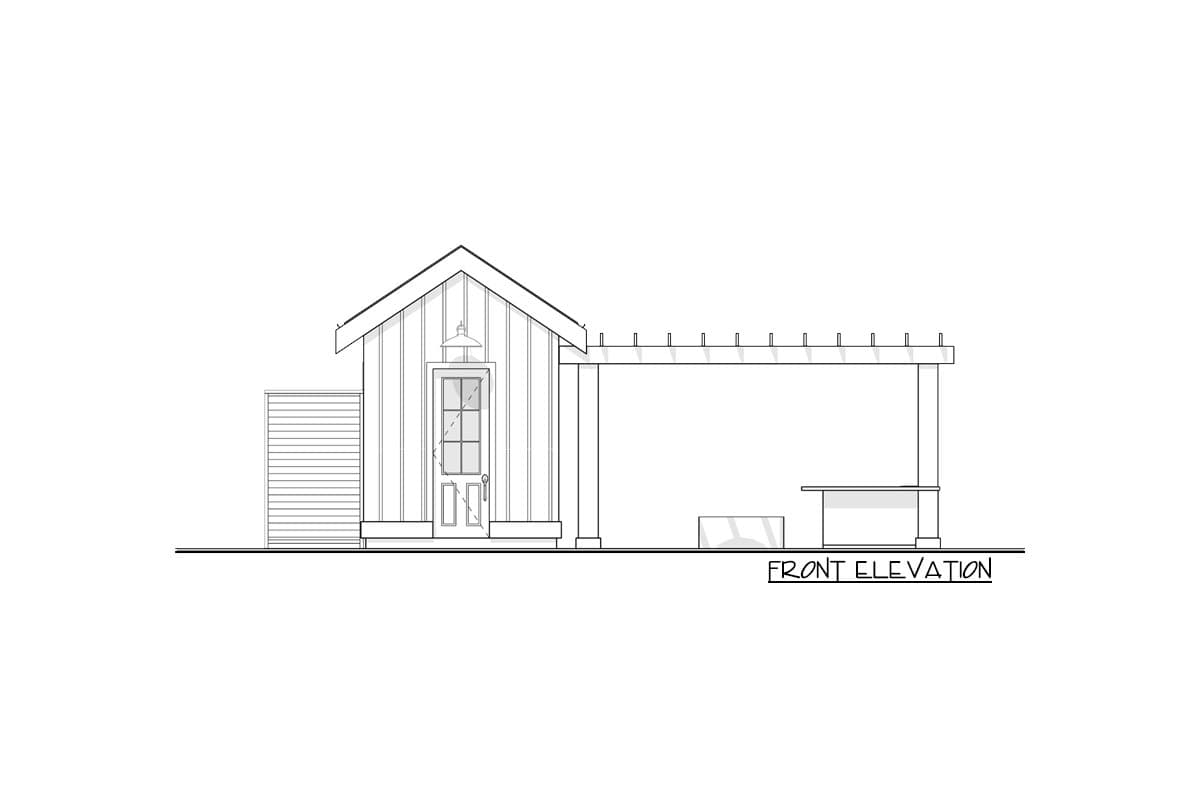

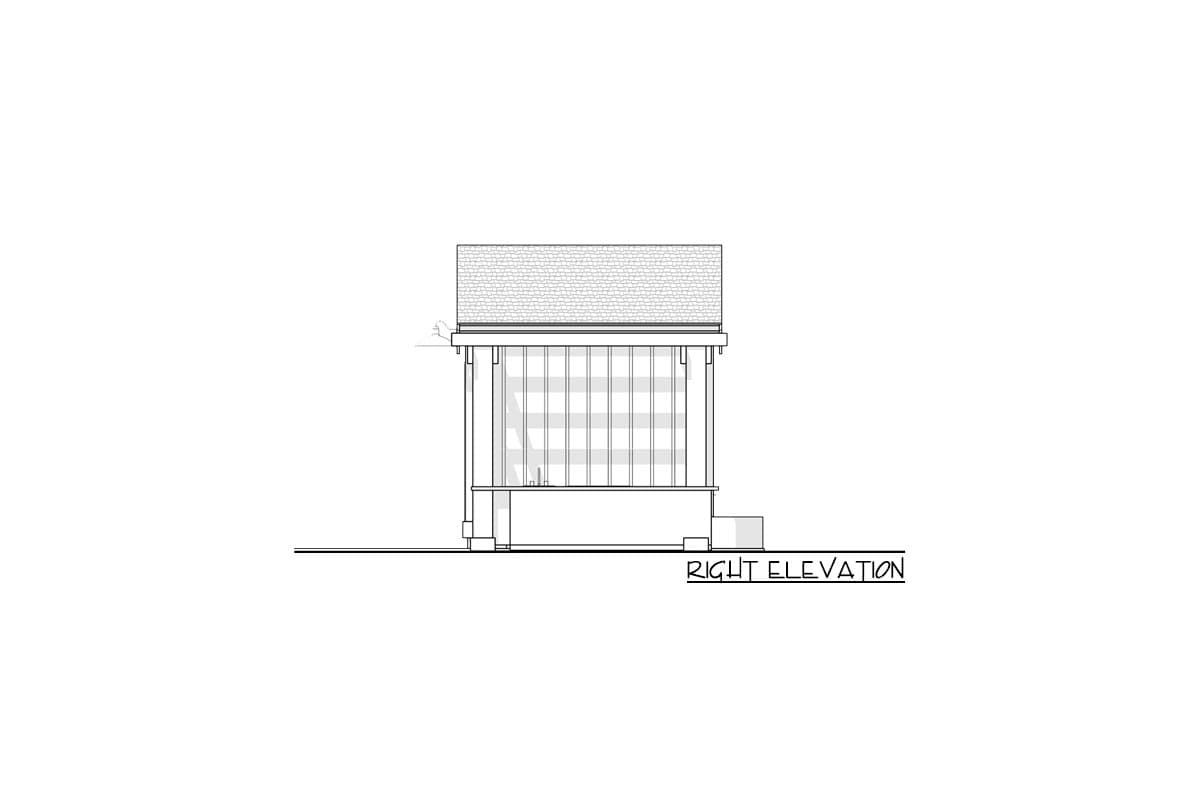

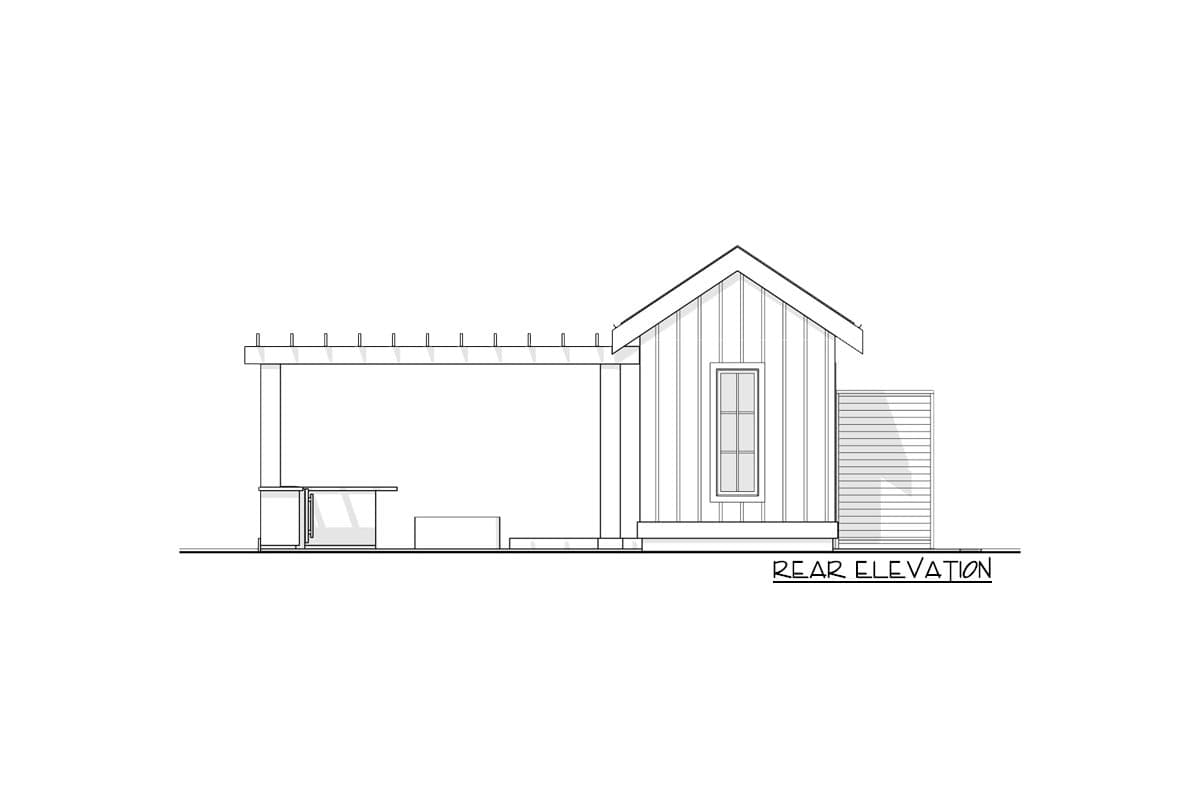

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

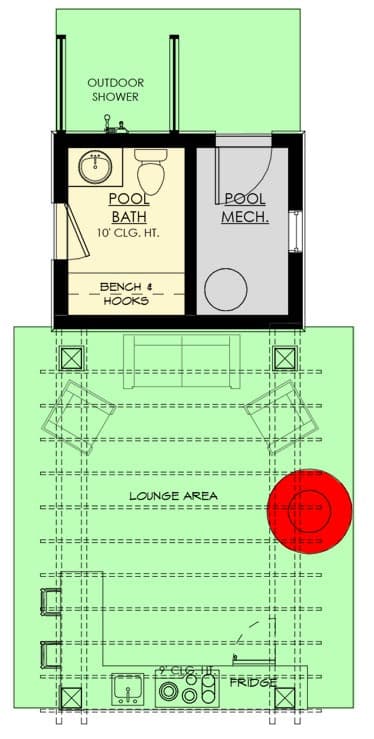

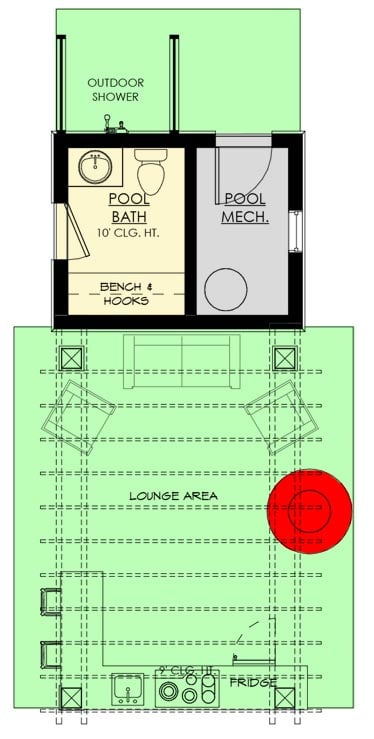

Pool House with Lounge Area - 270053AF floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 104 sq. ft.
  • 1st Floor: 104 sq. ft.
  • Covered Patio: 207 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 11' 6"
  • Max ridge height: 14' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Pool House with Lounge Area

  • 104

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $395
  • CAD Unlimited + PDF $1,395
  • View all purchase option online

About This Plan

  • The simple deign of this pool house gives it versatility while staying within budget.
  • With a total of 104 square feet, the pool bath doubles as a changing room with its built-in bench and hooks for towels or clothes.
  • A quick rinse after your swim is provided by the outdoor shower, and a pergola-covered lounge area creates the perfect atmosphere when entertaining.
  • The pool's mechanical room is located next to the bathroom.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 104 sq. ft.
  • 1st Floor: 104 sq. ft.
  • Covered Patio: 207 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 11' 6"
  • Max ridge height: 14' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
Plan 270053AF
View this and more for this plan by visiting www.architechtecturaldesigns.com/270053AF
|
