Plan 270072AF

Pool or Guest House Plan with Vaulted Interior and 8-Foot-Deep Porch - 1050 Sq Ft

Heated S.F.
1,050
Beds
2
Baths
1
Stories
1

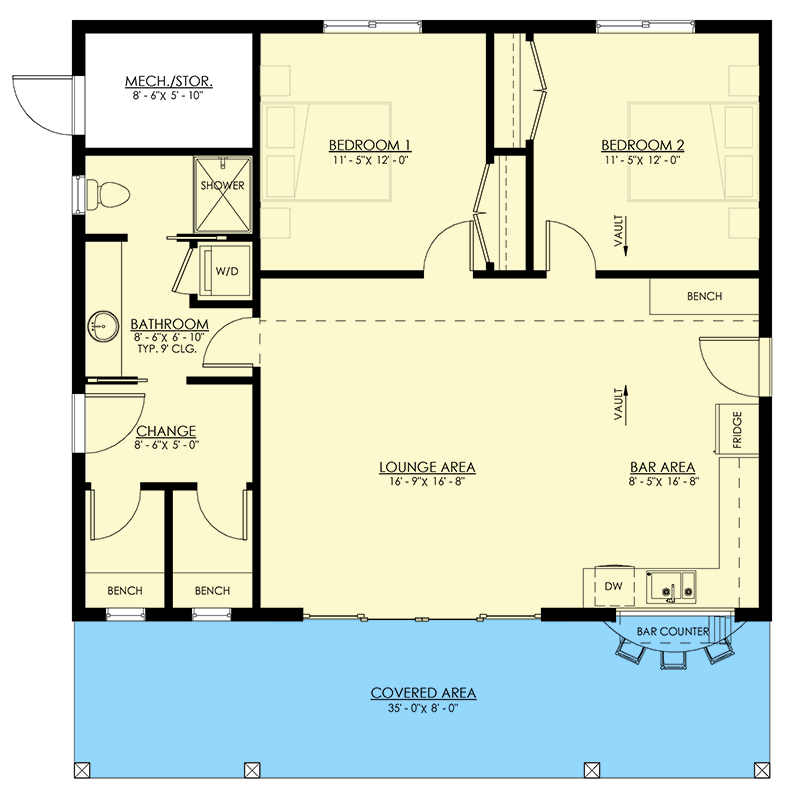

Floor Plan

Plan 270072AF

Main Level
Main Level

Plan 270072AF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 270072AF: Pool or Guest House Plan with Vaulted Interior and 8-Foot-Deep Porch - 1050 Sq Ft - Floor Plan - Main Level

Plan Details

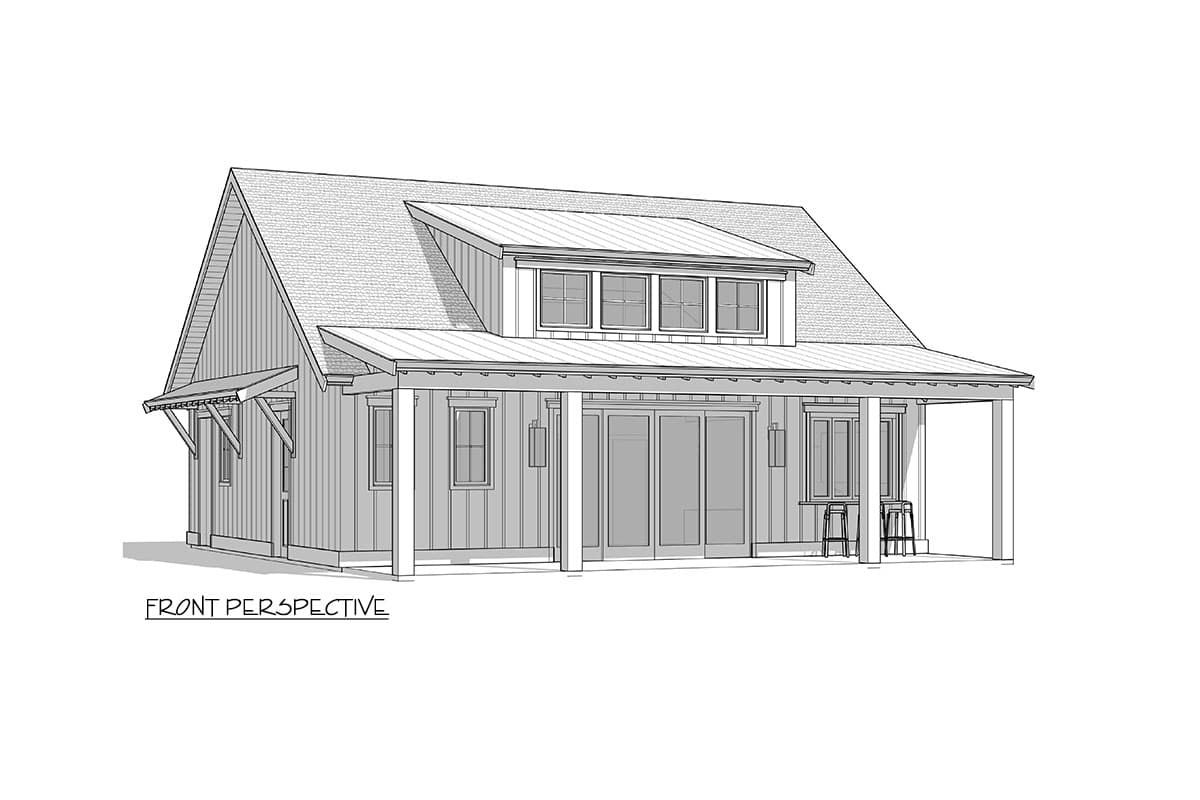

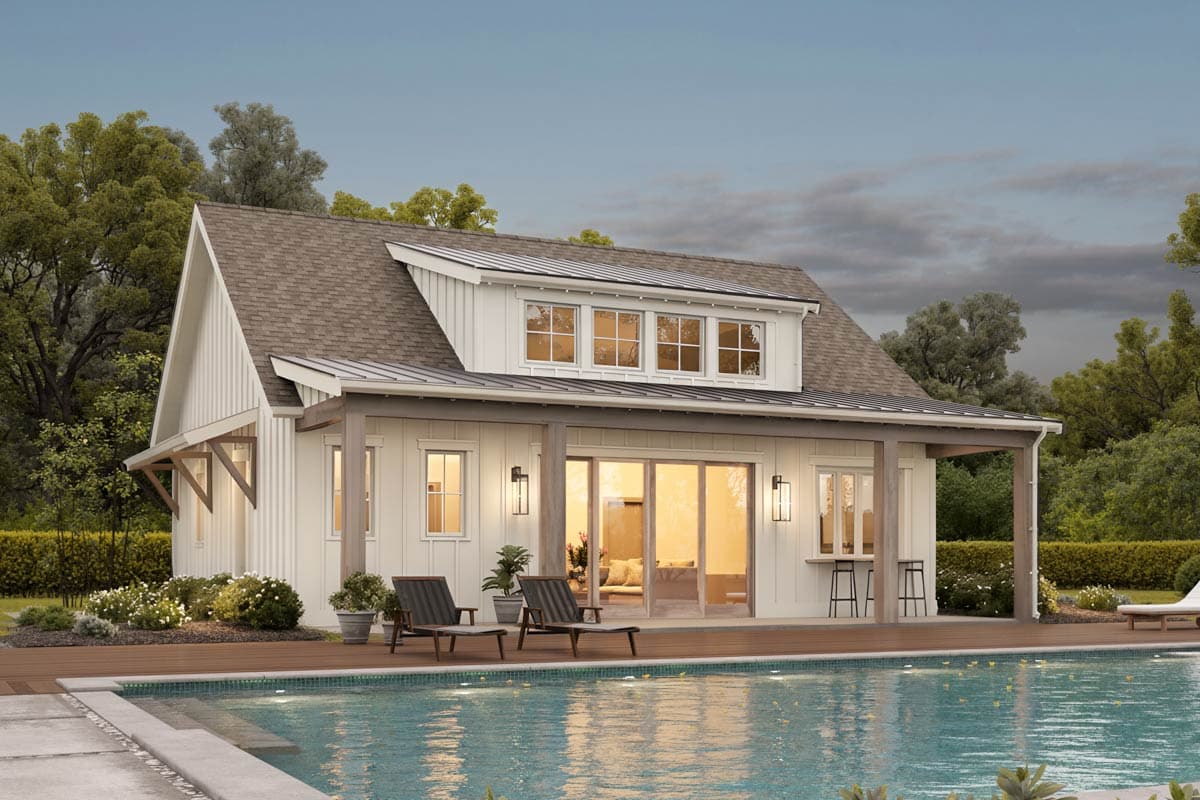

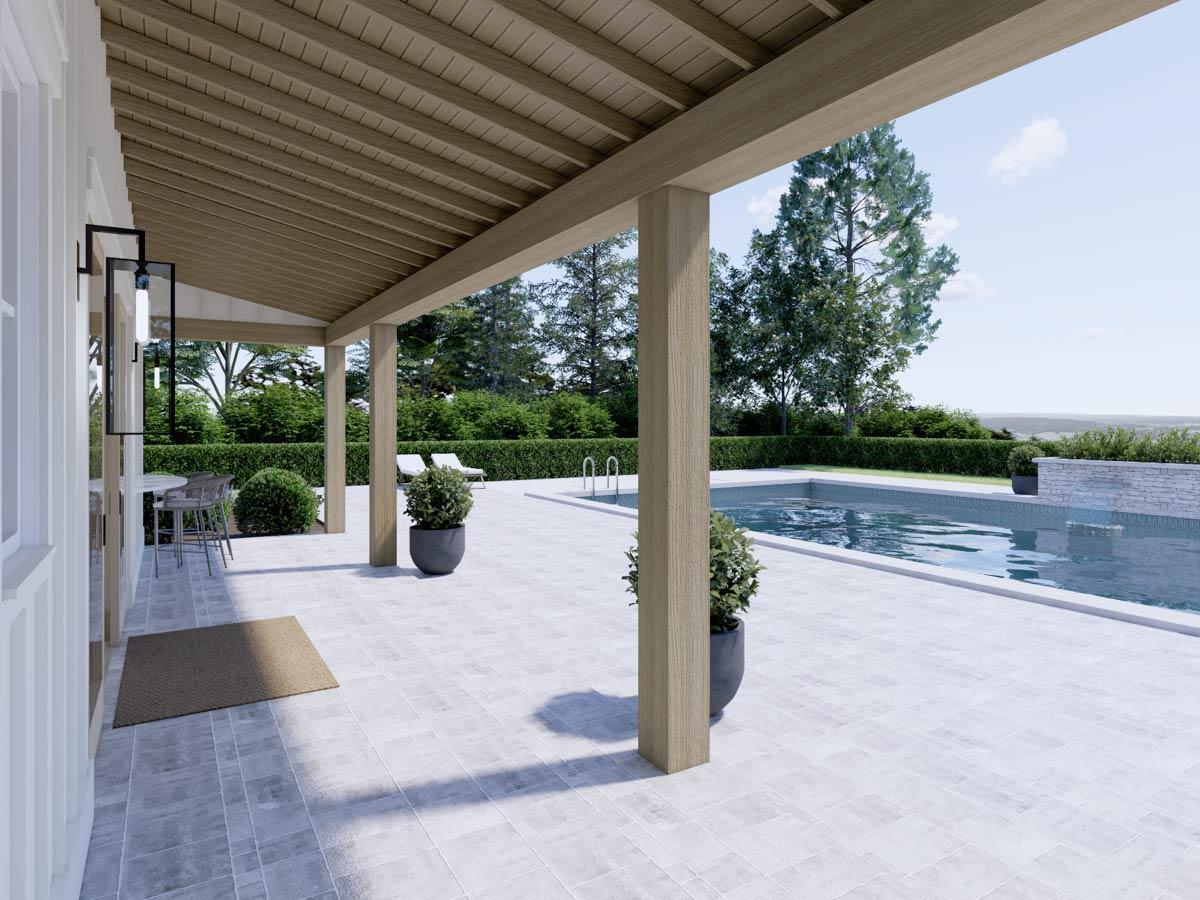

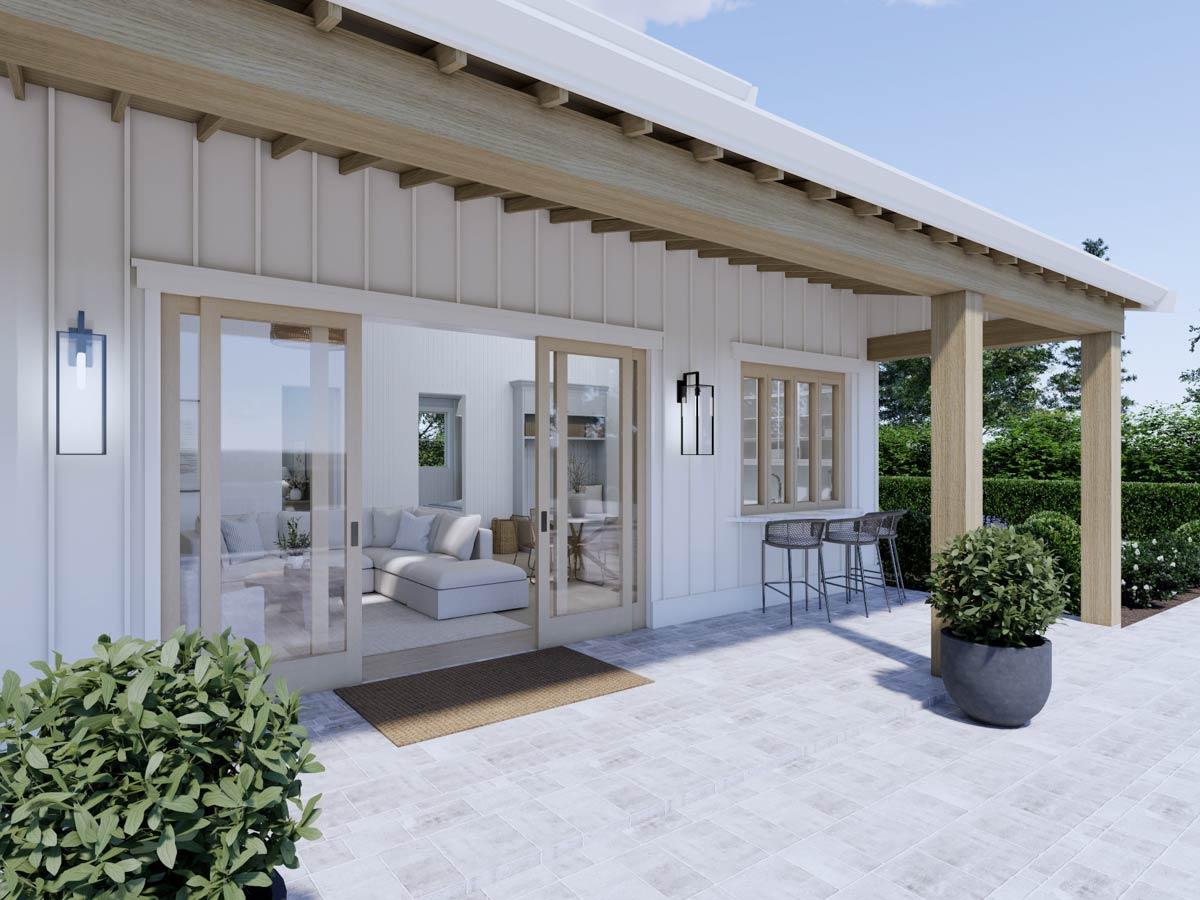

  • This 1050 square foot poolhouse plan has an attractive country exterior with board and batten, a shed dormer and a 8'-deep front porch spanning the entire front of the structure.
  • An open lounge area with an L-shaped bar area with access to a bar counter with seating from the porch.
  • There are two bedrooms in back, giving this plan the flexibility to be used as a guest home.
  • The bathroom has a stackable washer/dryer and two private changing areas.

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

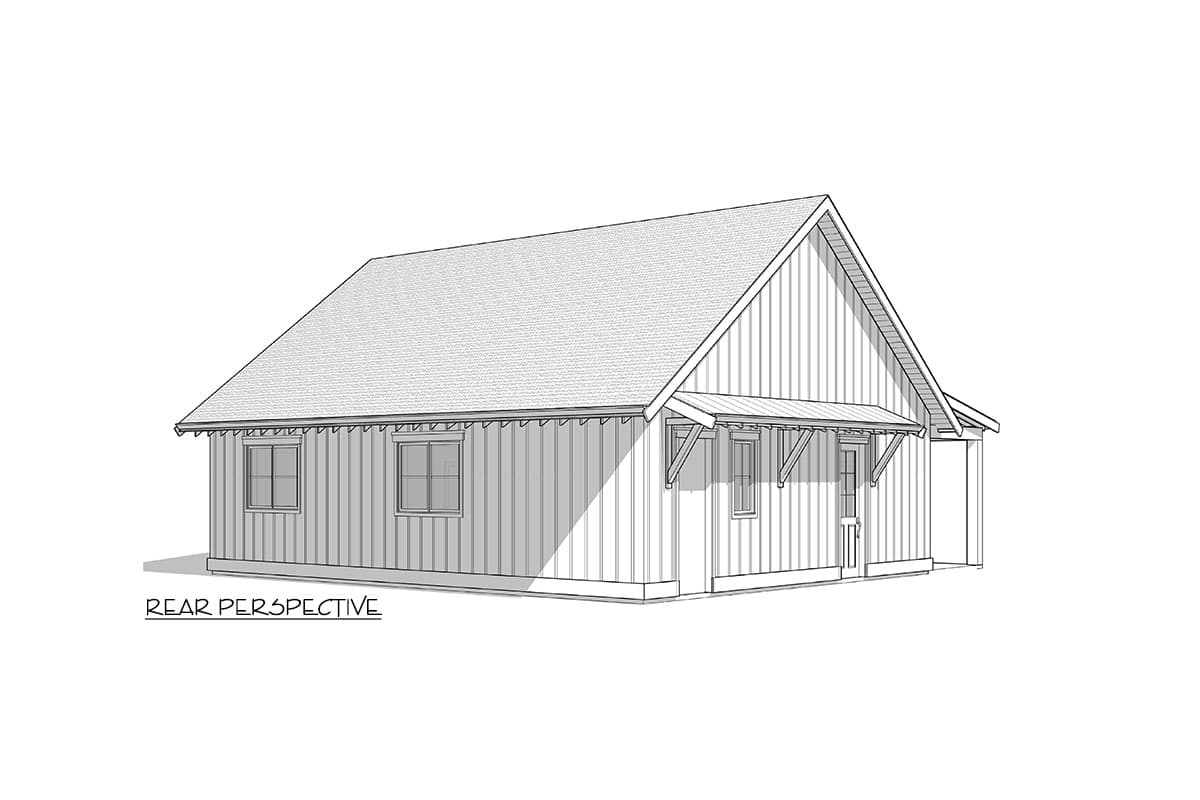

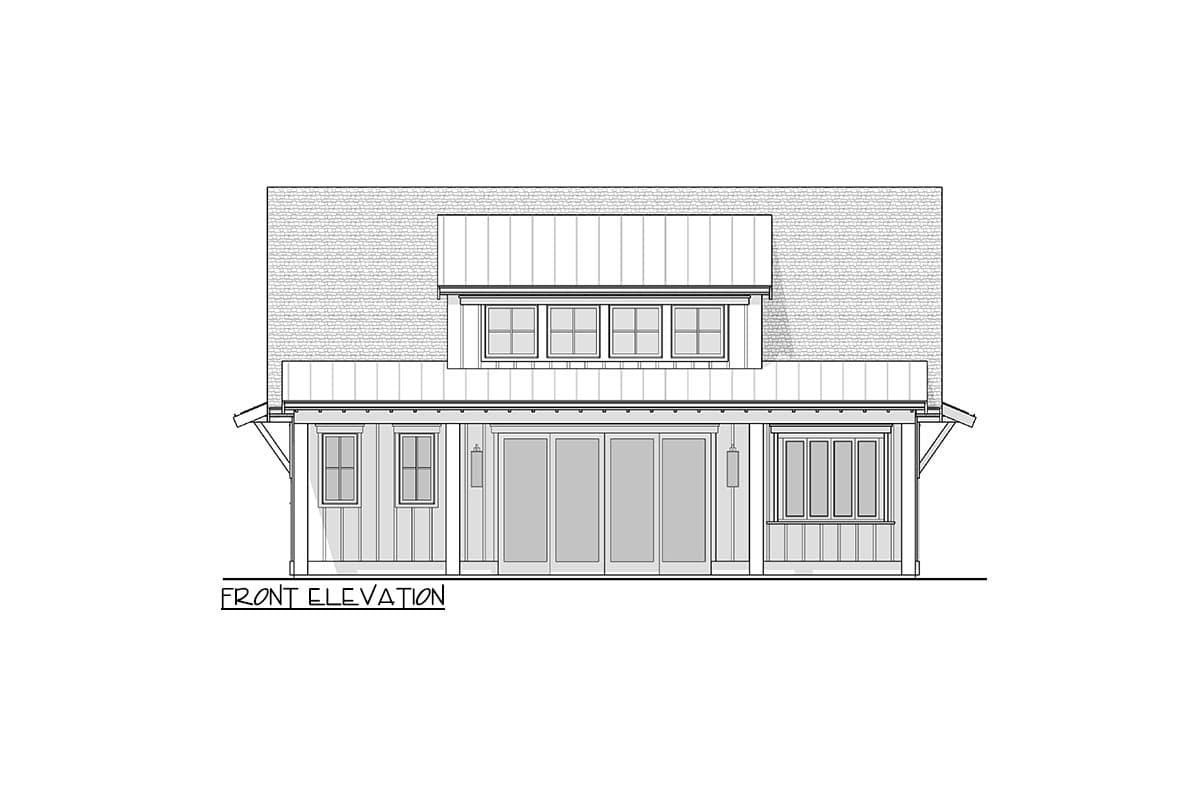

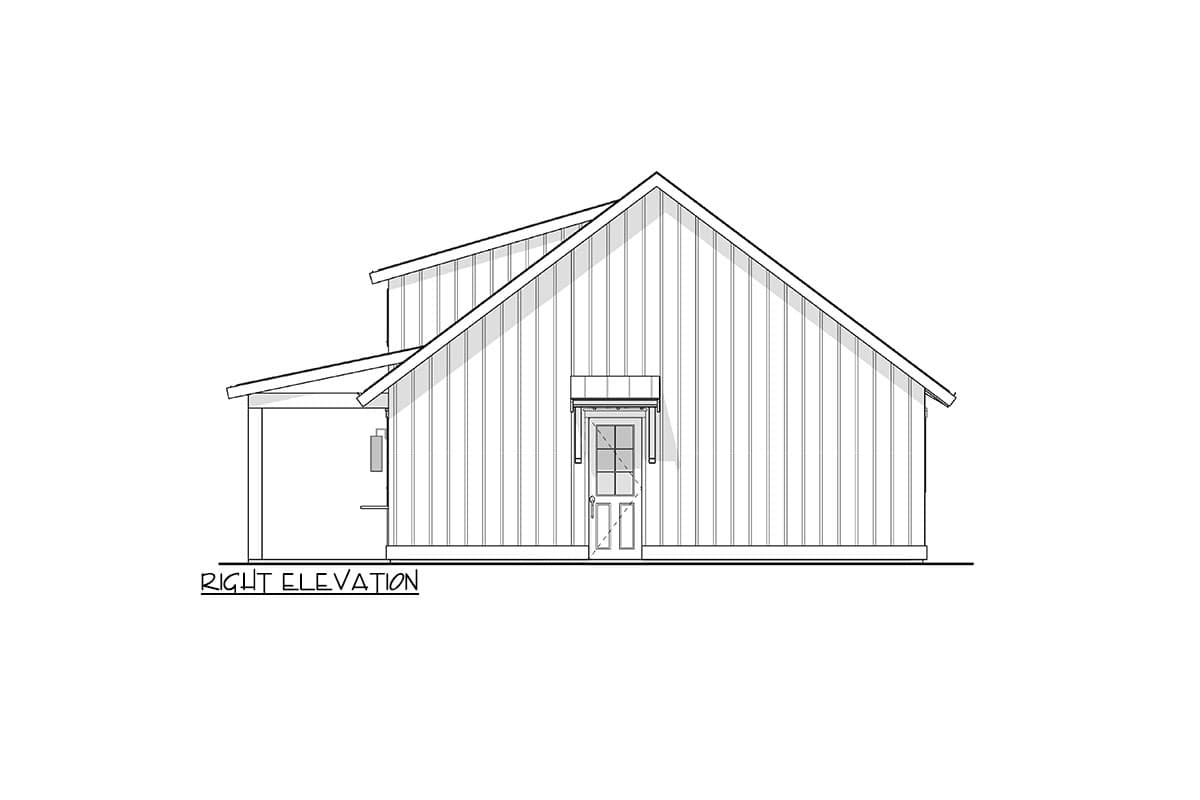

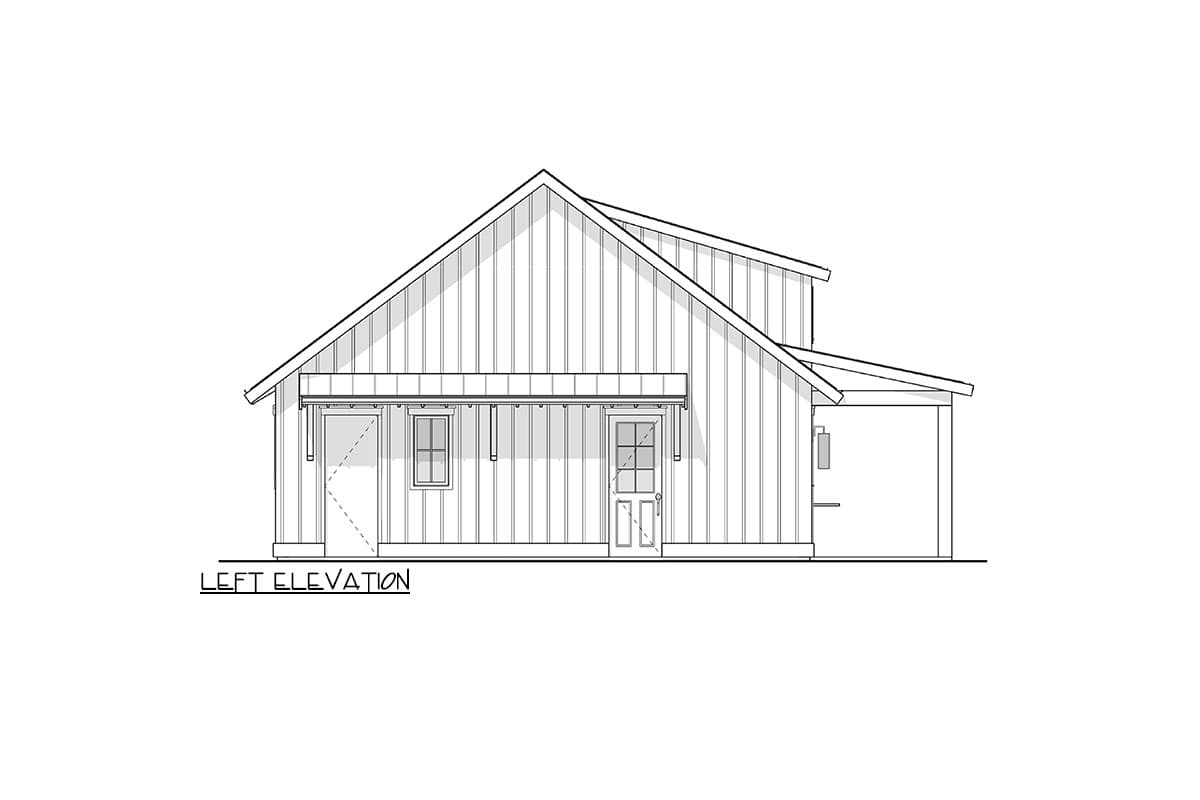

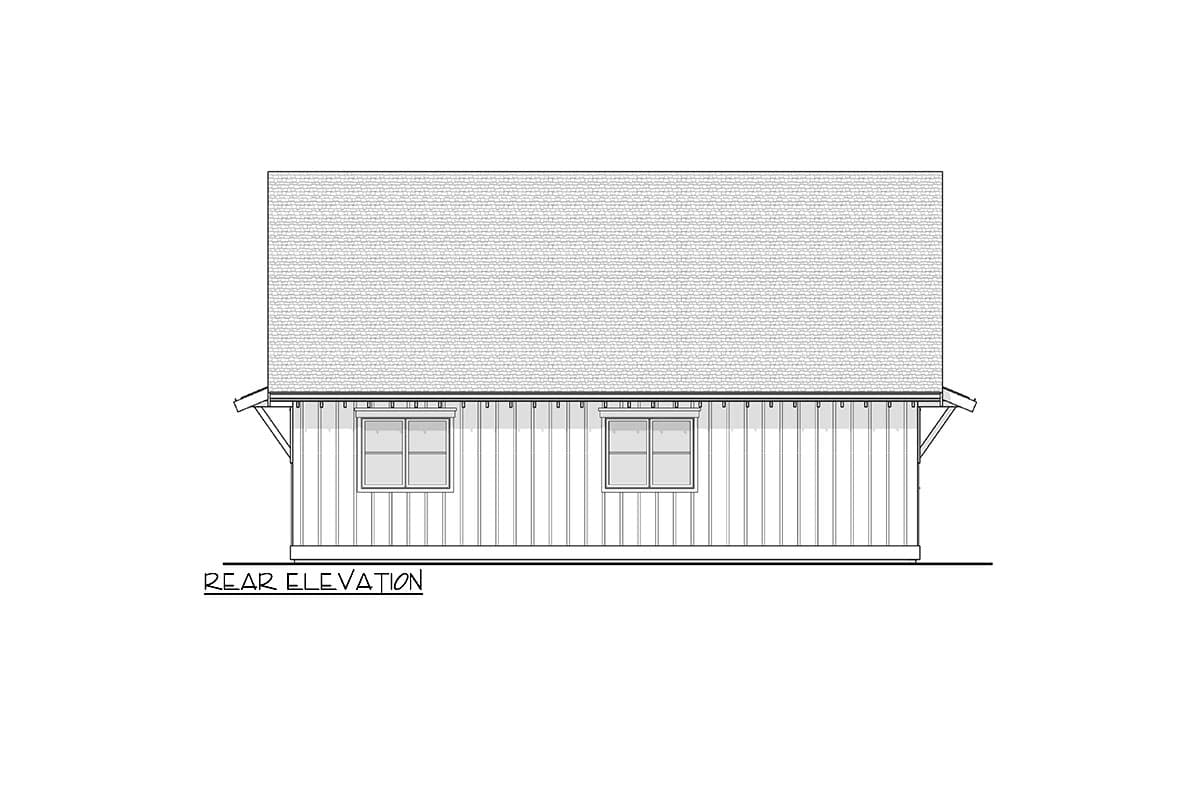

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,050 sq. ft.

1st Floor

1,050 sq. ft.

Porch, Front

280 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

38' 0"

Max Ridge Height

22' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3.5 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

ADU

Canadian House Plans
