Plan 62814DJ

Post Frame Barndominium House Plan with Space to Work and Live

Heated S.F.
2,079
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 62814DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62814DJ

M-F 9am-5pm EST |

1-203-761-8500

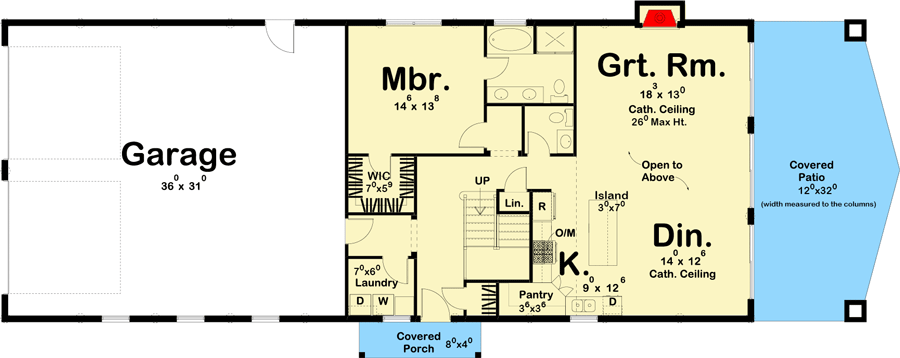

Main Level

Plan 62814DJ: Post Frame Barndominium House Plan with Space to Work and Live - Floor Plan - Main Level - Barndominium, Contemporary, Mountain, New American, Vacation

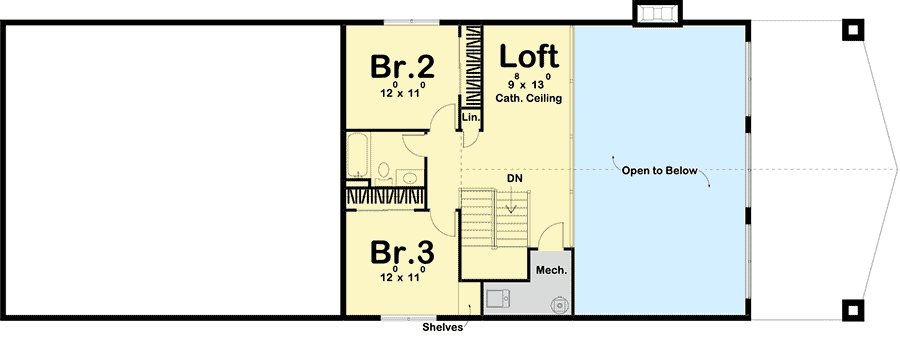

2nd Floor

Plan 62814DJ: Post Frame Barndominium House Plan with Space to Work and Live - Floor Plan - 2nd Floor - Barndominium, Contemporary, Mountain, New American, Vacation

Plan Details

  • If you are looking for an efficient way to build a house, look no further than this post frame home that provides you with a great place to live as well as work. Post frame construction is a simplified building technique adapted from the traditional timber-framing technique. Instead of needing studs, steel framing or concrete masonry, post frame building simply uses large poles (or posts) buried into the ground.

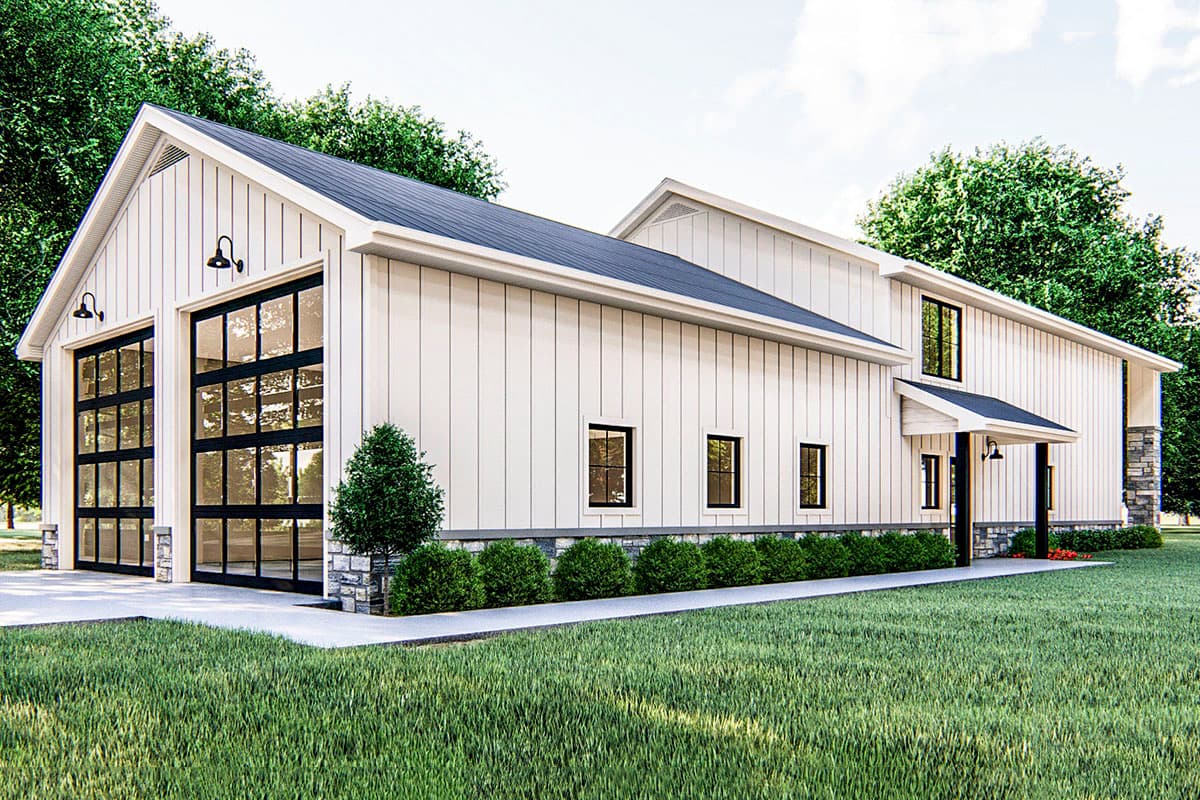

  • On the work side, the house includes an oversized 2-car garage.
  • Inside the home, the great room is warmed by a fireplace and the ceiling rises to a max height of 26'. The kitchen includes a large island and a walk-in pantry (3'6" by 3'6"). The master bedroom is also located on the main floor and contains dual vanities and a walk-in closet (7' by 5'9").
  • Upstairs, you'll find two bedrooms and a loft area. Bedrooms 2 and 3 share a centrally located hall bathroom.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,079 sq. ft.

1st Floor

1,396 sq. ft.

2nd Floor

683 sq. ft.

Porch, Front

32 sq. ft.

Covered Patio

432 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post Frame

Optional Type(s)

2x6

Dimensions

Width

92' 0"

Depth

38' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1116 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Barndominium

Contemporary

Mountain

New American

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Post-Frame
