Prairie Craftsman House Plan with Garage Loft

Plan 640000SRA

This plan plants 10 trees

3,434
Heated s.f.
4
Beds
3.5 - 4.5
Baths
2
Stories
3
Cars

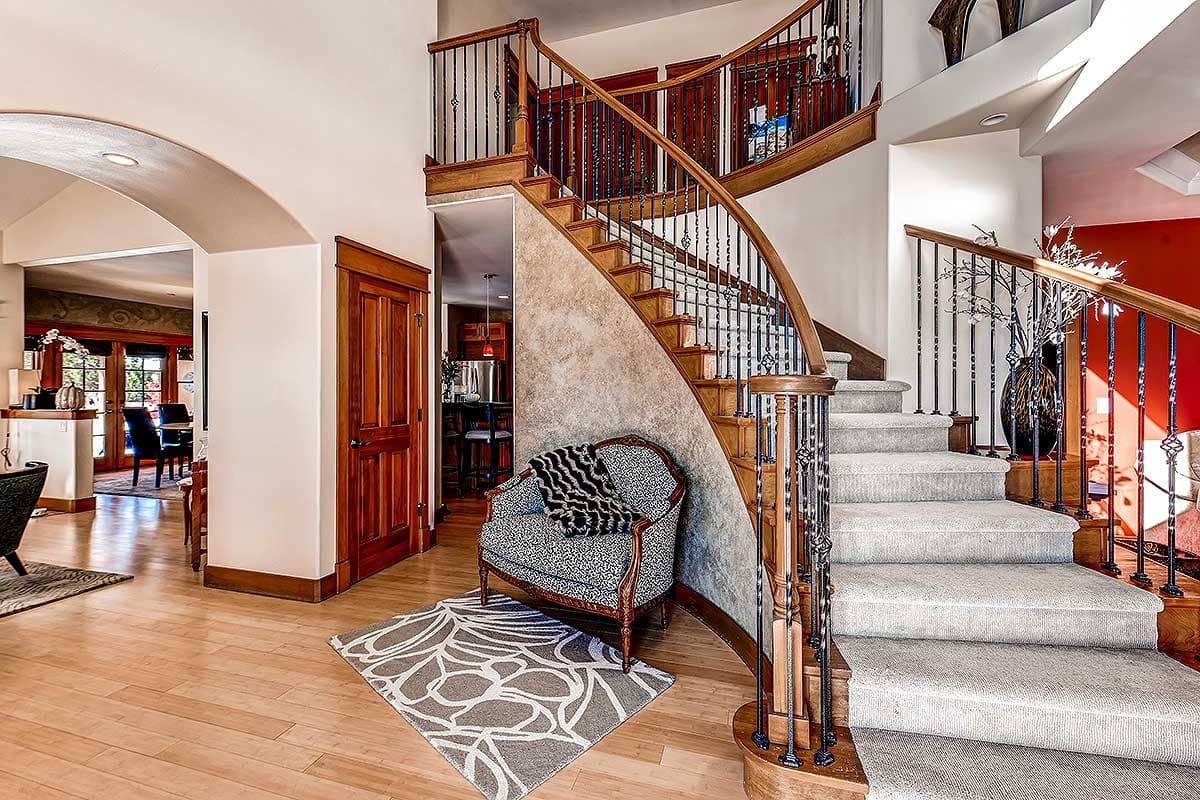

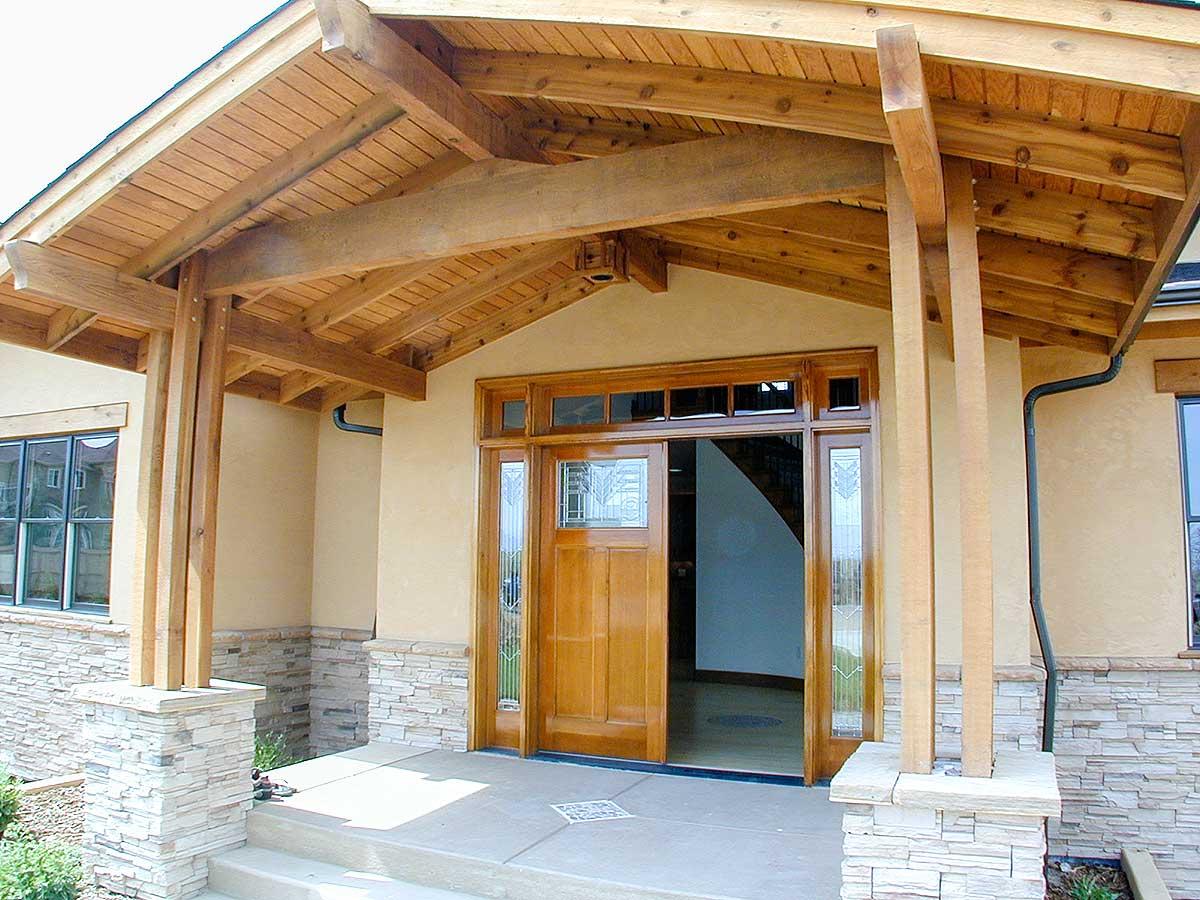

Stone, stucco and exposed wood columns create a sense of solid quality to this Craftsman house plan. Enter through the grand stained glass double doors to a 2-story foyer with a magnificent curved stair.

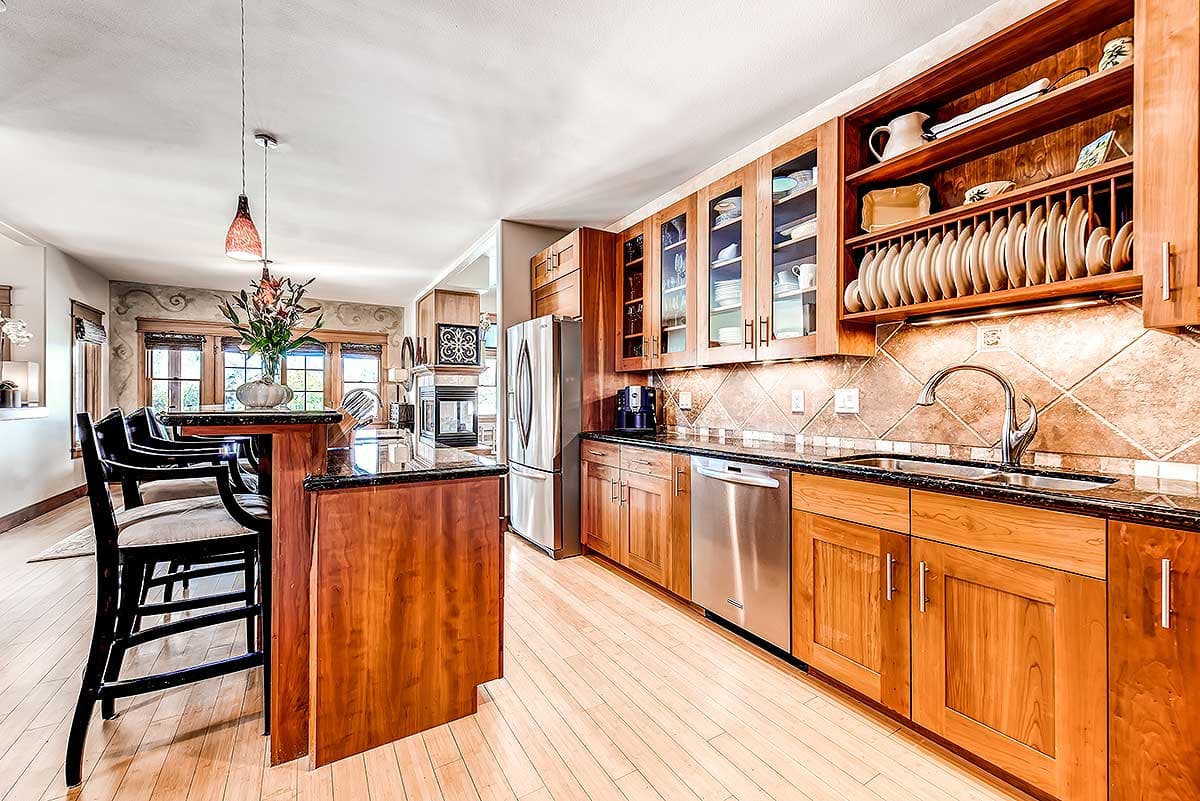

The gourmet kitchen, with information station and bar counter, is the center of the house. The open floor plan, high windows with vaulted ceilings, create a spacious, sunny feeling.
The formal dining room on the right boasts a coffered ceiling and lots of space for entertaining friends and family.

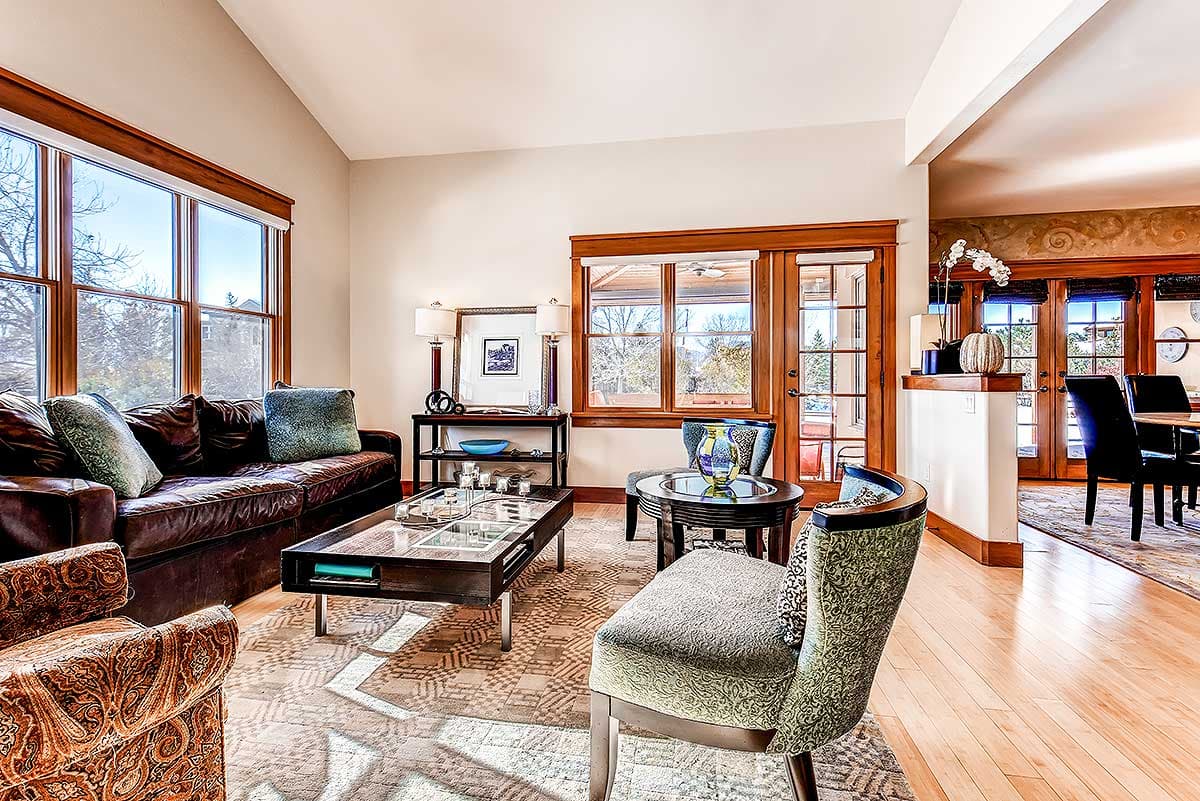

A half wall in the vaulted living room lets you see into the breakfast nook.

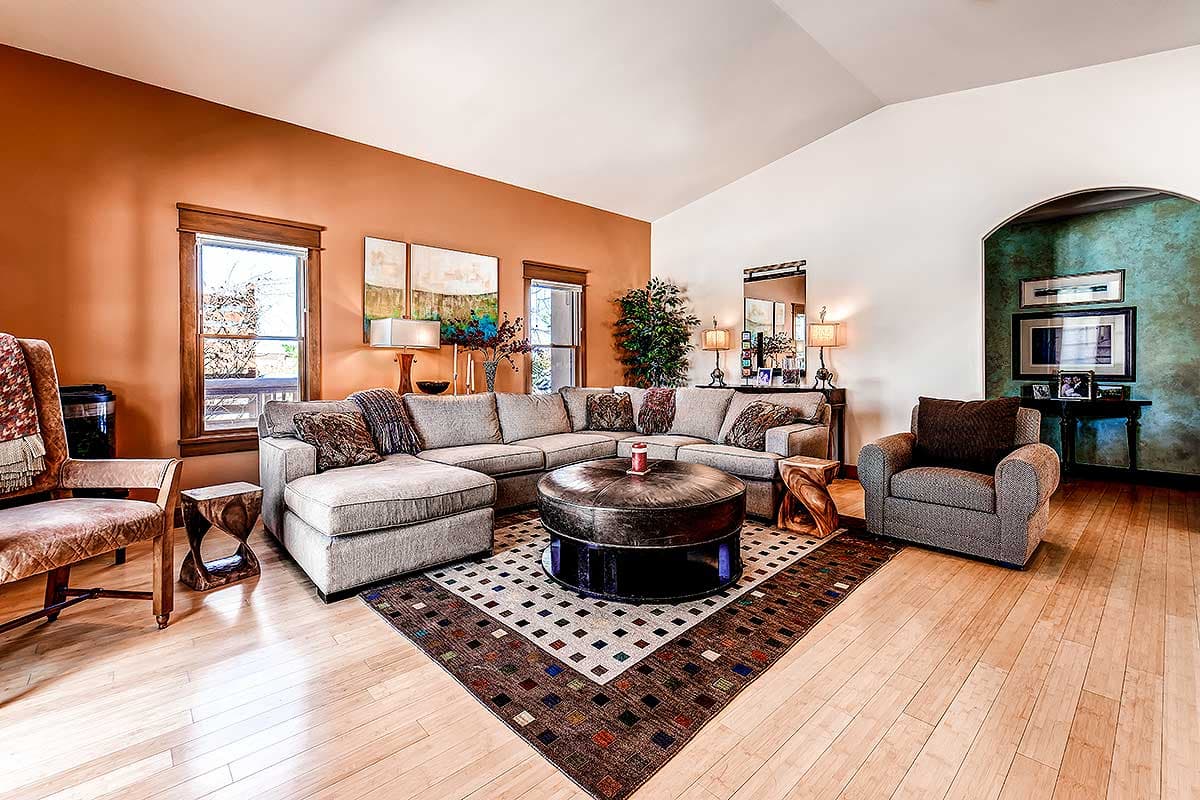

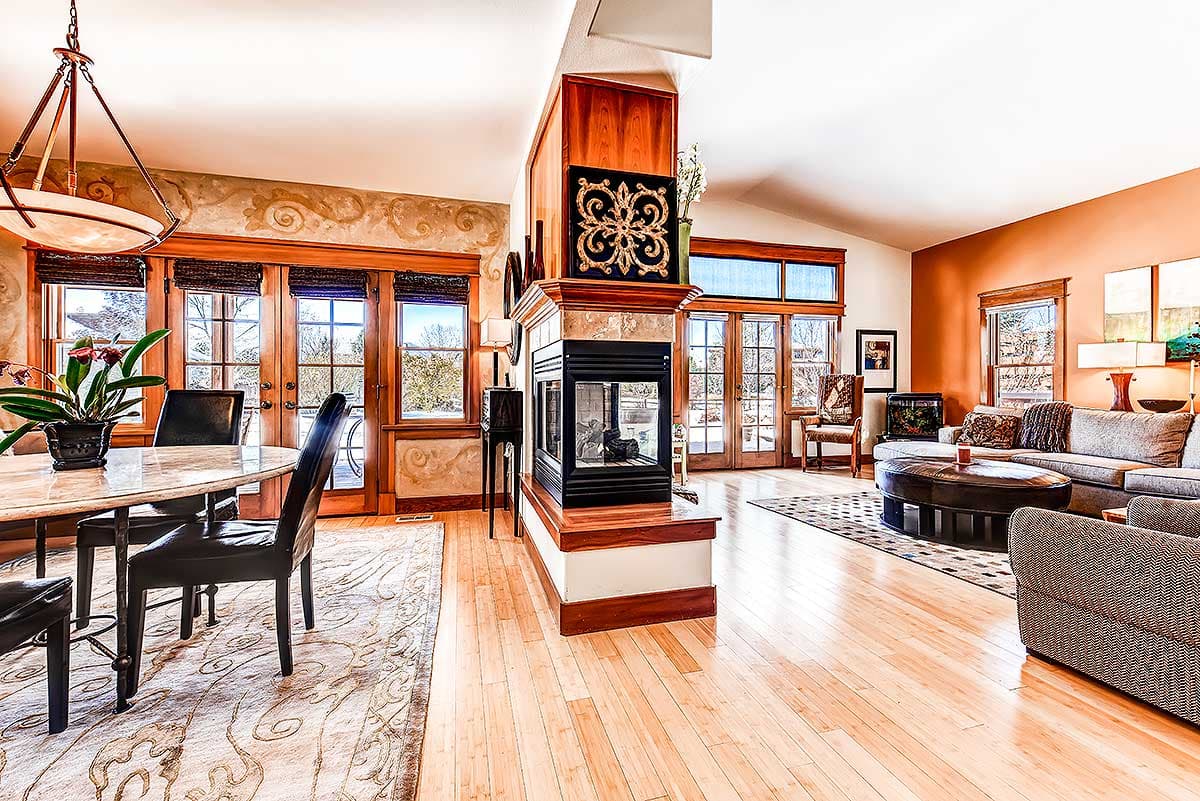

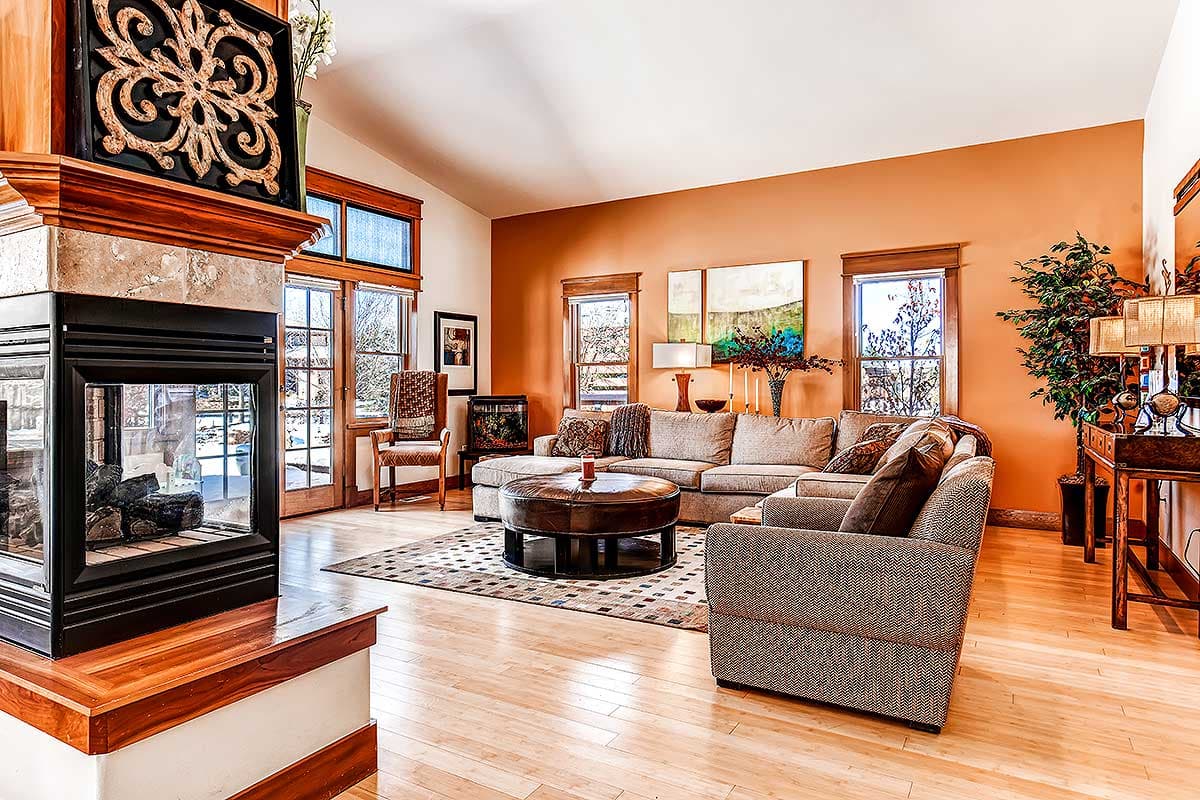

The family room has a 3-sided fireplace, built-in entertainment shelves and a huge wall of windows. This room has access to the side porch as does the nook and living room.

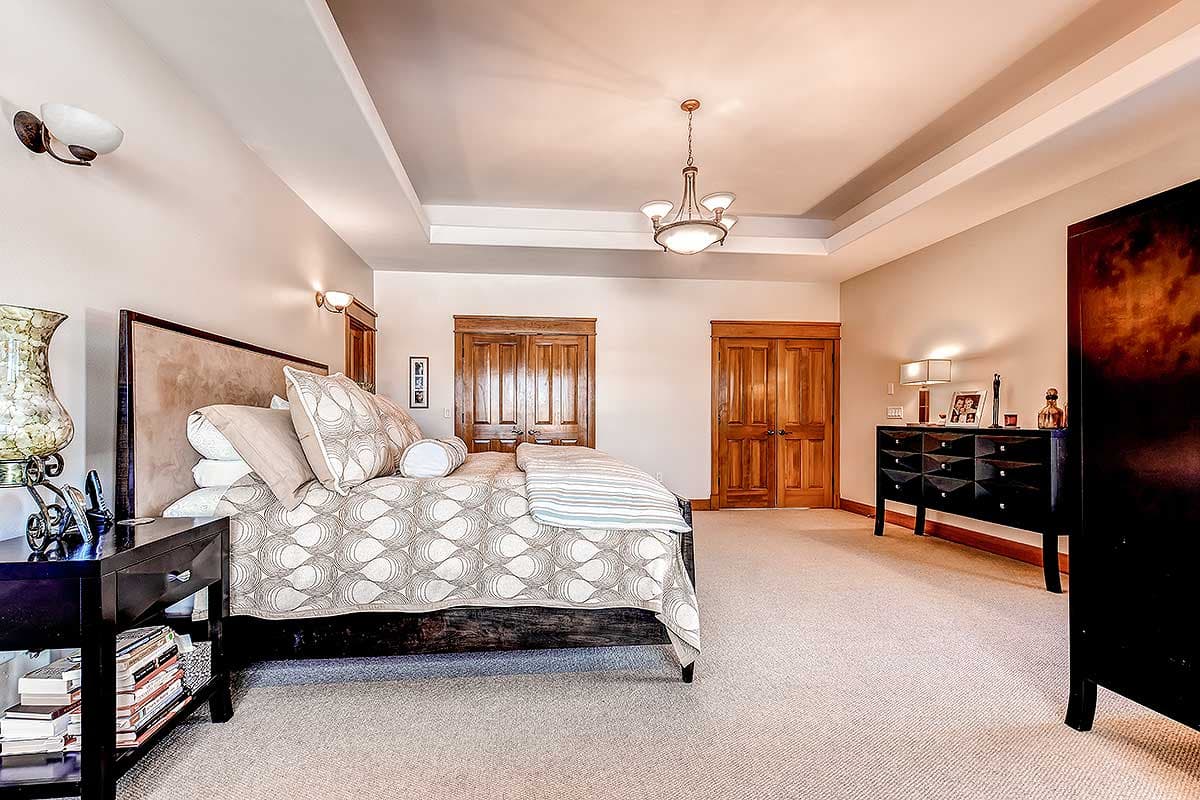

The spacious master suite is a welcome retreat at the end of the day, with its own sitting area and huge walk-in closet (with pass-thru to the laundry room and a 3-sided dressing mirror).

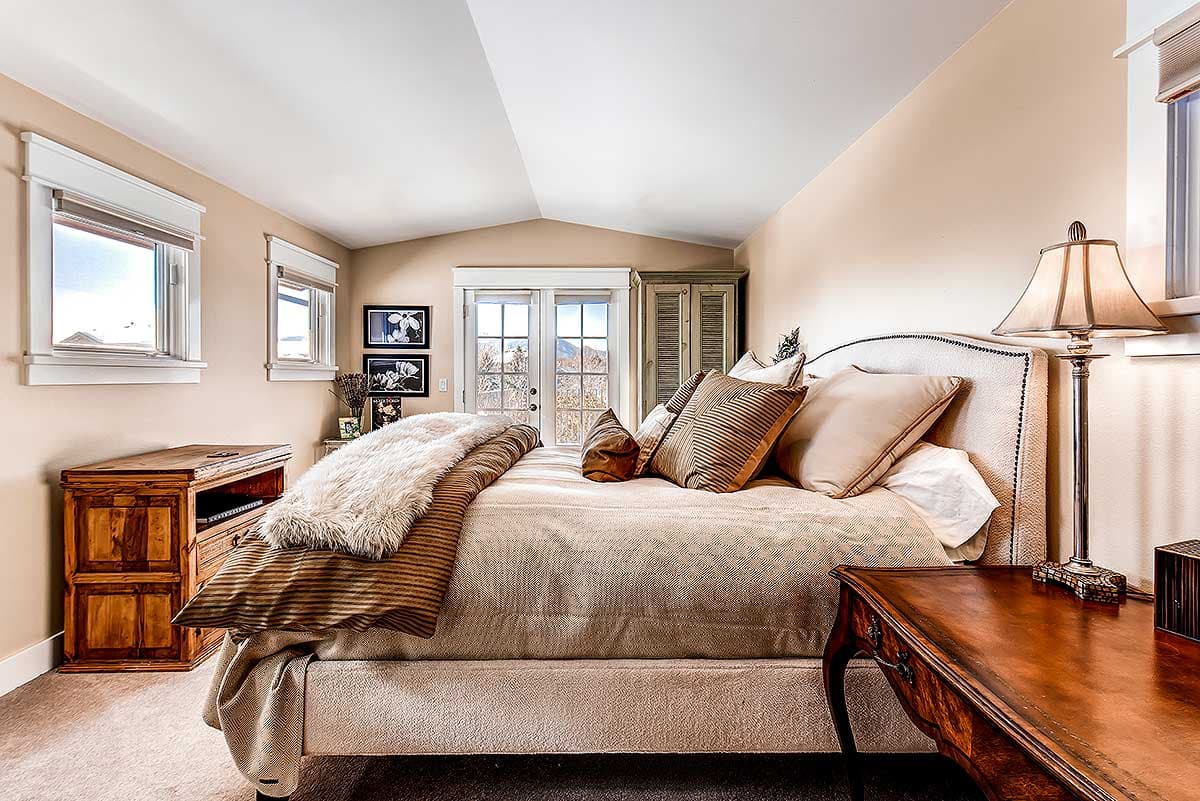

Upstairs you'll find three large bedrooms upstairs, one of which has a private deck.
The loft over the carriage house-style 3-car garage gives you over 850 square feet with a full bath and is ideal for a home-office, recreation room or mother-in-law suite.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles. It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

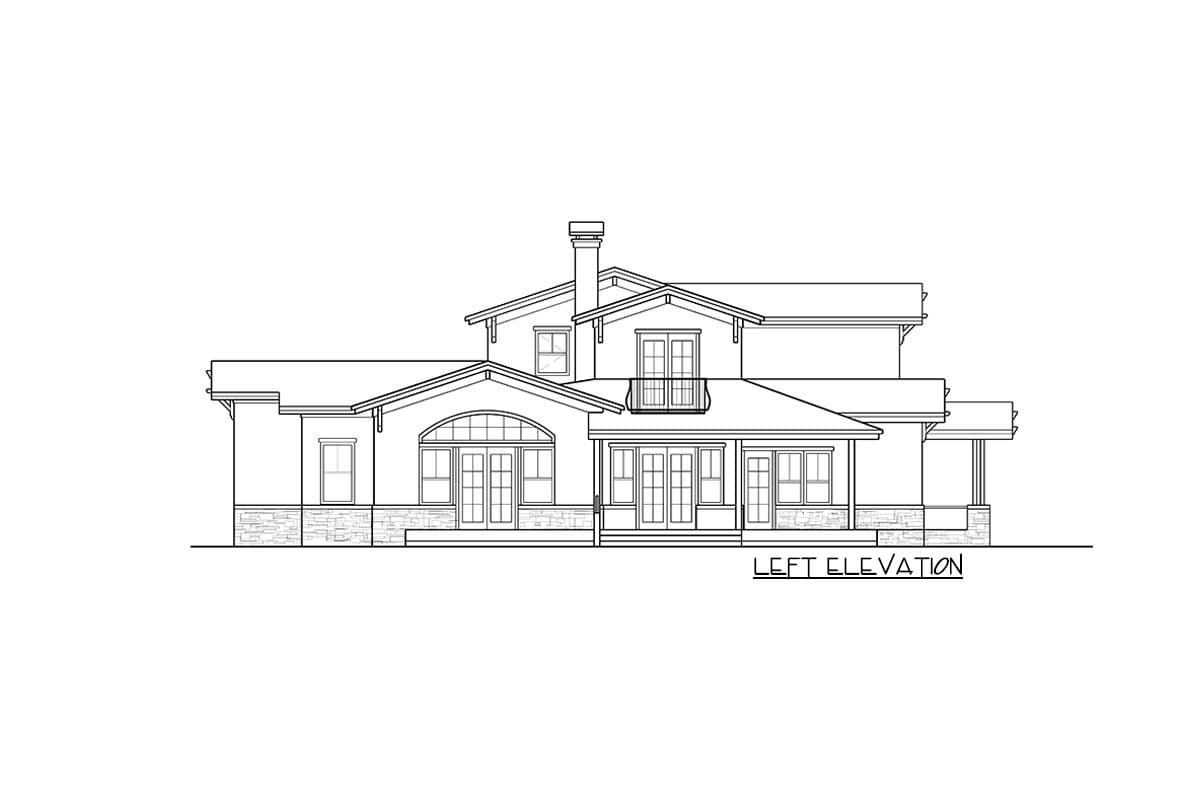

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

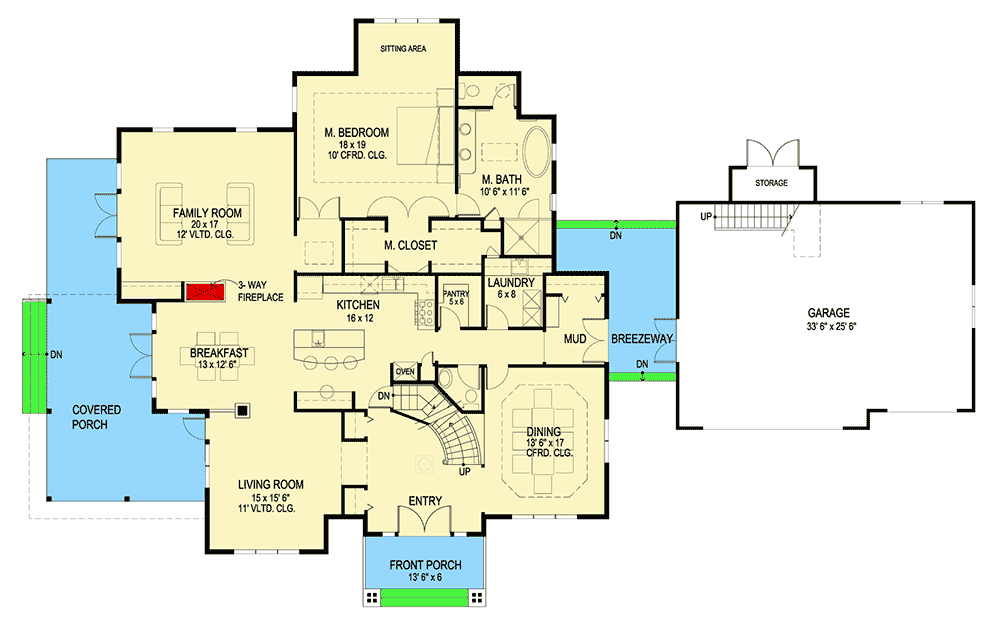

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Prairie Craftsman House Plan with Garage Loft - 640000SRA floor plan - Main Level

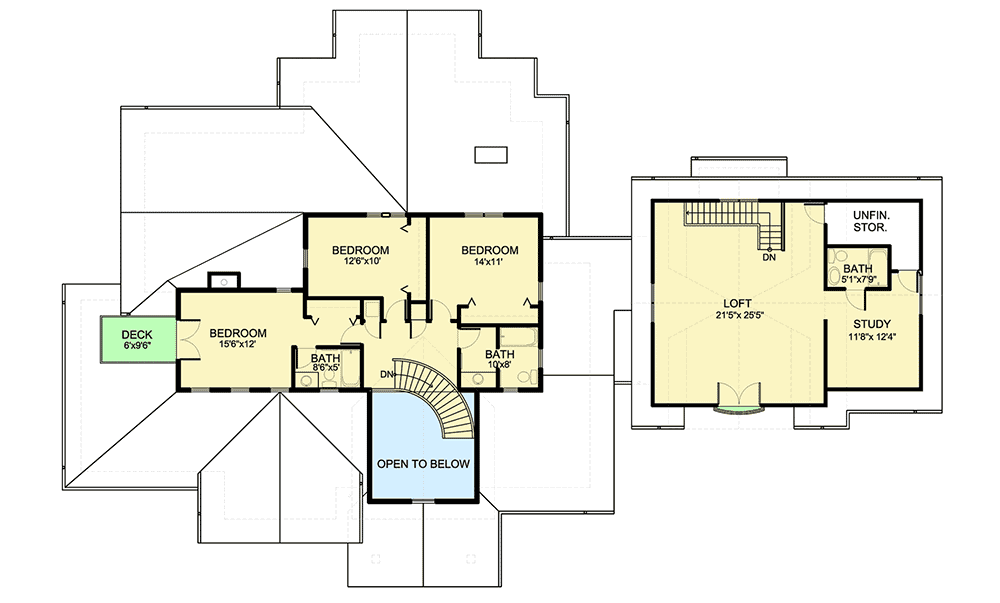

Second Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Prairie Craftsman House Plan with Garage Loft - 640000SRA floor plan - Second Level

Unfinished Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Prairie Craftsman House Plan with Garage Loft - 640000SRA floor plan - Unfinished Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,434 sq. ft.
1st Floor: 2,554 sq. ft.
2nd Floor: 880 sq. ft.

Entry: 81 sq. ft.
Bonus: 850 sq. ft.
Basement Unfinished: 1,378 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3 or 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl, Basement

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 97' 8"
Depth: 61' 2"

Garage

Type: Attached
Area: 900 sq. ft.
Count: 3 Cars
Entry Location: Front

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
