Plan 871011JEN Prairie-inspired House Plan with Vaulted Great Room for the Rear Sloping Lot

Prairie-inspired House Plan with Vaulted Great Room for the Rear Sloping Lot

Plan 871011JEN

  • 4,065

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • With large windows on the rear elevation and outdoor living spaces along the entire backside of the home, this Prairie-inspired home plan was designed to take advantage of rearward views.
  • The great room gains volume from the vaulted ceiling, with an overlooking loft, and the open concept allows you to easily move into the kitchen and adjoining dining room.
  • The master suite conveniently neighbors the laundry room and includes a 5-fixture bath. On the opposite side of the home, discover a second bedroom suite with a private deck.
  • A mudroom can be found just inside from the 3-car garage, complete with a dog shower and nearby drop zone.
  • Downstairs, two additional bedrooms flank a large rec room with a wet bar and space for exercise equipment. Plenty of unfinished space can serve as a workshop or golf cart storage.
  • The exterior walls are 2 x 4 with the exception of the two-story walls in the Great Room which are 2 x 6 framing.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

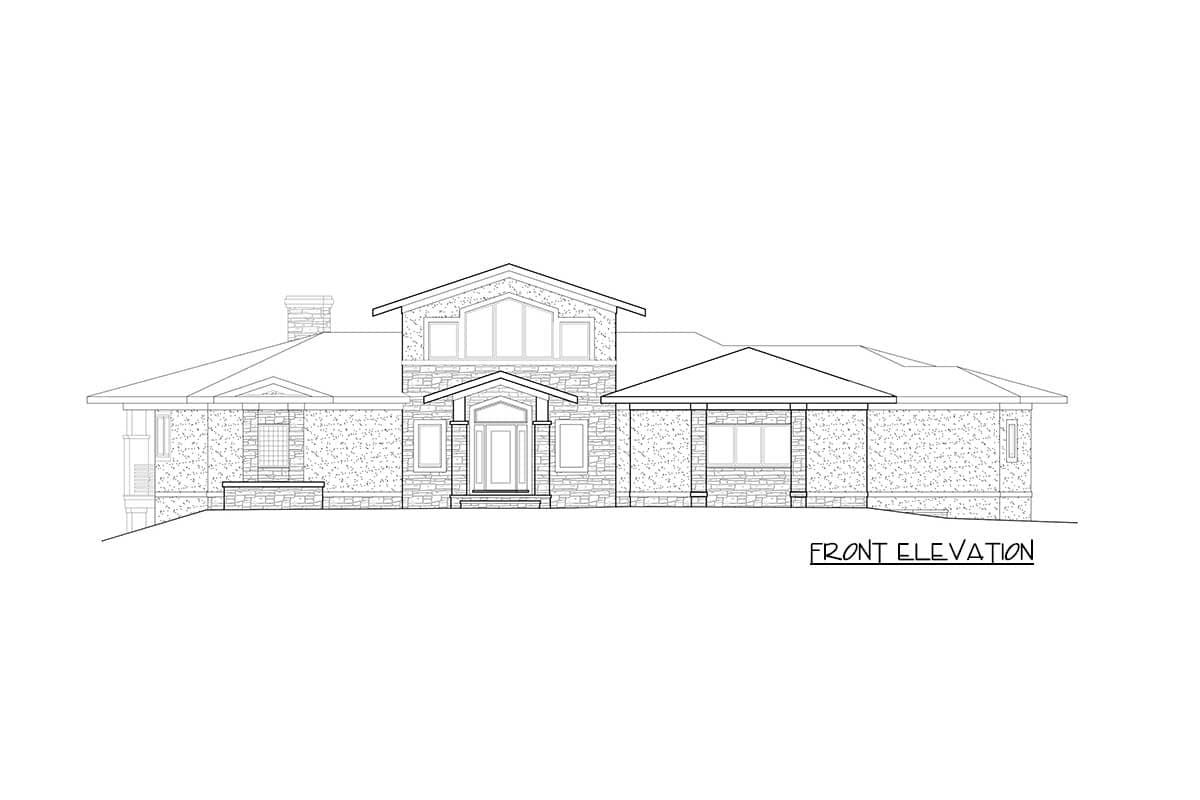

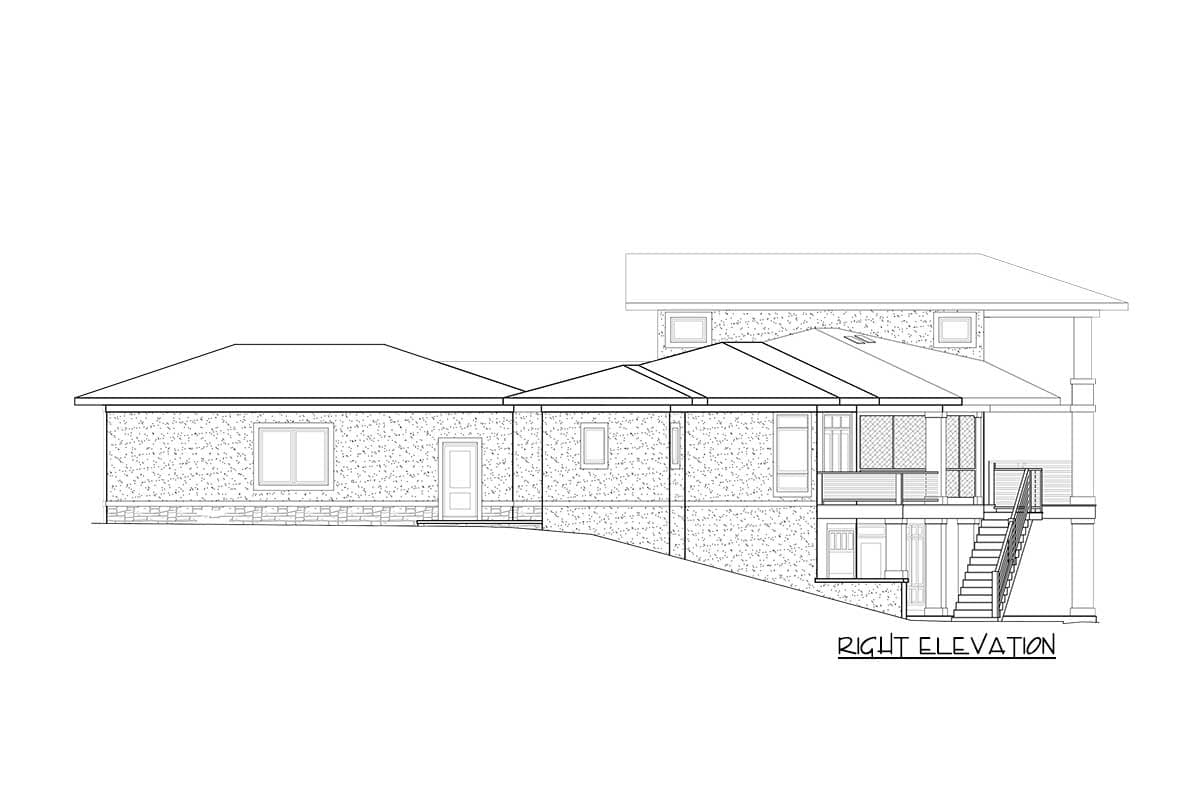

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

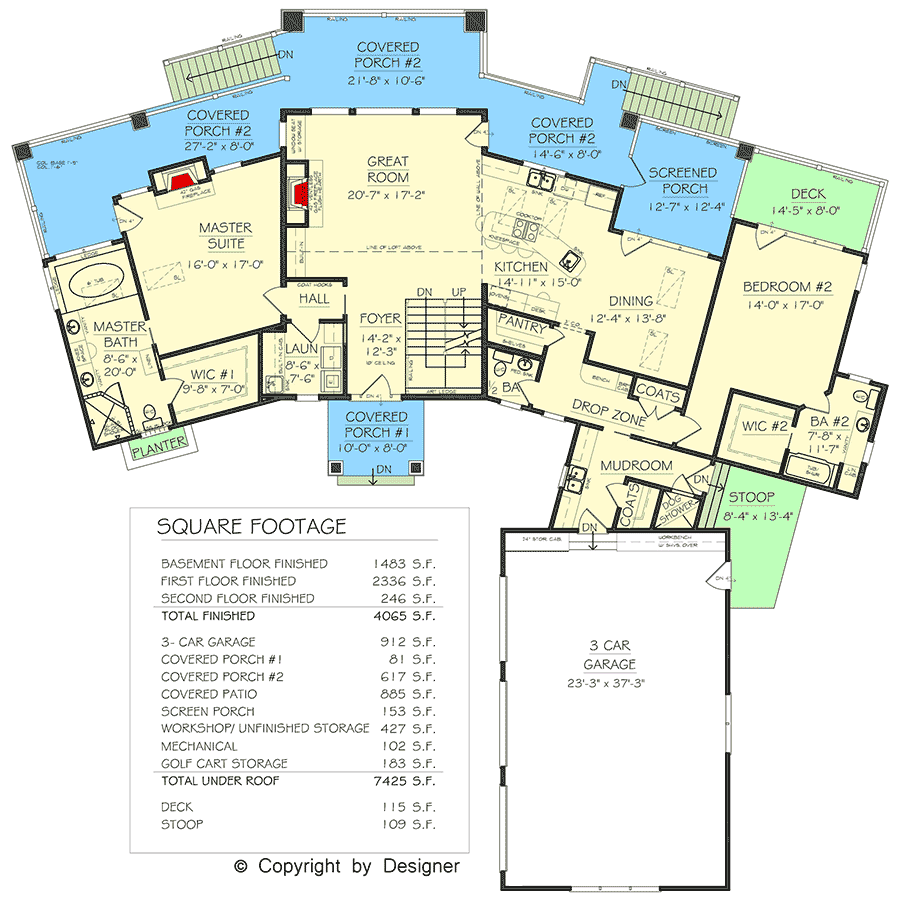

Prairie-inspired House Plan with Vaulted Great Room for the Rear Sloping Lot - 871011JEN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

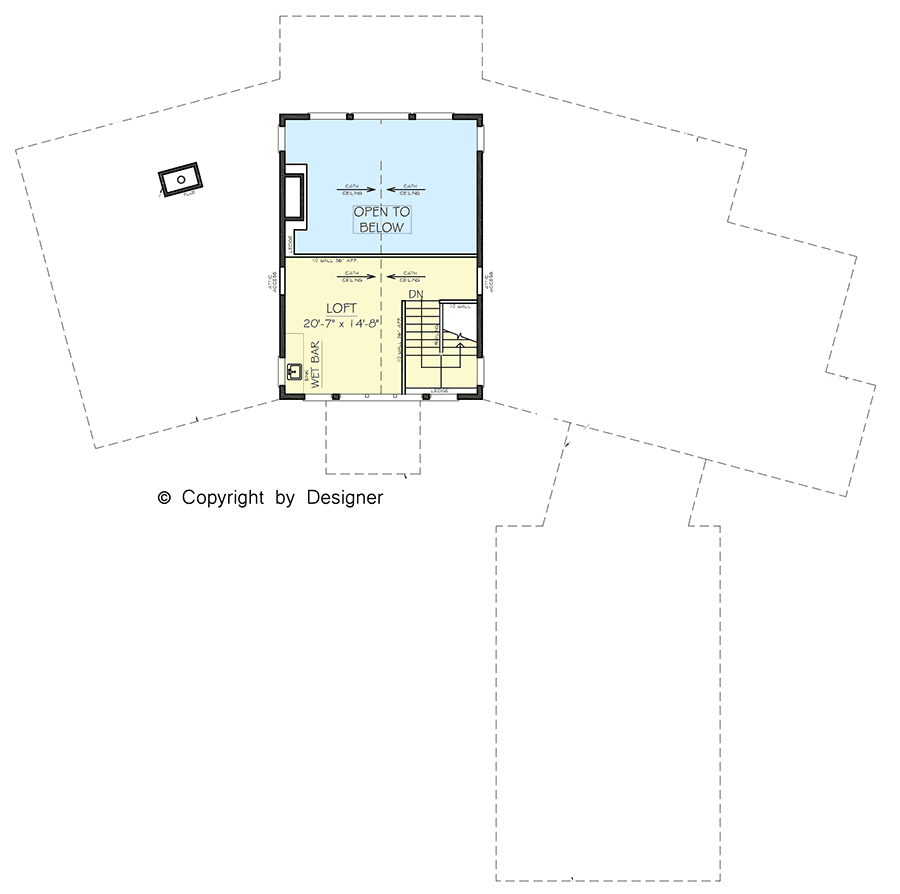

Prairie-inspired House Plan with Vaulted Great Room for the Rear Sloping Lot - 871011JEN floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

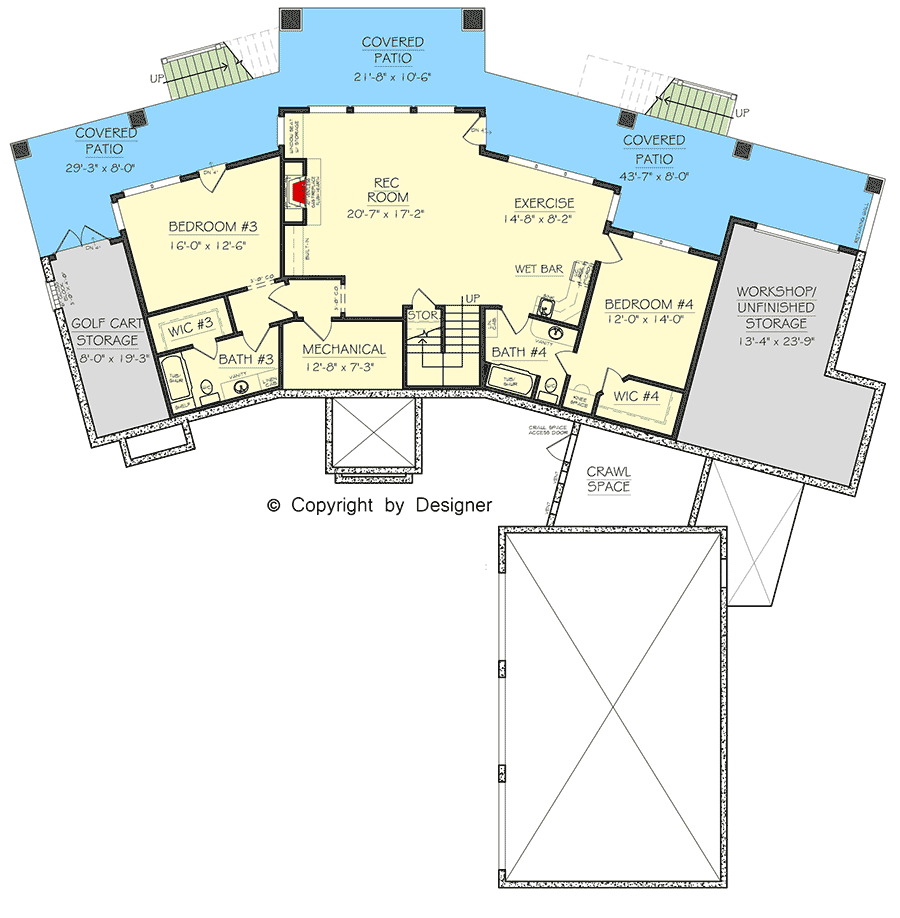

Prairie-inspired House Plan with Vaulted Great Room for the Rear Sloping Lot - 871011JEN floor plan - Lower Level

Plan details

Prairie-inspired House Plan with Vaulted Great Room for the Rear Sloping Lot

  • 4,065

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • 5 Sets + PDF $2,145
  • PDF - Unlimited Build $2,595
  • CAD - Single-Build $2,895
  • View all purchase option online

About This Plan

  • With large windows on the rear elevation and outdoor living spaces along the entire backside of the home, this Prairie-inspired home plan was designed to take advantage of rearward views.
  • The great room gains volume from the vaulted ceiling, with an overlooking loft, and the open concept allows you to easily move into the kitchen and adjoining dining room.
  • The master suite conveniently neighbors the laundry room and includes a 5-fixture bath. On the opposite side of the home, discover a second bedroom suite with a private deck.
  • A mudroom can be found just inside from the 3-car garage, complete with a dog shower and nearby drop zone.
  • Downstairs, two additional bedrooms flank a large rec room with a wet bar and space for exercise equipment. Plenty of unfinished space can serve as a workshop or golf cart storage.
  • The exterior walls are 2 x 4 with the exception of the two-story walls in the Great Room which are 2 x 6 framing.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,065 sq. ft.
  • Lower Level: 1,483 sq. ft.
  • 1st Floor: 2,336 sq. ft.
  • 2nd Floor: 246 sq. ft.
  • Storage: 427 sq. ft.
  • Covered Patio: 885 sq. ft.
  • Screened Porch: 153 sq. ft.
  • Golf Cart Stor.: 183 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 92' 2"
  • Depth: 92' 7"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 912 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Lower level 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick
