Plan 890063AH

Prairie Style House Plan with In-Law Suite

Heated S.F.
3,187
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 890063AH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 890063AH

M-F 9am-5pm EST |

1-203-761-8500

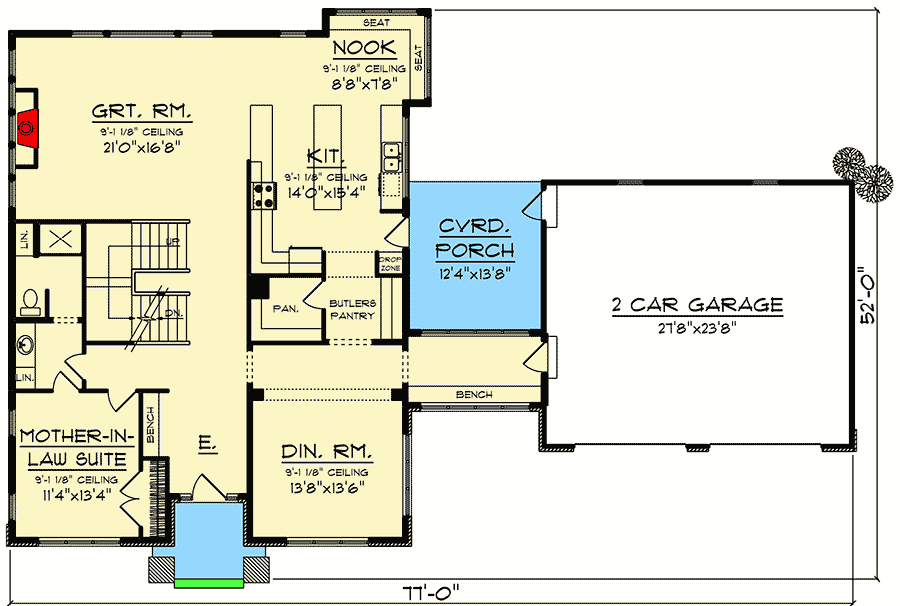

Main Level

Plan 890063AH: Prairie Style House Plan with In-Law Suite - Floor Plan - Main Level - Northwest, Prairie

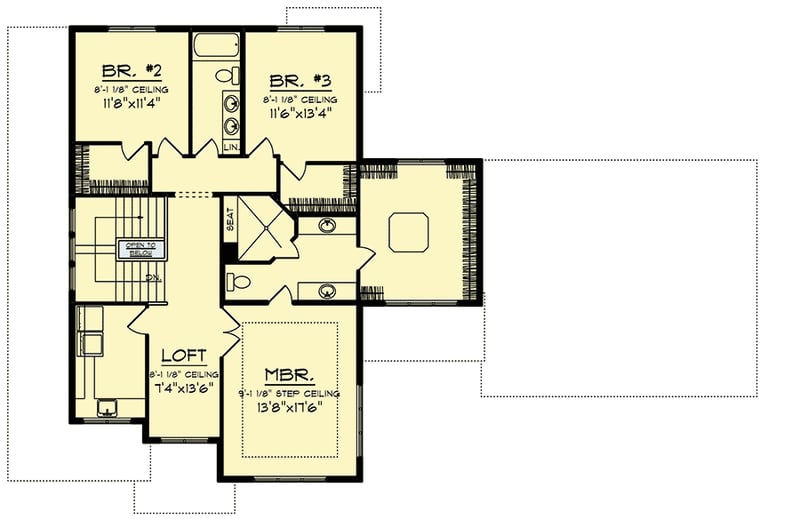

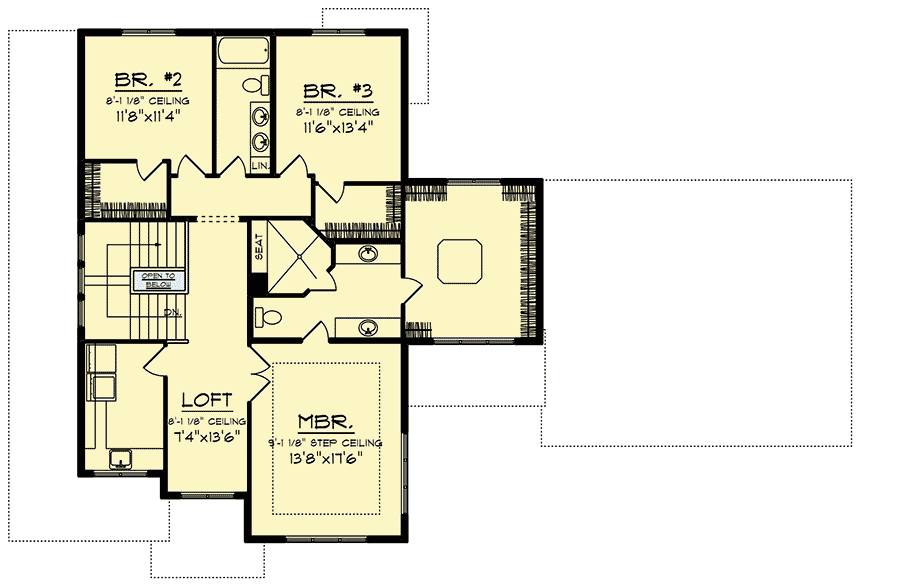

2nd Floor

Plan 890063AH: Prairie Style House Plan with In-Law Suite - Floor Plan - 2nd Floor - Northwest, Prairie

Plan Details

  • This modern home features an updated open concept floor plan with a mother-in-law’s suite located just off the entry to the left.
  • The formal dining area is found off the right of the entry and is accessed from the kitchen through a butler’s pantry.
  • The spacious kitchen is a chef’s dream with large central island and access to both the formal dining room and everyday nook.
  • The large great room includes a central fireplace flanked by windows that allow natural light into the living area.
  • The master suite is located upstairs and is sure to please mom with a step ceiling, dual sinks and spacious walk-in closet.
  • Two additional bedrooms, a loft, full bath and laundry are also located on the second floor.

What's Included

  • General Notes

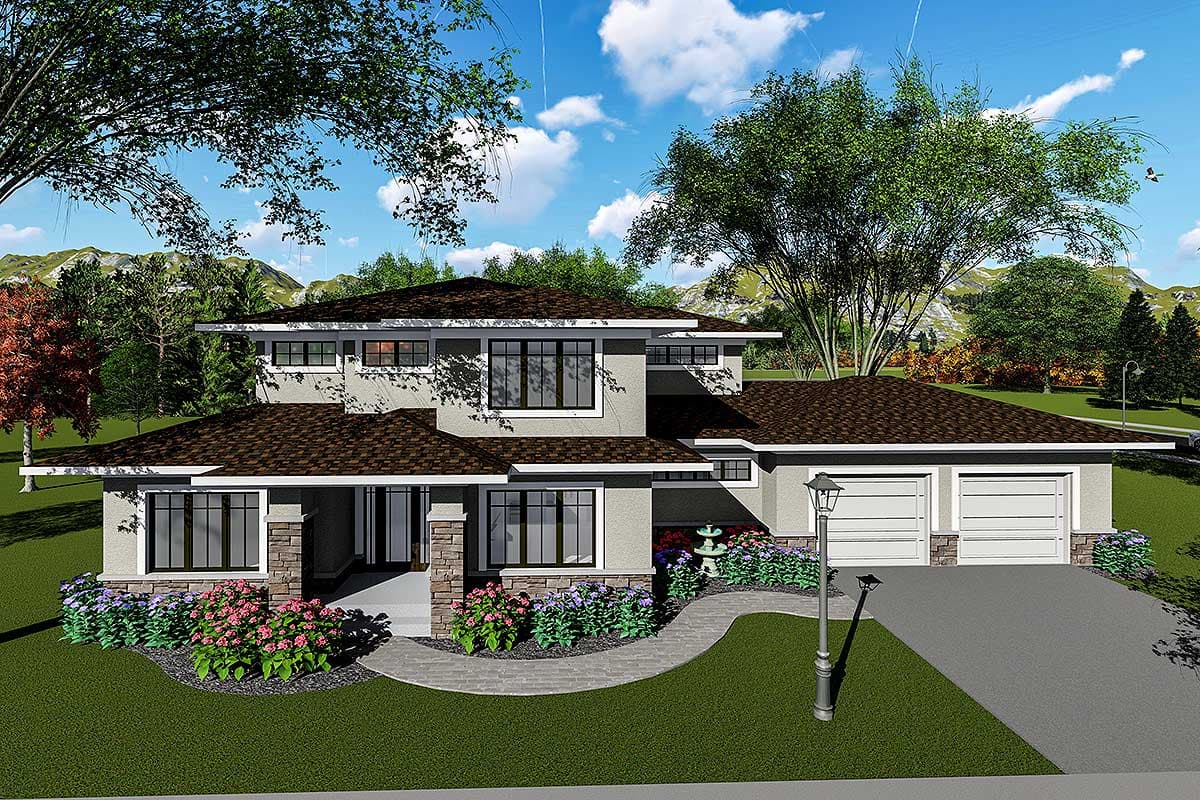

  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,187 sq. ft.

1st Floor

1,789 sq. ft.

2nd Floor

1,398 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

52' 0"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

687 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Breakfast Nook

Formal Dining

In-Law Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs
