Plan 36147TX
Private Balconies for All
Heated S.F.
12,720
Beds
6
Baths
5.5+
Stories
2
Cars
5
What's Included
Plan Details
  • Upon entering this gracious European manor, the 23' ceiling in the foyer welcomes you as the double spiral staircase accentuates the great openness of this luxury home. To the right is the living room with its 23' coffered ceiling and media room with alcoves and storage.
  • To the left of the foyer is the dining room and a study with a coffered ceiling and fireplace.
  • The arcade leads to the kitchen, or through the rotunda to the gallery, utility room and five-car garage.
  • On the other side of the house, passing through the arcade and rotunda leads to the exercise room. This area of the home also offers a guest suite with fireplace and full bath.
  • The abundant great room is open to the breakfast room and kitchen, and is central to all rooms on the first floor.
  • Behind the great room is the terrace, and off the breakfast rea is a patio.
  • The second story showcases the master suite including the barrel vaulted master bath, balcony access, wardrobe, storage and utility area.

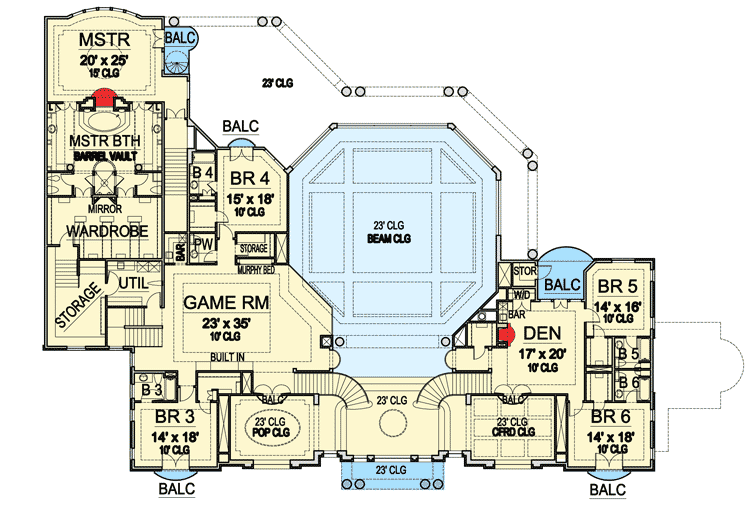

  • The second floor has four additional bedrooms with baths and private balconies. A den and game room complete this floor plan.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Private Balconies for All

  • 12,720

    Heated s.f.

  • 6

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 5

    Car garage

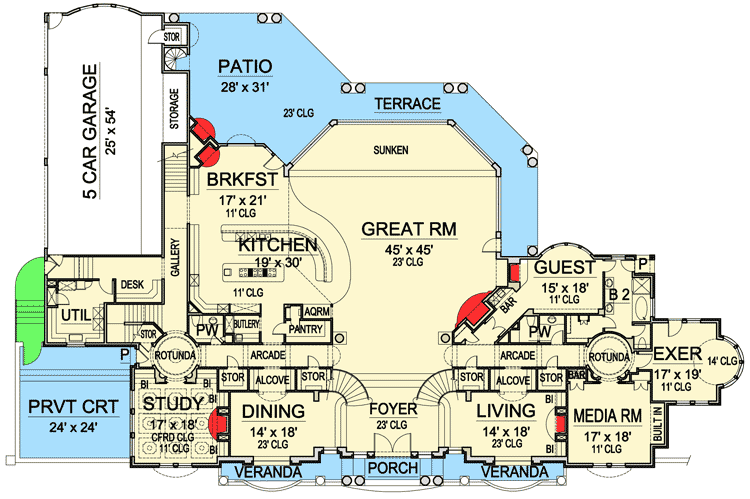

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 12,720 sq. ft.
  • 1st Floor: 7,689 sq. ft.
  • 2nd Floor: 5,031 sq. ft.

Dimensions

  • Width: 152' 0"
  • Depth: 105' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 3

Garage

  • Type: Attached
  • Area: 1514 sq. ft.
  • Count: 5 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"
