Quad-tandem Garage with Contemporary Vibe

Plan 68914VR

  • 0

    Heated s.f.

  • 1

    Stories

  • 4-8

    Cars

  • This sleek one-story garage plan is for the car lover. It has side-by-side tandem bays on both sides giving you the ability to park up to 8 vehicles tandem-style.
  • Each bay has its own 10' wide and 12' high overhead garage door. The third bay has a 10' wide and 8' high overhead door in back.
  • The ceiling rises from 10' in back to 15' in front.
  • Related Plans: Get a 28' deep version with plan 680033VR and convert the right side to living quarters with plan 68728VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

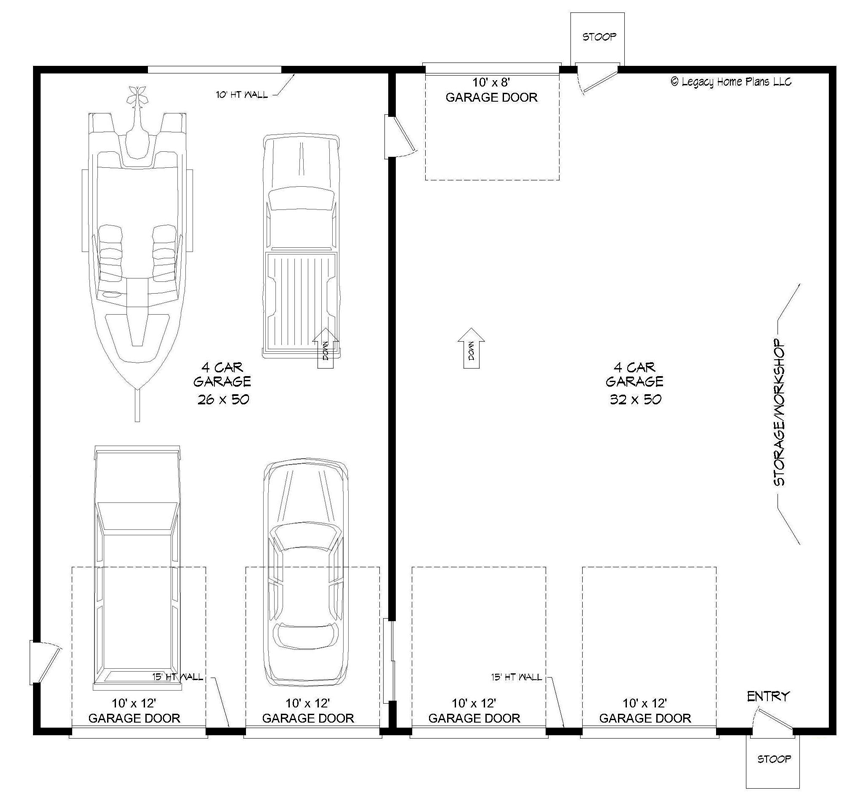

Quad-tandem Garage with Contemporary Vibe - 68914VR floor plan - Main Level
