Plan 46502LA
EXCLUSIVE
Quadplex with Matching 2117 Square Foot 2 Bed Units Plus a Flex Room
Heated S.F.
8,456
Units
4
Width
89' 3"
Depth
58'
Cars
8
What's Included
Plan Details
  • This quadplex house plan gives you 4 units each with 2,114  square feet of heated living space (859 sq. ft. on the first floor, 845 sq. ft. on the second floor and 410 sq. ft. on the lower level).
  • Each unit has 2 beds with their own baths on the second floor and a possible third bed with bath in the lower level. Alternatively, you can use that bedroom as a home office instead.
  • Each unit also has a 465 square foot 2-car garage with rear access.
  • NOTE: Please allow 20 to 25 days for delivery.
Unit A
2,114 Sq. Ft.
410 Sq. Ft. Lower Level
859 Sq. Ft. 1st Floor
845 Sq. Ft. 2nd Floor
3 Beds
3 Full Baths
1 Half Bath
2 Vehicle
Attached
465 Sq. Ft.
22' 4" w 58' d 37' 9" h
Unit B
2,114 Sq. Ft.
410 Sq. Ft. Lower Level
859 Sq. Ft. 1st Floor
845 Sq. Ft. 2nd Floor
3 Beds
3 Full Baths
1 Half Bath
2 Vehicle
Attached
465 Sq. Ft.
22' 4" w 58' d 37' 9" h
Unit C
2,114 Sq. Ft.
410 Sq. Ft. Lower Level
859 Sq. Ft. 1st Floor
845 Sq. Ft. 2nd Floor
3 Beds
3 Full Baths
1 Half Bath
2 Vehicle
Attached
465 Sq. Ft.
22' 4" w 58' d 37' 9" h
Unit D
2,114 Sq. Ft.
410 Sq. Ft. Lower Level
859 Sq. Ft. 1st Floor
3380 Sq. Ft. 2nd Floor
3 Beds
3 Full Baths
1 Half Bath
3 Vehicle
Attached
465 Sq. Ft.
22' 4" w 58' d 37' 9" h
What's Included
  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
What's Not Included
  • NOTE: Please allow 20 to 25 days for delivery.
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Quadplex with Matching 2117 Square Foot 2 Bed Units Plus a Flex Room

  • 8,456

    Heated s.f.

  • 4

    Units

  • 89' 3"

    Width

  • 58'

    Depth

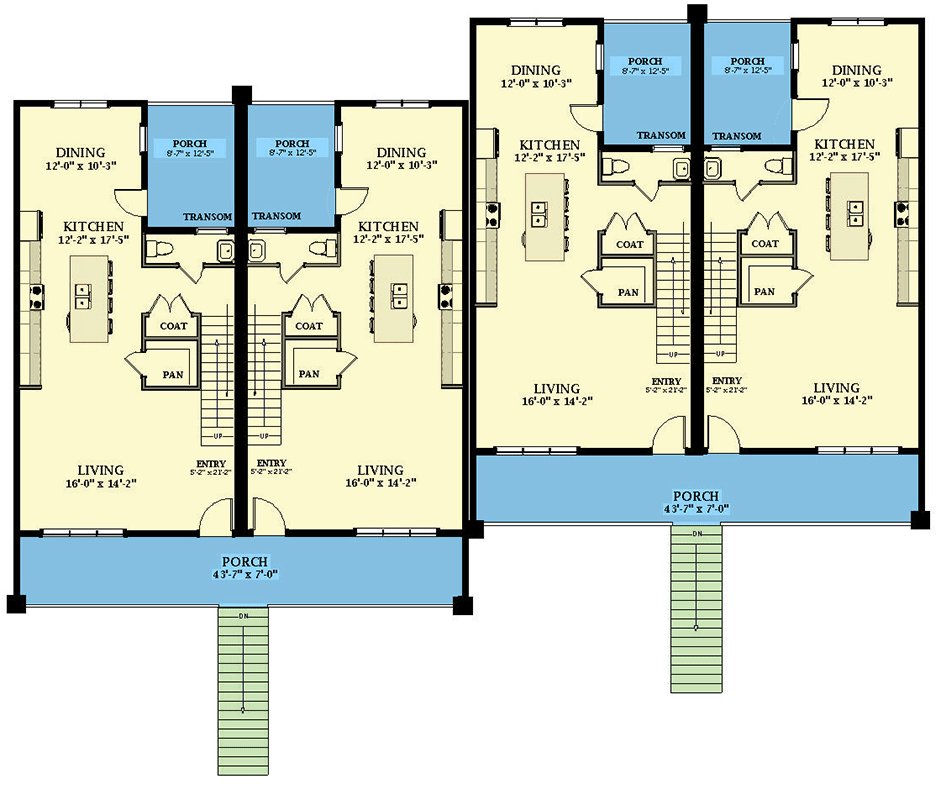

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 8,456 sq. ft.
  • Lower Level: 1,640 sq. ft.
  • 1st Floor: 3,436 sq. ft.
  • 2nd Floor: 3,380 sq. ft.

Dimensions

  • Width: 89' 3"
  • Depth: 58' 0"
  • Max ridge height: 37' 9"

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Garage

  • Type: Drive Under
  • Area: 1860 sq. ft.
  • Count: 8 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 9' 0"
