Plan 80643PM
Quiet Cottage Retreat
Heated S.F.
1,637
Beds
2
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 80643PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80643PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

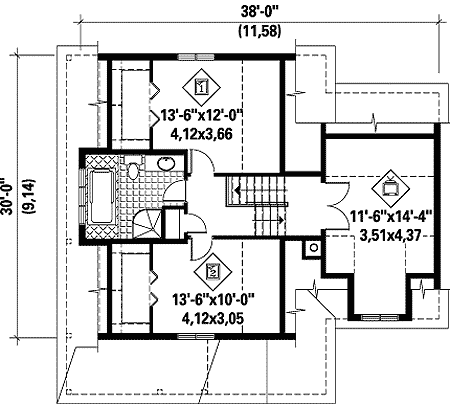

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This superb cottage has a spacious veranda and several large windows, and will be the ideal second home for those who like to spend a lot of time in the country.
  • The house is 36 feet wide by 36 feet deep and provides 1,637 square feet of living space in addition to a 288 square foot one-car garage.
  • The ground floor offers 795 square feet of living space and includes a closed entrance hall, a living room with a cathedral ceiling and a corner fireplace, a large functional kitchen with an island, a dining room overlooking the back terrace, and a powder room with a laundry area.
  • The upper floor covers 842 square feet and includes a bathroom, two bedrooms with a walk-in closet, as well as a den located above the garage.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,637 sq. ft.

1st Floor

795 sq. ft.

2nd Floor

842 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

36' 0"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

288 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Traditional

Vacation

Special Features

Den

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
