Plan 89976AH
Ranch House Plan with In-Law Suite
Heated S.F.
3,418
Beds
2
Baths
2.5
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • A sprawling ranch with unique features sums up this home.
  • Step ceilings are found in the entry and the dining room to your right as you enter the home.
  • A den with French doors lies to the left of the entry.
  • The great room, nook and kitchen all work together to create an open-concept floor plan with plenty of space to entertain.
  • An octagonal master and sunroom are tucked behind the garage.
  • The master includes a step ceiling, spacious walk-in closet, Jacuzzi tub and access to a private covered porch.
  • A mother-in-law's suite lies to the left of the home and includes a spacious walk-in closet and dual sinks.
  • Related Plan: Downsize and get an alternate exterior with house plan 89759AH.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch House Plan with In-Law Suite

  • 3,418

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

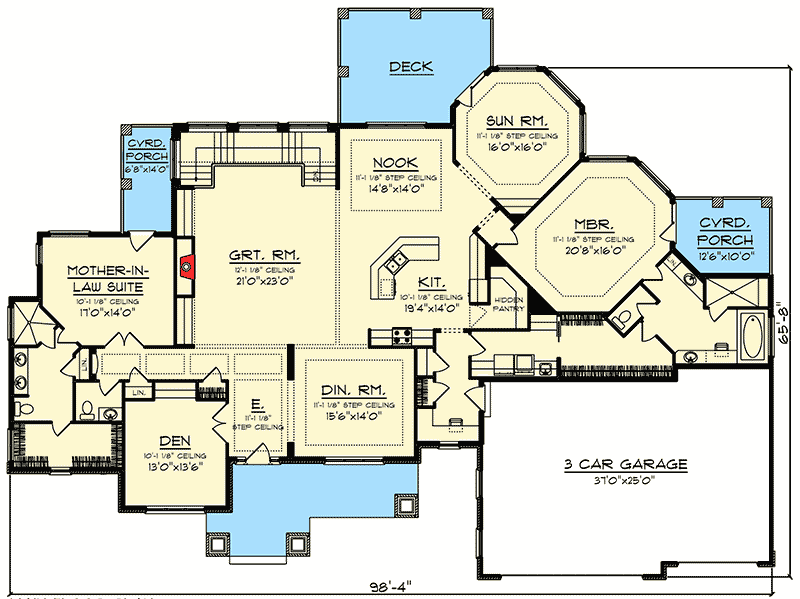

Floor Plan
