Plan 20157GA
Ranch House Plan with Split Beds
Heated S.F.
1,989
Beds
3
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • Tapered columns, timber-framed gables, and shake siding contribute to the great curb appeal of this one-level craftsman home plan. Stone accents complete the design.
  • The formal entry provides immediate views of the combined family room, dining area, and kitchen, with a fireplace serving as a focal point. A serving bar in the kitchen assists when entertaining.
  • A covered porch spans the width of the home, accessible from both the family room and master suite.
  • The rear-facing, master suite boasts dual walk-in closets, and the 5-fixture, en suite includes two sinks and a private toilet room.
  • A hallway off the foyer leads to bedrooms 2 and 3, which share a Jack-and-Jill bath. The 2-car garage protrudes at a 45 degree angle, adding dimension to the front elevation.
  • Related Plans: Move the master bath with house plans 20156GA and 20158GA.
What's Included
  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch House Plan with Split Beds

  • 1,989

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

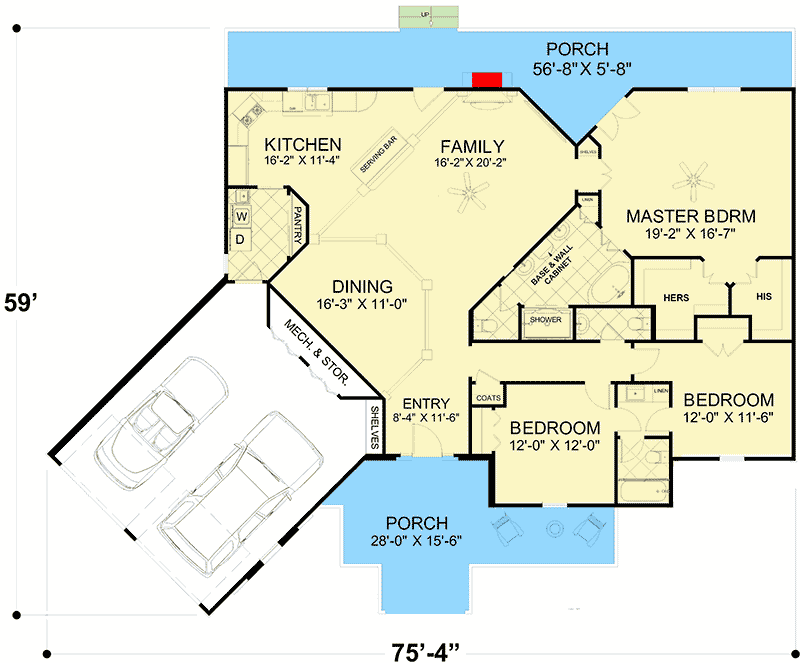

Floor Plan
