Plan 82271KA
Ranch House Plan with Workshop in 2-Car Garage
Heated S.F.
1,789
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Three columns support an inviting front porch on this 3-bedroom, ranch house plan. The open layout inside creates a great space for family and friends to gather.
  • The formal entry leads into a foyer with views into the dining room, great room, and kitchen. An angled kitchen island anchors the living space and the laundry room's close proximity to the kitchen helps when multi-tasking.
  • Sliding doors open to a concrete patio, providing the perfect space to grill or dine outside.
  • The owner's bedroom is privately located on the left side of the home. A pocket door reveals the attached master bath with two sinks, a commode room, and a walk-in closet.
  • Bedrooms 2 and 3 share a full bath, and a door across the hall provides easy access to the backyard. The forward-facing, 2-car garage includes a workspace area for a workshop or extra storage.
  • Related Plans: Get an alternate exterior with house plans 82269KA, 82270KA, and 82272KA.
What's Included

This plan set includes the following:

  • Cover Sheet

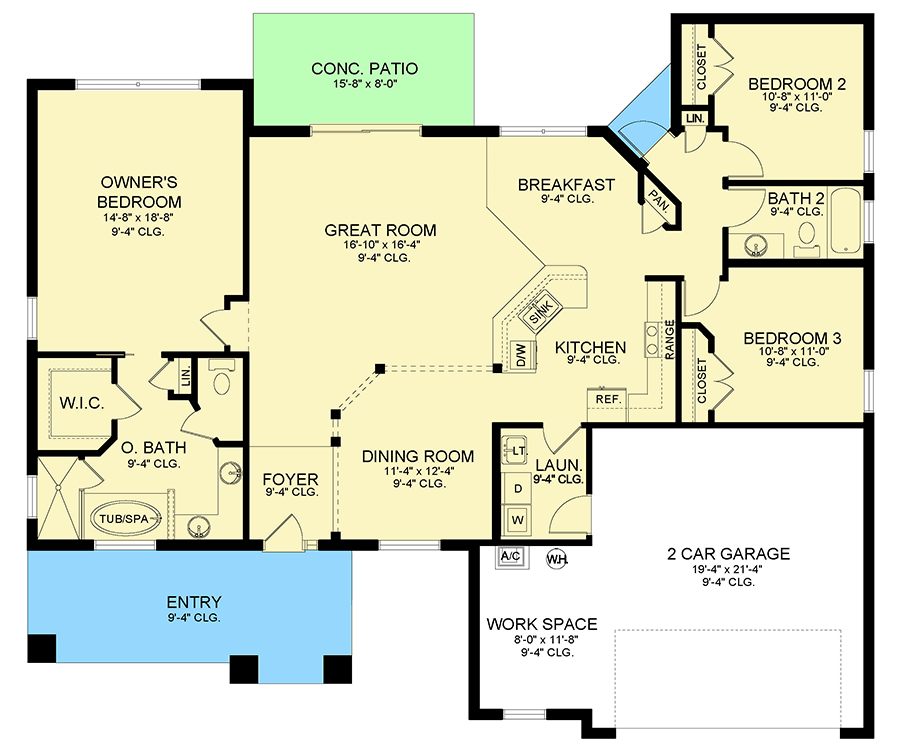

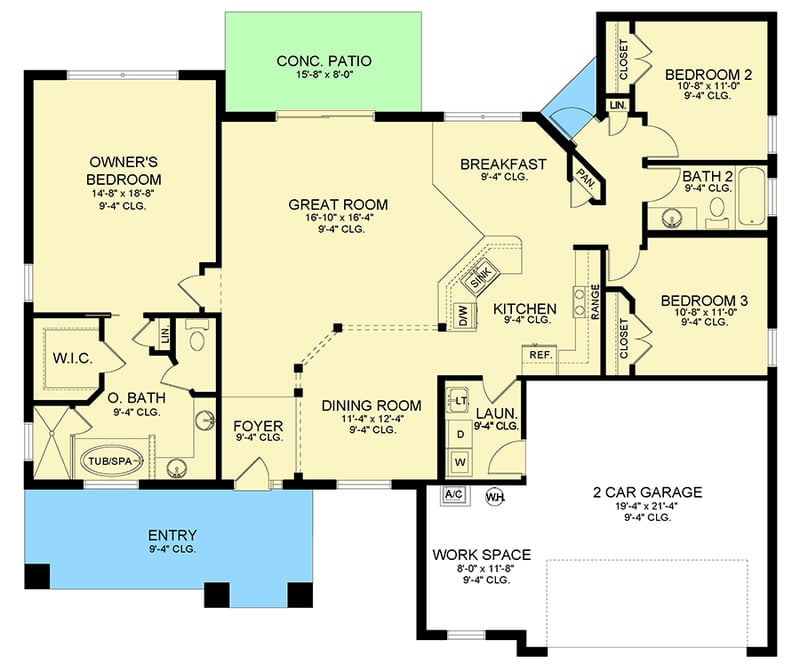

  • Foundation Floor Plan
  • Interior elevations

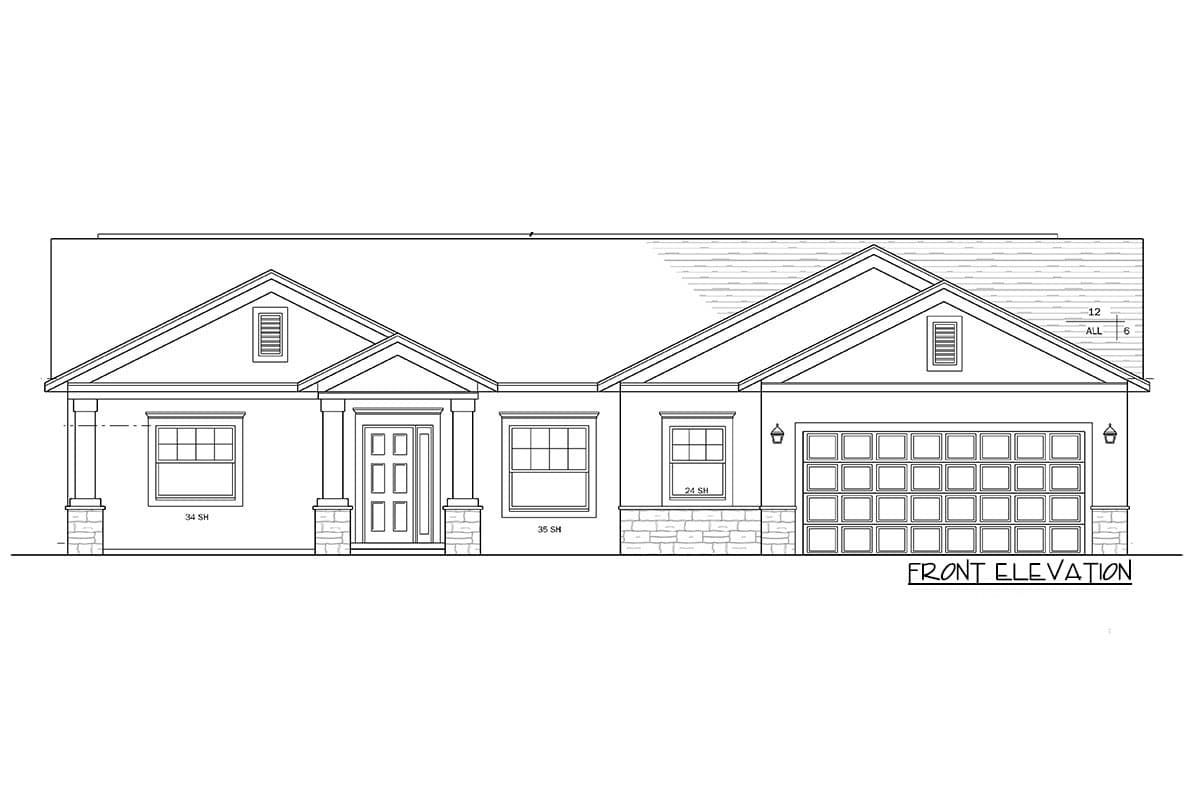

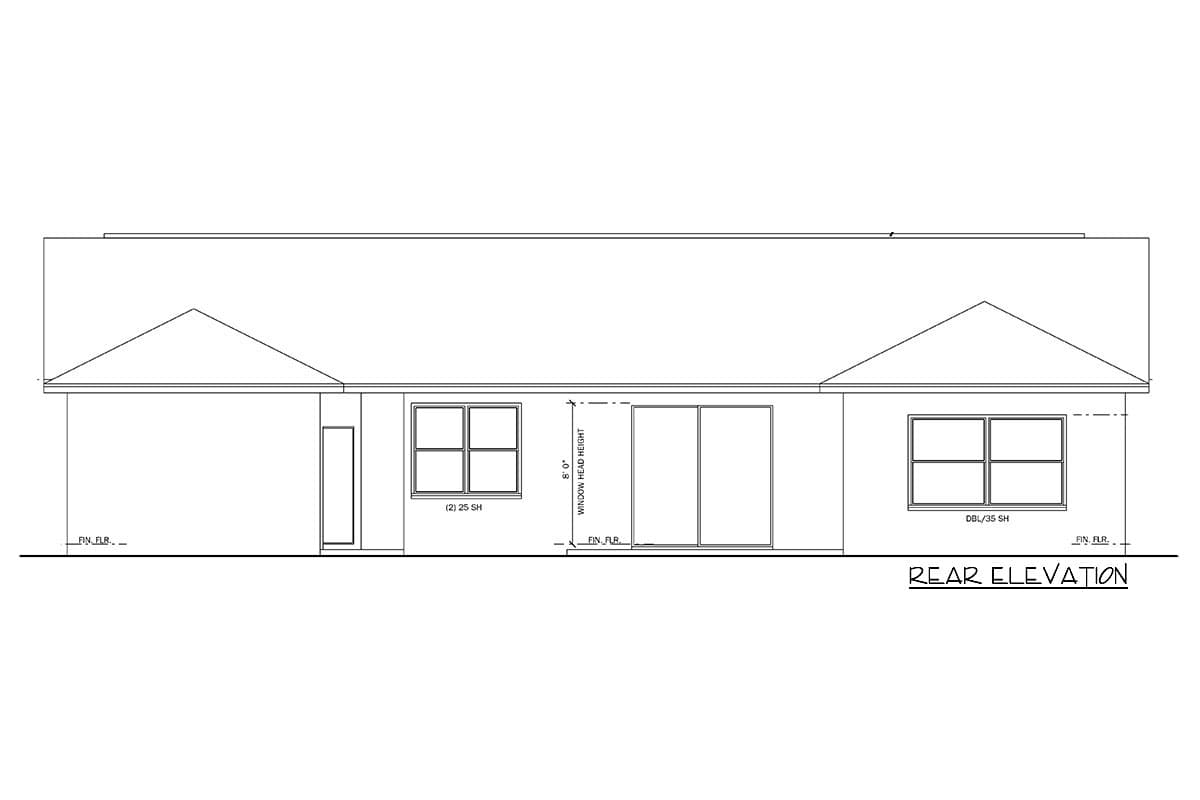

  • Front and rear elevations

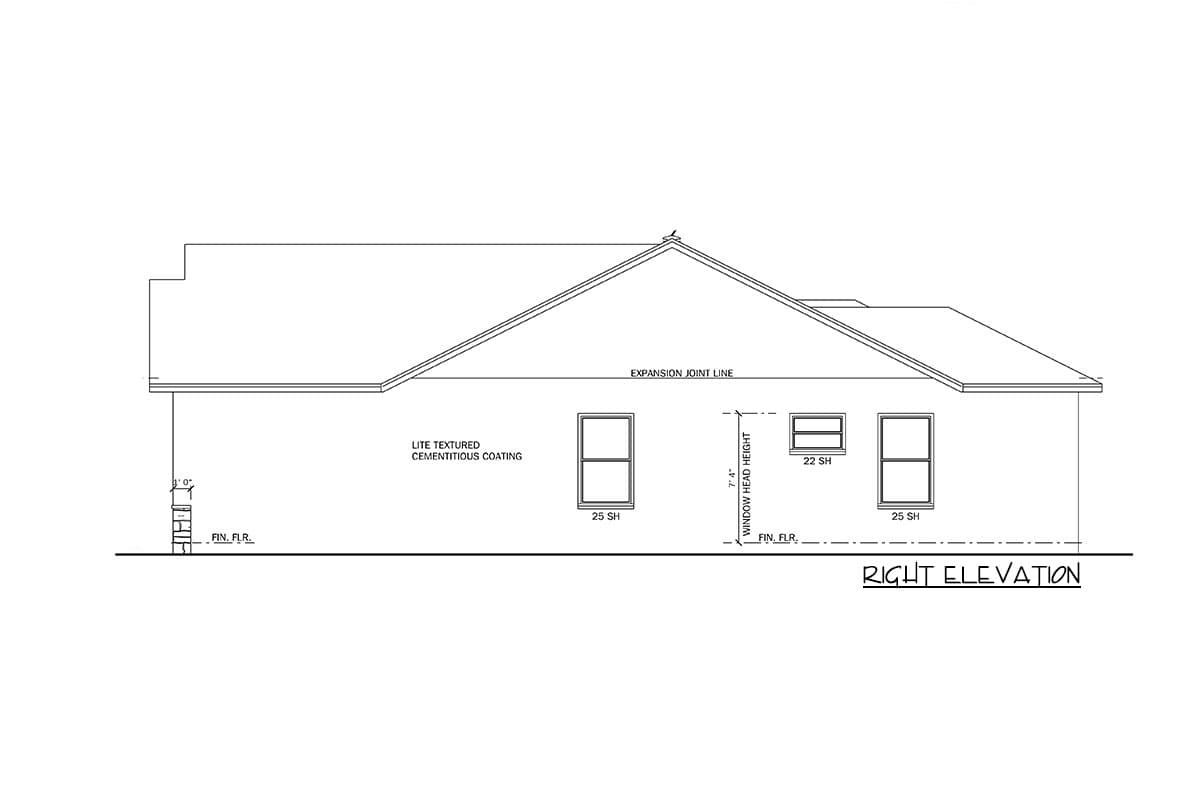

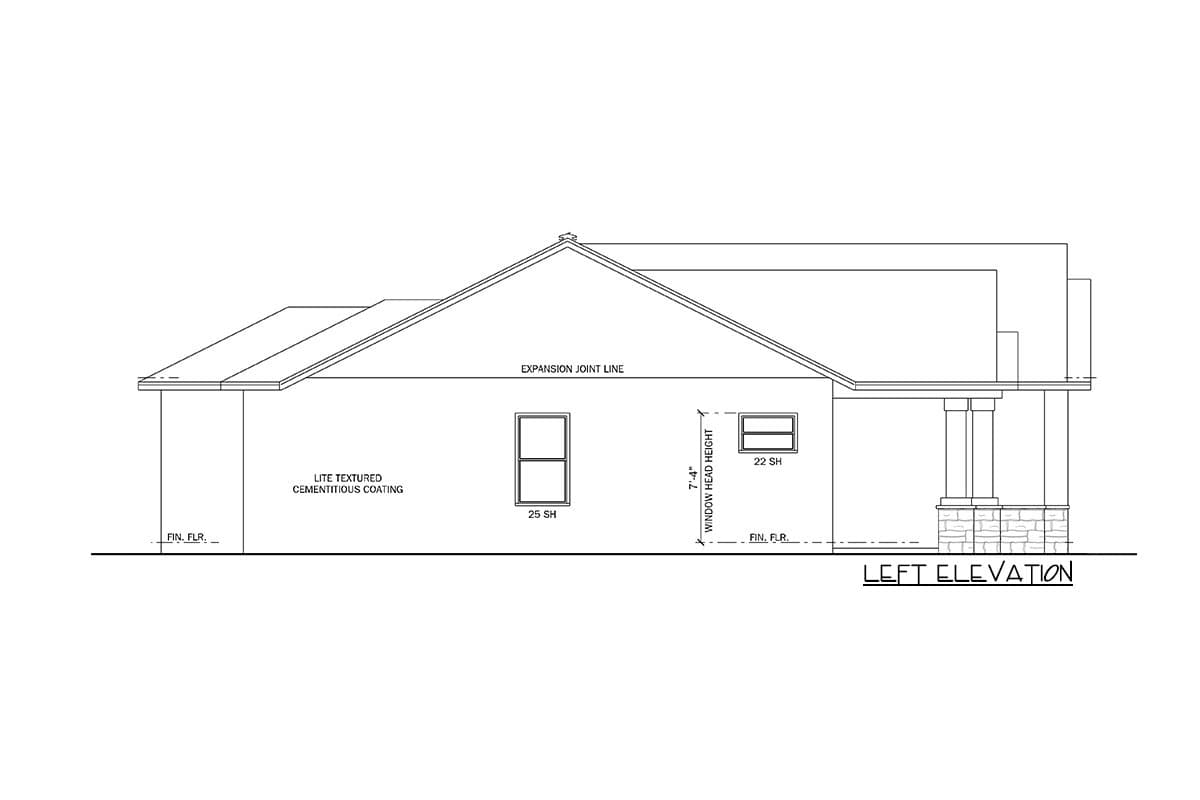

  • Side elevations
  • Electrical Plans
  • Lintel Plan
  • Structural Details (3 Pages)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Ranch House Plan with Workshop in 2-Car Garage

  • 1,789

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,789 sq. ft.
  • 1st Floor: 1,789 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 51' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 549 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
