Plan 86003BW
Remarkable Mediterranean House Plan
Heated S.F.
3,026
Beds
3
Baths
3.5
Stories
2
Cars
2
Plan Details
  • Stone and stucco plus a very detailed tile roof give this Mediterranean house plan major curb appeal.
  • The wide foyer flows back into the main living area where the L-shaped configuration give you a wonderful open floor plan.
  • A covered lanai wraps around the great room and has an outdoor grilling area at one end.
  • The large master suite boasts a tray ceiling, sliding doors to the lanai and his and her walk-in closets.
  • Upstairs, two bedrooms each have prviate bathrooms and one bedroom opens to a huge second floor balcony.
  • An open rail on either side of the hall lets you look down into the foyer and great room below.
  • Related Plan: Downsize with house plan 86002BW (2,906 sq. ft.) with a smaller guest bedroom.
  • NOTE: Contact us if buildingin Lee & Collier Counties, Florida, as certain restrictions may apply.









What's Included

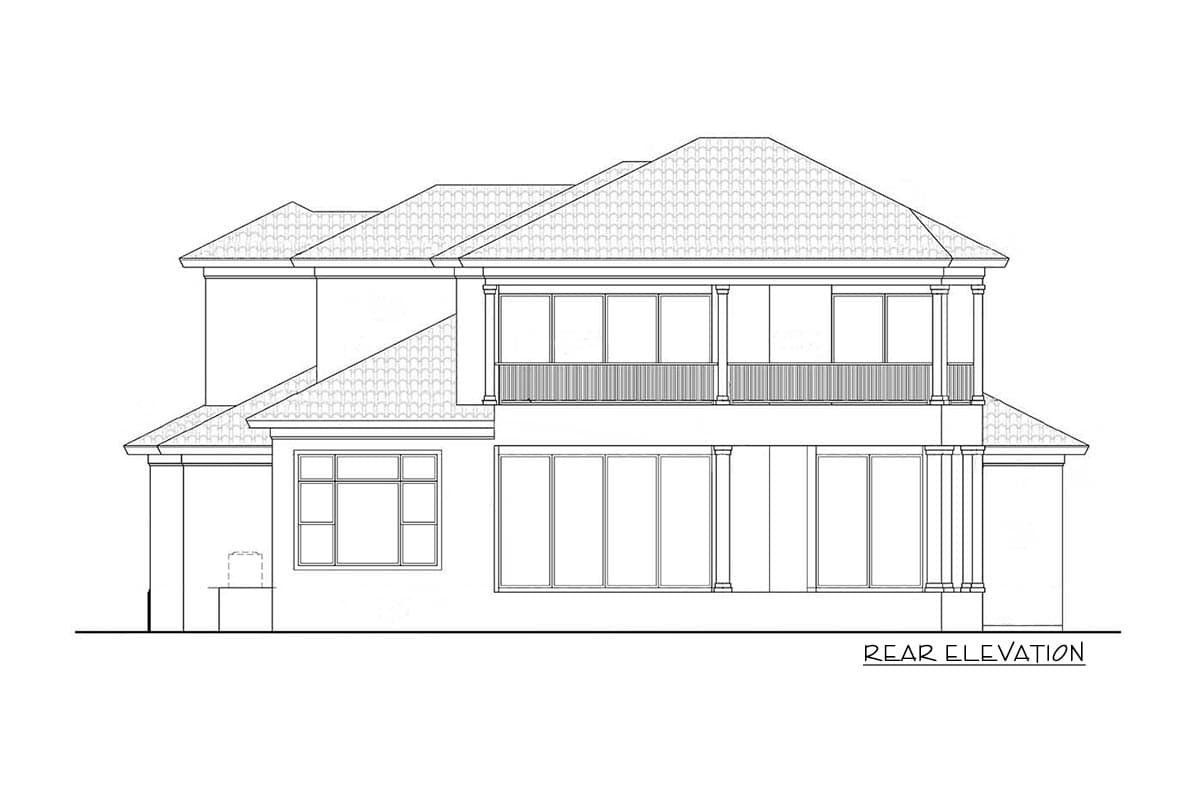

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Remarkable Mediterranean House Plan

  • 3,026

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,026 sq. ft.
  • 1st Floor: 2,178 sq. ft.
  • 2nd Floor: 848 sq. ft.

Dimensions

  • Width: 68' 6"
  • Depth: 56' 0"
  • Max ridge height: 33' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Remarkable Mediterranean House Plan

  • 3,026

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Remarkable Mediterranean House Plan

  • 3,026

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,026 sq. ft.
  • 1st Floor: 2,178 sq. ft.
  • 2nd Floor: 848 sq. ft.

Dimensions

  • Width: 68' 6"
  • Depth: 56' 0"
  • Max ridge height: 33' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

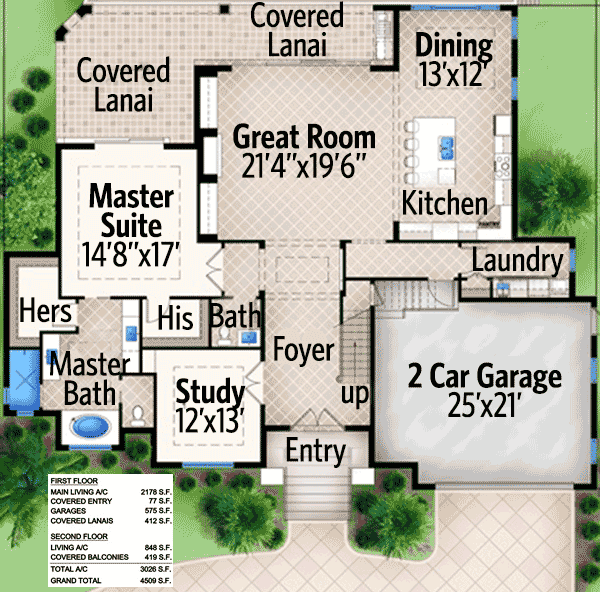

    Main Level

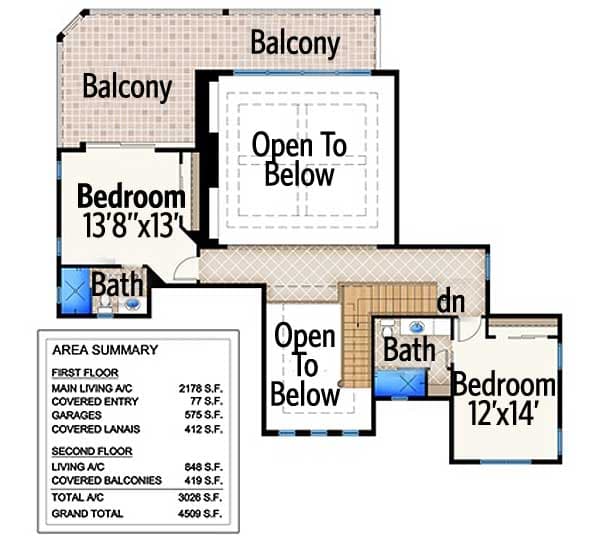

    2nd Floor
