Plan 21021DR
Romantic Hideaway
Heated S.F.
1,325
Beds
1-2
Baths
1.5
Stories
2
What's Included
Plan Details

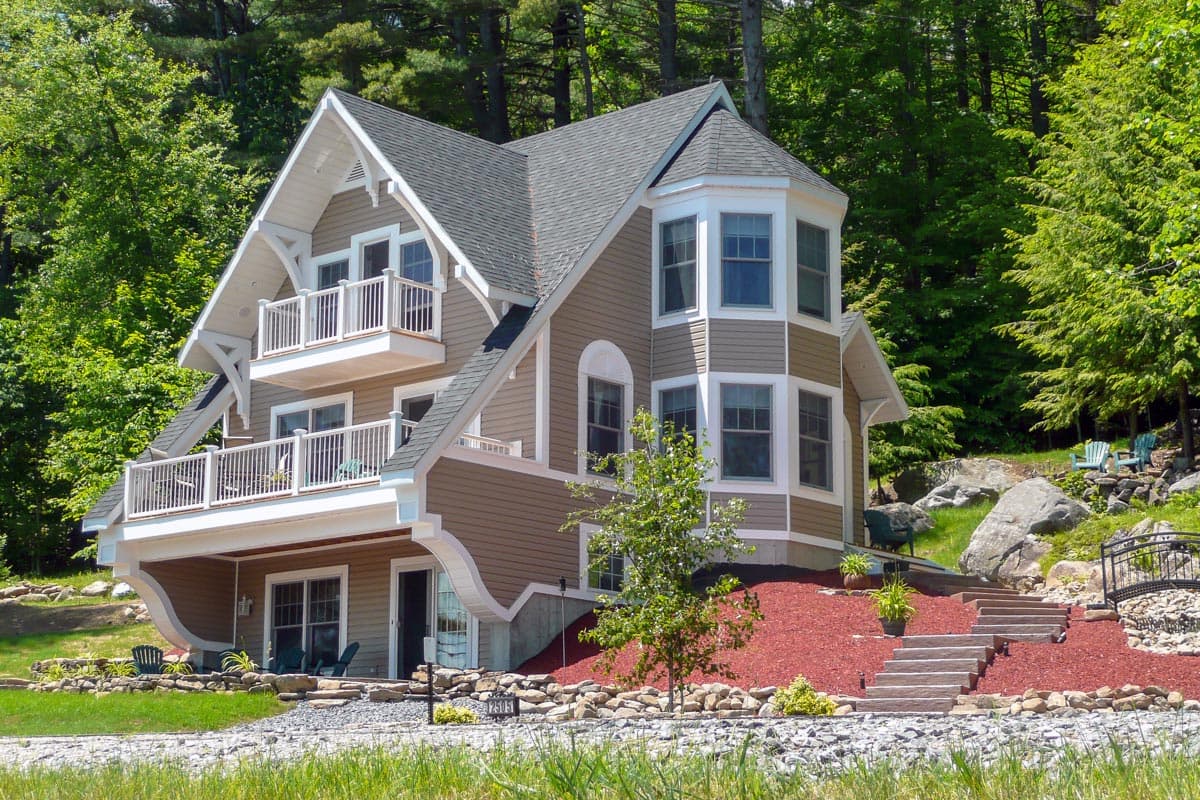

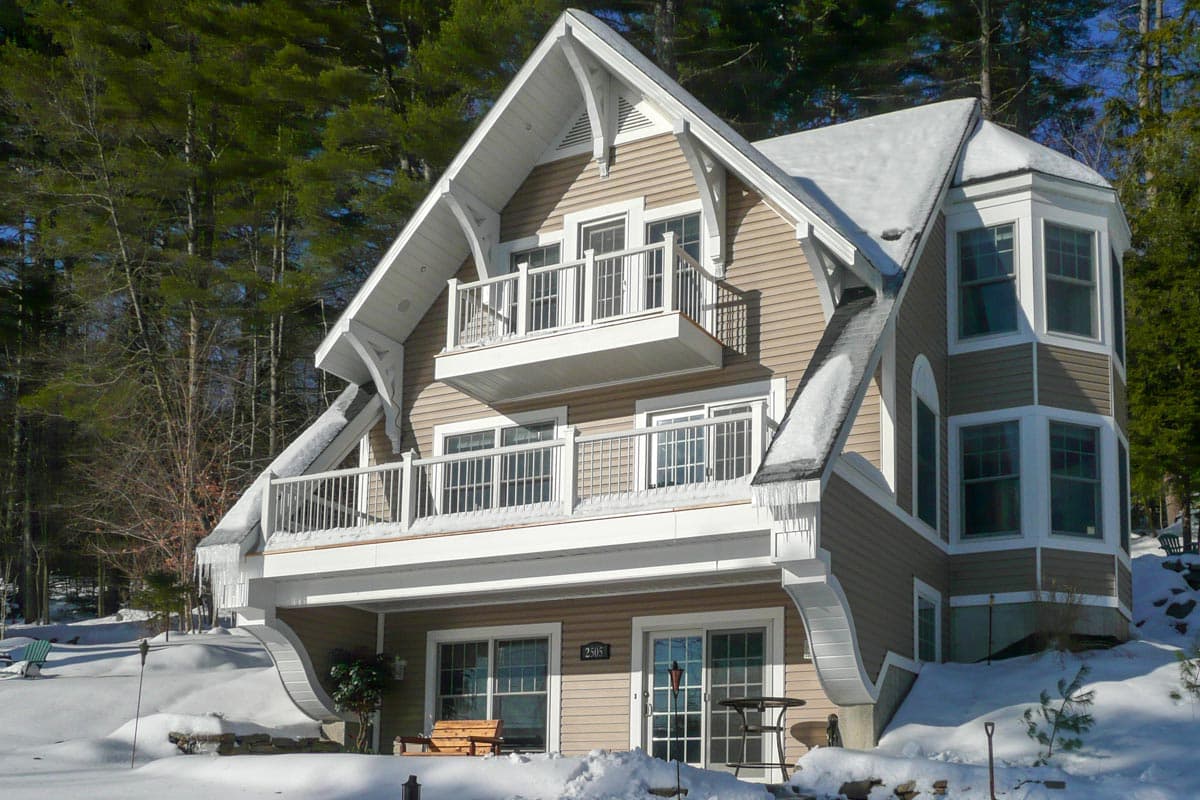

  • The exterior of this simply delightful all-season home is characterized by a two-story bay window, two balconies, many full length multi-paned windows and lovely angles.
  • Once inside, you will find amenities provided specifically for relaxation and pleasure.

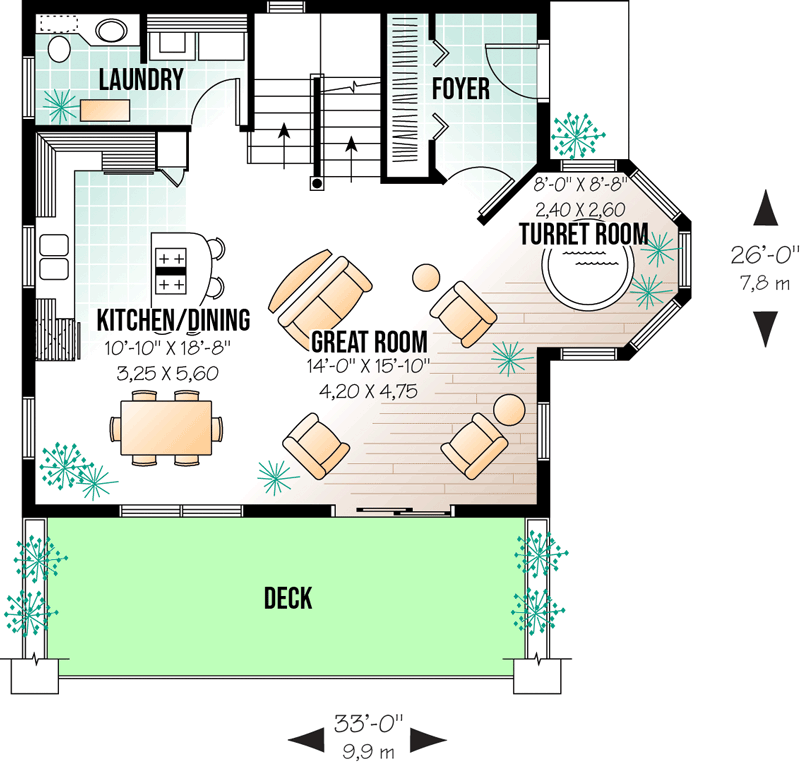

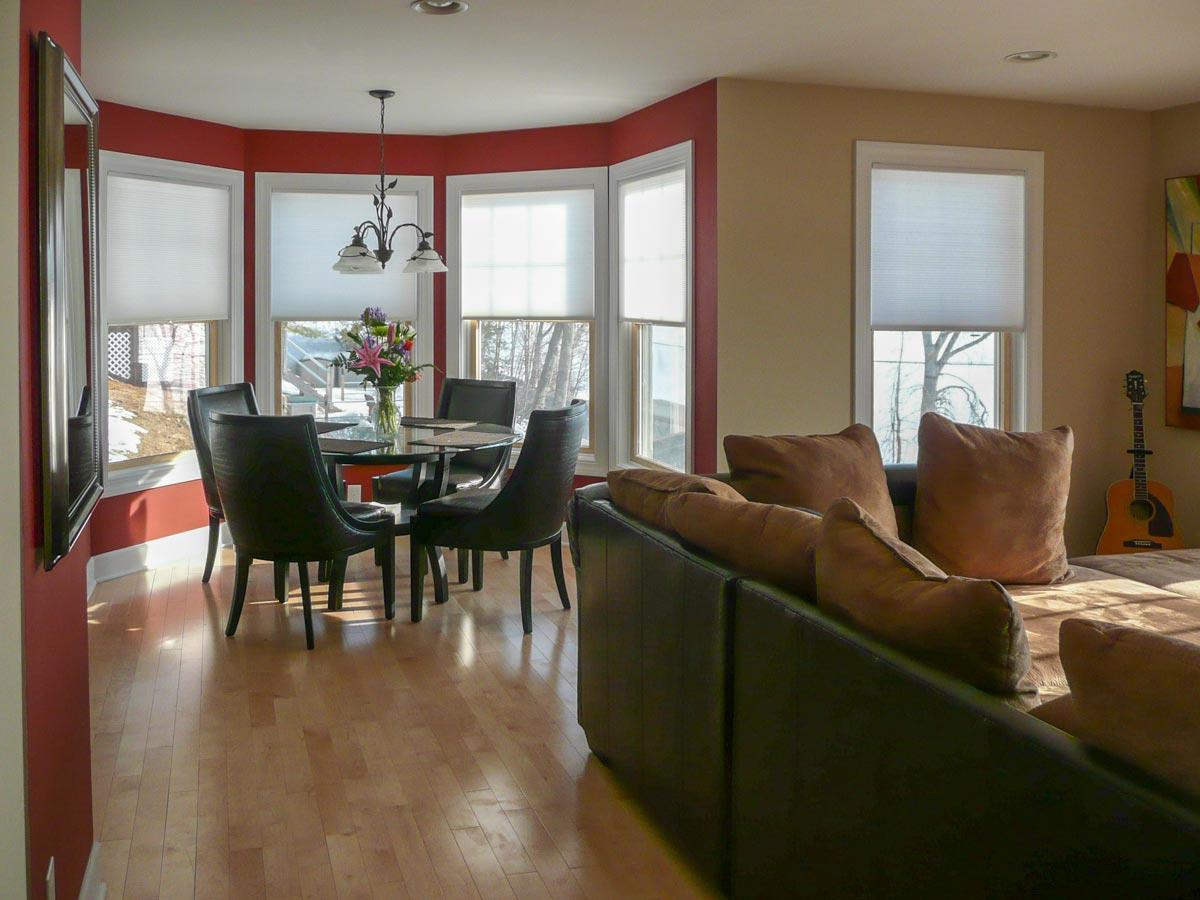

  • The covered side entrance opens into the living room. Immediately to your left is the bay window featuring its own hot tub.

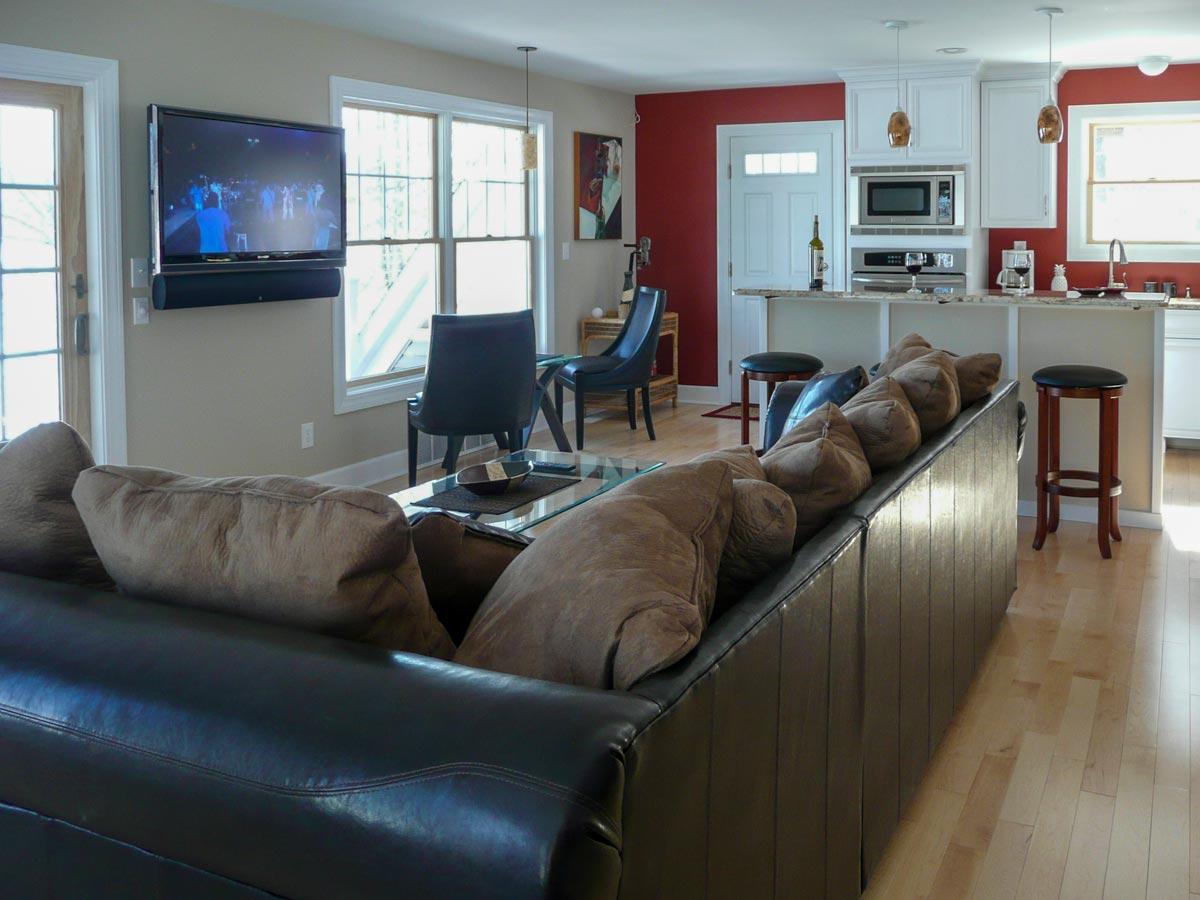

  • The living room has sliding door access to the front balcony and the adjoining kitchen and dining area are on the opposite side of the room, providing privacy for anyone relaxing in the hot tub.
  • A guest bath with laundry facilities is conveniently located near the kitchen.

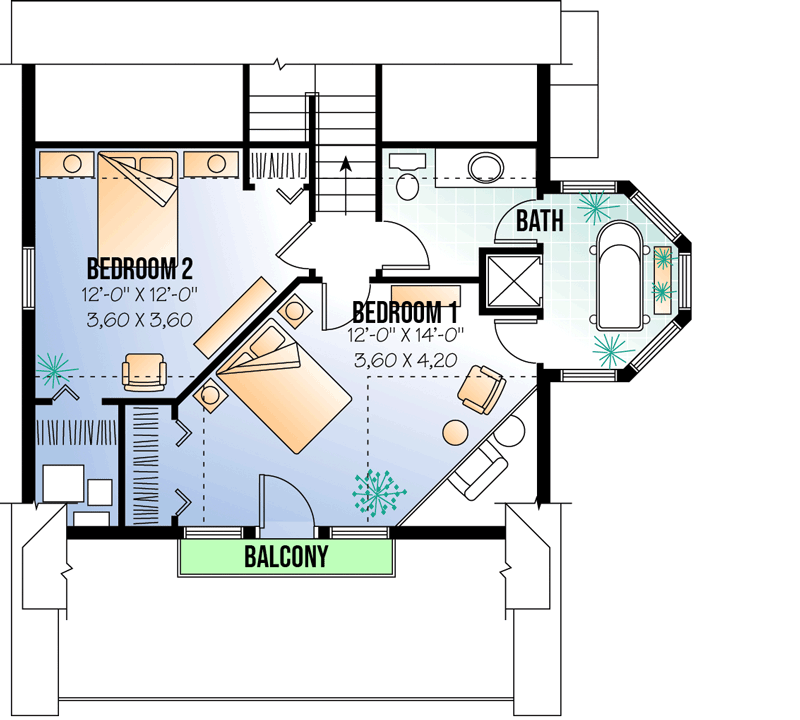

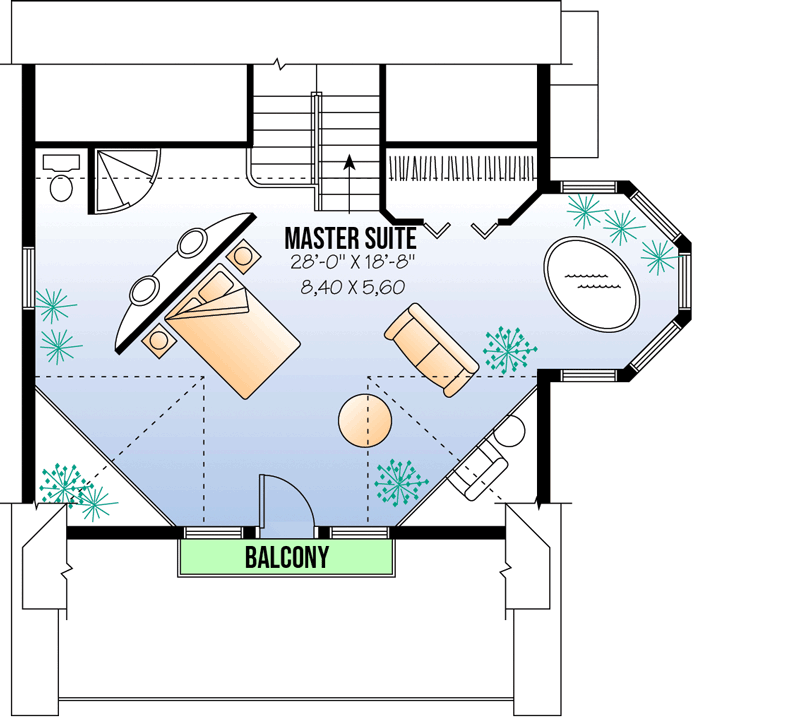

  • The upstairs offers two options. The first is to devote the entire floor to a master suite, complete with an amazing hot tub placed in the bay window area. The second option is to divide the space into two bedrooms with closets and a full bathroom. Both options include a mezzanine that overlooks the family room below.
  • A walkout basement completes this plan.
What's Included

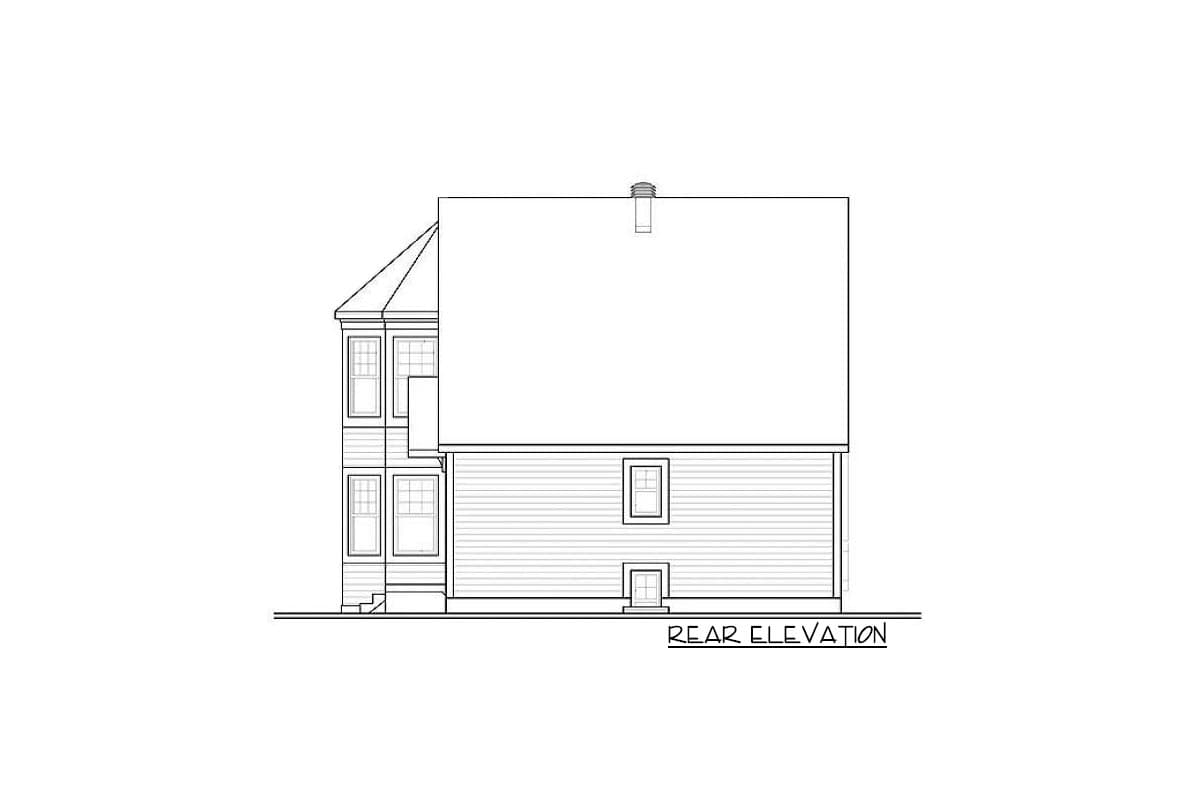

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Romantic Hideaway

  • 1,325

    Heated s.f.

  • 1-2

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • Alternate 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total: 1,325 sq. ft.
  • 1st Floor: 741 sq. ft.
  • 2nd Floor: 584 sq. ft.

Dimensions

  • Width: 33' 0"
  • Depth: 26' 0"
  • Max ridge height: 34' 1"

Beds/Baths

  • Bedrooms: 1 or 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
