Name: Plan 80731PM: Rooms for All
Brand: Architectural Designs
SKU: 80731PM
Price: 1795.0 USD
Availability: InStock

Heated S.F.

3,131

Beds

Baths

2.5

Stories

Cars

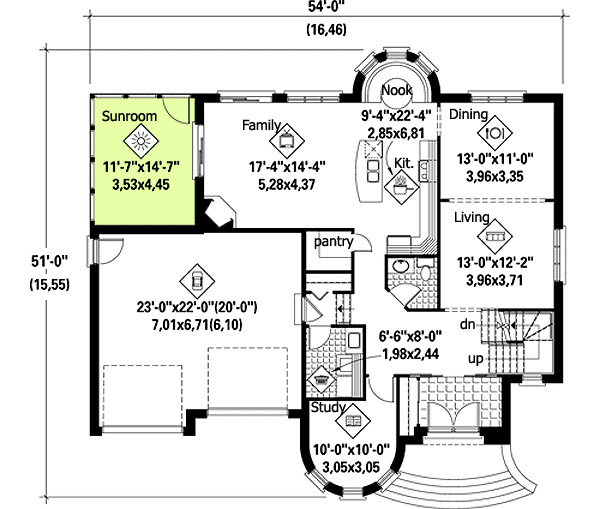

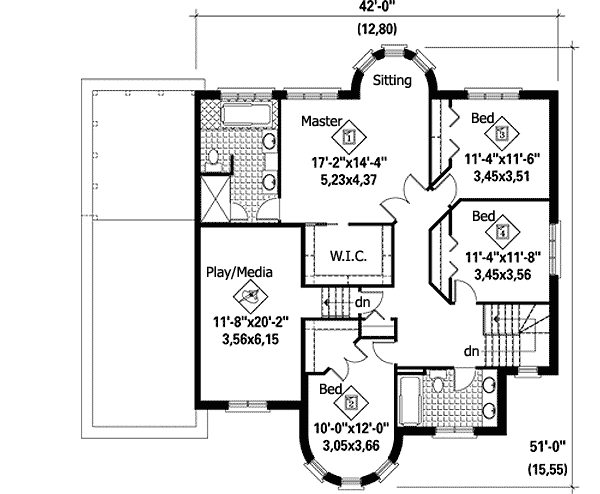

Floor Plan

This European home plan has plenty of room for your family to spread out.
From the first floor study to the bright and airy sunroom to the second floor playroom, take your pick.
When its time to gather everyone together, the large informal area in the back of the home has plenty of room due to the open floor plan.
Formal living and dining rooms lie on the right side of the home and are perfect for entertaining.
The master suite has a cozy sitting area and its own private bath complete with double sinks and a soaking tub.

Please note this plan is designed to the National Building Code of Canada.

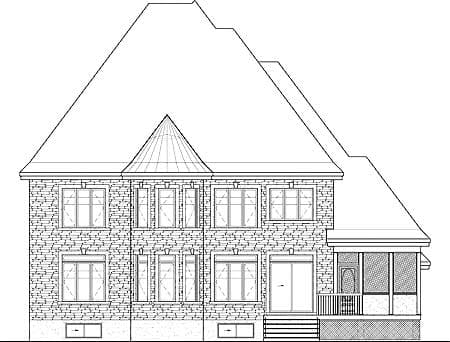

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
