Plan 72691DA Roomy A-Frame Cabin

1,680 3 3 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Roomy A-Frame Cabin

Plan 72691DA

  • 1,680

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Nicely sized, this roomy 2-story cabin comes complete with entries on both the first and second floors, a 2-car garage, a large utility room, and everything else a family needs to live year-round if desired.
  • Enter the main floor from the garage or the living room through an atrium door on the wide deck. The vaulted ceiling there is a lofty 2-stories high near the stacked windows. About one-third of the way back, the wide loft that spans the room creates a drop in ceiling height.
  • The living room is open to the kitchen with lots of counter-top workspace, with long and short segments located on all four sides. Warmth and flames in the gas or wood-burning fireplace can be enjoyed from the kitchen as well as the living room.
  • A mini-bathroom with a toilet and lavatory is right off the living room, next to the stairs. It's actually part of a two-section bathroom, in which the other section is directly accessible from the owners' suite. A tub/shower combo and another basin are in the owners' section, next to a roomy walk-in closet that has a large central cabinet with drawers.
  • Two more bedrooms and bathrooms are upstairs , one set on each side of the spacious loft that overlooks the living room. Bunks for extra guests could be set up here, or this area could be outfitted as a library, office or study.
  • The roof is a truss design with a 12 on 12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

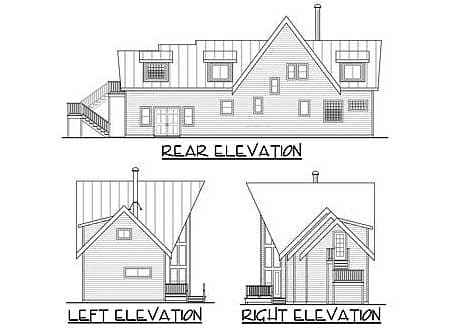

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

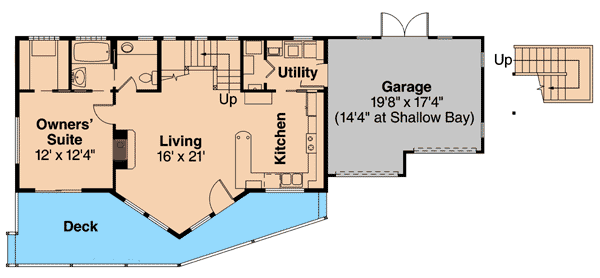

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Roomy A-Frame Cabin - 72691DA floor plan - Main Level

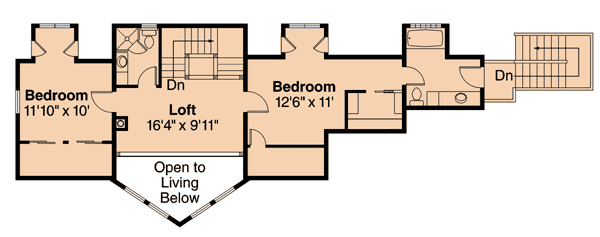

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Roomy A-Frame Cabin - 72691DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,680 sq. ft.
  • 1st Floor: 854 sq. ft.
  • 2nd Floor: 826 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 73' 11"
  • Depth: 26' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 330 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Roomy A-Frame Cabin

  • 1,680

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $770
  • PDF Light $1,010
  • 5 Sets + PDF Light $1,235
  • PDF - Single-Build $2,075
  • CAD - Single-Build $2,225
  • CAD - Unlimited Build $2,445
  • View all purchase option online

About This Plan

  • Nicely sized, this roomy 2-story cabin comes complete with entries on both the first and second floors, a 2-car garage, a large utility room, and everything else a family needs to live year-round if desired.
  • Enter the main floor from the garage or the living room through an atrium door on the wide deck. The vaulted ceiling there is a lofty 2-stories high near the stacked windows. About one-third of the way back, the wide loft that spans the room creates a drop in ceiling height.
  • The living room is open to the kitchen with lots of counter-top workspace, with long and short segments located on all four sides. Warmth and flames in the gas or wood-burning fireplace can be enjoyed from the kitchen as well as the living room.
  • A mini-bathroom with a toilet and lavatory is right off the living room, next to the stairs. It's actually part of a two-section bathroom, in which the other section is directly accessible from the owners' suite. A tub/shower combo and another basin are in the owners' section, next to a roomy walk-in closet that has a large central cabinet with drawers.
  • Two more bedrooms and bathrooms are upstairs , one set on each side of the spacious loft that overlooks the living room. Bunks for extra guests could be set up here, or this area could be outfitted as a library, office or study.
  • The roof is a truss design with a 12 on 12 pitch.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,680 sq. ft.
  • 1st Floor: 854 sq. ft.
  • 2nd Floor: 826 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 73' 11"
  • Depth: 26' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 330 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
Plan 72691DA
View this and more for this plan by visiting www.architechtecturaldesigns.com/72691DA
|
