Plan 69611AM Rugged 3 Bed House Plan

2,528 3-4 2.5 2 3
Print
Compare
...

Rugged 3 Bed House Plan

Plan 69611AM

  • 2,528

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

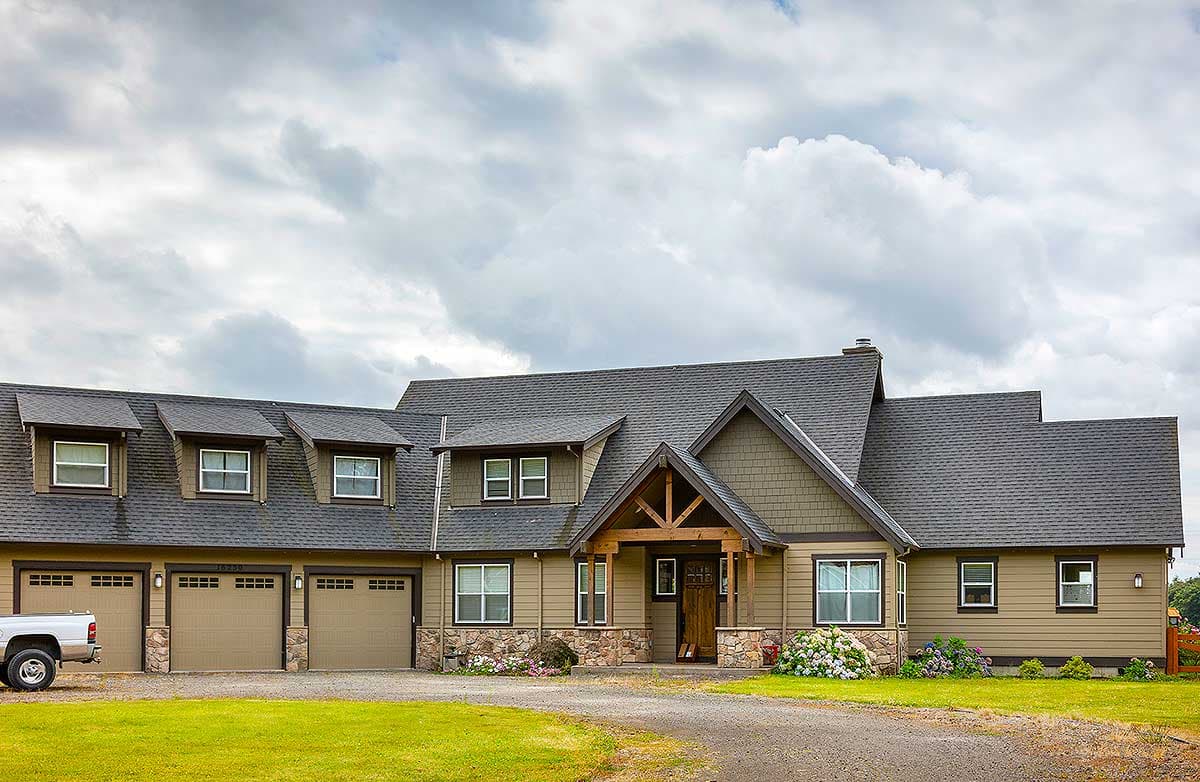

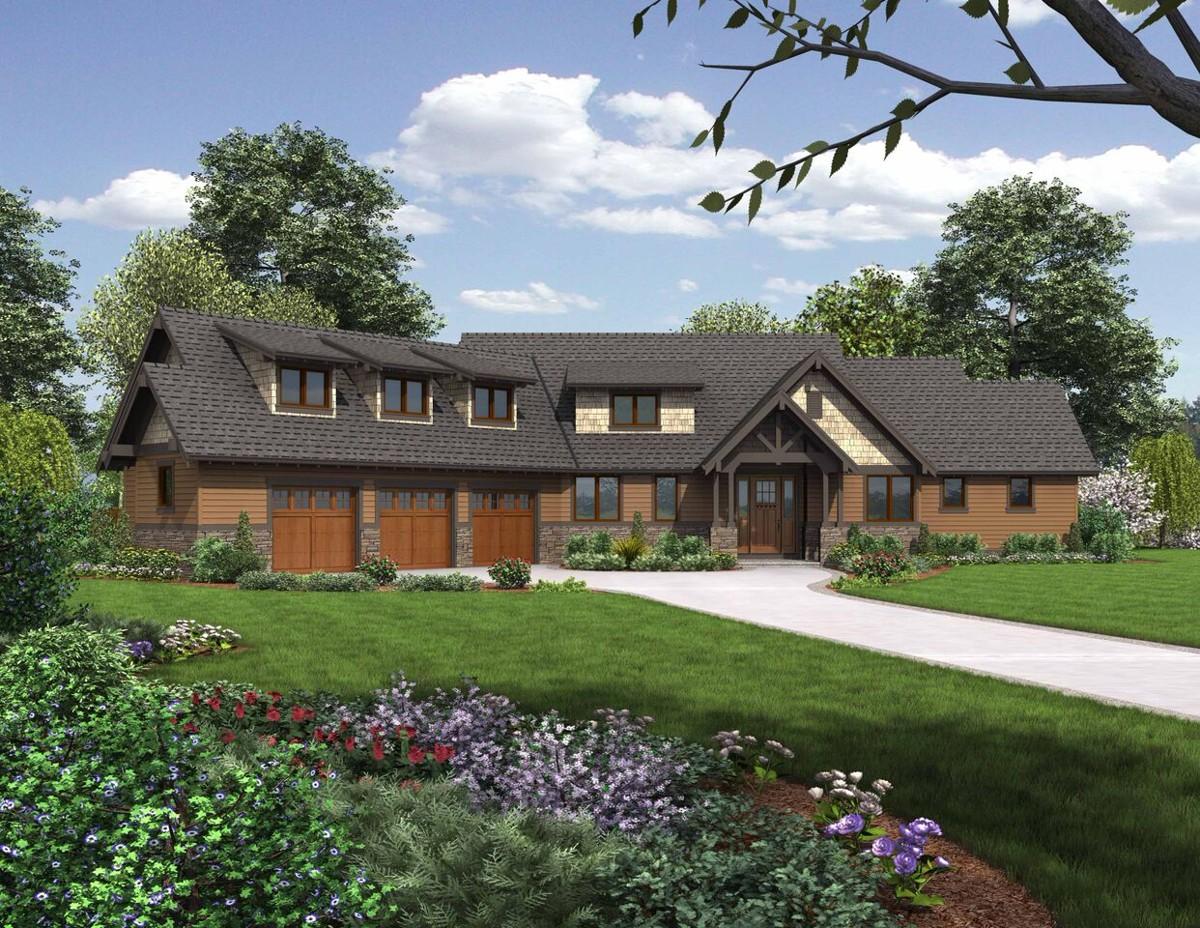

  • This 3 bed Craftsman house plan has a rugged exterior with wood and stone and a 3-car garage that comes off the side at an angle giving it a dynamic presence.
  • The interior gives you an open floor plan with the vaulted great room having unbroken sight lines through the dining room and into the kitchen.
  • The kitchen is C-shaped and gives you lots of counterspace plus an island with sink and casual seating. The pantry, huge island with seating and wet bar give you extra storage.
  • An office is secluded behind french doors. It has windows that meet in the corner.
  • The master is on the main floor and has a large walk-in closet. Two more bedrooms are on the second floor as well as a large bonus room and storage over the garage.
  • Laundry and a mud room complete the home.
  • The roof is a truss design.
  • Related Plans: Get a 2-car garage with house plan 69594AM. And get more room with house plans 69002AM (2,907 sq. ft.) and 69511AM (4,334 sq. ft.)

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

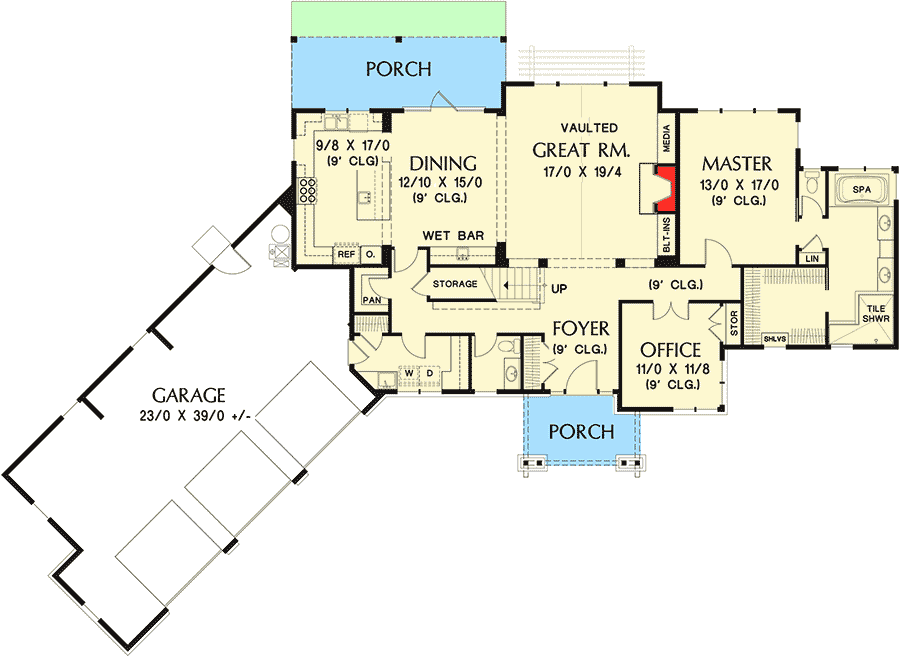

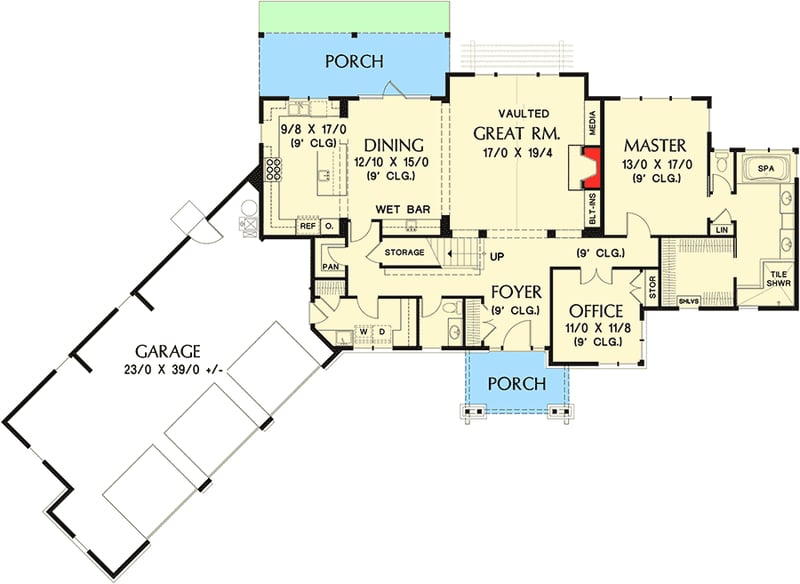

Rugged 3 Bed House Plan - 69611AM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

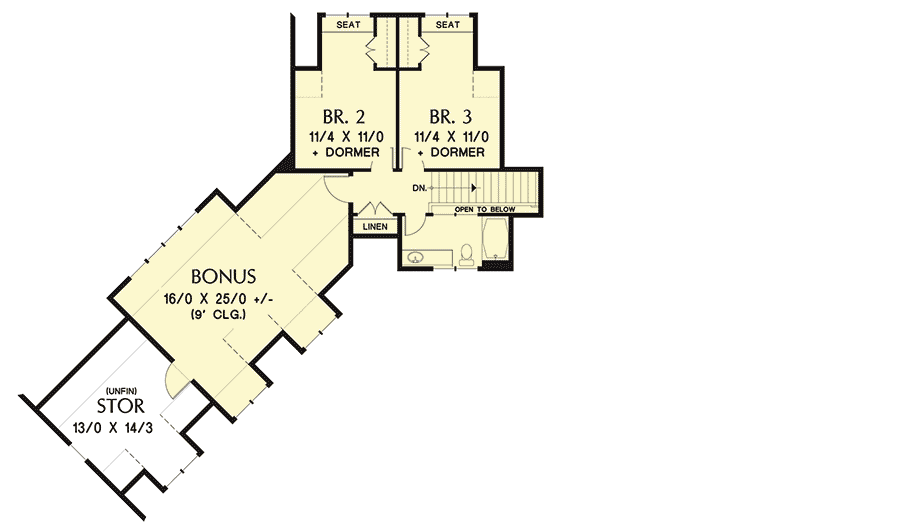

Rugged 3 Bed House Plan - 69611AM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,528 sq. ft.
  • 1st Floor: 1,991 sq. ft.
  • 2nd Floor: 537 sq. ft.
  • Storage: 226 sq. ft.
  • Porch, Rear: 184 sq. ft.
  • Porch, Front: 104 sq. ft.
  • Bonus: 455 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 100' 7"
  • Depth: 68' 11"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 1012 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Rugged 3 Bed House Plan

  • 2,528

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,396
  • PDF - Single-Build $1,746
  • 5 Sets $1,921
  • 5 Sets + PDF $1,971
  • CAD - Unlimited Build $3,492
  • View all purchase option online

About This Plan

  • This 3 bed Craftsman house plan has a rugged exterior with wood and stone and a 3-car garage that comes off the side at an angle giving it a dynamic presence.
  • The interior gives you an open floor plan with the vaulted great room having unbroken sight lines through the dining room and into the kitchen.
  • The kitchen is C-shaped and gives you lots of counterspace plus an island with sink and casual seating. The pantry, huge island with seating and wet bar give you extra storage.
  • An office is secluded behind french doors. It has windows that meet in the corner.
  • The master is on the main floor and has a large walk-in closet. Two more bedrooms are on the second floor as well as a large bonus room and storage over the garage.
  • Laundry and a mud room complete the home.
  • The roof is a truss design.
  • Related Plans: Get a 2-car garage with house plan 69594AM. And get more room with house plans 69002AM (2,907 sq. ft.) and 69511AM (4,334 sq. ft.)

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,528 sq. ft.
  • 1st Floor: 1,991 sq. ft.
  • 2nd Floor: 537 sq. ft.
  • Storage: 226 sq. ft.
  • Porch, Rear: 184 sq. ft.
  • Porch, Front: 104 sq. ft.
  • Bonus: 455 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 100' 7"
  • Depth: 68' 11"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 1012 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss

Plan 69611AM
View this and more for this plan by visiting www.architechtecturaldesigns.com/69611AM
|
