Plan: 69599AM

Rugged Craftsman with 4 Beds and Bonus

3,844 4 4 2 2
Pageloader

Rugged Craftsman with 4 Beds and Bonus

Plan 69599AM

  • 3,844

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

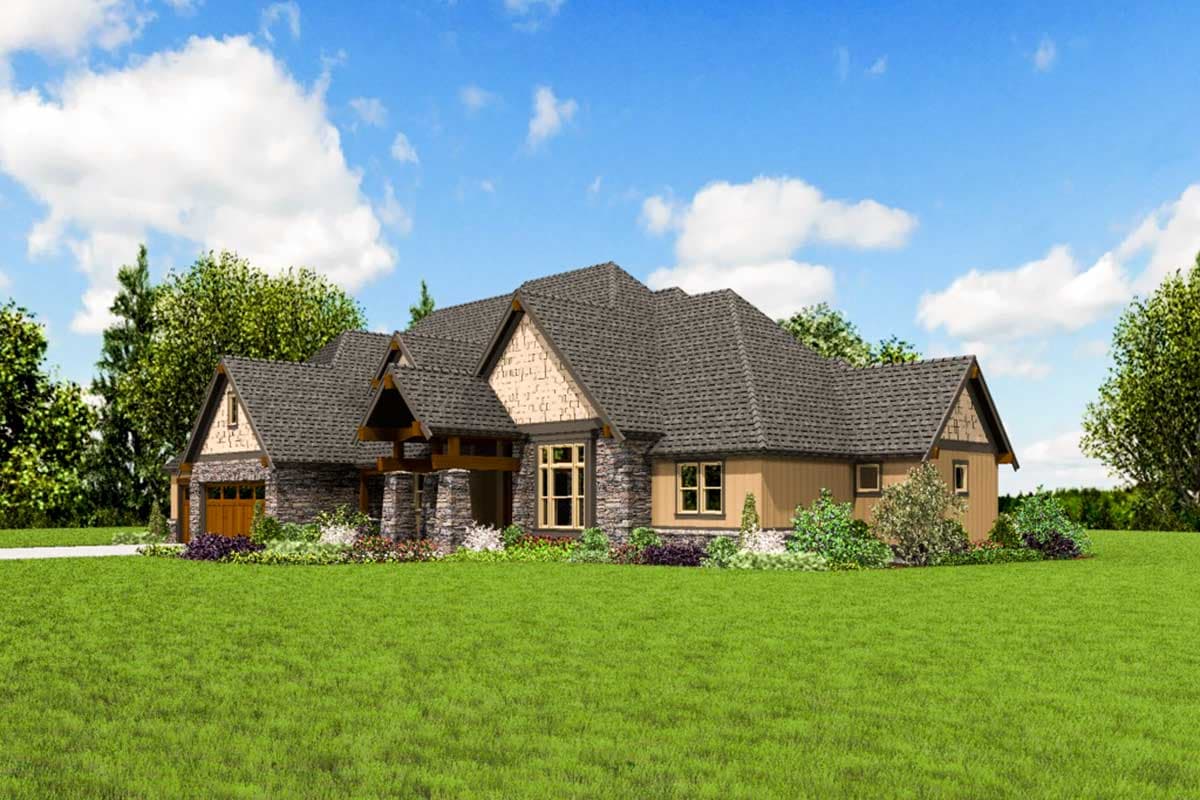

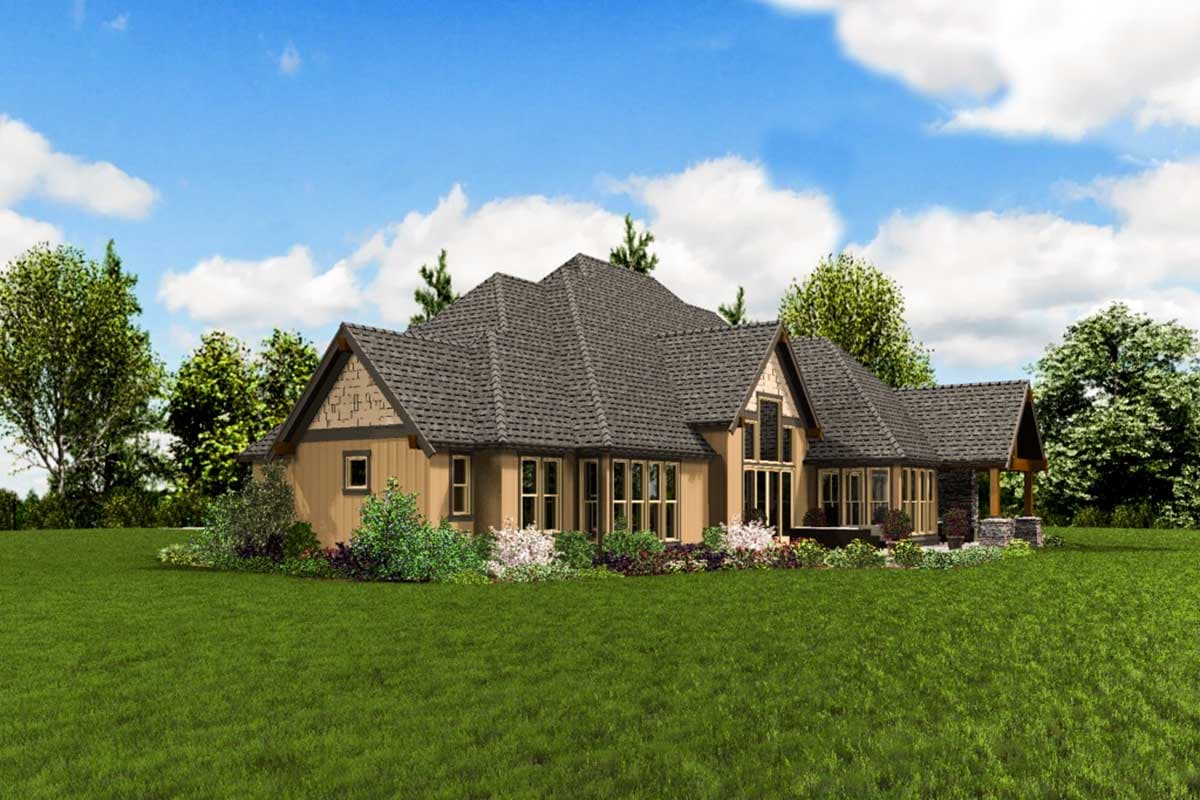

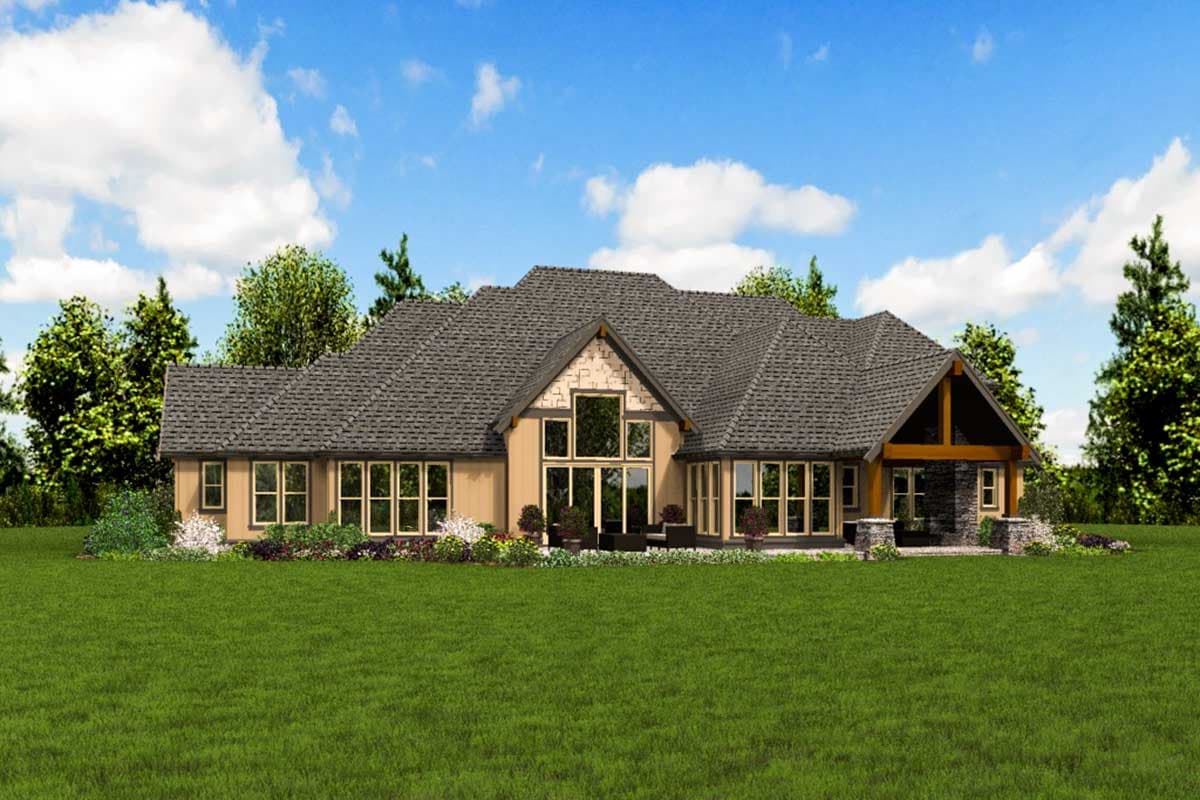

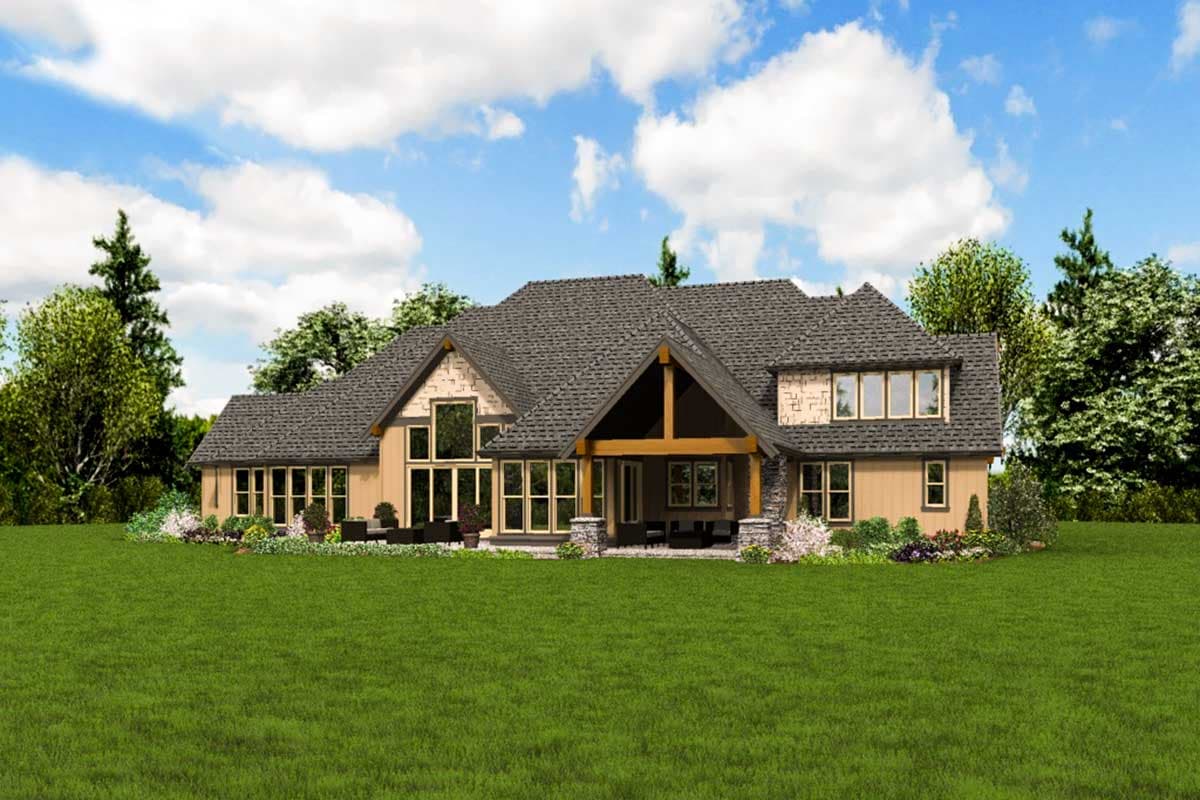

  • This rugged Craftsman house plan was designed to capture stunning rear views from as many rooms as possible. The result is a floor plan that is noticeably wider than it is deep and loads of windows on the back side..
  • French doors open off the covered entry porch and lead you to the vaulted great room and an open floor plan. The main living spaces can be opened to the outdoors at two locations - the great room and dining room- via large sliding doors allowing for a seamless transition and flow from indoors to out.
  • A dramatic outdoor living space off of the dining room makes al fresco dining and entertaining a must. Inside, the large kitchen provides ample space for groups to gather and connect to the great room.
  • The master bed has a 10'6" tray ceiling and a great bathroom with his and her vanities and a 2-headed shower. The walk-in closet is roomy and has convenient access to the laundry room.
  • Two beds are located across the home and a fourth upstairs along with a bonus room with a wet bar.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Rugged Craftsman with 4 Beds and Bonus

  • 3,844

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $1,377
  • PDF - single-use $1,727
  • 5 Sets $1,877
  • 5 Sets PLUS $1,927
  • CAD - multi-use $3,454
  • View all purchase option online

About This Plan

  • This rugged Craftsman house plan was designed to capture stunning rear views from as many rooms as possible. The result is a floor plan that is noticeably wider than it is deep and loads of windows on the back side..
  • French doors open off the covered entry porch and lead you to the vaulted great room and an open floor plan. The main living spaces can be opened to the outdoors at two locations - the great room and dining room- via large sliding doors allowing for a seamless transition and flow from indoors to out.
  • A dramatic outdoor living space off of the dining room makes al fresco dining and entertaining a must. Inside, the large kitchen provides ample space for groups to gather and connect to the great room.
  • The master bed has a 10'6" tray ceiling and a great bathroom with his and her vanities and a 2-headed shower. The walk-in closet is roomy and has convenient access to the laundry room.
  • Two beds are located across the home and a fourth upstairs along with a bonus room with a wet bar.

Floor Plans

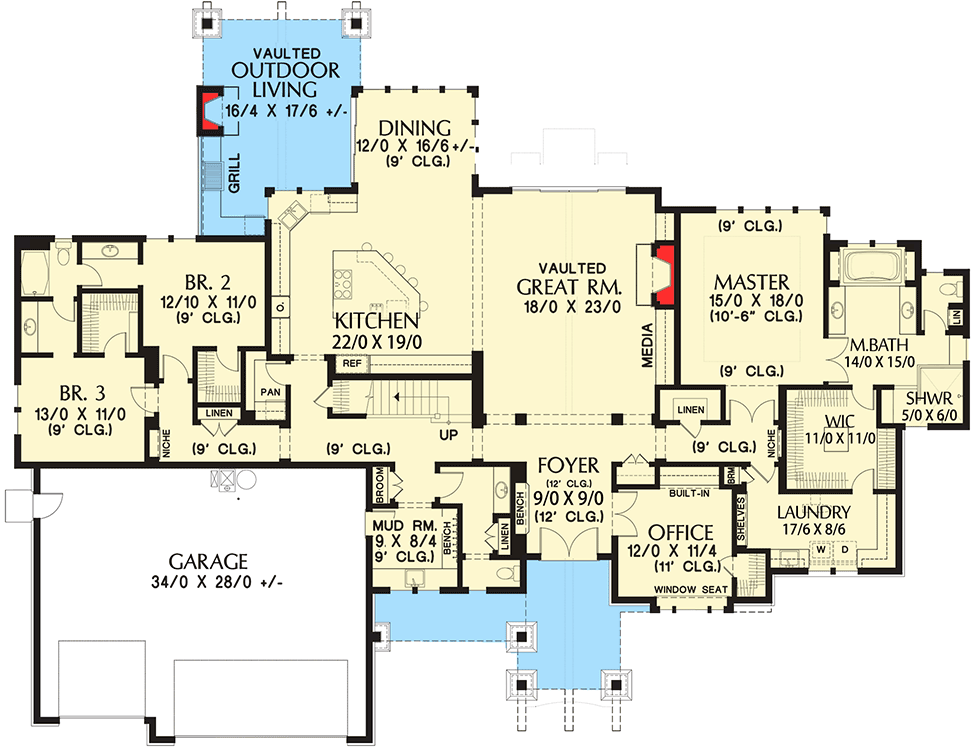

  • Main Level

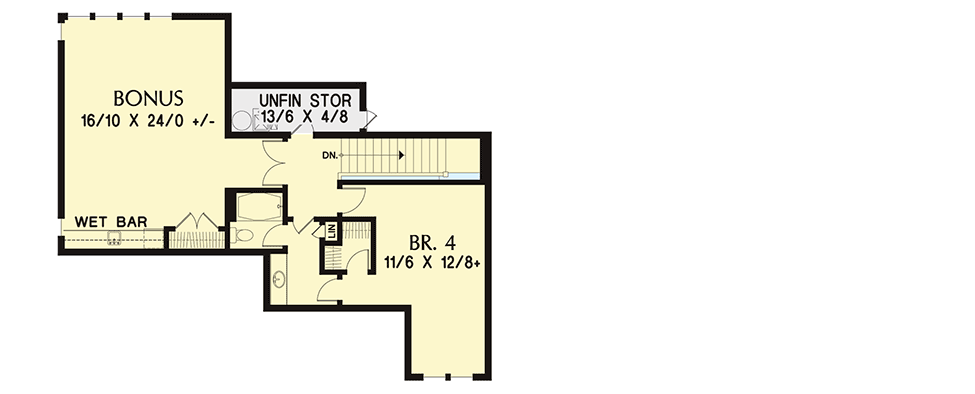

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,844 sq. ft.
  • 1st Floor: 3,408 sq. ft.
  • 2nd Floor: 436 sq. ft.
  • Storage: 64 sq. ft.
  • Bonus: 475 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 99' 0"
  • Depth: 75' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 967 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Mountain
  • Ranch

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF
  • Split Bedrooms
