Plan 81781AB

Rugged RV Garage Plan with Over 4500 Square Feet of Parking and Apartment Above

Heated S.F.
777
Beds
1
Baths
1.5+ - 2.5+
Stories
2
Cars
4

Floor Plan

Plan 81781AB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 81781AB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

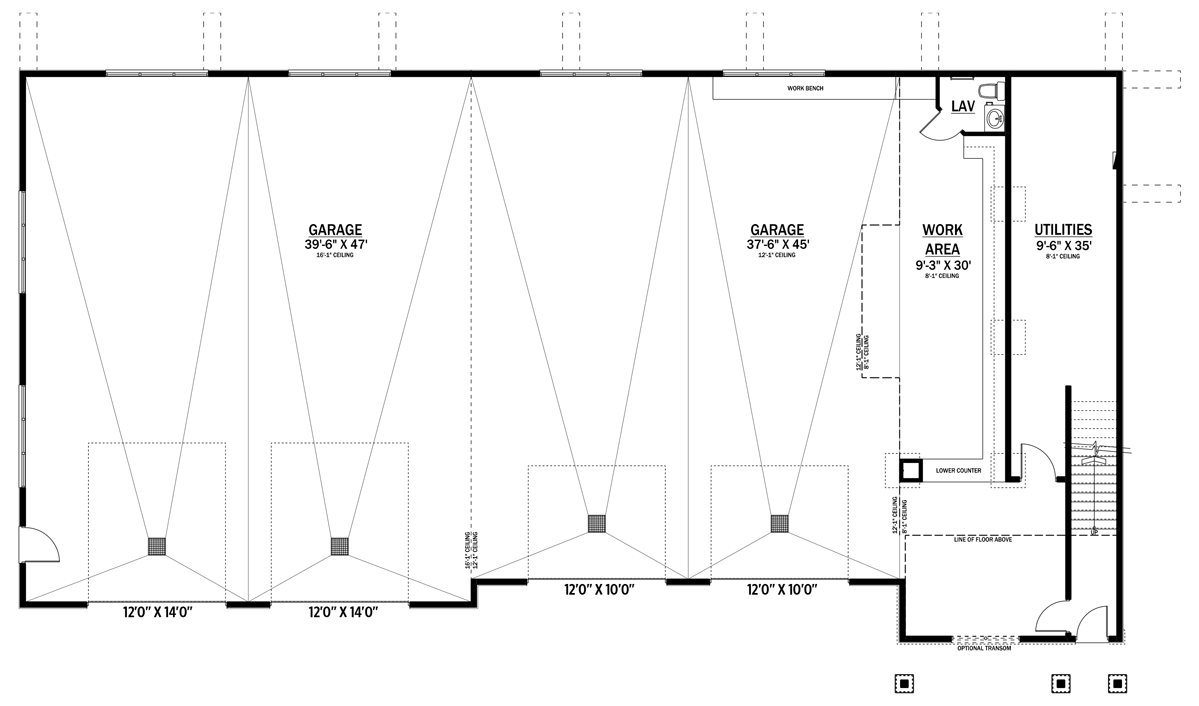

Plan 81781AB: Rugged RV Garage Plan with Over 4500 Square Feet of Parking and Apartment Above - Floor Plan - Main Level - Craftsman, Mountain, Rustic

2nd Floor

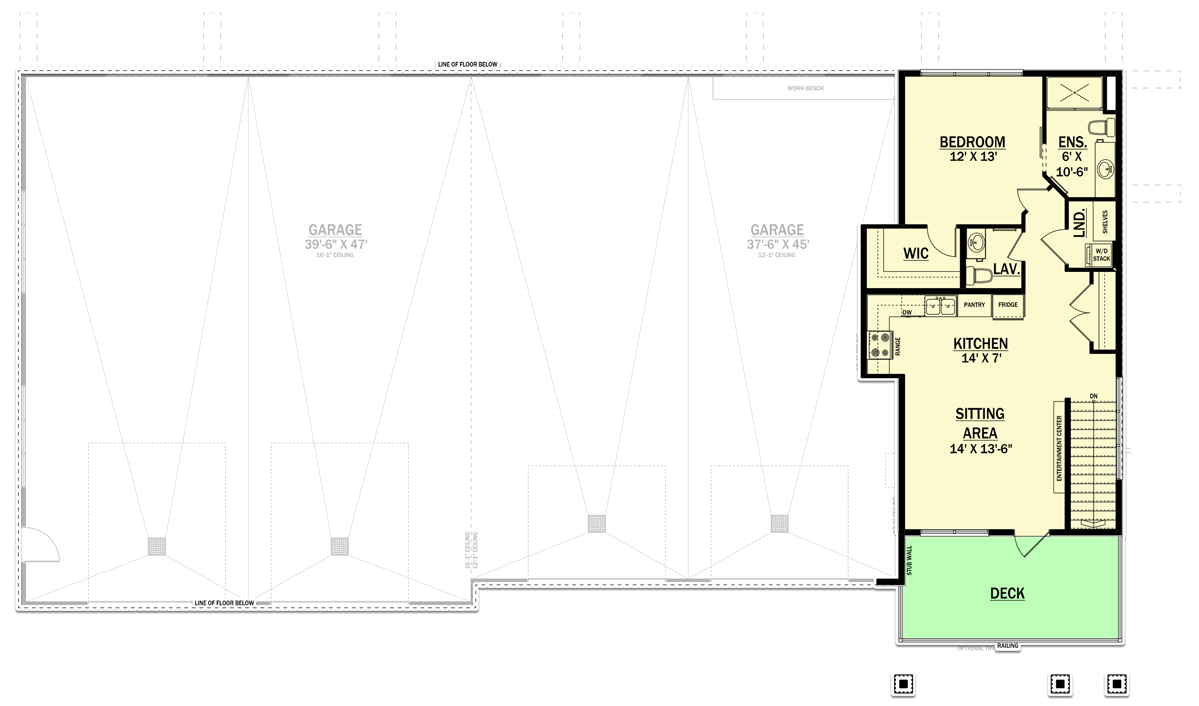

Plan 81781AB: Rugged RV Garage Plan with Over 4500 Square Feet of Parking and Apartment Above - Floor Plan - 2nd Floor - Craftsman, Mountain, Rustic

Plan Details

  • This RV garage apartment gives you 4520 square feet of parking with two RV bays (each with 12' by 14' overhead doors) and two car bays (each with 12' by 10' overhead doors).
  • A half bath and a large work area are located on the right and there's a large utility room as well.
  • Go up the stairs and find yourself in a full-functioning apartment, complete with a kitchen, laundry and a bedroom suite with walk-in closet and a shower in the bathroom.

What's Included

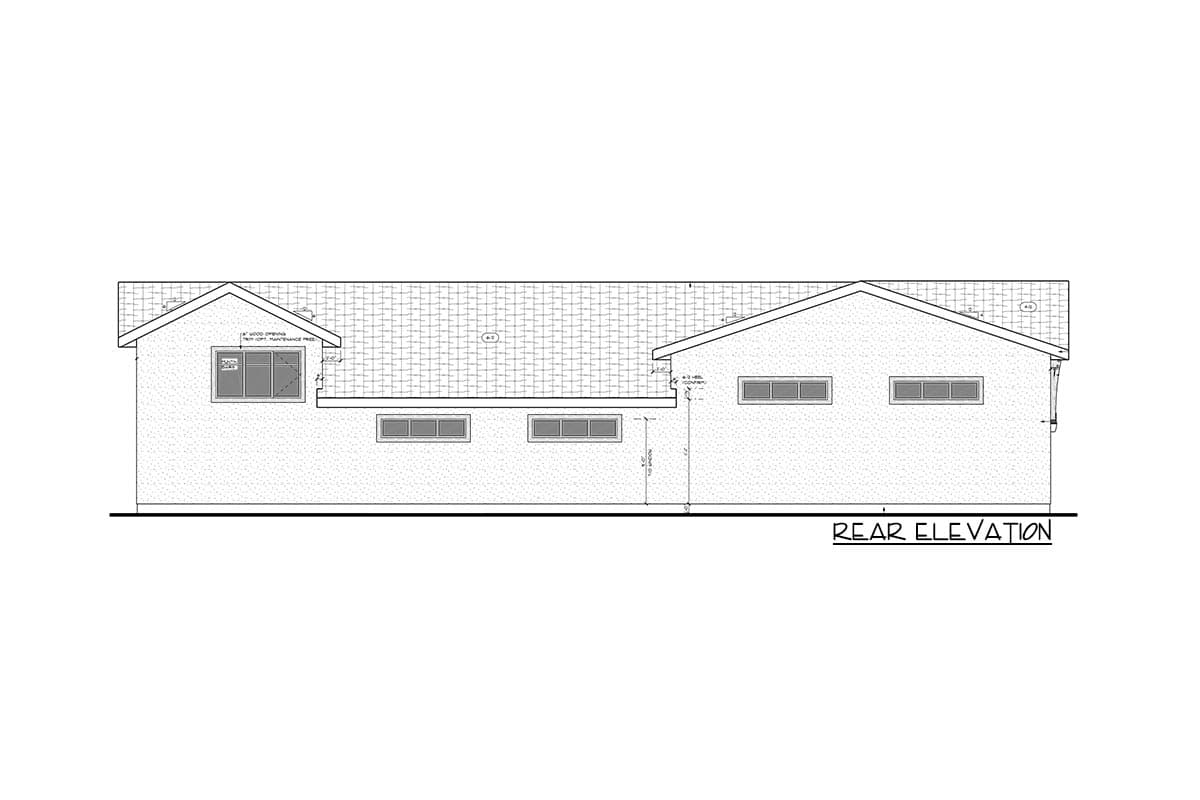

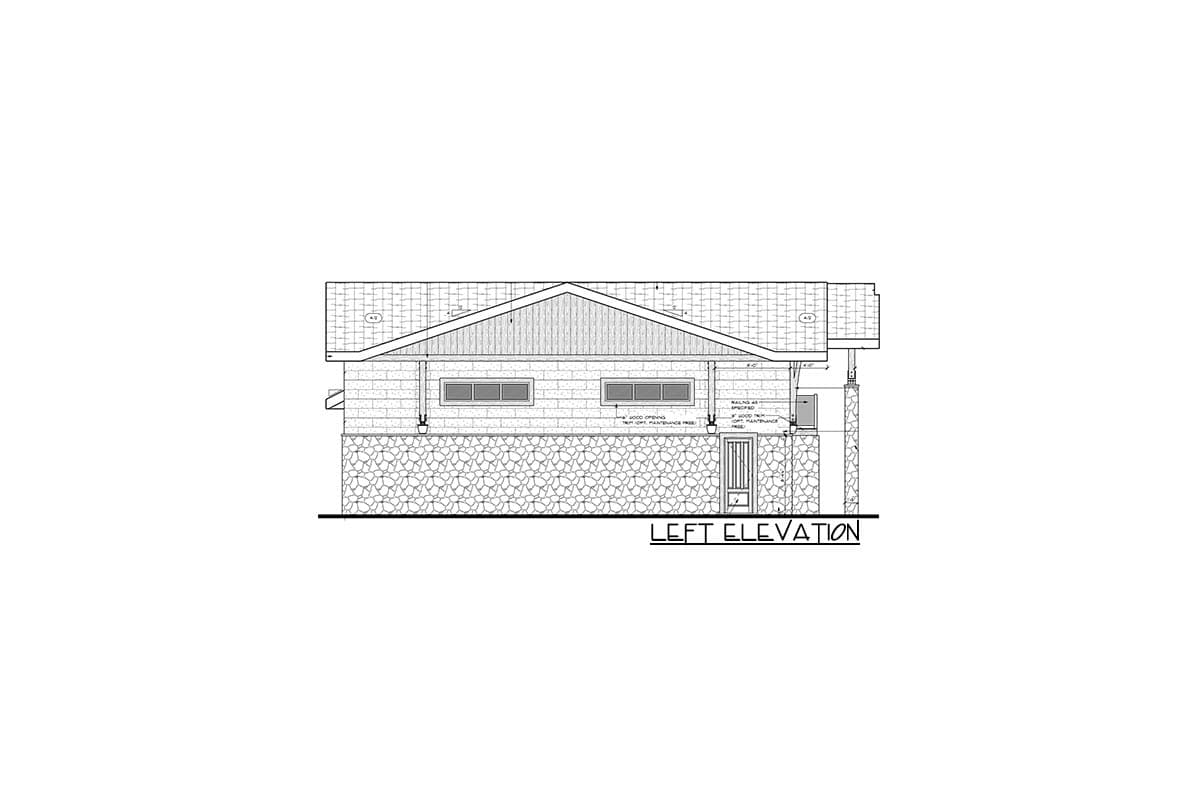

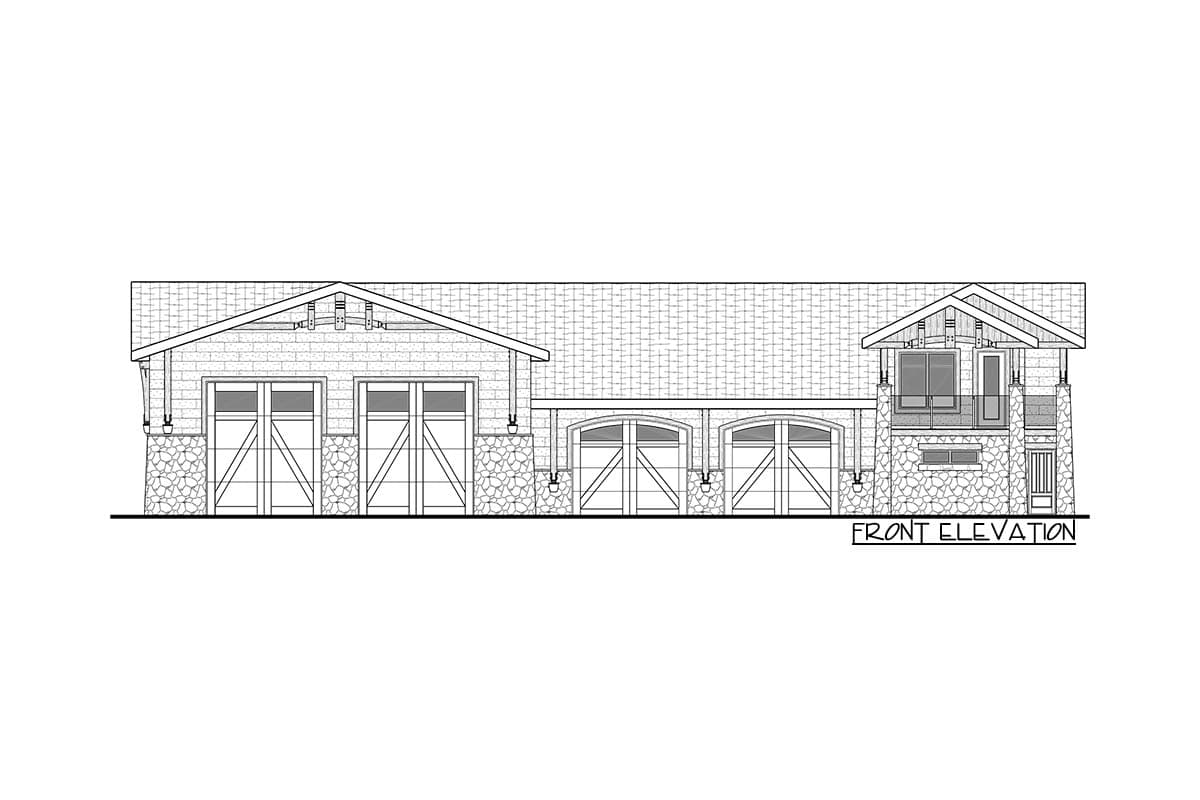

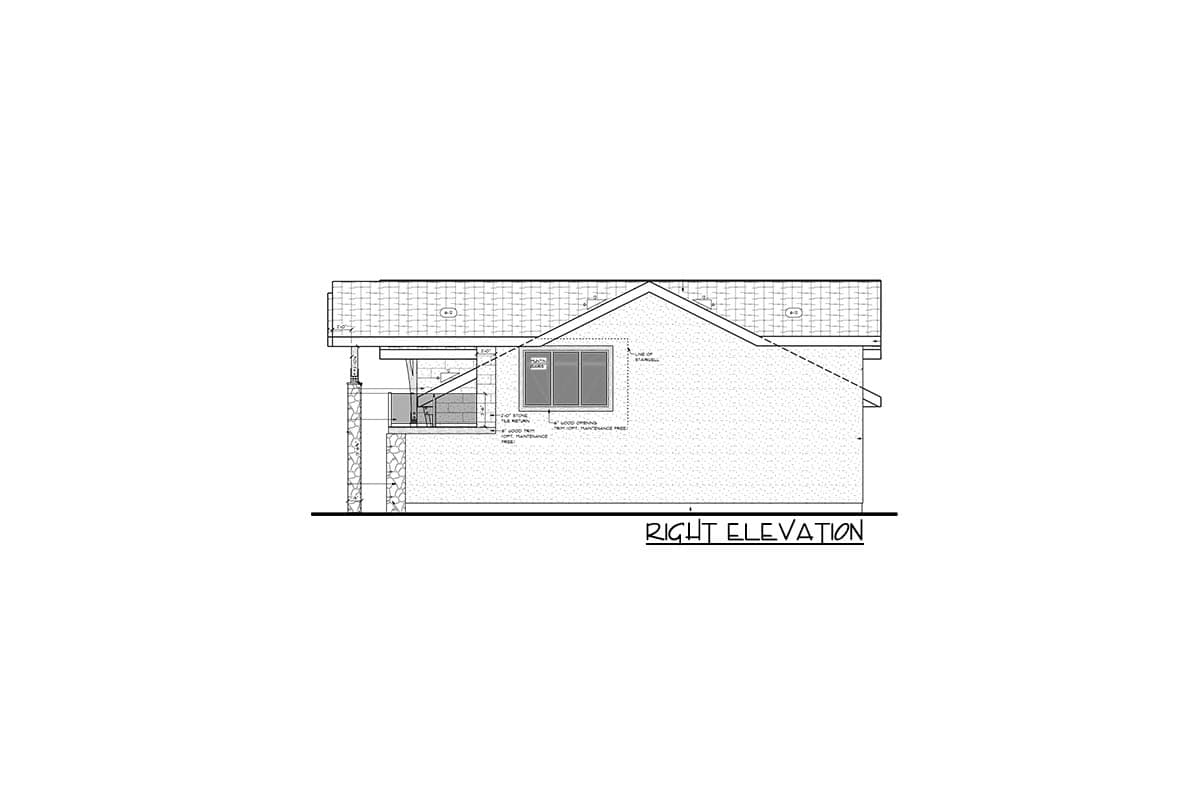

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

777 sq. ft.

2nd Floor

777 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1 or 2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 6"

Depth

54' 6"

Max Ridge Height

24' 7"

Garage

Type

Detached, RV Garage

Area

4520 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Photo Gallery

Square Footage Breakdown

Total Heated Area

777 sq. ft.

2nd Floor

777 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1 or 2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 6"

Depth

54' 6"

Max Ridge Height

24' 7"

Garage

Type

Detached, RV Garage

Area

4520 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Photo Gallery
