Rustic Country Cottage with 2-Story Great Room and Drive-Under Garage

Plan 70727MK

  • 2,049

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Exposed rafter tails above the front porch and the three functioning shed dormers - combined with the shingles, board and batten and stone chimney - give this rustic cottage house plan right at home by a lake or in the woods. The home is perfect for sloping lots with its drive-under garage accessible from both sides.
  • Both the front and back have 8' deep covered porches.
  • A stone fireplace is the focal point of the great room with 2-story ceiling and views to the back.
  • The kitchen peninsula eating bar has room for 4 stools or eat at a table in the dining area.
  • The master suite is on the main floor and two more bedrooms on the upper floor are joined by a sleeping loft the kids will love.
  • The open rail lets them look into the vaulted great room below.
  • Related Plans: Get an alternate version with house plans 60616ND and 59910ND.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

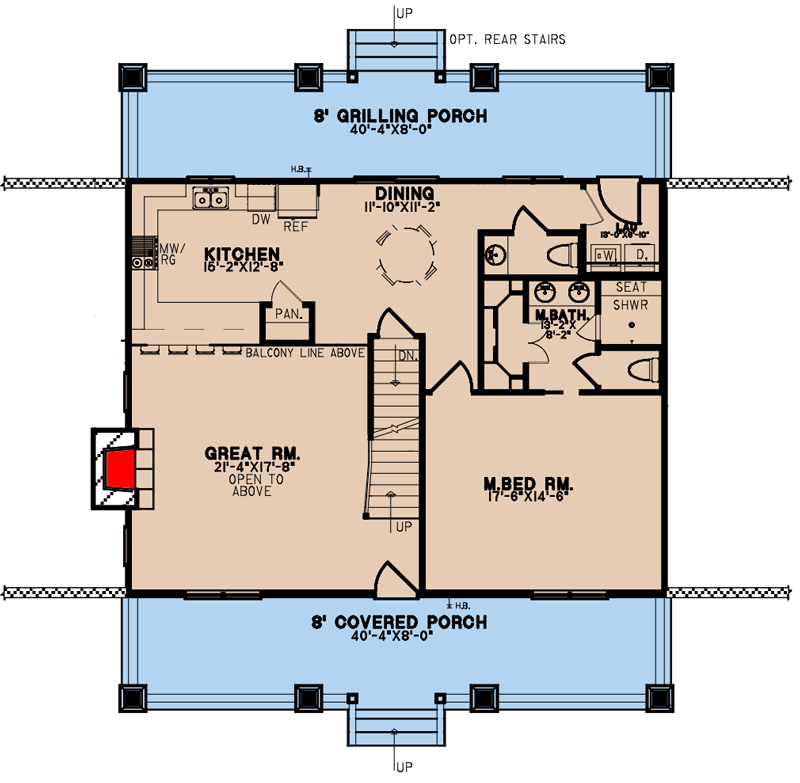

Rustic Country Cottage with 2-Story Great Room and Drive-Under Garage - 70727MK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

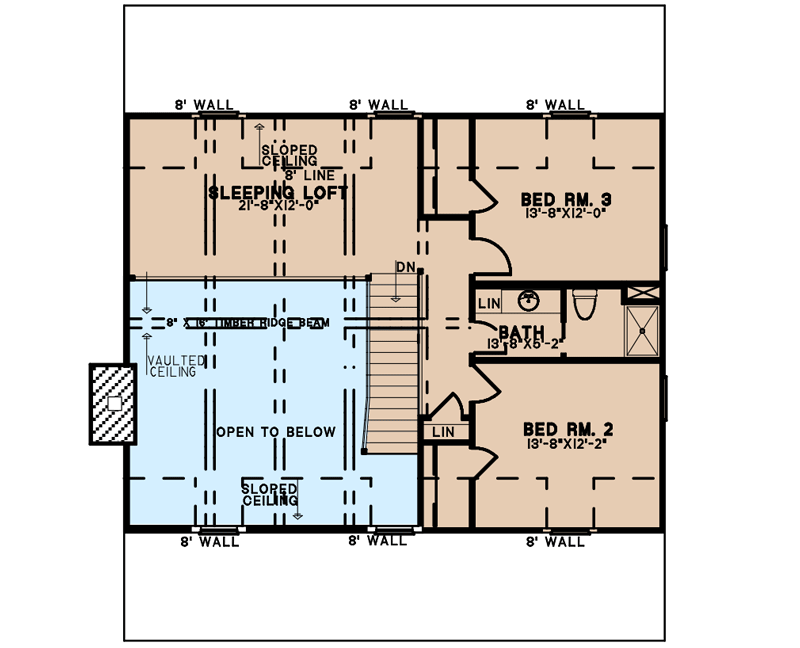

Rustic Country Cottage with 2-Story Great Room and Drive-Under Garage - 70727MK floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

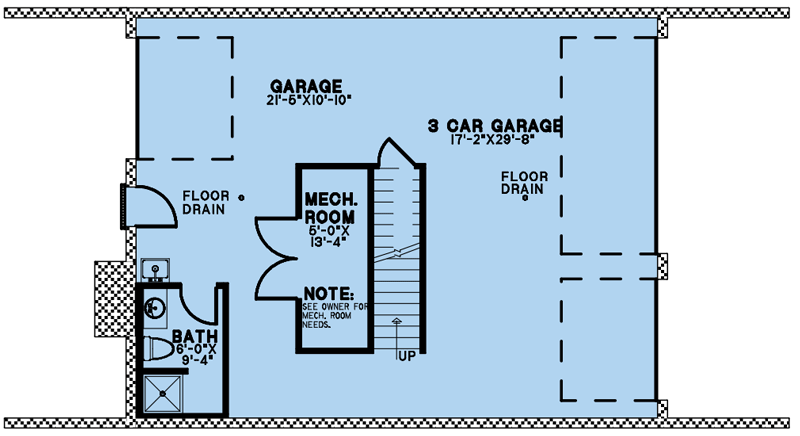

Rustic Country Cottage with 2-Story Great Room and Drive-Under Garage - 70727MK floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,049 sq. ft.
  • 1st Floor: 1,240 sq. ft.
  • 2nd Floor: 809 sq. ft.
  • Porch, Combined: 640 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 4"
  • Depth: 47' 0"
  • Max ridge height: 26' 7"

Garage

  • Type: Drive Under
  • Area: 1146 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Rustic Country Cottage with 2-Story Great Room and Drive-Under Garage

  • 2,049

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,800
  • CAD Unlimited + PDF $2,200
  • View all purchase option online

About This Plan

  • Exposed rafter tails above the front porch and the three functioning shed dormers - combined with the shingles, board and batten and stone chimney - give this rustic cottage house plan right at home by a lake or in the woods. The home is perfect for sloping lots with its drive-under garage accessible from both sides.
  • Both the front and back have 8' deep covered porches.
  • A stone fireplace is the focal point of the great room with 2-story ceiling and views to the back.
  • The kitchen peninsula eating bar has room for 4 stools or eat at a table in the dining area.
  • The master suite is on the main floor and two more bedrooms on the upper floor are joined by a sleeping loft the kids will love.
  • The open rail lets them look into the vaulted great room below.
  • Related Plans: Get an alternate version with house plans 60616ND and 59910ND.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,049 sq. ft.
  • 1st Floor: 1,240 sq. ft.
  • 2nd Floor: 809 sq. ft.
  • Porch, Combined: 640 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 4"
  • Depth: 47' 0"
  • Max ridge height: 26' 7"

Garage

  • Type: Drive Under
  • Area: 1146 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
Plan 70727MK
View this and more for this plan by visiting www.architechtecturaldesigns.com/70727MK
|
