Rustic Craftsman House Plan for a Narrow Lot
Heated S.F.
4,864
Beds
5
Baths
3.5
Stories
2
Cars
3
Videos
What's Included
Plan Details
  • The rear of this home is the shining star with three stories of windows and several decks making it the perfect lake or woodland home.

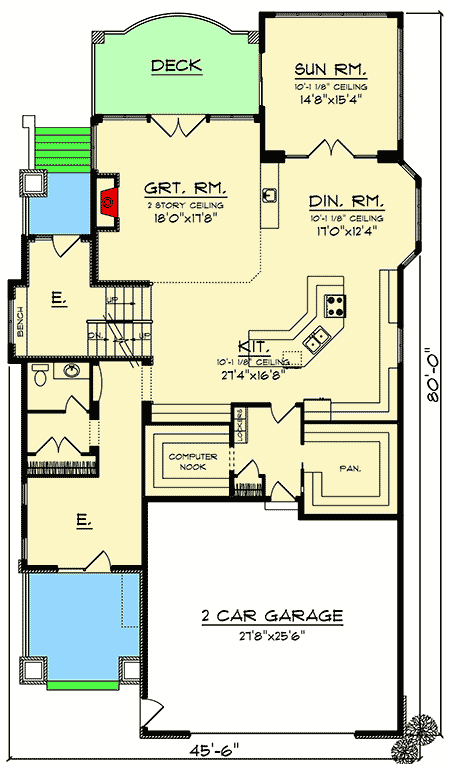

  • The main floor includes an open concept plan where the kitchen overlooks the great and dining rooms while facing the view out the back.
  • A sunroom with access to a unique deck is found just off the dining area.

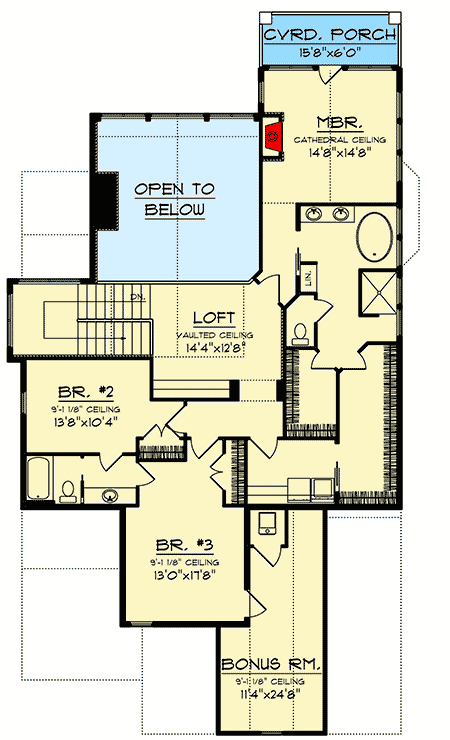

  • The second floor master suite enjoys his and hers walk-in closets, laundry access and a cathedral ceiling in the bedroom.
  • Bedrooms two and three share a Jack and Jill bathroom while a large bonus room is accessed from the third bedroom.
  • A vaulted ceiling defines a loft that overlooks the main floor below.

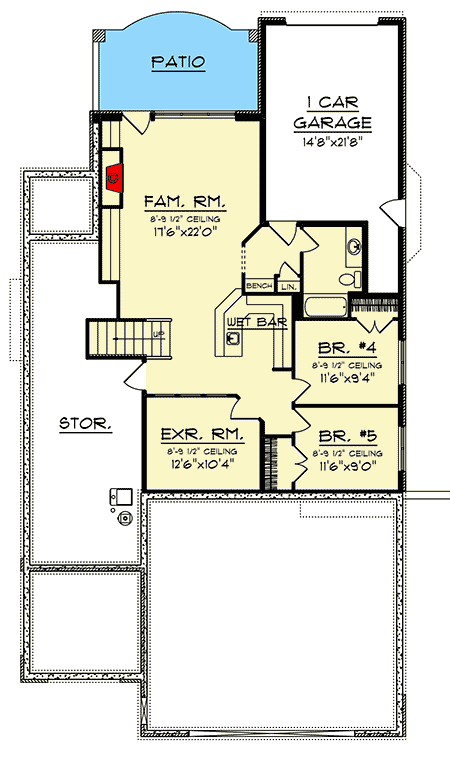

  • Bedrooms four and five, a large family room and a rear access garage are found on the lower level.
  • NOTE: the bonus room (218 sq. ft.) is factored into the total living area figure (4,864 sq. ft.).
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
