Plan 16812WG
Rustic Looking House Plan with Detached Garage and 2 Bonus Rooms - 1421 Sq Ft
Heated S.F.
1,421
Beds
3-5
Baths
2 - 4
Stories
1
Cars
2
Plan Details
  • Exposed timbers, an eyebrow dormer and fluted columns with stone bases give this house plan a rustic appeal.
  • The wide foyer leads you to the family room and kitchen. Two sets of double doors lead to the covered lanai as do a pair of doors in the private master suite.

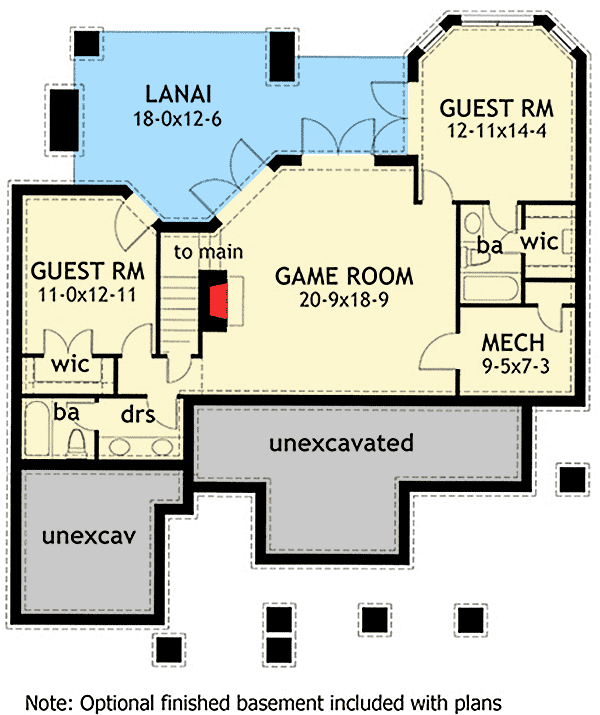

  • Should you purchase the basement foundation, you will receive an optional finished lower level that adds 988 square feet to the total living area.

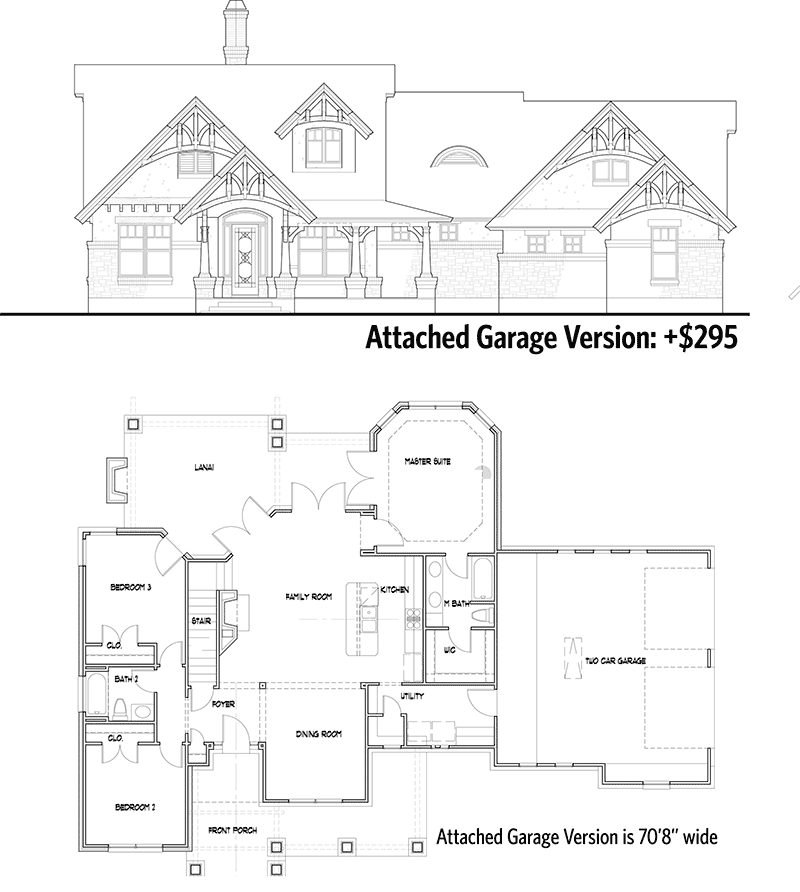

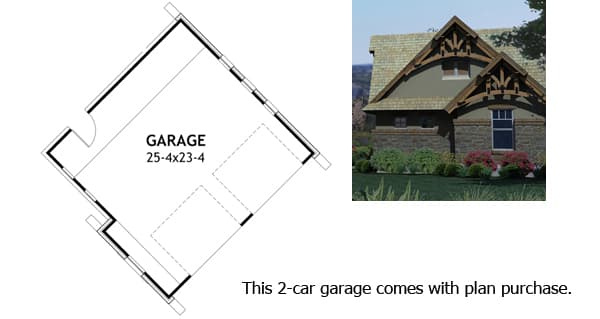

  • A matching 2-car detached garage comes with the plans. An attached garage version is also available (+$295). The overall width of the home in that version is 70'8".
  • Added Bonus: This house plan comes with two bonus rooms on the upper level and a matching detached garage.
  • Related Plan: Get a modern farmhouse version with house plan 16909WG.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic Looking House Plan with Detached Garage and 2 Bonus Rooms - 1421 Sq Ft

  • 1,421

    Heated s.f.

  • 3-5

    Beds

  • 2 - 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

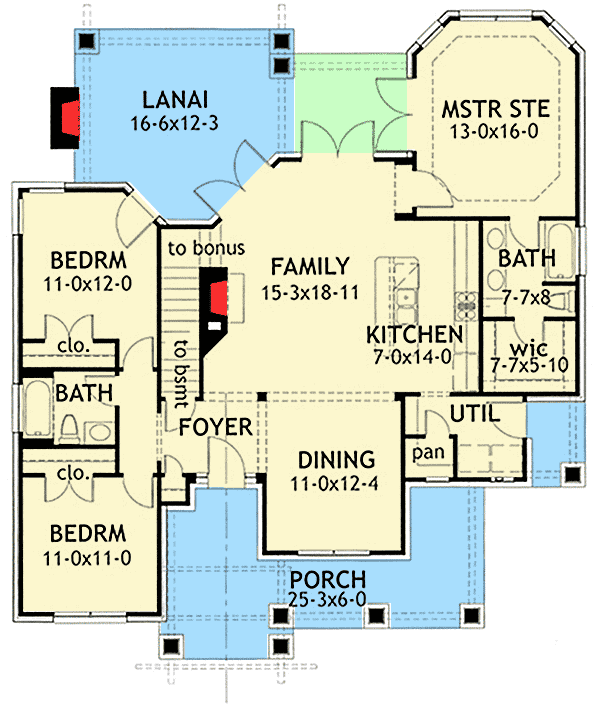

  • Main Level

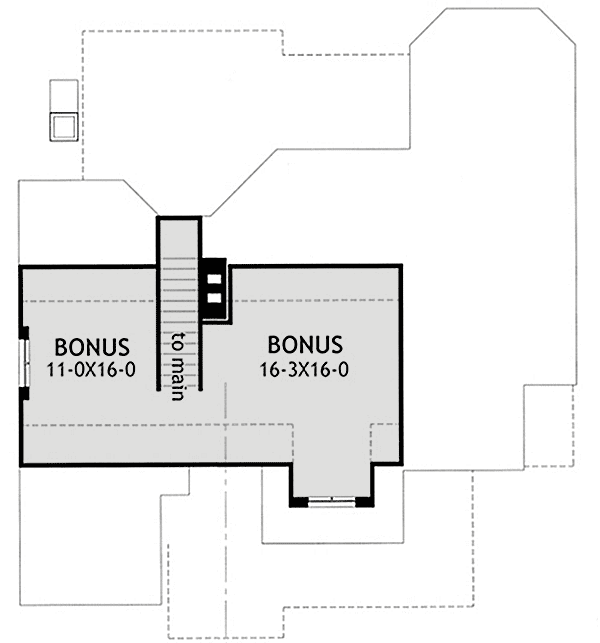

  • Bonus Level

  • Lower Level

  • Detached Garage

  • Main Level 3D View

  • Bonus Level 3D View

  • Lower Level 3D View

Plan Details

Square Footage Breakdown

  • Total: 1,421 sq. ft.
  • 1st Floor: 1,421 sq. ft.

Dimensions

  • Width: 46' 11"
  • Depth: 53' 0"
  • Max ridge height: 25' 9"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2, 3, or 4

Garage

  • Type: Detached
  • Area: 594 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
