Plan 246036DLR

Exclusive

Rustic Mountain House Plan with 4 Bedrooms and Expansive Garage

Heated S.F.
3,188
Beds
4
Baths
3
Stories
2
Cars
4

Floor Plan

Plan 246036DLR

Main Level
Main Level
2nd Level
2nd Level

Plan 246036DLR

M-F 9am-5pm EST |

1-203-761-8500

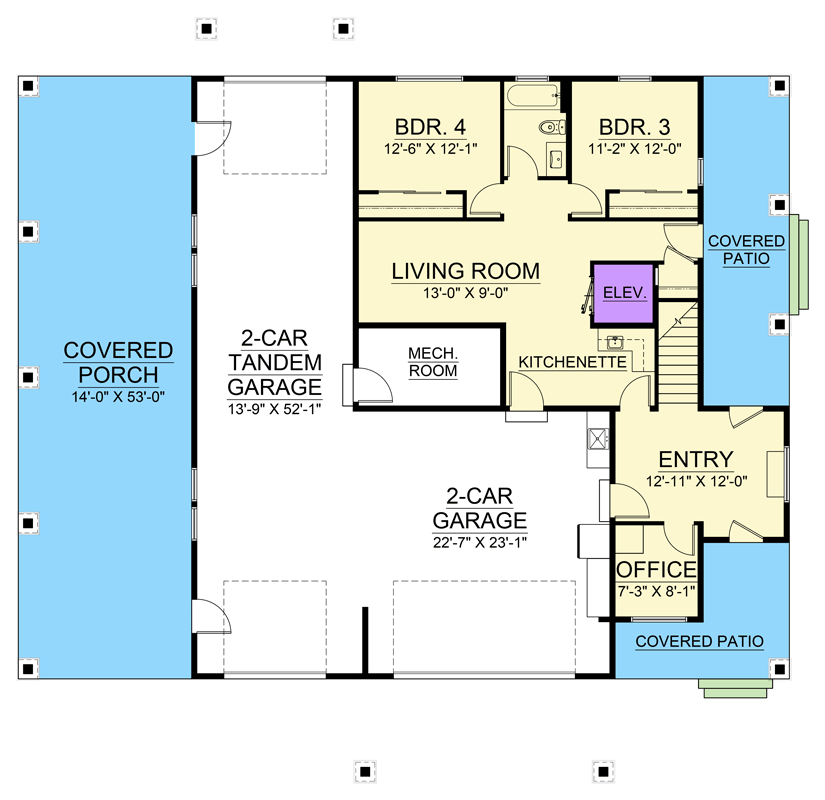

Main Level

Plan 246036DLR: Rustic Mountain House Plan with 4 Bedrooms and Expansive Garage - Floor Plan - Main Level - Barndominium, Cabin, Mountain, Rustic

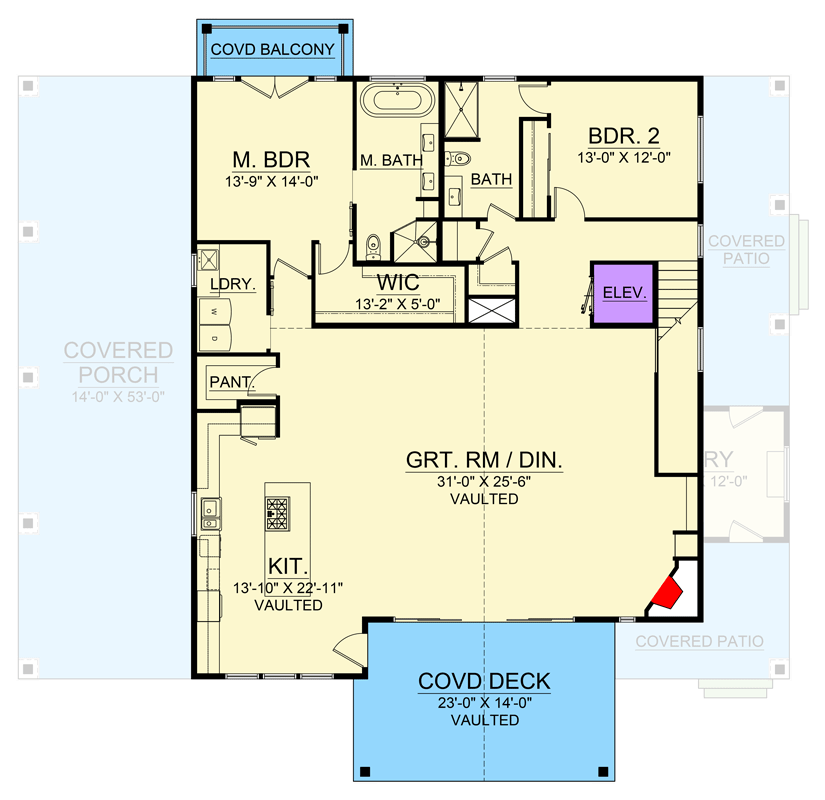

2nd Level

Plan 246036DLR: Rustic Mountain House Plan with 4 Bedrooms and Expansive Garage - Floor Plan - 2nd Level - Barndominium, Cabin, Mountain, Rustic

Plan Details

  • This impressive 3,188 square foot rustic mountain features 4 bedrooms, 3 bathrooms, and a massive 1,375 square foot garage capable of housing up to four cars.

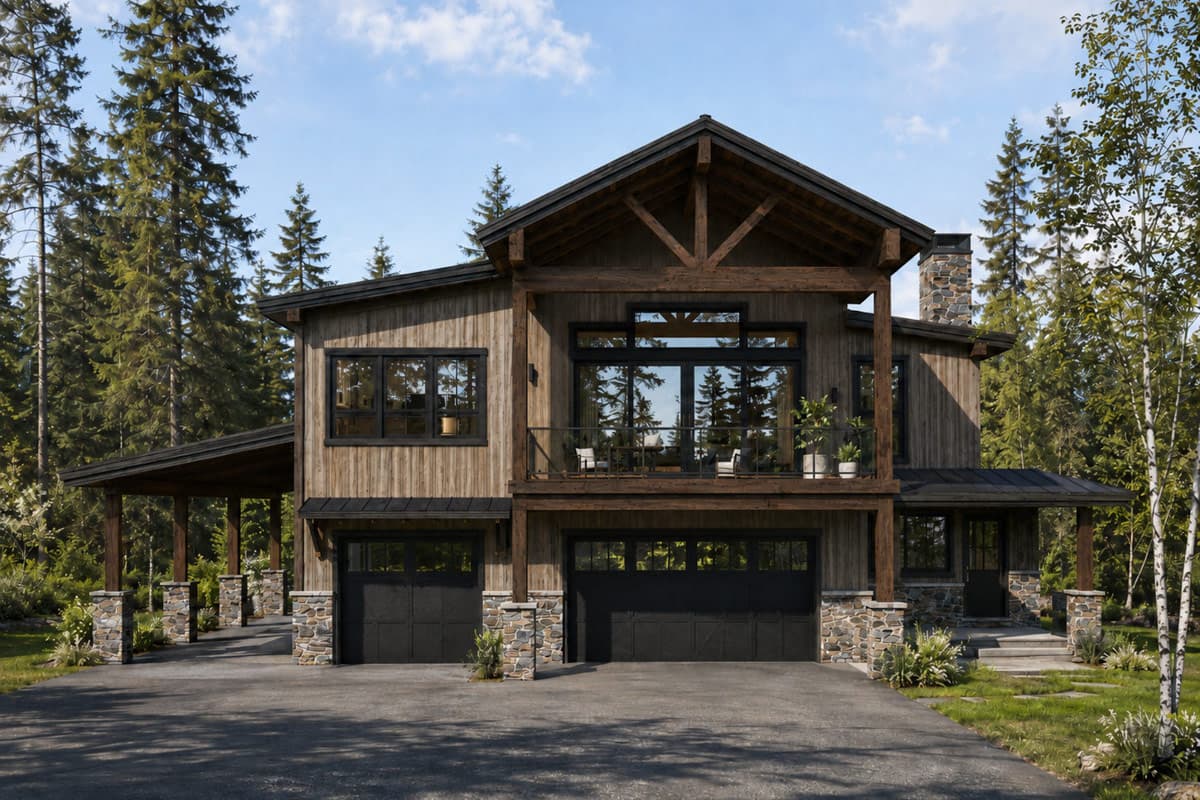

  • The exterior showcases a striking blend of natural wood siding and stone masonry, perfectly suited for a wooded retreat.
  • Upon entry, the thoughtful layout provides seamless access to the various levels, including an integrated elevator for maximum accessibility.

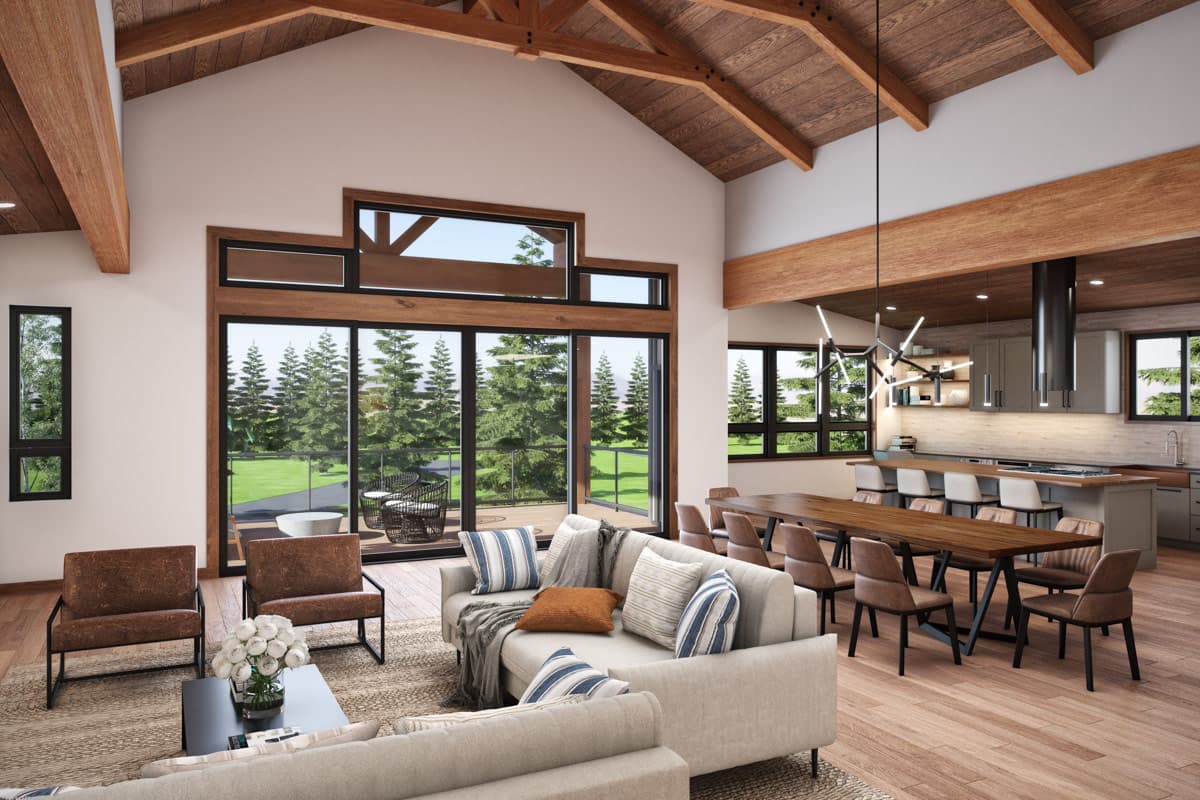

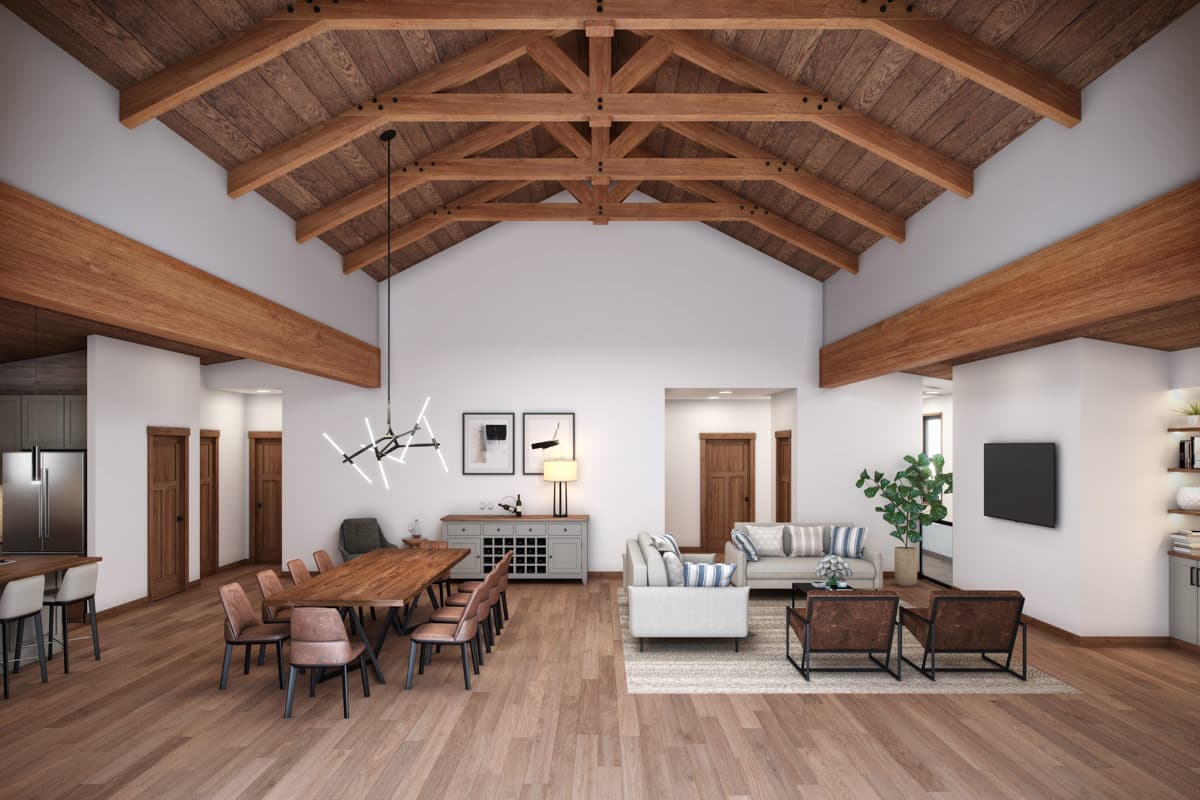

  • The main living space on the upper level is defined by a soaring vaulted ceiling and abundant natural light pouring in through large windows.
  • An open-concept kitchen flows directly into a breakfast nook, creating a warm hub for daily meals and conversation.
  • The primary suite is situated on the upper floor to provide a private sanctuary, while the secondary bedrooms are clustered to offer convenience and comfort.
  • A dedicated home office provides a quiet space for remote work, and the lower level includes a functional laundry area and additional room for an in-law suite.
  • Outside, a beautiful balcony extends from the upper level, offering the perfect vantage point for enjoying the surrounding landscape.

What's Included

  • Floor plans
  • Foundation plan
  • Floor framing plan
  • Roof framing plan
  • Cross Sections
  • Exterior Elevations
  • Exterior Elevations
  • Electrical Plan and notes
  • Detail Page

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,188 sq. ft.

1st Floor

1,062 sq. ft.

2nd Floor

2,126 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 10"

Depth

67' 0"

Max Ridge Height

31' 2"

Garage

Type

Standard

Area

1375 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Barndominium

Cabin

Mountain

Rustic

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Home Office

In-Law Suite

Laundry - Lower Level

Master Suite - Upstairs

Tandem Garage

Two Story Great Room

Walk-in Pantry
