Rustic Pool House with Vaulted Deck and a Garage Door Opening

Plan 22638DR

  • 400

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Stories

  • Decorative beams give this pool house plan a rustic look and combined with board and batten siding give the structure great visual appeal.
  • A vaulted roof soars 16'10" above the deck in front. A grill, sink and fridge are located on the left and a garage door opens to reveal a versatile room that can be used as a living room or even as a home office.
  • A half bath and storage closet are located on the left.
  • In back, there's a large storage room accessible by a garage door in back and a person door on the side.

Each plan includes the following:

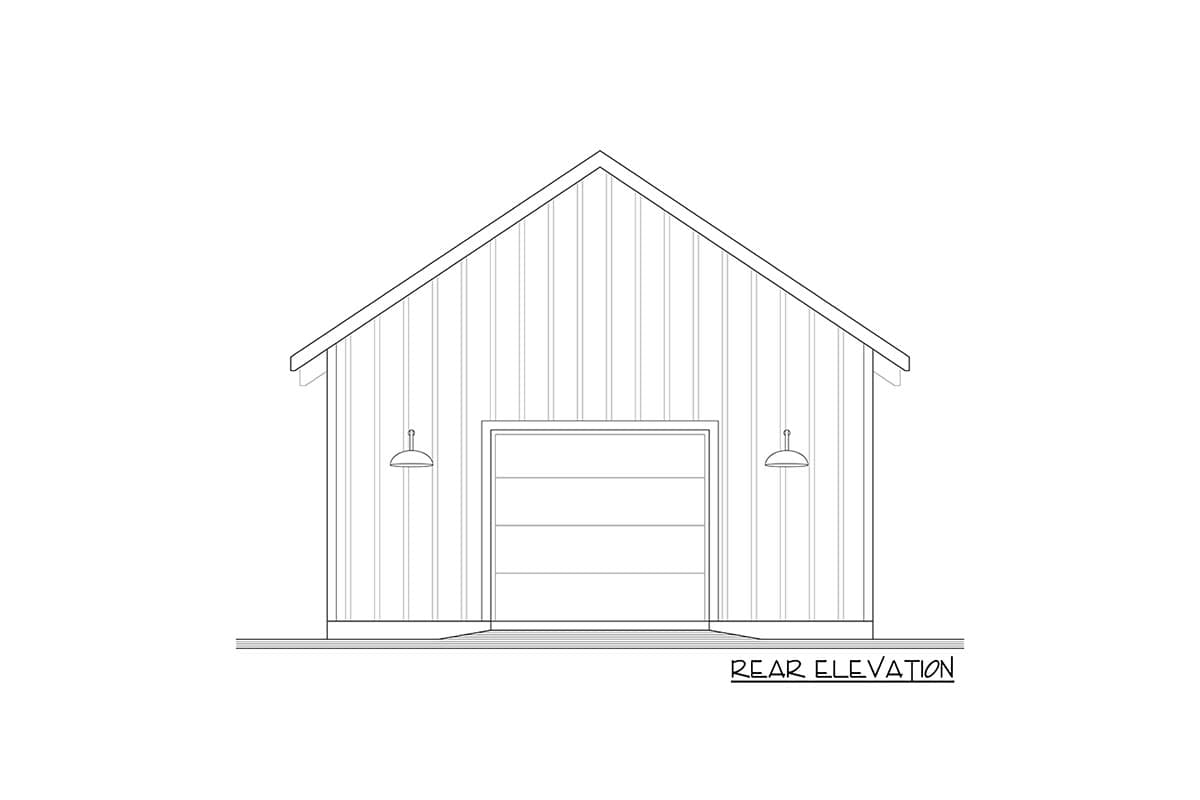

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

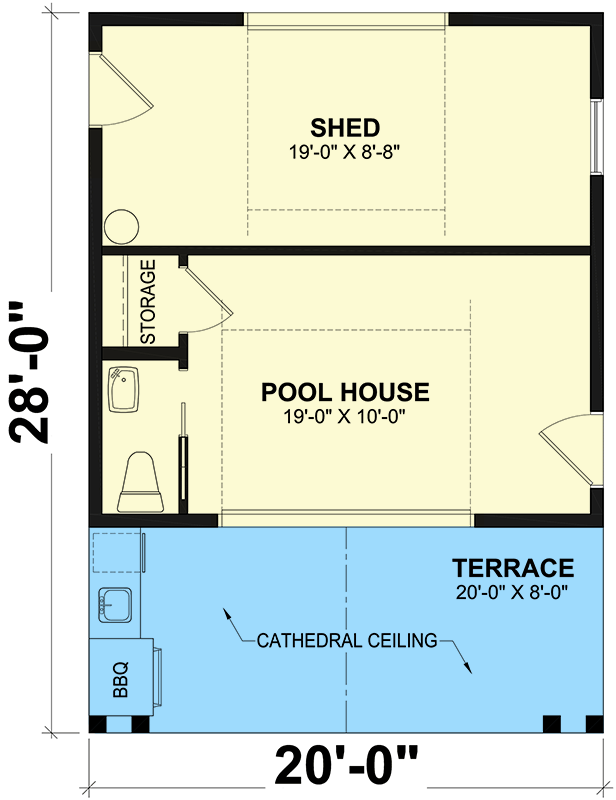

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Pool House with Vaulted Deck and a Garage Door Opening - 22638DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 400 sq. ft.
  • 1st Floor: 400 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 28' 0"
  • Max ridge height: 17' 3"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
