Rustic Ranch Home Plan with Cathedral Ceilings and a Broad Front Porch

Plan 623060DJ

  • 1,695

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

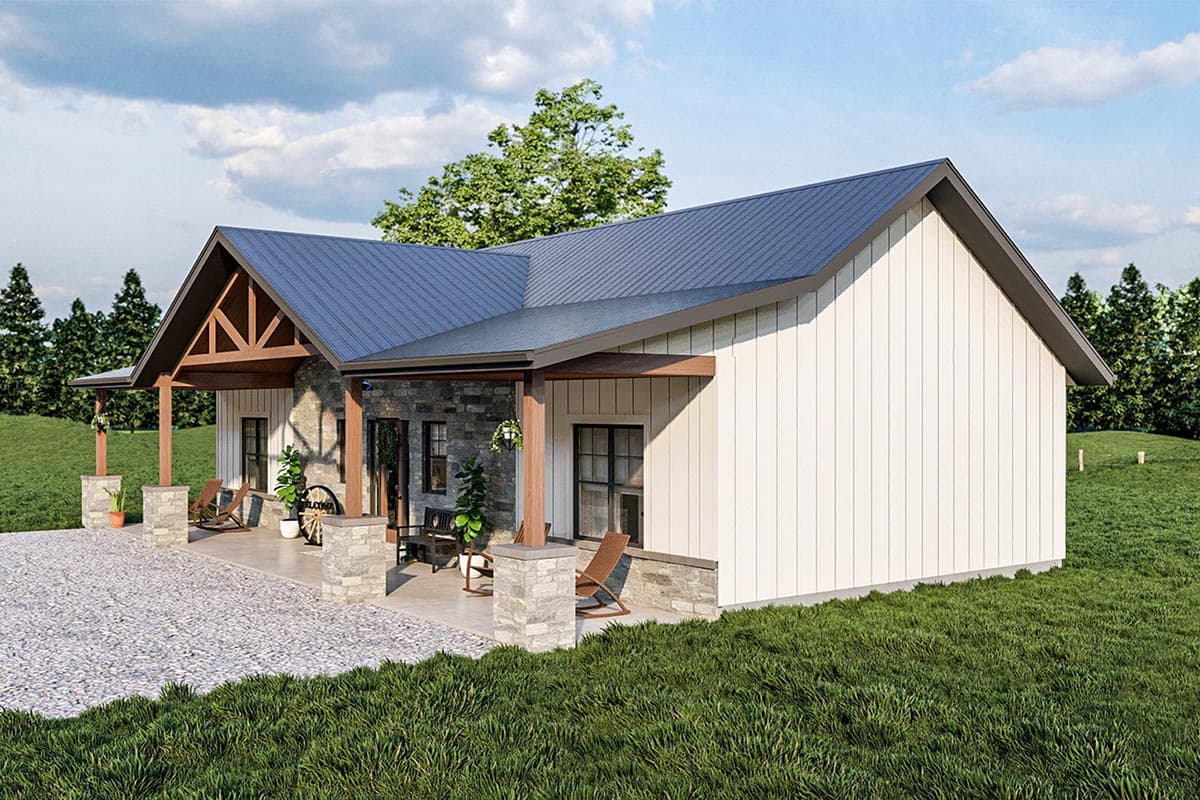

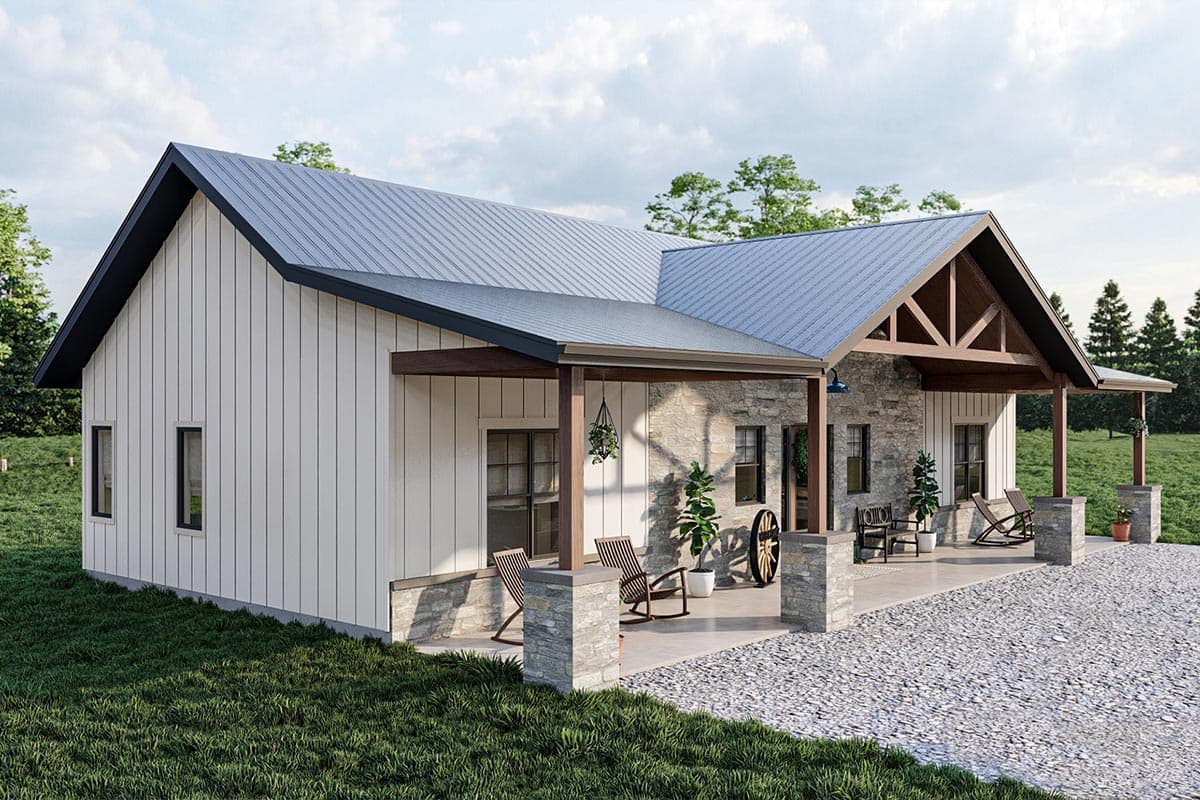

  • This stunning 3 bedroom, 1-story barndominium-style house plan has a rustic exterior with a combination of stone, wood beams, metal roof, and board and batten siding.

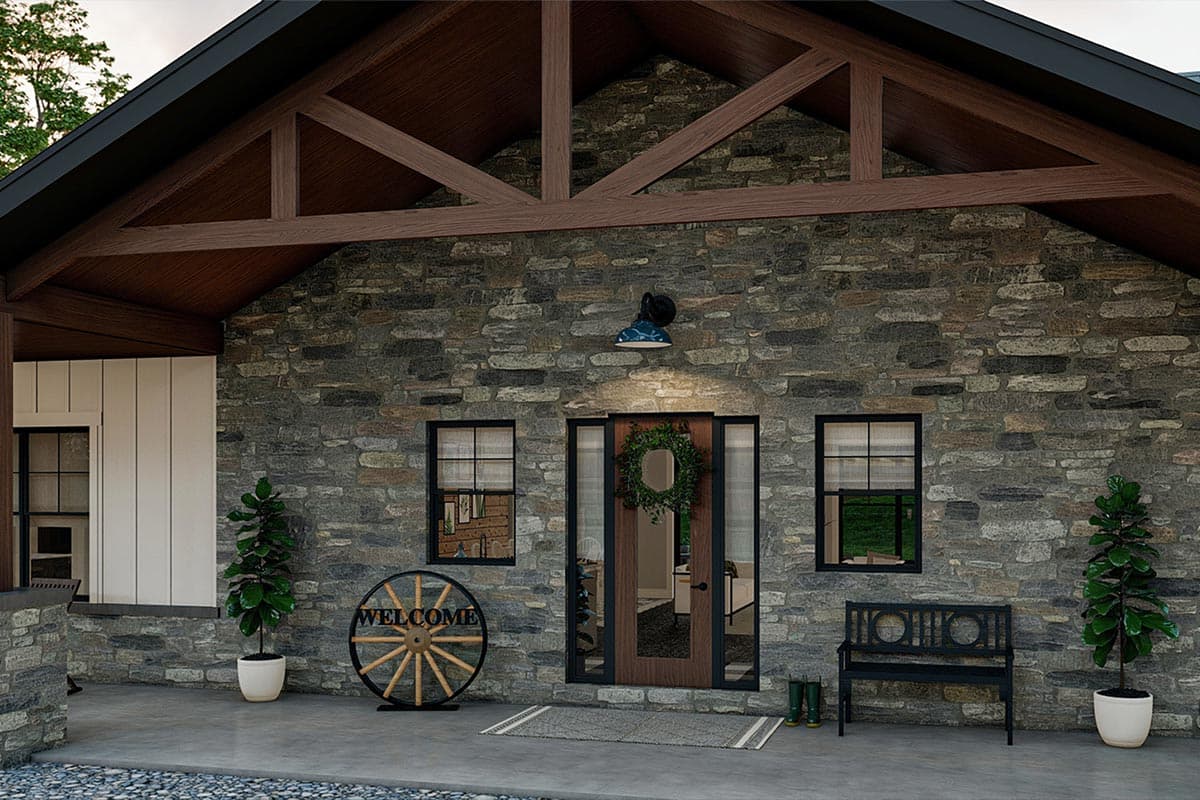

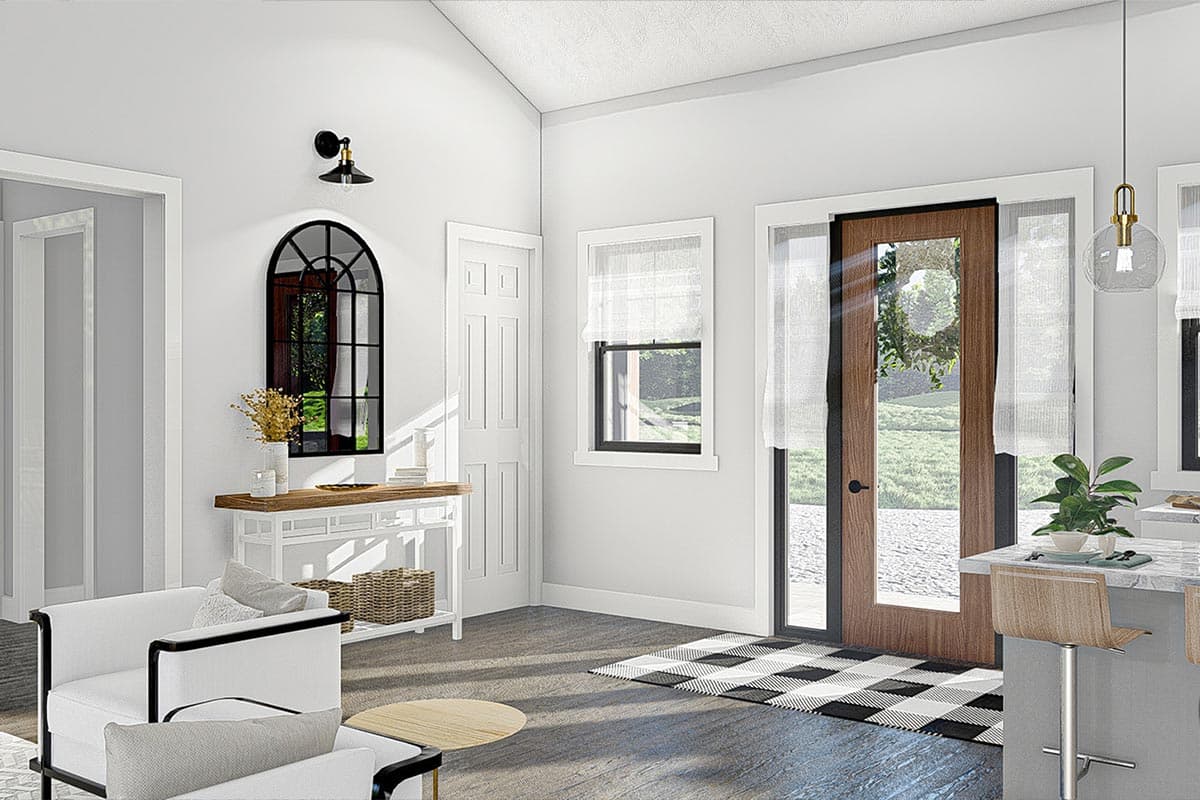

  • A large front covered porch with a cathedral ceiling beckons you inside where you'll notice a wide-open floor plan.

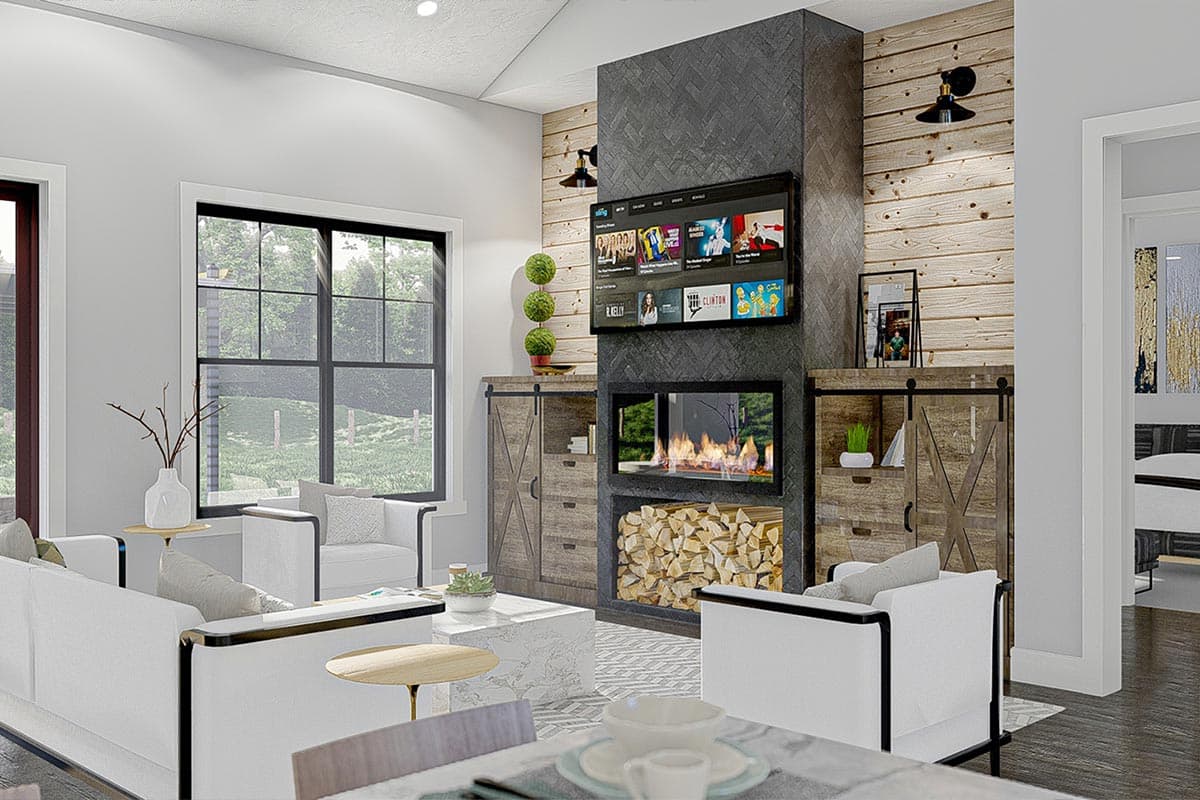

  • The kitchen, dining room, and family room lie under a soaring cathedral ceiling, making the space feel huge. 0The family room is warmed by a fireplace that is flanked by built-in bookshelves and the kitchen includes an island with a snack bar.

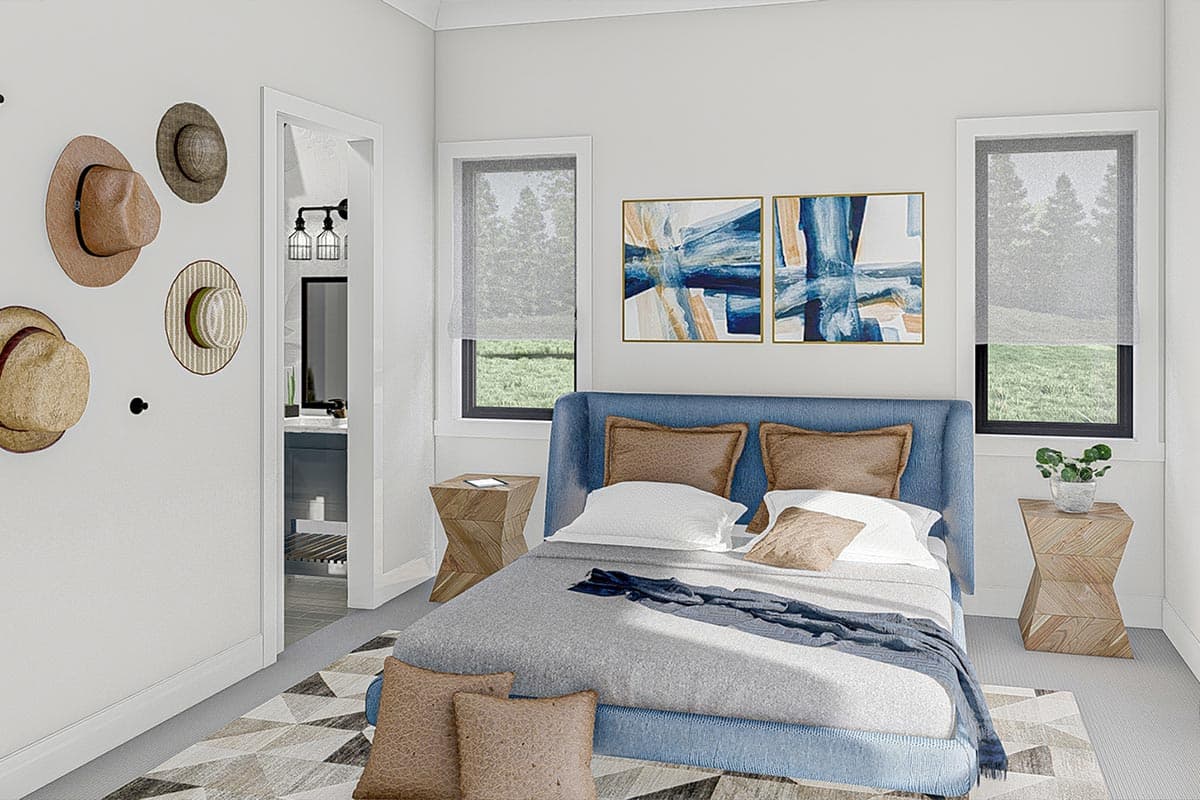

  • Tucked away for privacy on the left side of the home, the master bedroom lies under a decorative trayed ceiling. The master bathroom includes his/her vanities, a linen closet, an enclosed toilet area, and a large walk-in closet.
  • Across the home, 2 bedrooms share a centrally located hall bathroom with dual vanities.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

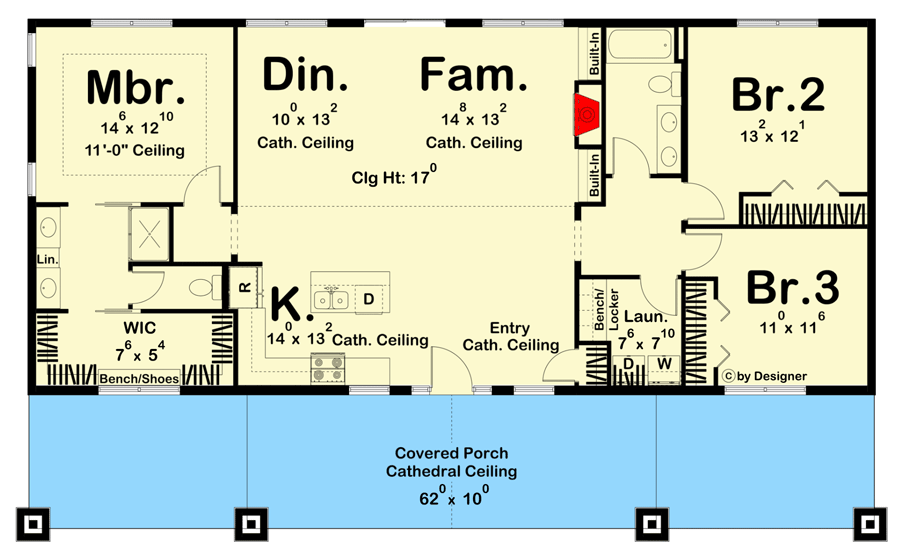

Rustic Ranch Home Plan with Cathedral Ceilings and a Broad Front Porch - 623060DJ floor plan - Main Level

Rustic Ranch Home Plan with Cathedral Ceilings and a Broad Front Porch

  • 1,695

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,695 sq. ft.
  • 1st Floor: 1,695 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 38' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
