Rustic Retreat

Plan 12916KN

This plan plants 10 trees

1,516
Heated s.f.
3
Beds
3
Baths
2
Stories

Rustic logs and stone accent the exterior of this getaway Mountain home.
The big front porch has plenty of room for comfortable chairs and tables.
A convenient washer/dryer closet makes things easy.
One bedroom is on the main floor and the second bedroom lies on the upper level.
Use the sitting area for extra sleeping quarters with a sleeper sofa.

Floor plans at ¼" scale

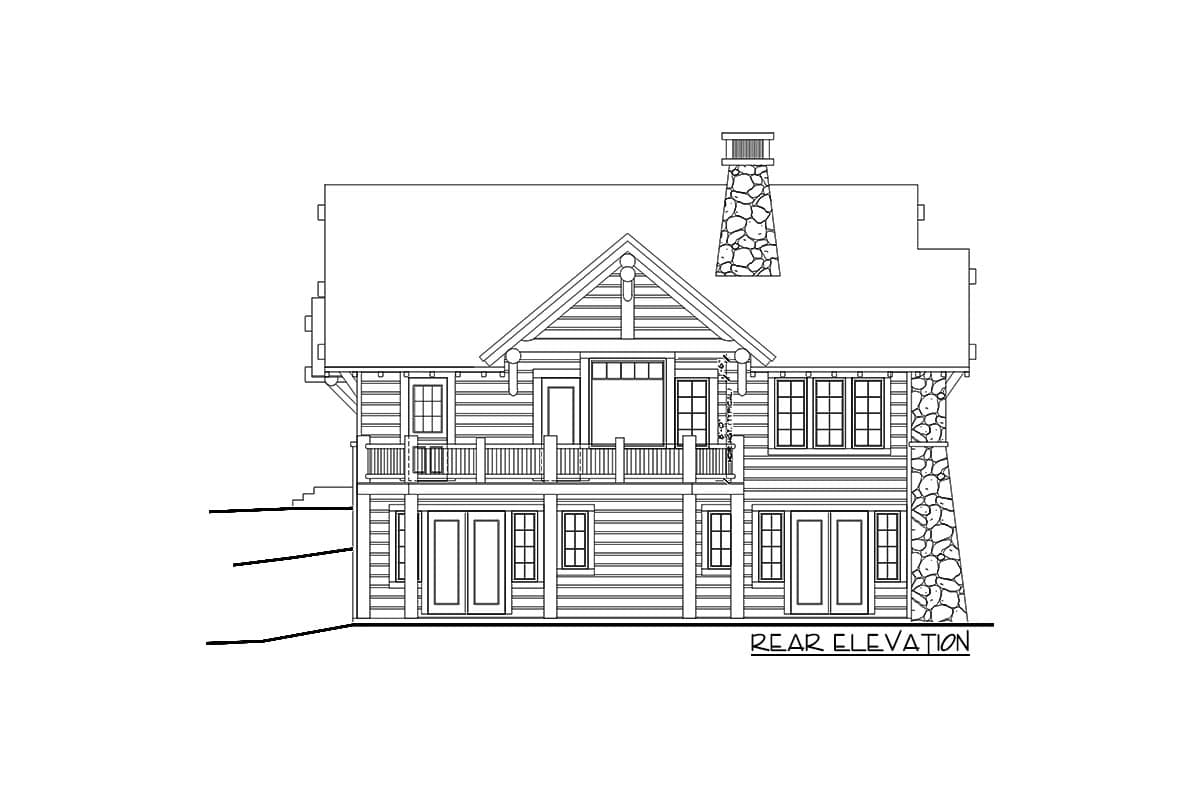

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

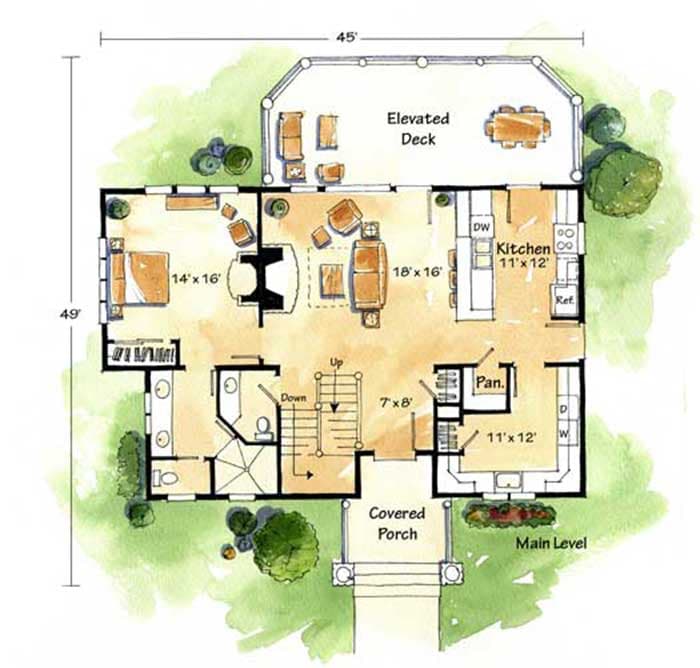

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Rustic Retreat - 12916KN floor plan - Main Level

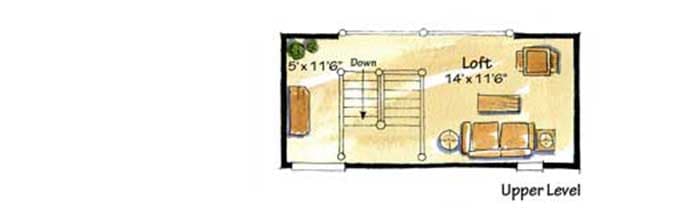

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Rustic Retreat - 12916KN floor plan - 2nd Floor

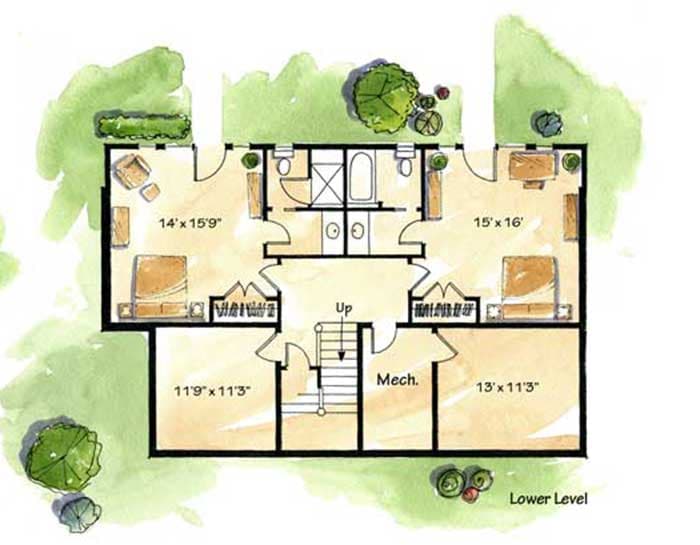

Optional Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Rustic Retreat - 12916KN floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,516 sq. ft.
1st Floor: 1,230 sq. ft.
2nd Floor: 286 sq. ft.

Optional Lower Level: 836 sq. ft.
Porch, Front: 411 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 3

Foundation Type

Standard Foundations: Basement

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 38' 0"
Depth: 46' 0"

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Scroll
