Weekend Mountain Escape

Plan 11529KN

  • 681

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

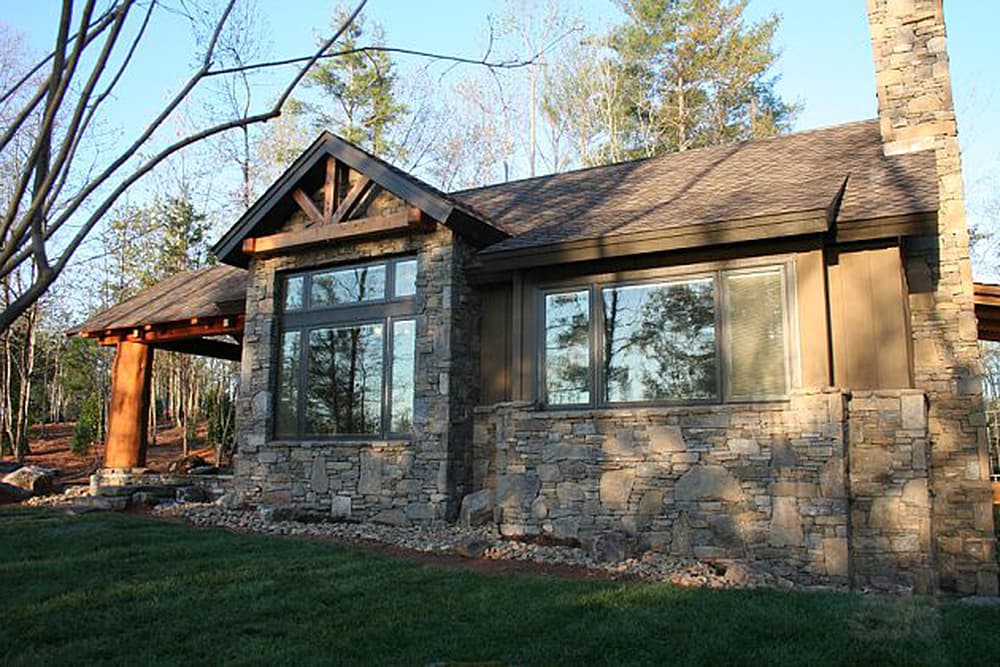

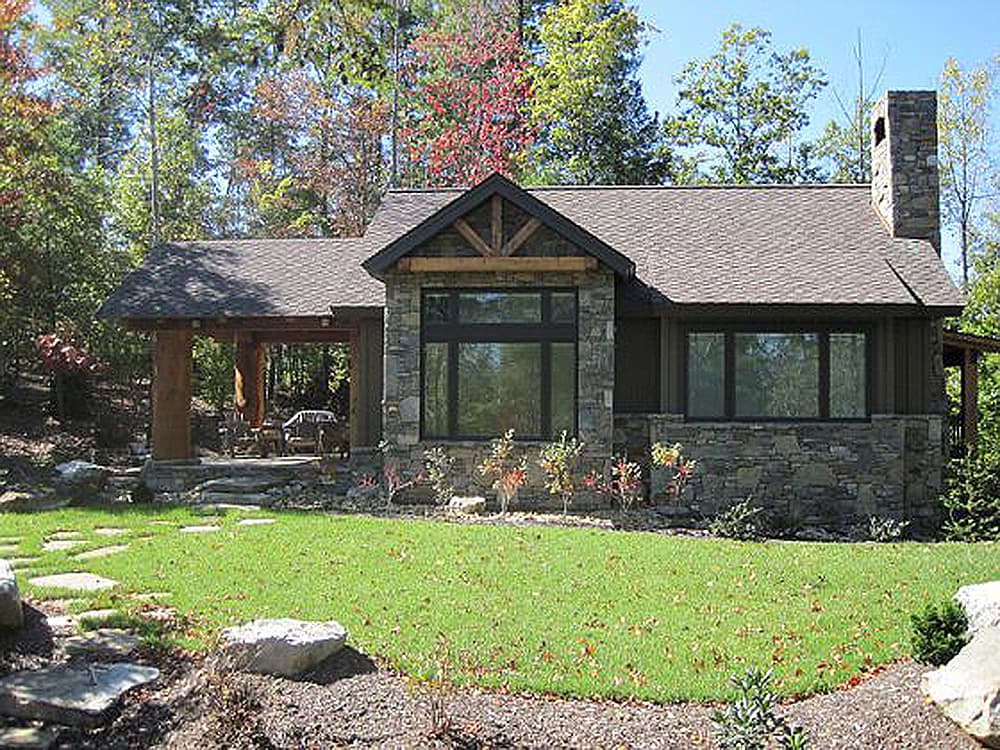

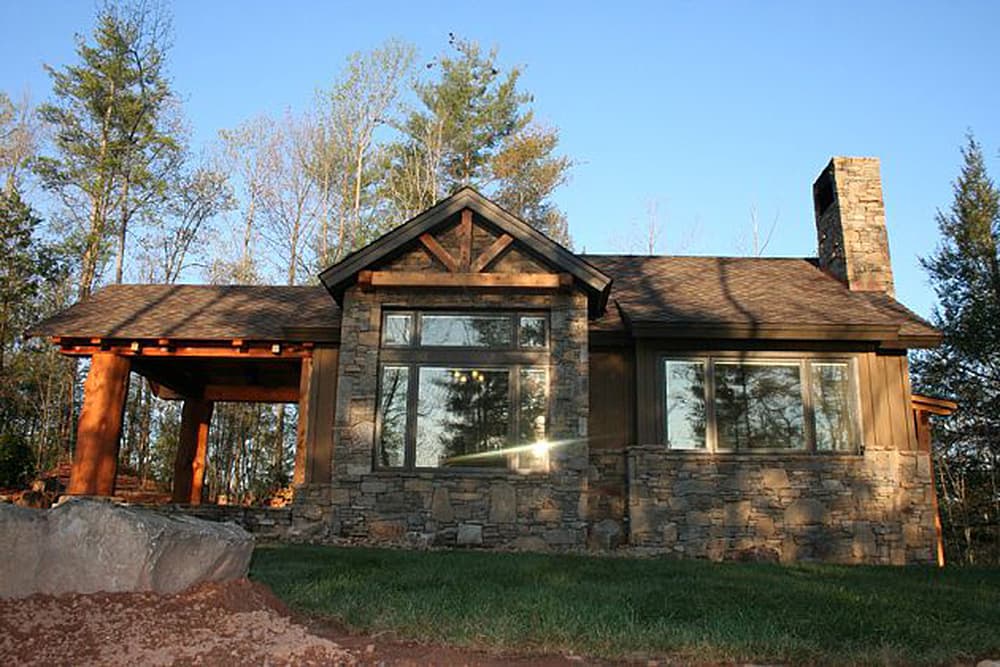

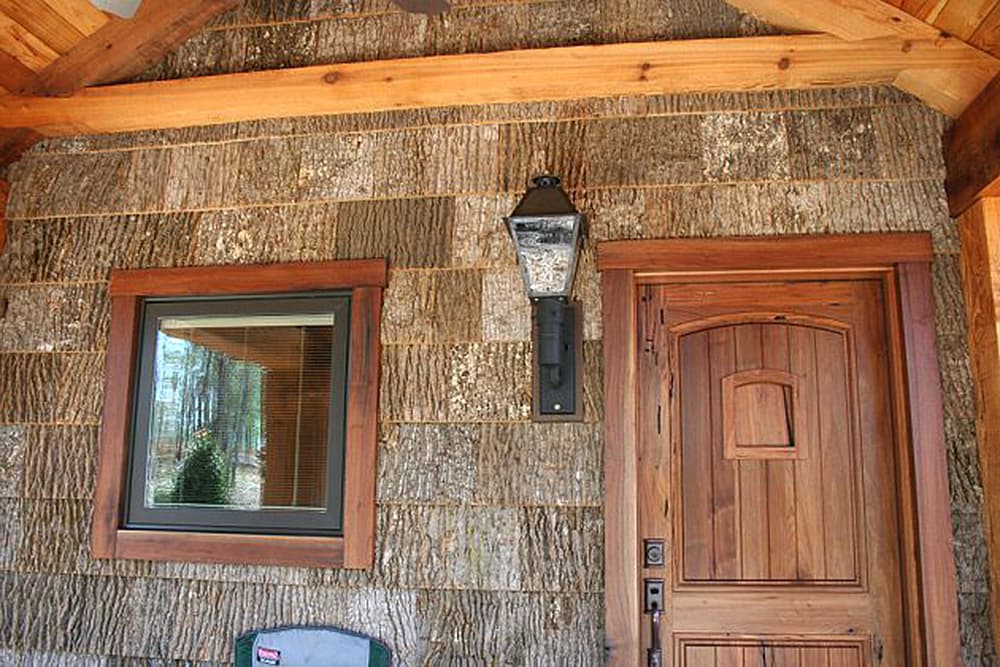

  • This rustic house plan is perfect for a weekend mountain escape. Log siding gives this a rugged feel. It is designed for conventional 2x6 framing.

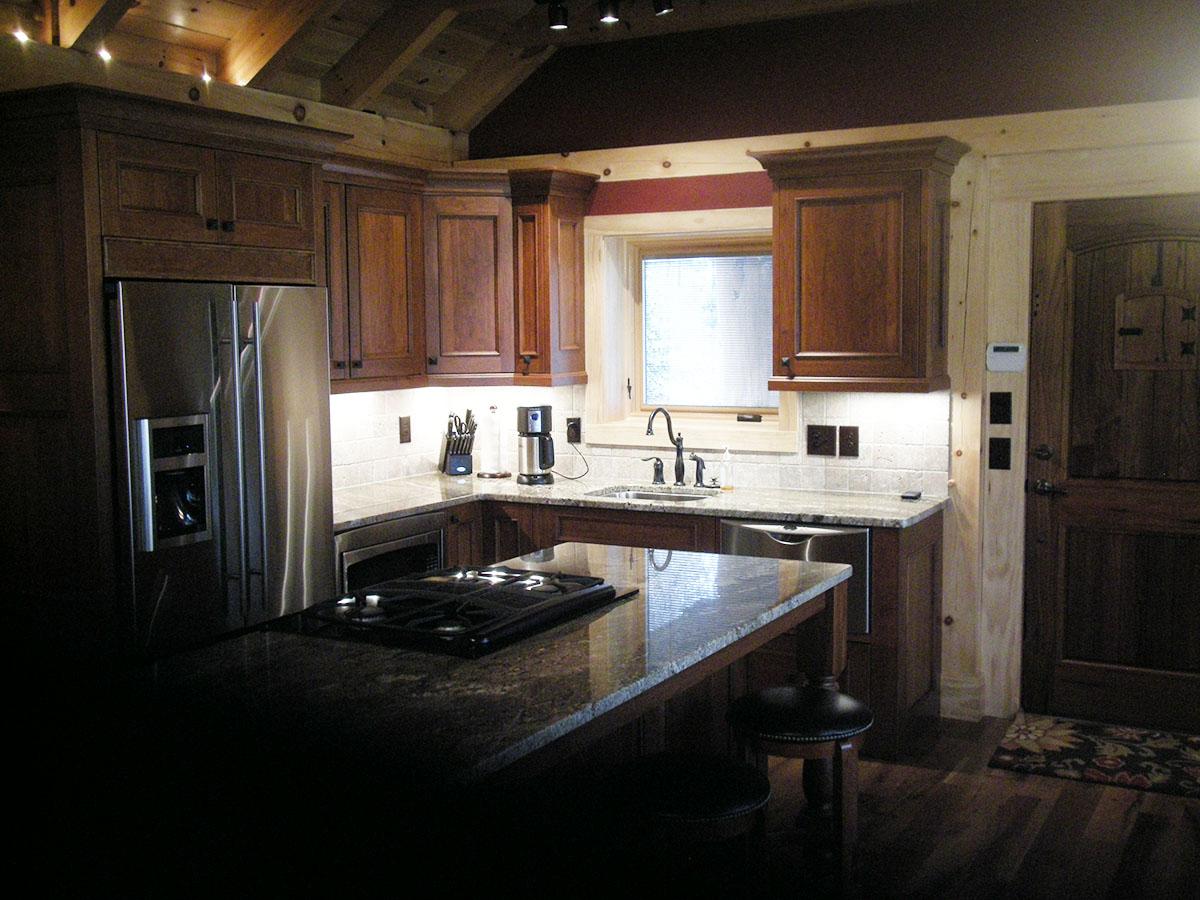

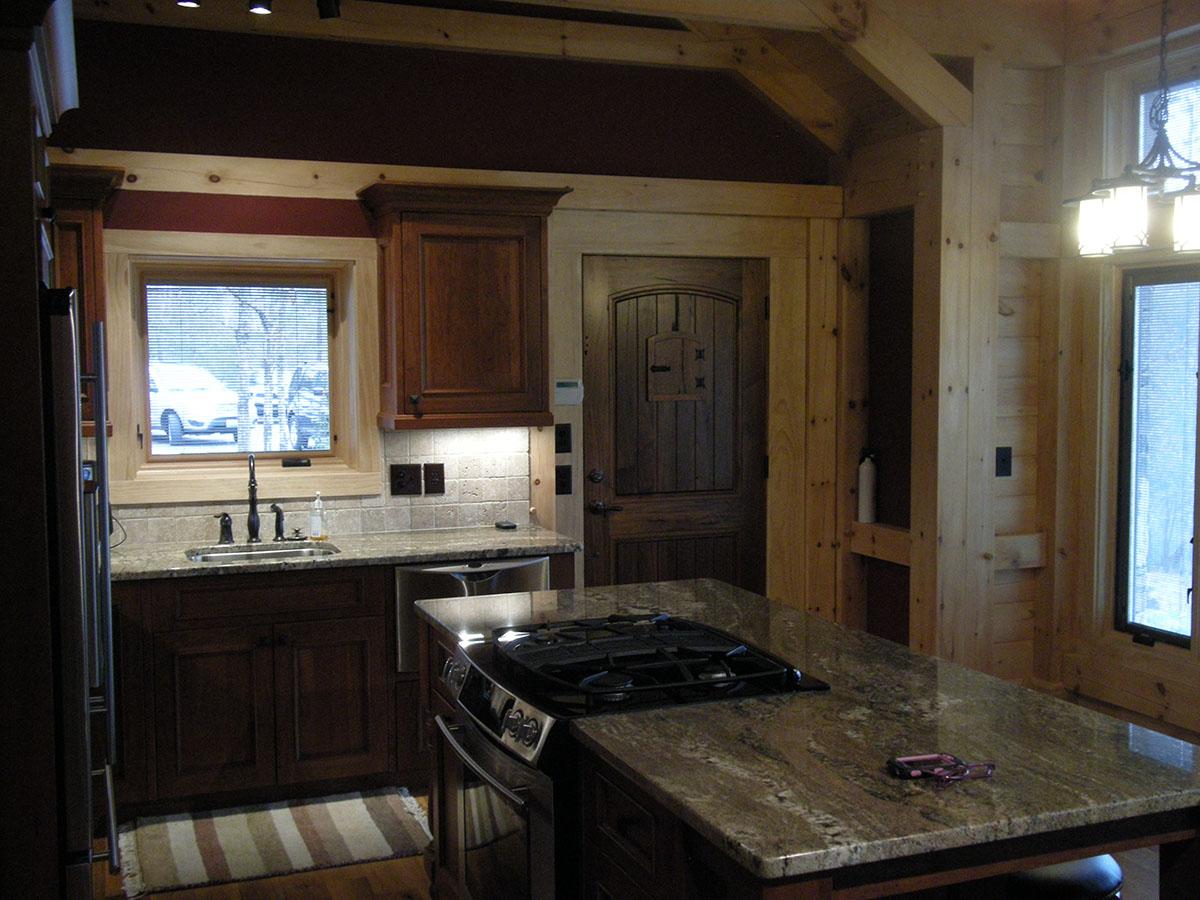

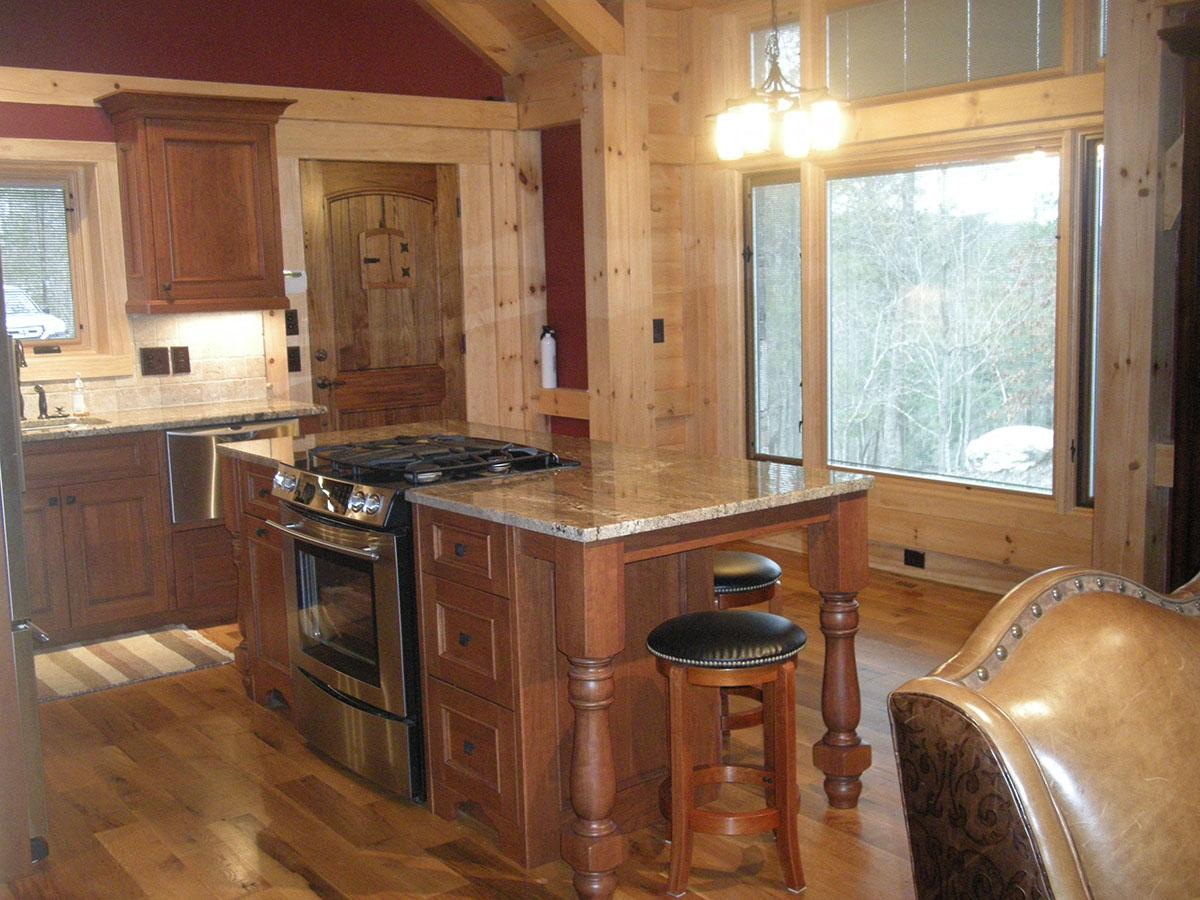

  • The front portion of the home is all open and filled with natural light from the abundant windows.

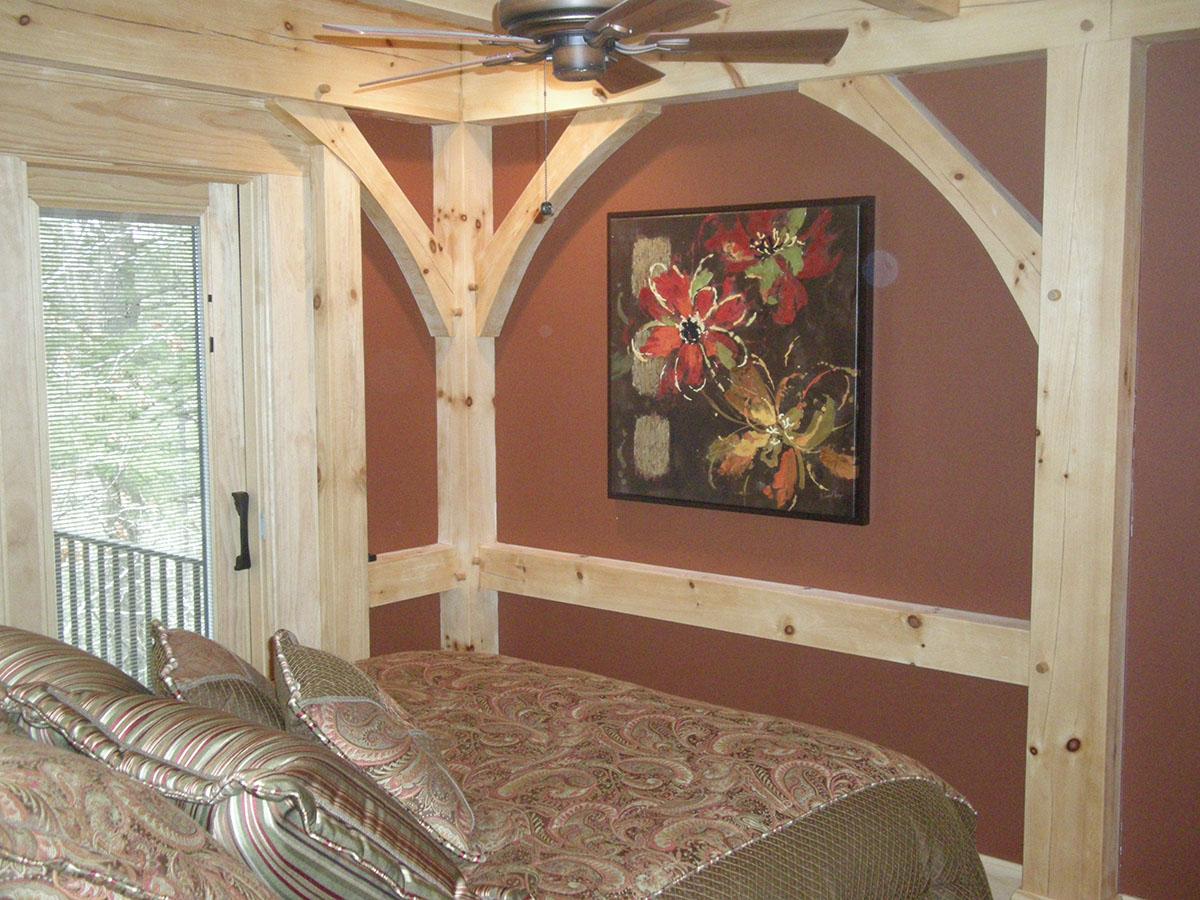

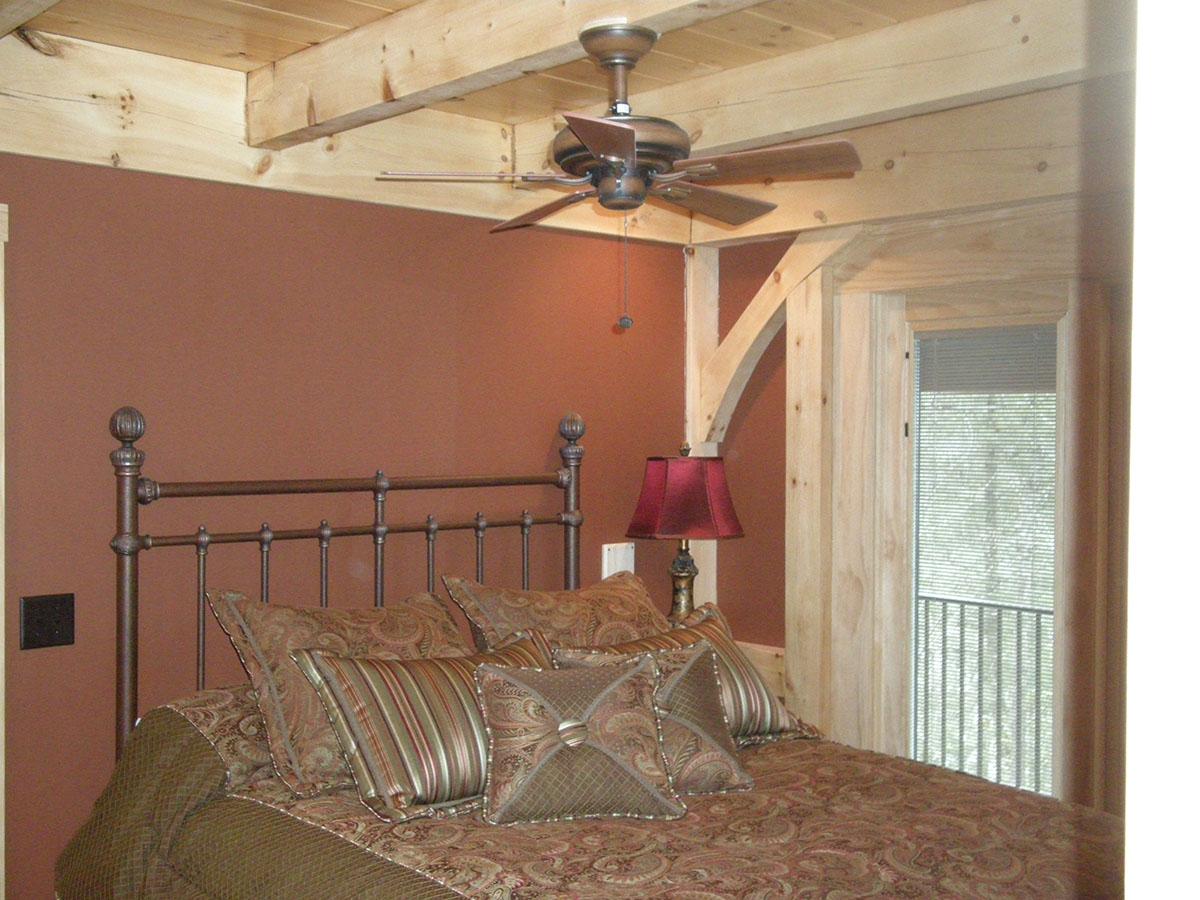

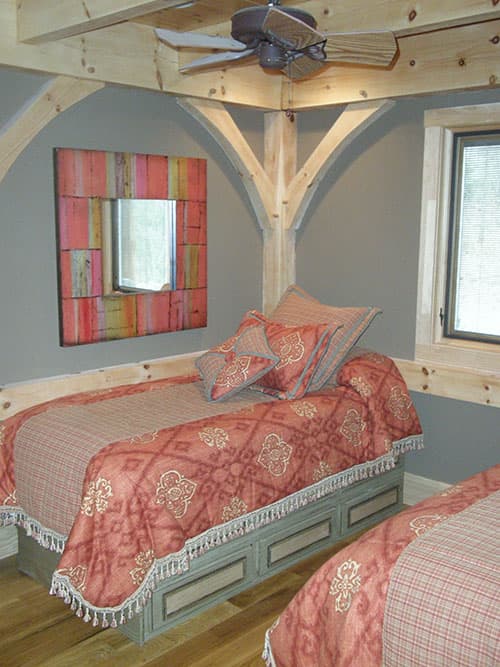

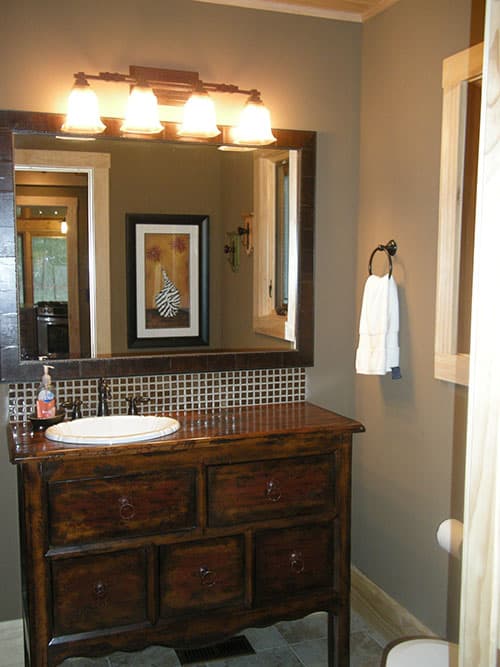

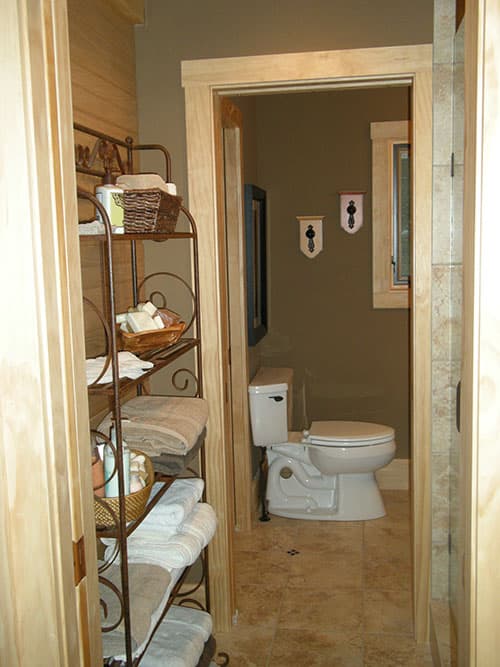

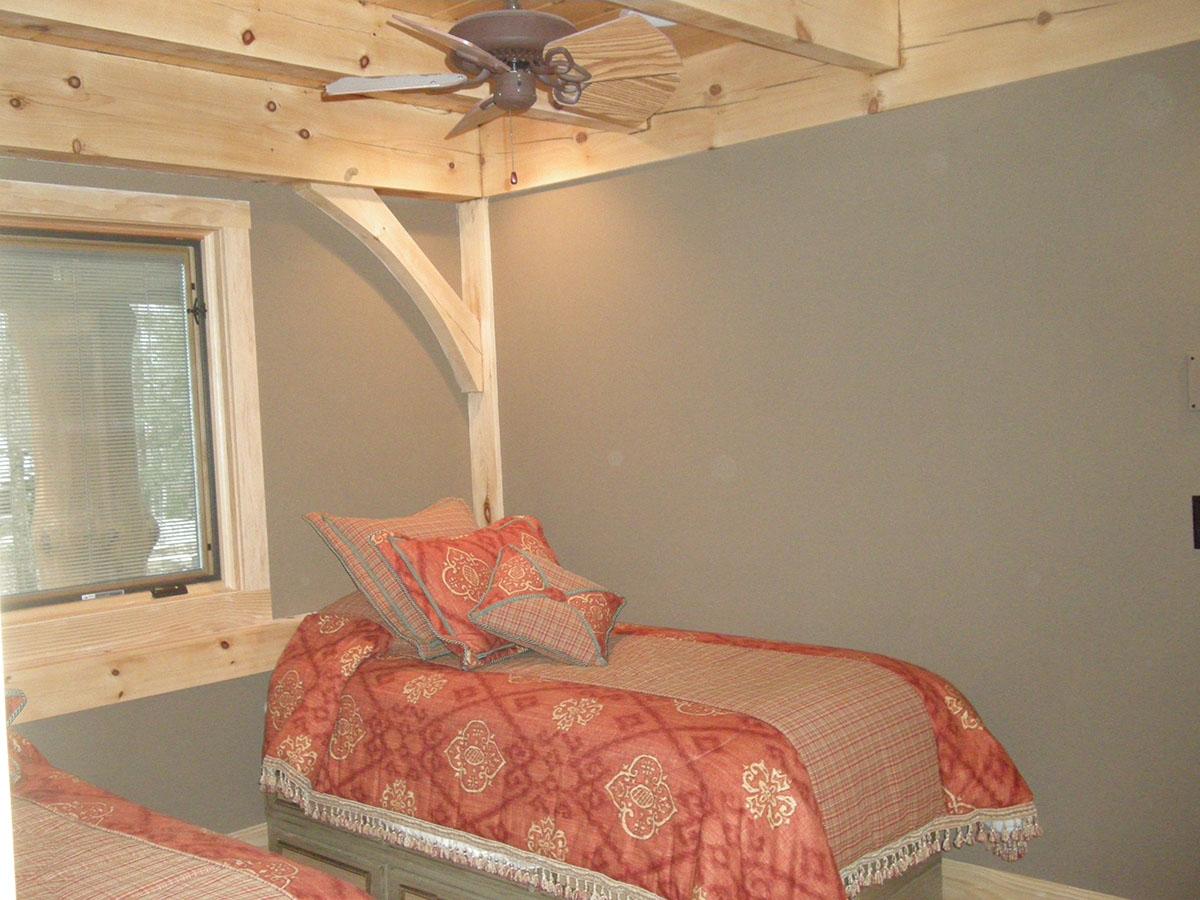

  • Two bedrooms are tucked in the back and surprisingly each have their own baths.

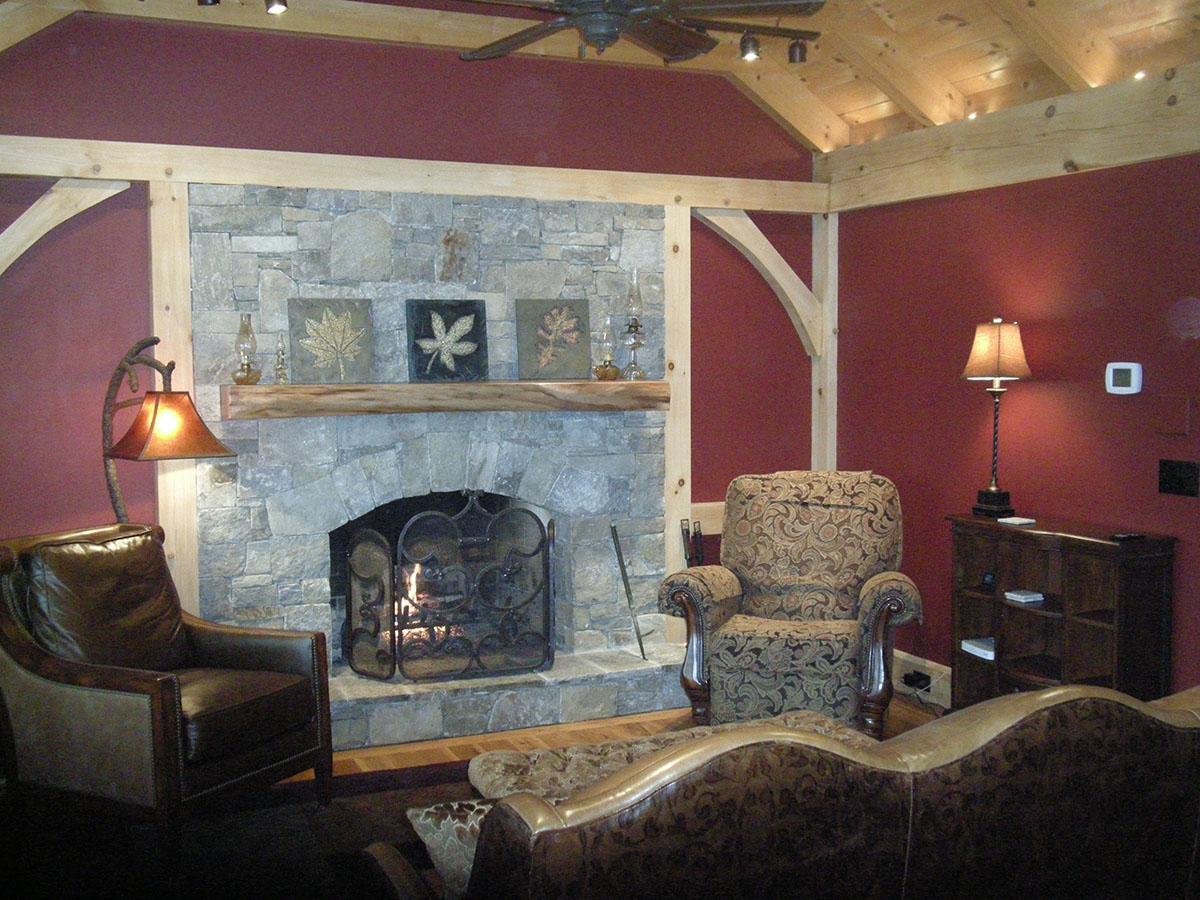

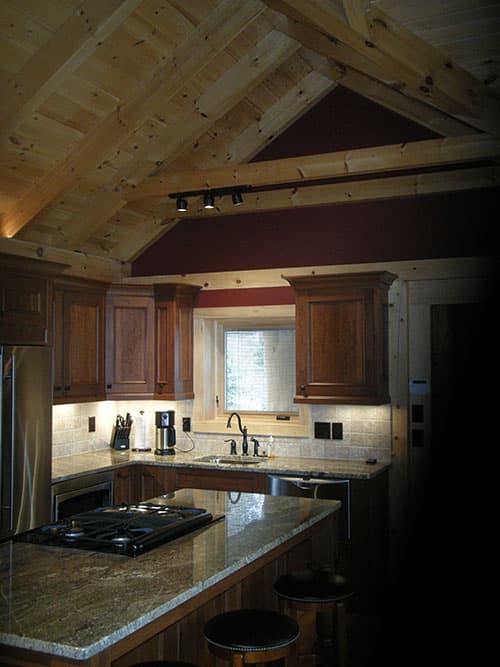

  • The living area has a vaulted ceiling starting at 9' and rising to 11'6".

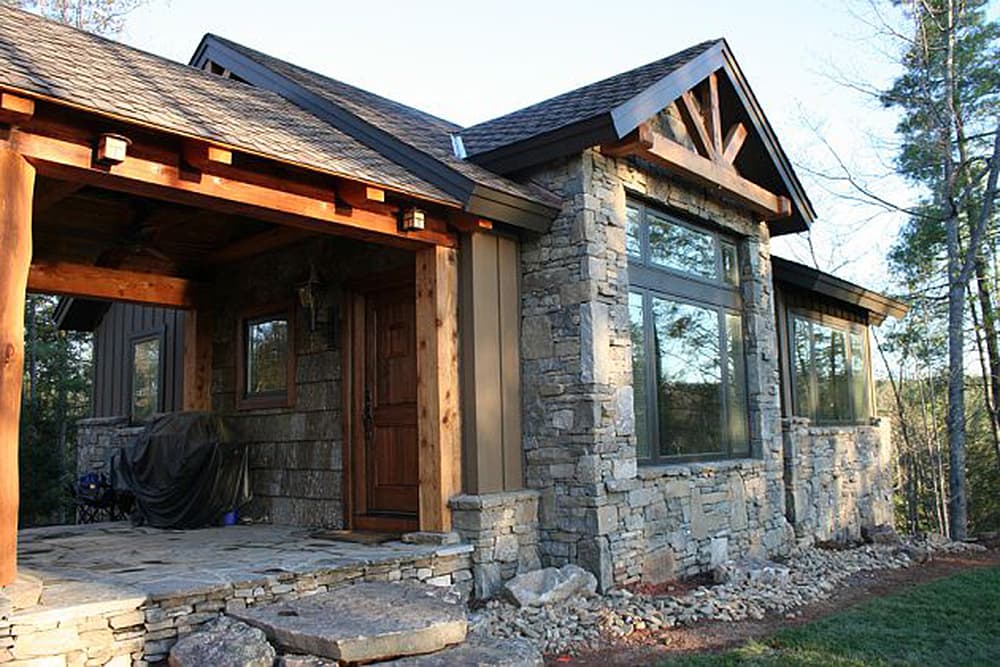

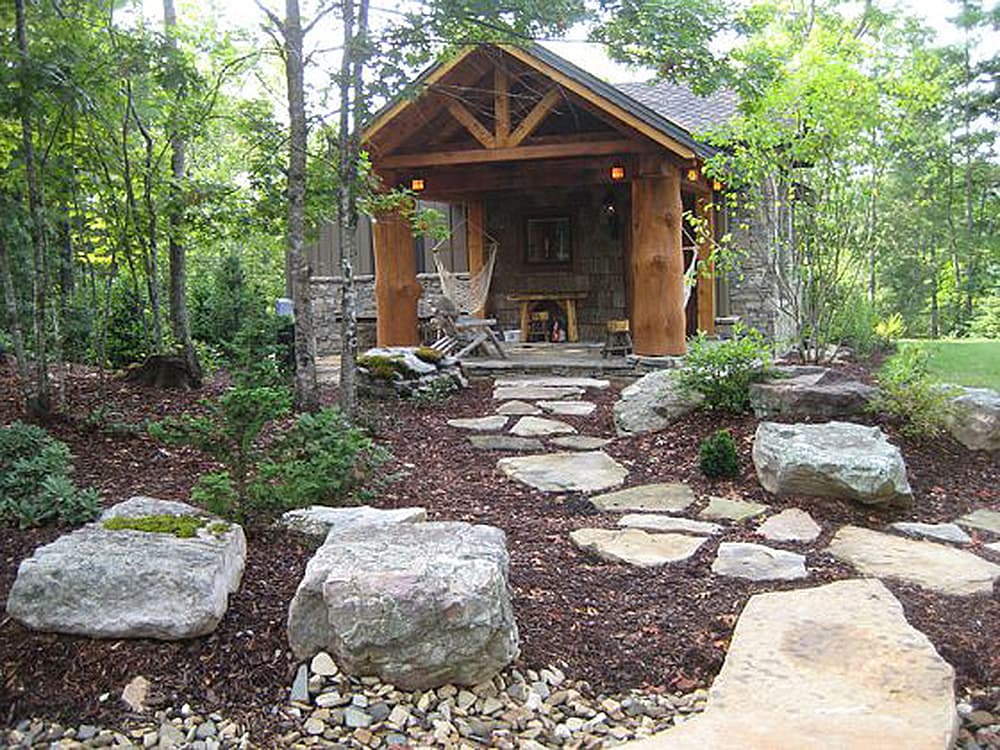

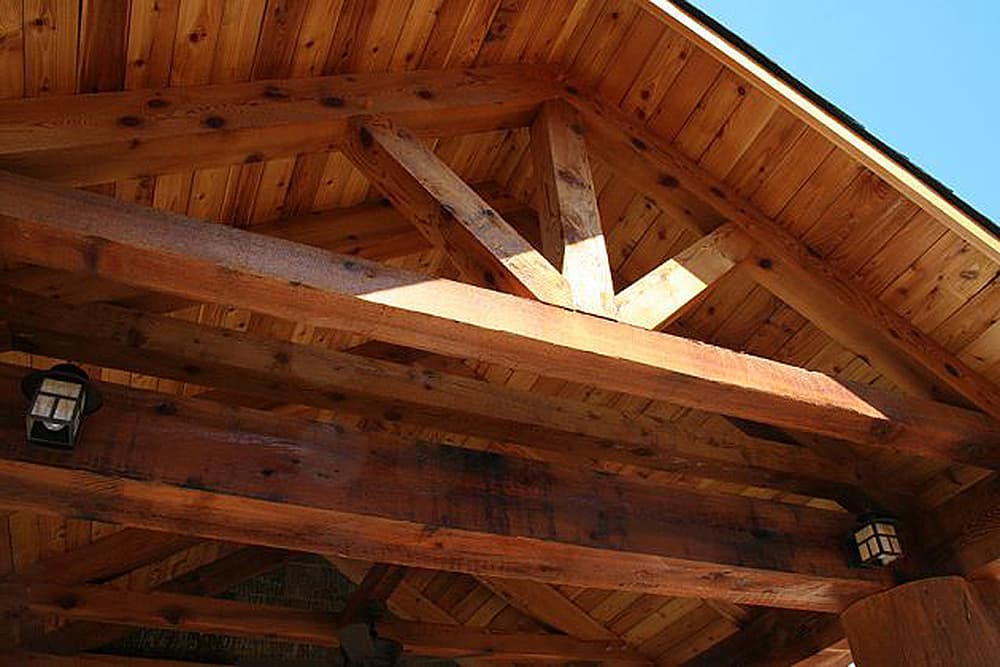

  • Enjoy the outdoors under the roof of your own vaulted covered porch with stone footings.
  • Related Plans: Get more room with house plan 12964KN (1,065 sq. ft.) and get a version with a one-car garage with house plan 11534KN.

Floor plans at ¼" scale

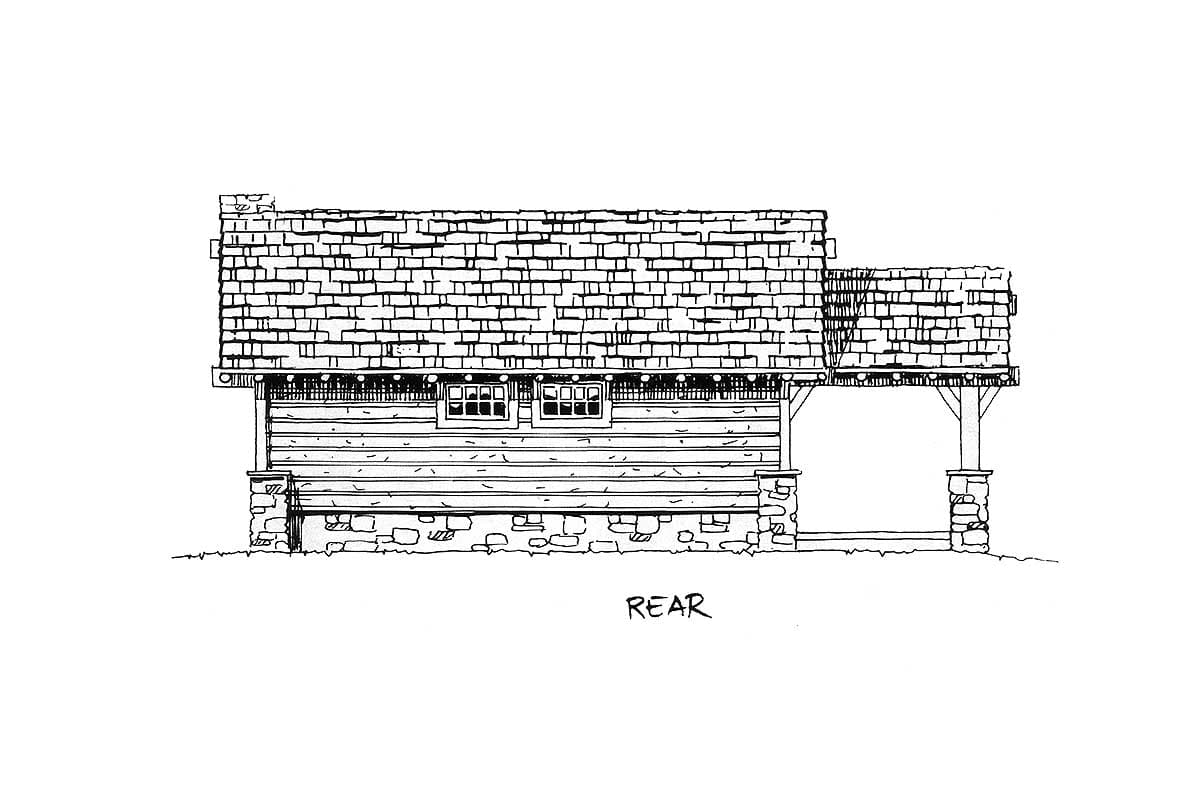

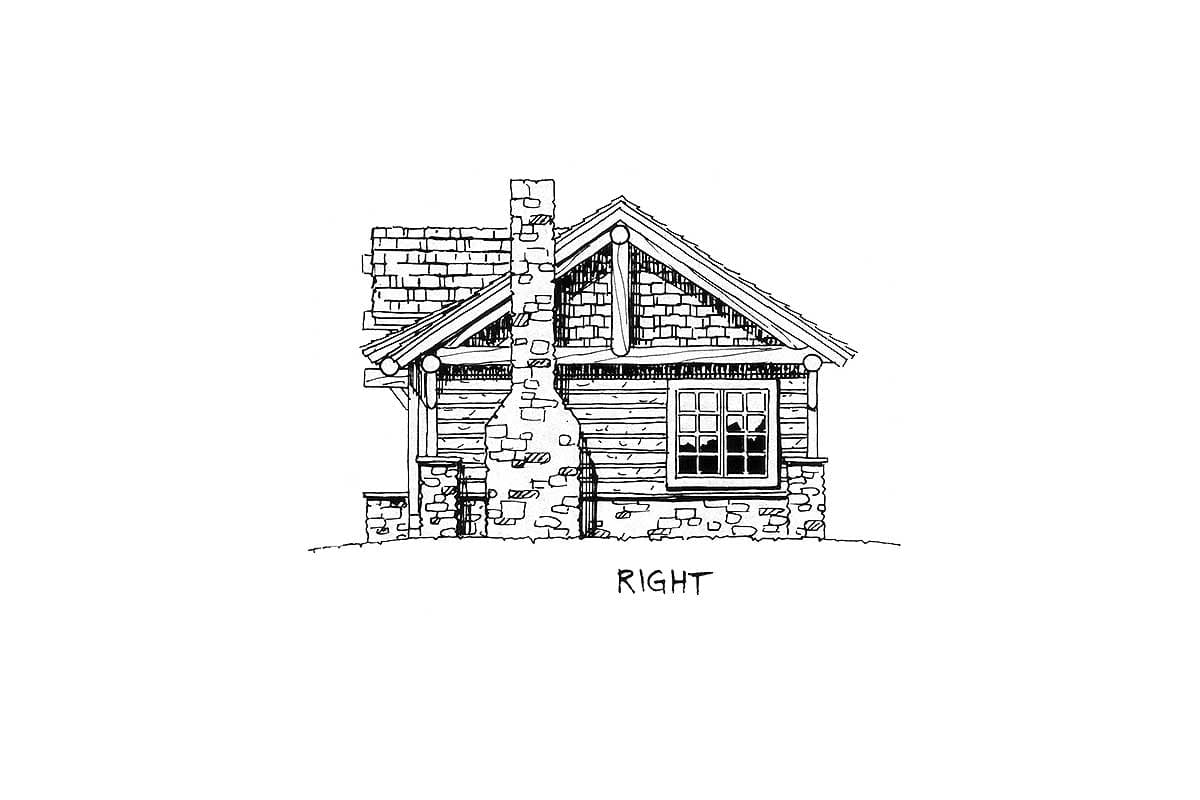

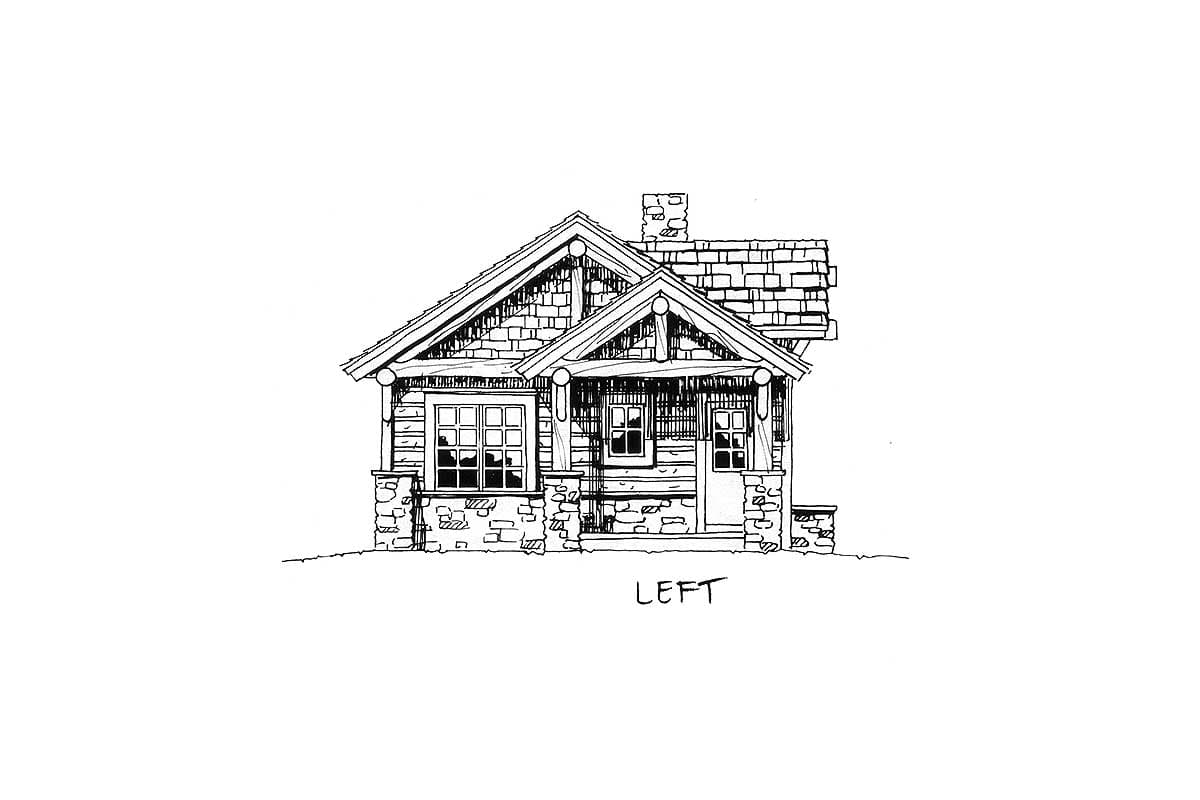

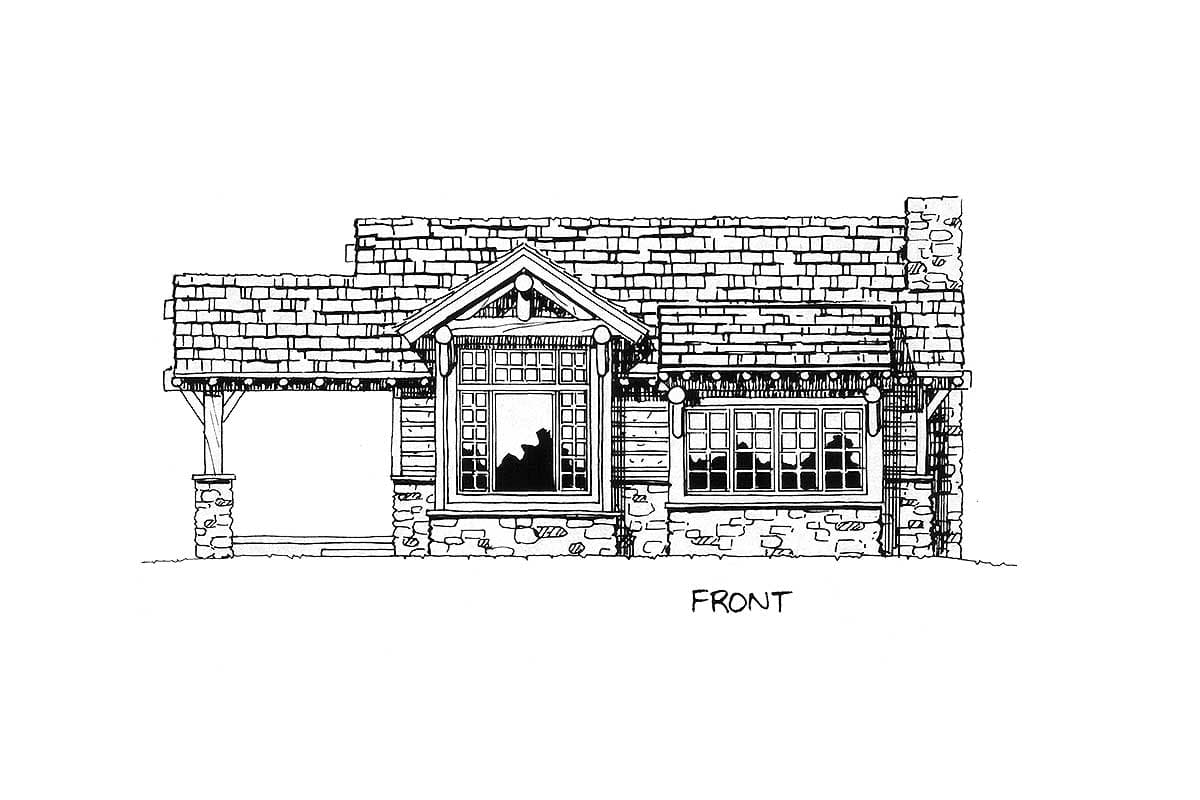

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

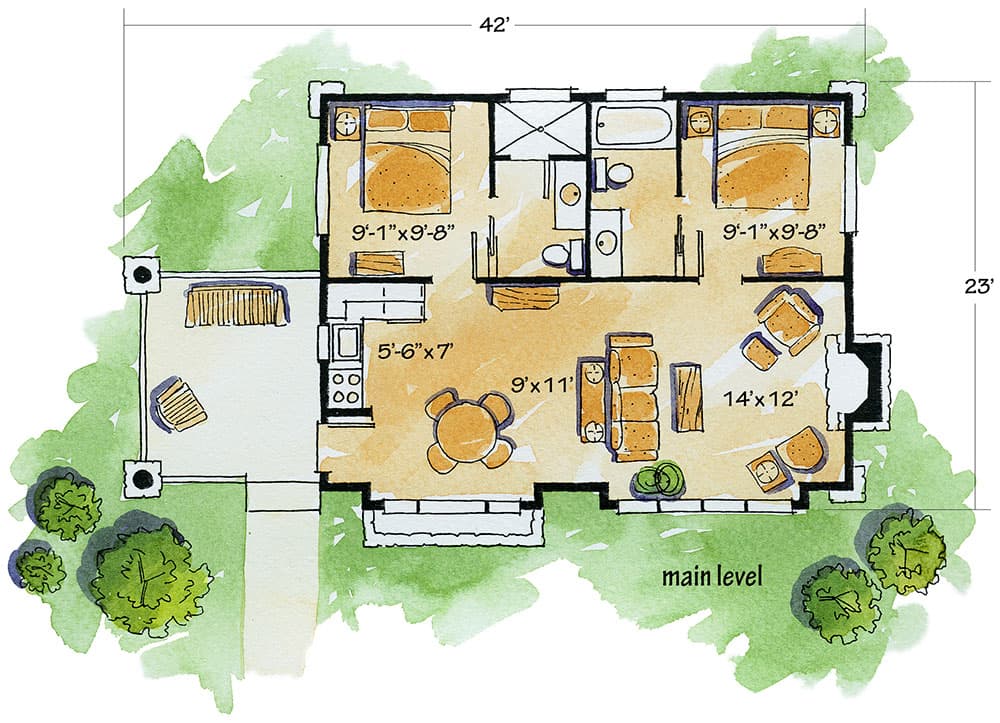

Weekend Mountain Escape - 11529KN floor plan - Main Level

Plan details

Architectural Style

Special features

Plan Collections



Weekend Mountain Escape

  • 681

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $975
  • CAD - Single-Build $1,400
  • View all purchase option online

About This Plan

  • This rustic house plan is perfect for a weekend mountain escape. Log siding gives this a rugged feel. It is designed for conventional 2x6 framing.
  • The front portion of the home is all open and filled with natural light from the abundant windows.
  • Two bedrooms are tucked in the back and surprisingly each have their own baths.
  • The living area has a vaulted ceiling starting at 9' and rising to 11'6".
  • Enjoy the outdoors under the roof of your own vaulted covered porch with stone footings.
  • Related Plans: Get more room with house plan 12964KN (1,065 sq. ft.) and get a version with a one-car garage with house plan 11534KN.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 681 sq. ft.
  • 1st Floor: 681 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 23' 0"
  • Max ridge height: 18' 10"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
