Plan 68906VR Rustic Split Bedroom Craftsman Home Plan with Vaulted Family Room and Rear Porch

Rustic Split Bedroom Craftsman Home Plan with Vaulted Family Room and Rear Porch

Plan 68906VR

  • 2,371

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Rustic detailing enhances the exterior of this attractive split bedroom Craftsman house plan. Decorative brackets add character to the gables and a decorative shed dormer with exposed rafter tails above the front porch adds to the curb appeal.
  • Inside, columns instead of walls are used to provide support, giving the home an airy feel with its wonderful sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy. Homeowners get pampered with tray ceilings in both the bedroom and the large sitting room that opens to the rear porch. Even the master bathroom is vaulted and there's a window seat in the huge walk-in closet.
  • Across the home, two bedrooms share a bath.
  • Related Plans: Get an additional garage with house plans 68404VR and 68757VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

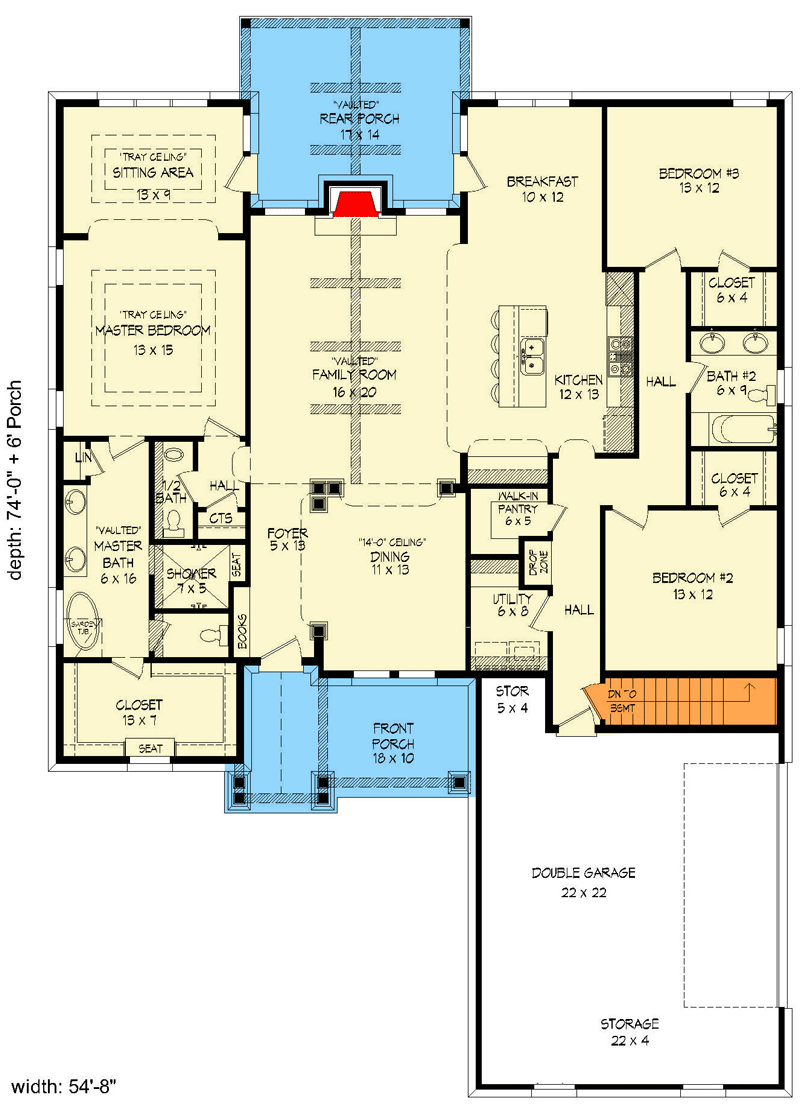

Rustic Split Bedroom Craftsman Home Plan with Vaulted Family Room and Rear Porch - 68906VR floor plan - Main Level

Plan details

Rustic Split Bedroom Craftsman Home Plan with Vaulted Family Room and Rear Porch

  • 2,371

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,460
  • 5 Sets + PDF $1,515
  • CAD + PDF - Single-Build $1,845
  • View all purchase option online

About This Plan

  • Rustic detailing enhances the exterior of this attractive split bedroom Craftsman house plan. Decorative brackets add character to the gables and a decorative shed dormer with exposed rafter tails above the front porch adds to the curb appeal.
  • Inside, columns instead of walls are used to provide support, giving the home an airy feel with its wonderful sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy. Homeowners get pampered with tray ceilings in both the bedroom and the large sitting room that opens to the rear porch. Even the master bathroom is vaulted and there's a window seat in the huge walk-in closet.
  • Across the home, two bedrooms share a bath.
  • Related Plans: Get an additional garage with house plans 68404VR and 68757VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,371 sq. ft.
  • 1st Floor: 2,371 sq. ft.
  • Porch, Rear: 200 sq. ft.
  • Porch, Front: 150 sq. ft.
  • Basement Unfinished: 2,419 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 8"
  • Depth: 80' 0"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 661 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
