Rustic Timber Siding Cottage with Vaulted Living Space
Heated S.F.
743
Beds
2
Baths
1
Stories
2
What's Included
Plan Details
  • With its large windows and rustic look, this timber siding house plan will please the outdoor lover.
  • This model is 24 feet wide by 24 feet deep and provides 743 feet of living space.
  • The ground floor has a 576 square foot living area and includes a functional kitchen with an open living and dining area, and a bathroom. The living and dining areas have cathedral ceilings and the large windows provide an abundance of natural light.
  • The 167 square foot loft on the second floor is large enough to hold one bedroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.

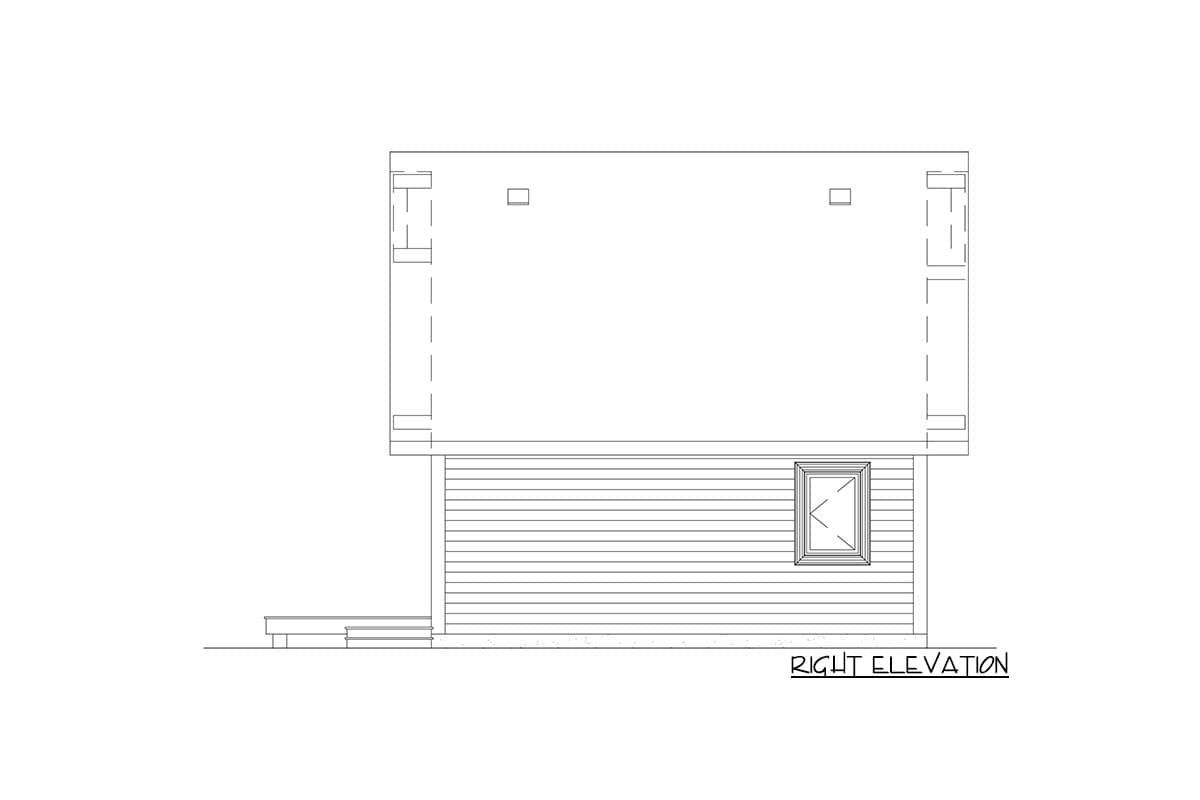

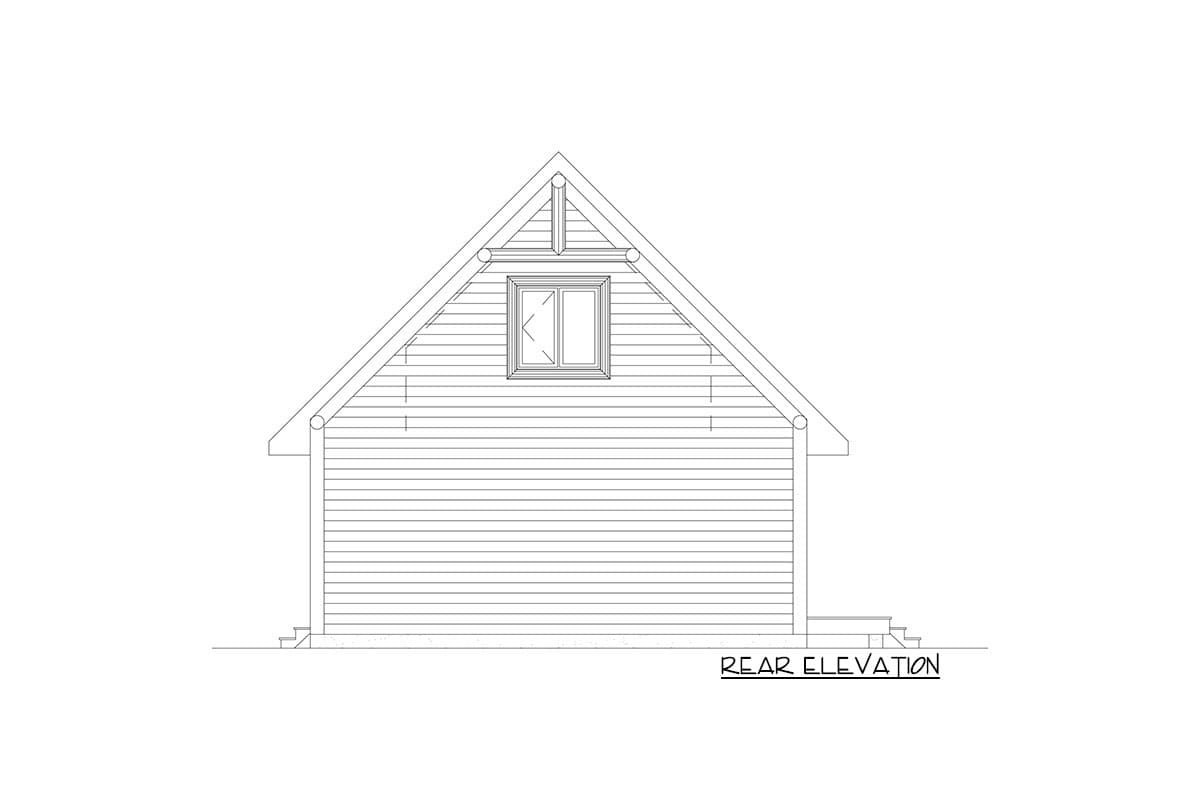

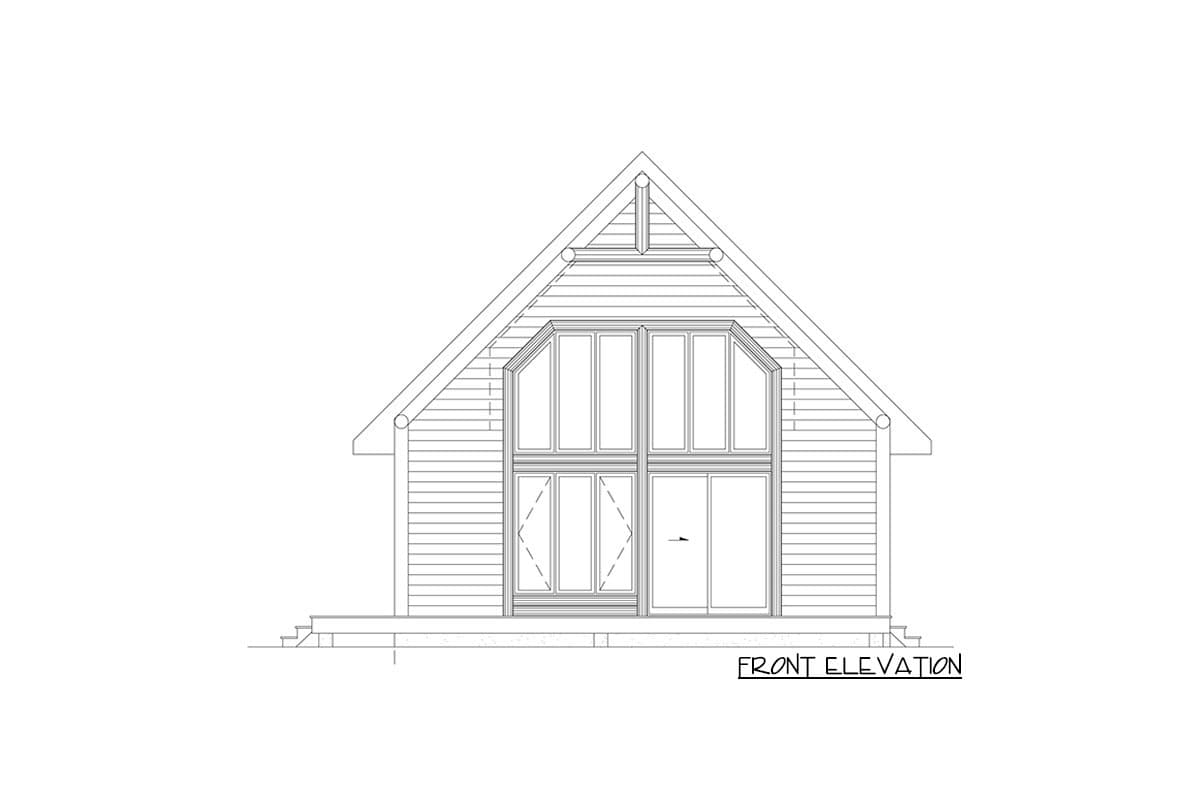

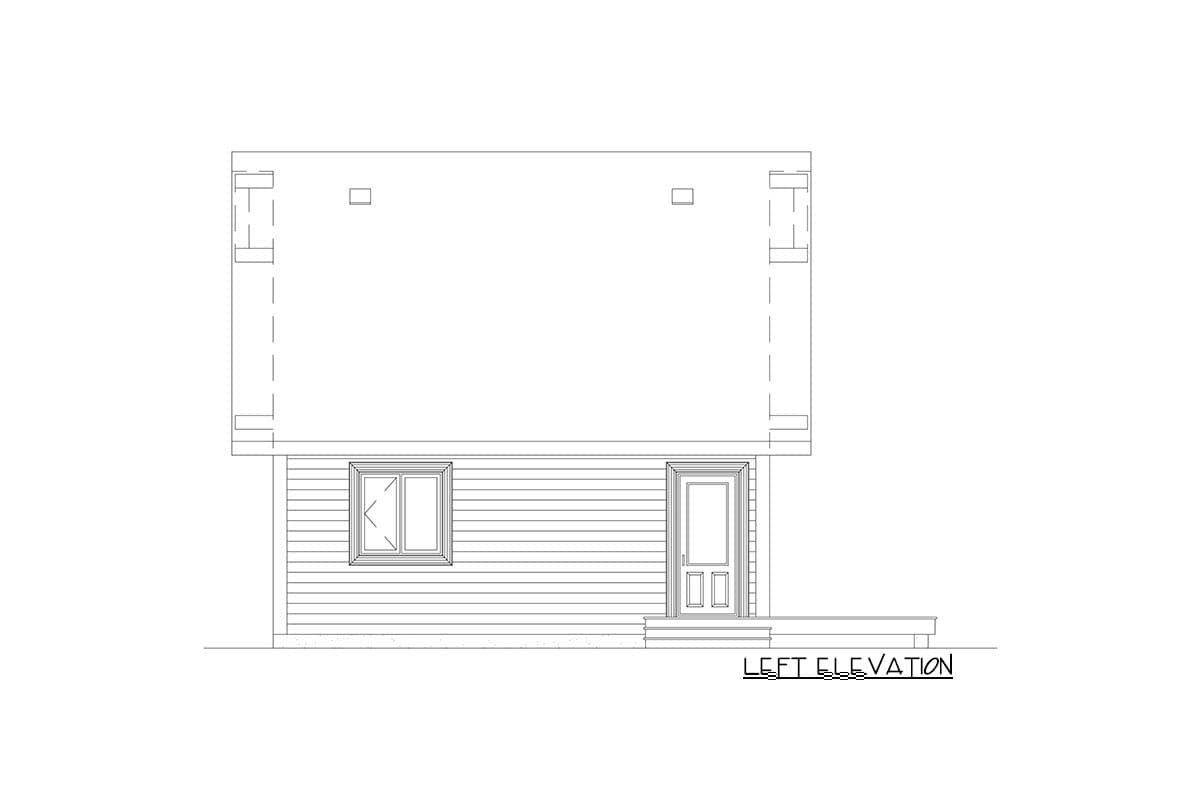

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic Timber Siding Cottage with Vaulted Living Space

  • 743

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

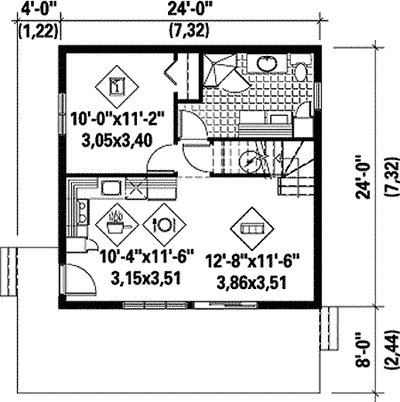

Floor Plan

  • Main Level

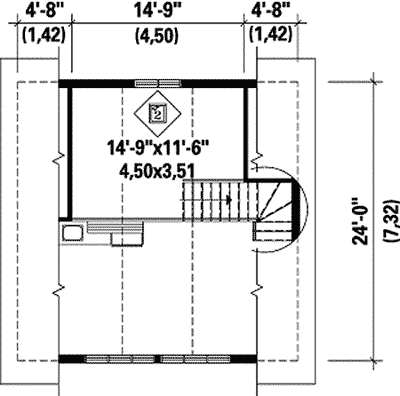

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 743 sq. ft.
  • 1st Floor: 576 sq. ft.
  • 2nd Floor: 167 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 24' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
