RV-Friendly 1530 Sq Ft Detached Garage with 505 Sq Ft Studio Loft Above

Heated S.F.
505
Beds
0
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 680269VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680269VR

M-F 9am-5pm EST |

1-203-761-8500

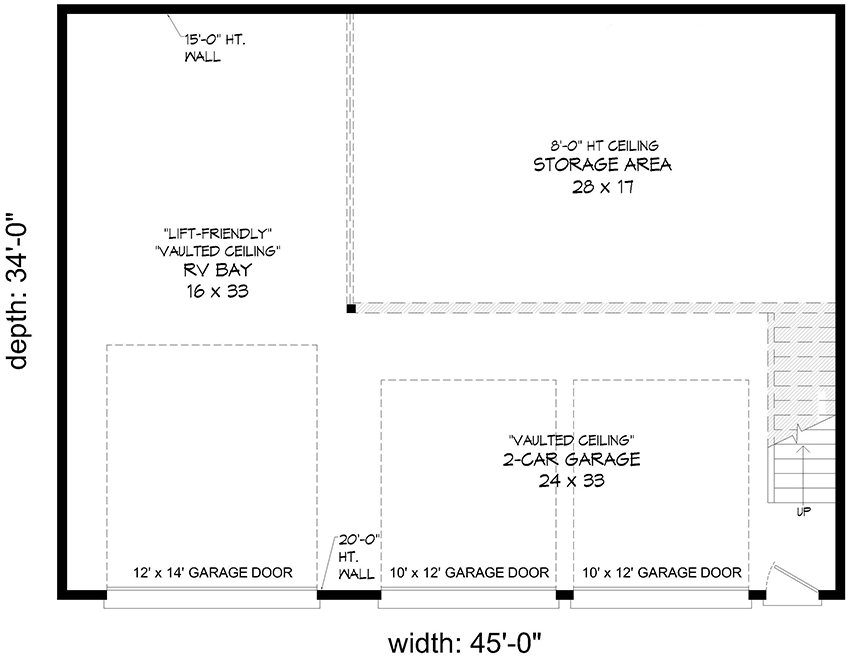

Main Level

Plan 680269VR: RV-Friendly 1530 Sq Ft Detached Garage with 505 Sq Ft Studio Loft Above - Floor Plan - Main Level - Barndominium, Contemporary, Modern

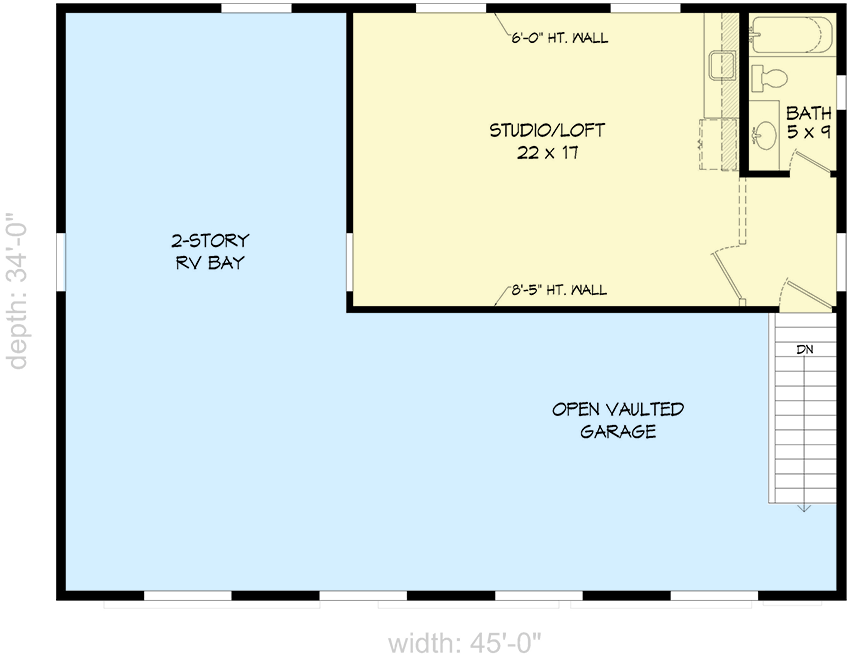

2nd Floor

Plan 680269VR: RV-Friendly 1530 Sq Ft Detached Garage with 505 Sq Ft Studio Loft Above - Floor Plan - 2nd Floor - Barndominium, Contemporary, Modern

Plan Details

  • This detached garage plan gives you 1,530 square feet of parking space including an RV bay with a 12' by 14' overhead door and two bays each with 10' by 12' overhead doors.
  • All three bays are open to above.
  • On the ground floor, there is a large storage area that could be used as a workshop.
  • Upstairs, a studio loft with full bath adds flexibility to this design.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

505 sq. ft.

2nd Floor

505 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

34' 0"

Max Ridge Height

21' 5"

Garage

Type

RV Garage, Detached

Area

1530 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Framing Type

Stick

Architectural Style

Barndominium

Contemporary

Modern

Special Features

Loft

Square Footage Breakdown

Total Heated Area

505 sq. ft.

2nd Floor

505 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

34' 0"

Max Ridge Height

21' 5"

Garage

Type

RV Garage, Detached

Area

1530 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Framing Type

Stick

Architectural Style

Barndominium

Contemporary

Modern

Special Features

Loft
