Plan 680528VR

RV Garage Apartment Plan – 1,575 Sq Ft 2-Car + RV Bay with 509 Sq Ft Studio Loft

Heated S.F.
509
Beds
1
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 680528VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680528VR

M-F 9am-5pm EST |

1-203-761-8500

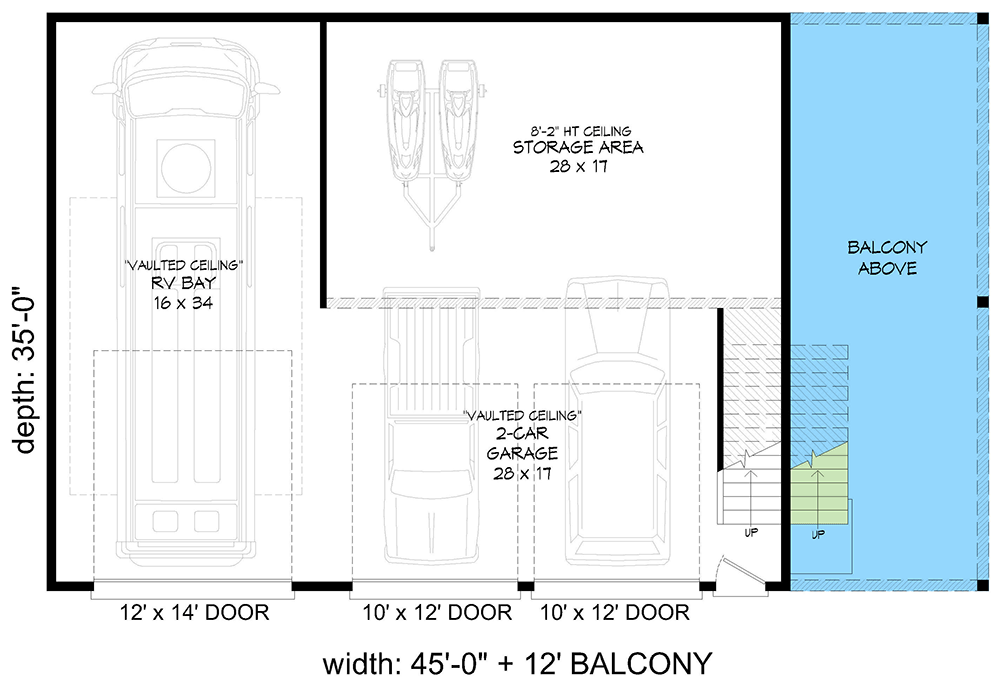

Main Level

Plan 680528VR: RV Garage Apartment Plan – 1,575 Sq Ft 2-Car + RV Bay with 509 Sq Ft Studio Loft - Floor Plan - Main Level - Carriage, Contemporary, Mid Century Modern, Modern

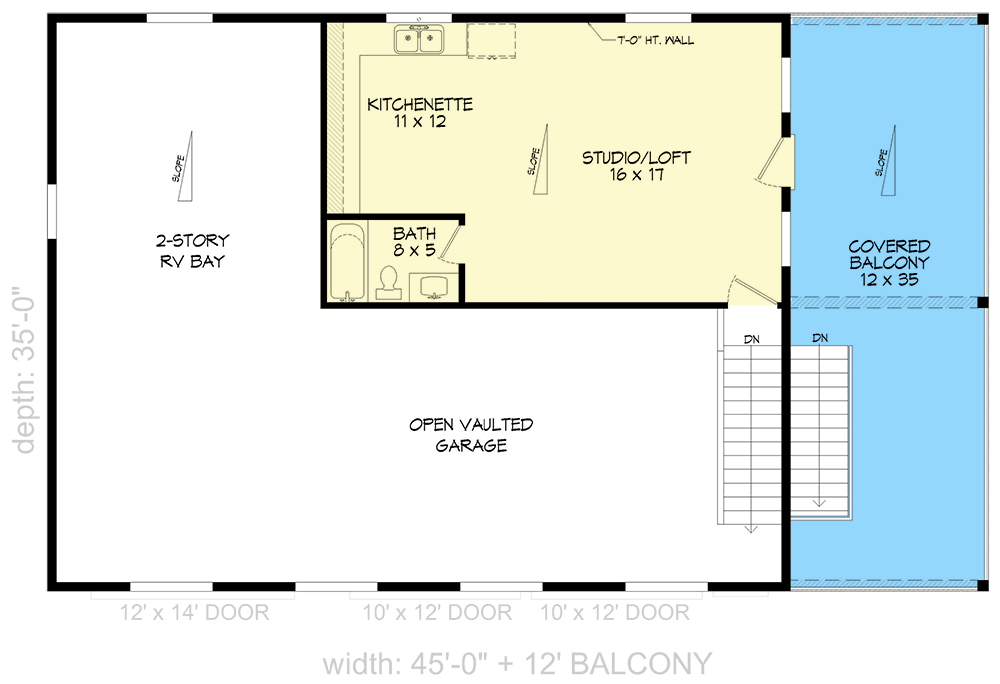

2nd Floor

Plan 680528VR: RV Garage Apartment Plan – 1,575 Sq Ft 2-Car + RV Bay with 509 Sq Ft Studio Loft - Floor Plan - 2nd Floor - Carriage, Contemporary, Mid Century Modern, Modern

Plan Details

  • This versatile detached garage plan offers a spacious 1,575 sq. ft. three-bay garage on the main level with a beautifully designed 509 sq. ft. studio apartment above – ideal for guests, rental income, or private living space.
  • The ground floor features a large three-bay garage with abundant room for vehicles, tools, storage, or a dedicated workshop. Wide bays and generous depth make this plan perfect for homeowners needing extra parking, hobby space, or a flexible work area.
  • A staircase leads to the upper-level studio apartment, which includes an open-concept living area, compact kitchenette, full bathroom, and a flexible sleeping zone (listed as 1 bedroom for classification). The smart layout maximizes every square foot while maintaining bright, comfortable living spaces.
  • A covered balcony/veranda extends the living area outdoors, creating a relaxing spot for morning coffee, evening air, or outdoor dining – while also providing a sheltered area at ground level.
  • This garage-with-apartment plan is ideal as a rental ADU, guest house, hobby studio, home office with living quarters, or multi-purpose property upgrade. With both interior and exterior stair access, the unit offers owner flexibility and excellent rental potential.
  • Whether you’re expanding living space, adding income-generating rental property, or building a workshop with bonus living quarters, this plan delivers efficiency, versatility, and timeless architectural appeal.
  • Related Plan: For homeowners needing extra depth and living space, see Plan 680528VR, a larger companion design offering a 577 sq. ft. studio loft and an extended 1,800 sq. ft. RV-friendly garage at 40' deep.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

509 sq. ft.

2nd Floor

509 sq. ft.

Balcony / Veranda

420 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

35' 0"

Max Ridge Height

23' 2"

Garage

Type

Detached, RV Garage

Area

1575 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

1 on 12

Framing Type

Stick

Architectural Style

Carriage

Contemporary

Mid Century Modern

Modern

Special Features

Loft

Workshop

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

509 sq. ft.

2nd Floor

509 sq. ft.

Balcony / Veranda

420 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

35' 0"

Max Ridge Height

23' 2"

Garage

Type

Detached, RV Garage

Area

1575 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

1 on 12

Framing Type

Stick

Architectural Style

Carriage

Contemporary

Mid Century Modern

Modern

Special Features

Loft

Workshop

Plan Collections

Attached Apartments
