Plan 9832SW

RV Garage Plan With Shed Dormer

Heated S.F.
1,119
Beds
1
Baths
1.5+
Stories
2
Cars
3

Floor Plan

Plan 9832SW

Main Level
Main Level
2nd Floor
2nd Floor

Plan 9832SW

M-F 9am-5pm EST |

1-203-761-8500

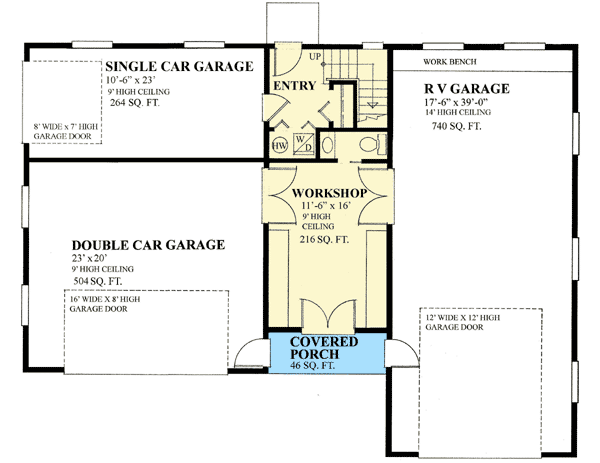

Main Level

Plan 9832SW: RV Garage Plan With Shed Dormer - Floor Plan - Main Level - Carriage

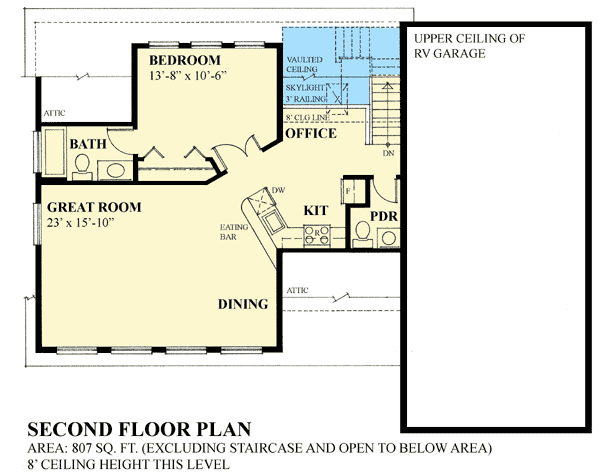

2nd Floor

Plan 9832SW: RV Garage Plan With Shed Dormer - Floor Plan - 2nd Floor - Carriage

Plan Details

  • The RV garage portion of this combination garage has a 14' ceiling accessed though a 12' by 12' overhead door. The double car garage has a 9' ceiling with a 16' by 8' overhead door. The single car garage has a 9' ceiling with an 8' by 7' overhead door.
  • The covered porch double doors open into the ample workshop with a 9' ceiling and contains a conveniently located powder bathroom. The workshop provides double door access to both the RV and double car garage areas to facilitate easy equipment movement between units.
  • The single car garage is dedicated to the second level apartment which is accessed through the rear entry. The apartment office overlooks the lower vaulted ceiling entry and boasts a skylight. The remaining apartment area has an 8' ceiling. The versatile open concept great room is natural lit with a front facing window wall.
  • The roof is a combination of truss and roof joists and has a 10:12 primary pitch and a 4:12 secondary pitch.

What's Included

  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

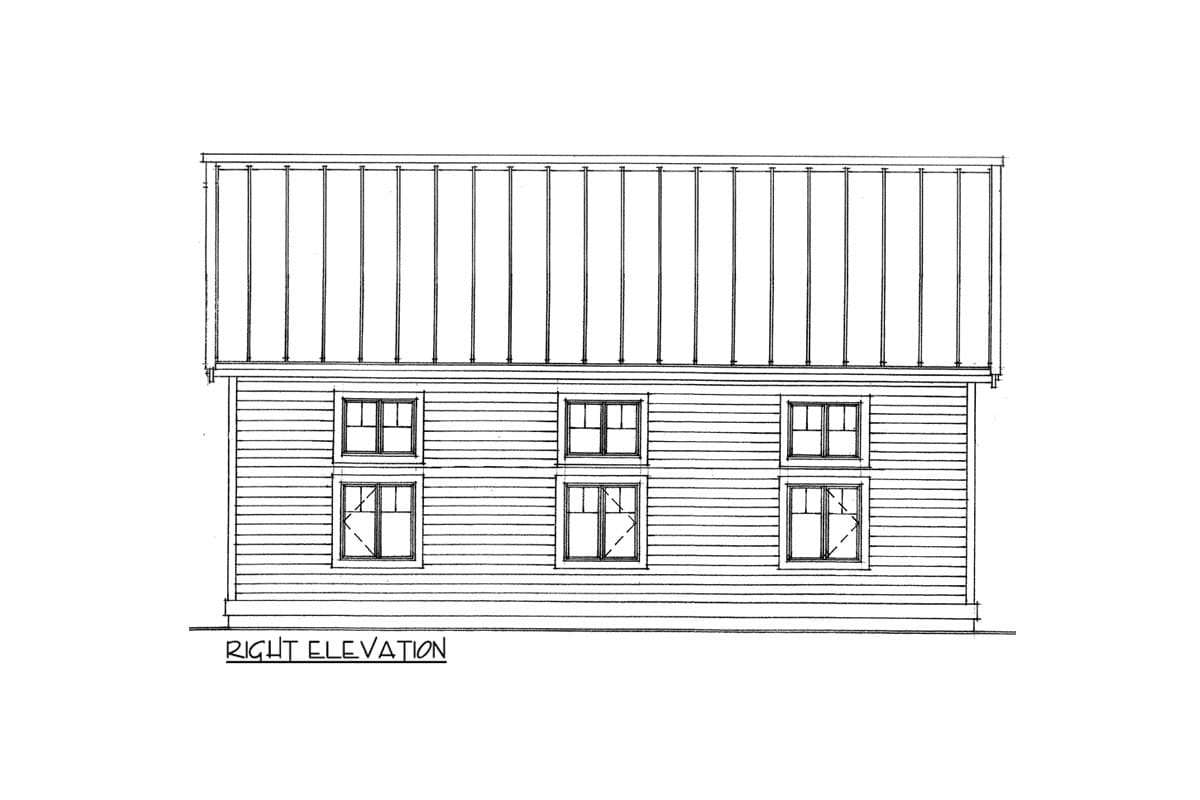

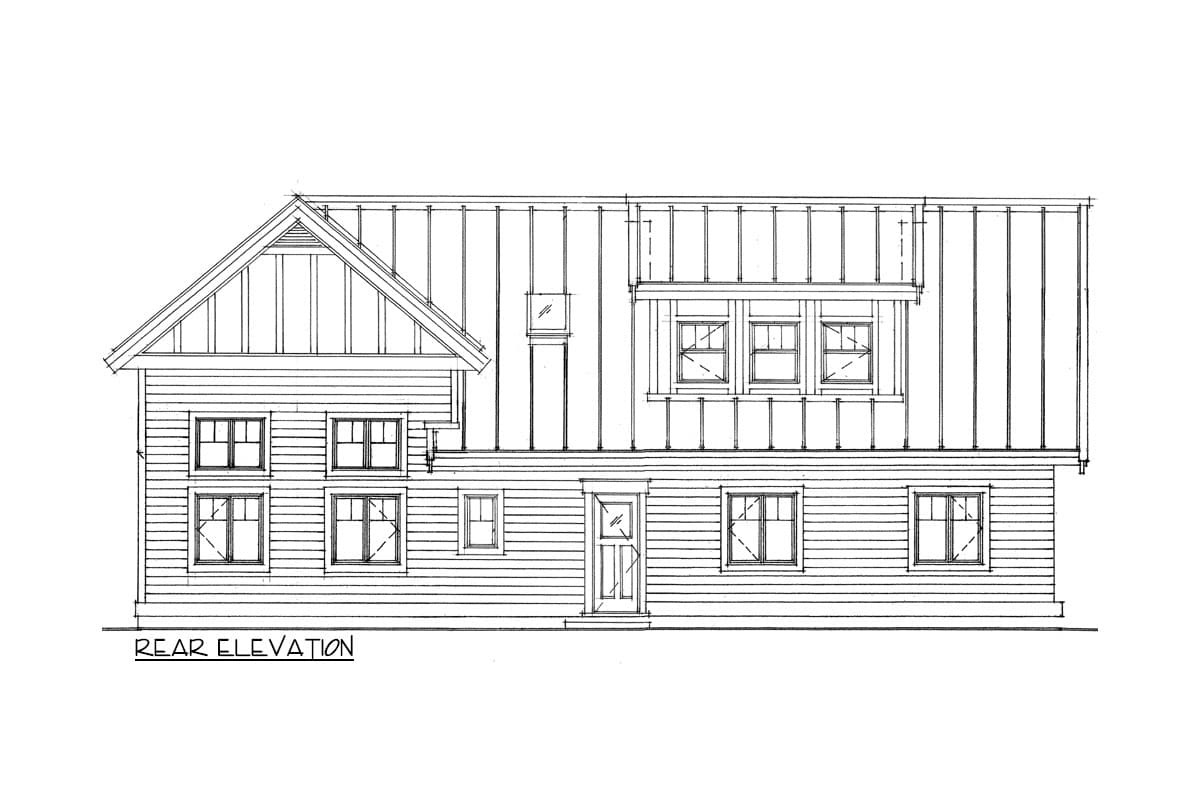

  • Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,119 sq. ft.

1st Floor

312 sq. ft.

2nd Floor

807 sq. ft.

Porch, Front

46 sq. ft.

Workshop

216 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

25' 3"

Garage

Type

Detached, RV Garage

Area

1508 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Carriage

Special Features

Home Office

Master Suite - Upstairs

Workshop

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,119 sq. ft.

1st Floor

312 sq. ft.

2nd Floor

807 sq. ft.

Porch, Front

46 sq. ft.

Workshop

216 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

25' 3"

Garage

Type

Detached, RV Garage

Area

1508 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Carriage

Special Features

Home Office

Master Suite - Upstairs

Workshop

Plan Collections

Canadian House Plans
