Plan 70855MK
RV Garage with 3 Side Bays and a 1371 Square Foot Apartment Above
Heated S.F.
1,371
Beds
1
Baths
1
Stories
2
Cars
3
What's Included
Plan Details
  • Pull in your RV in front or 3 vehicles in from the side of this RV garage apartment. There is 1,891 square feet of covered parking on the ground floor and a 1,371 square foot 1-bed apartment above.
  • Pull into your beautiful vacation home with your RV, and then take the journey up the stairs to your spacious and modern open floor plan home. As you come up the stairs you will find yourself in the lovely living area with two sets of French doors - one on either side of the fireplace - taking you to a 31' by 16'8" covered balcony with a vaulted-and-beamed ceiling and an outdoor fireplace.
  • Entering back into the house you will find that the open floor plan leads you to a kitchen with an and seating for three at the peninsula.
  • The bedroom suite has a large bathroom and walk-in closet.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

RV Garage with 3 Side Bays and a 1371 Square Foot Apartment Above

  • 1,371

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

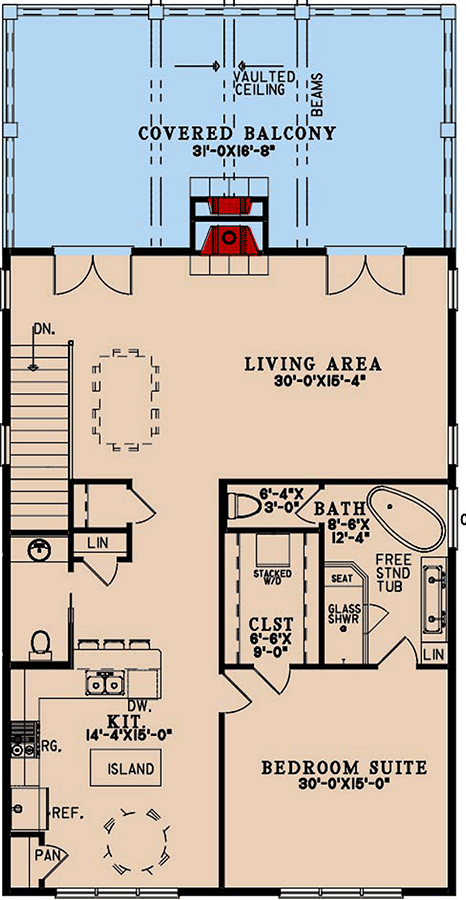

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,371 sq. ft.
  • 2nd Floor: 1,371 sq. ft.

Dimensions

  • Width: 31' 0"
  • Depth: 61' 0"
  • Max ridge height: 38' 8"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: RV Garage
  • Area: 1891 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 15' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
