Scandinavian-Inspired Duplex House Plan with Full-Floor Units - 800 Sq Ft
Heated S.F.
1,600
Units
2
Width
20'
Depth
48' 6"
What's Included
Plan Details
  • This Scandinavian-inspired duplex house plan gives you full-floor units, each with 800 square feet of heated living, 2 beds and 2 baths.
  • Just 20' wide, this two-family house plan is suitable for narrow or infill lots.
  • Each unit has a covered porch in front and which is accessible by stairs and the open concept interior.
  • Architectural Designs' website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit Downstairs
800 Sq. Ft.
800 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
20' w 48' d 27' h
Unit Upstairs
800 Sq. Ft.
800 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
None
20' w 48' d 27' h
What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

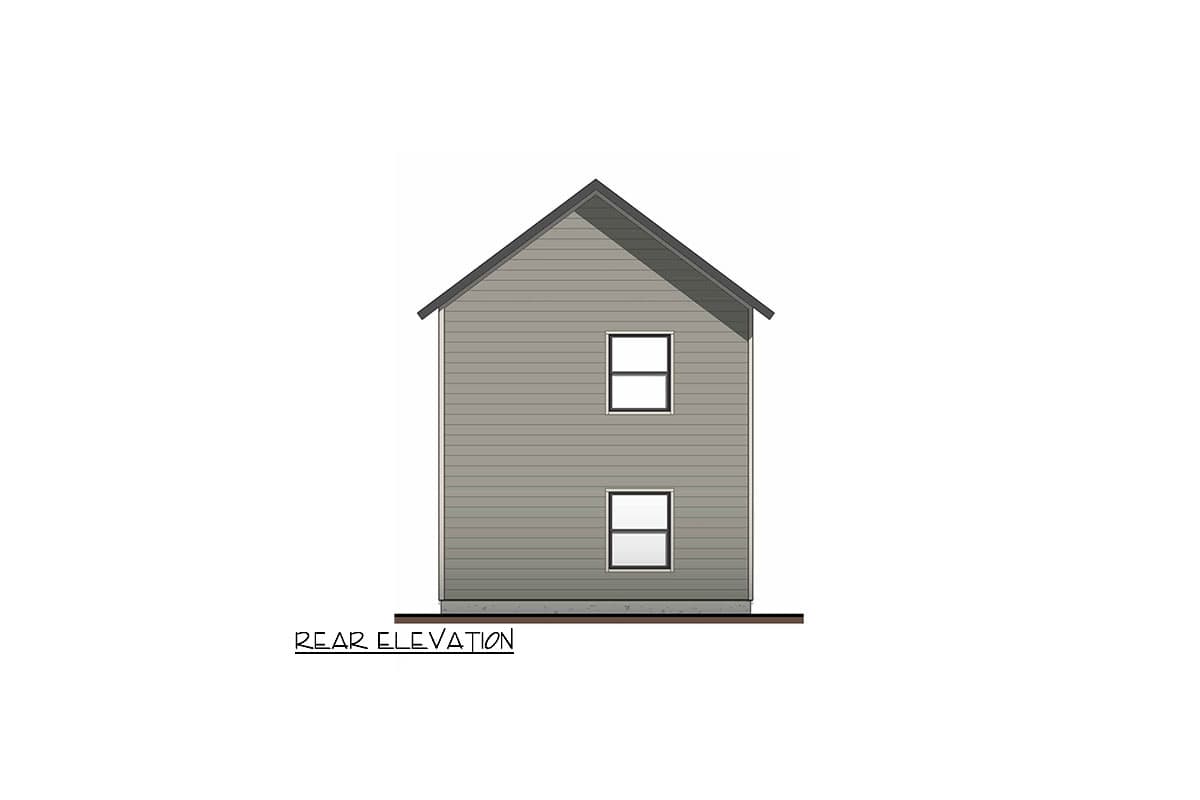

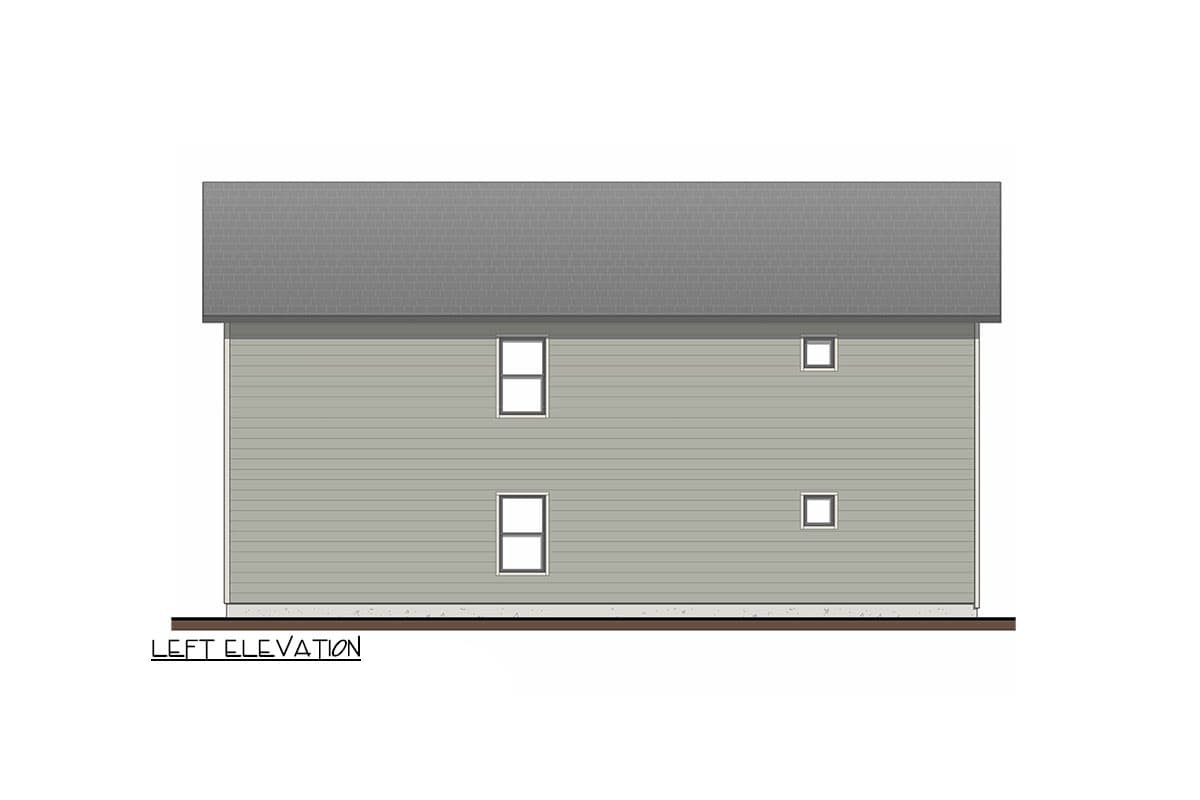

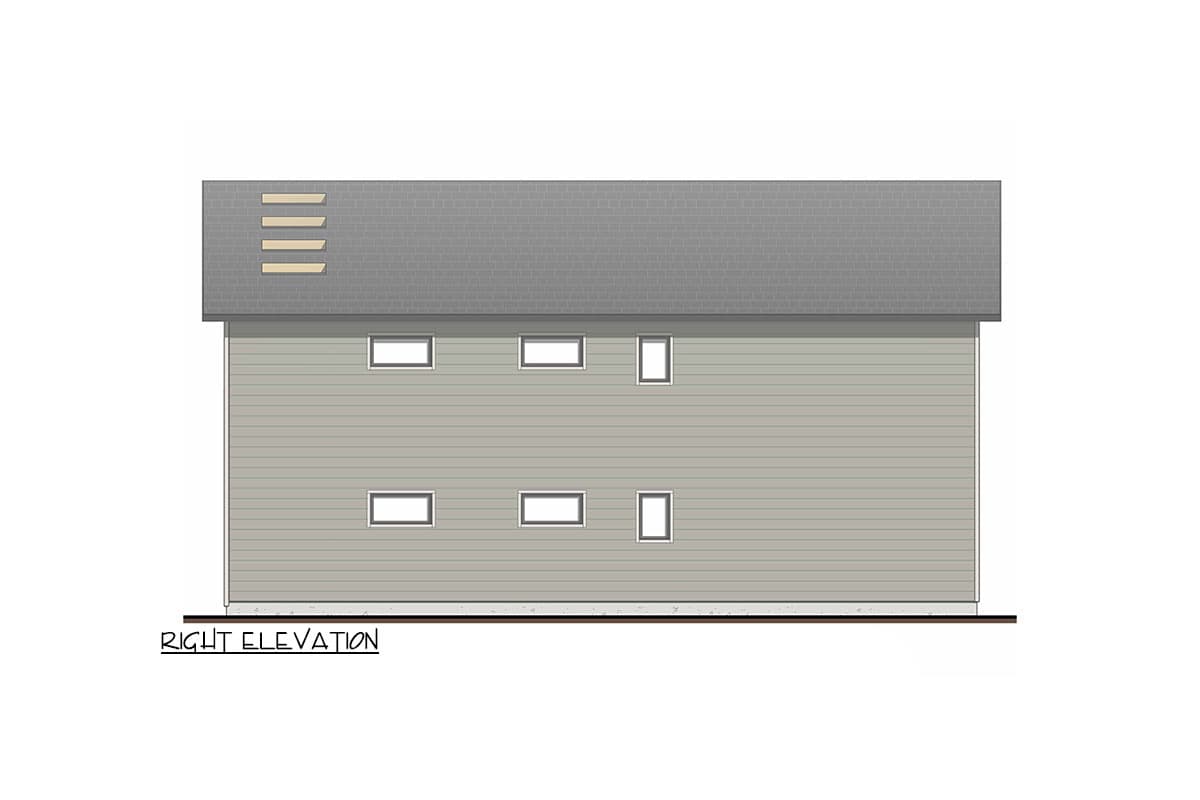

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Scandinavian-Inspired Duplex House Plan with Full-Floor Units - 800 Sq Ft

  • 1,600

    Heated s.f.

  • 2

    Units

  • 20'

    Width

  • 48' 6"

    Depth

Floor Plan

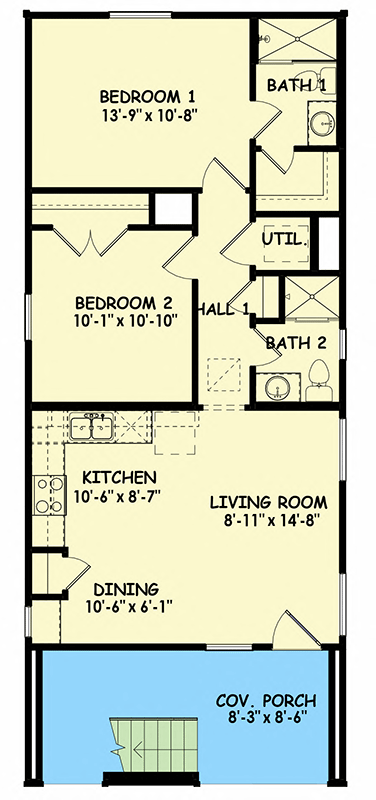

  • Main Level

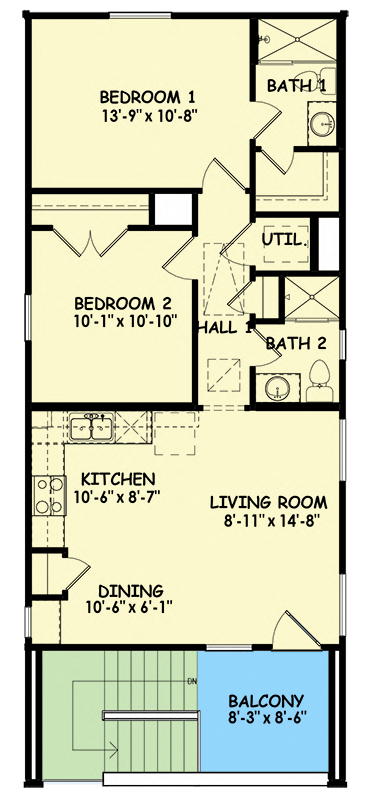

  • 2nd Floor
