Plan 11769HZ

Secluded Master Suite

Heated S.F.
1,762
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 11769HZ

Main Level
Main Level

Plan 11769HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

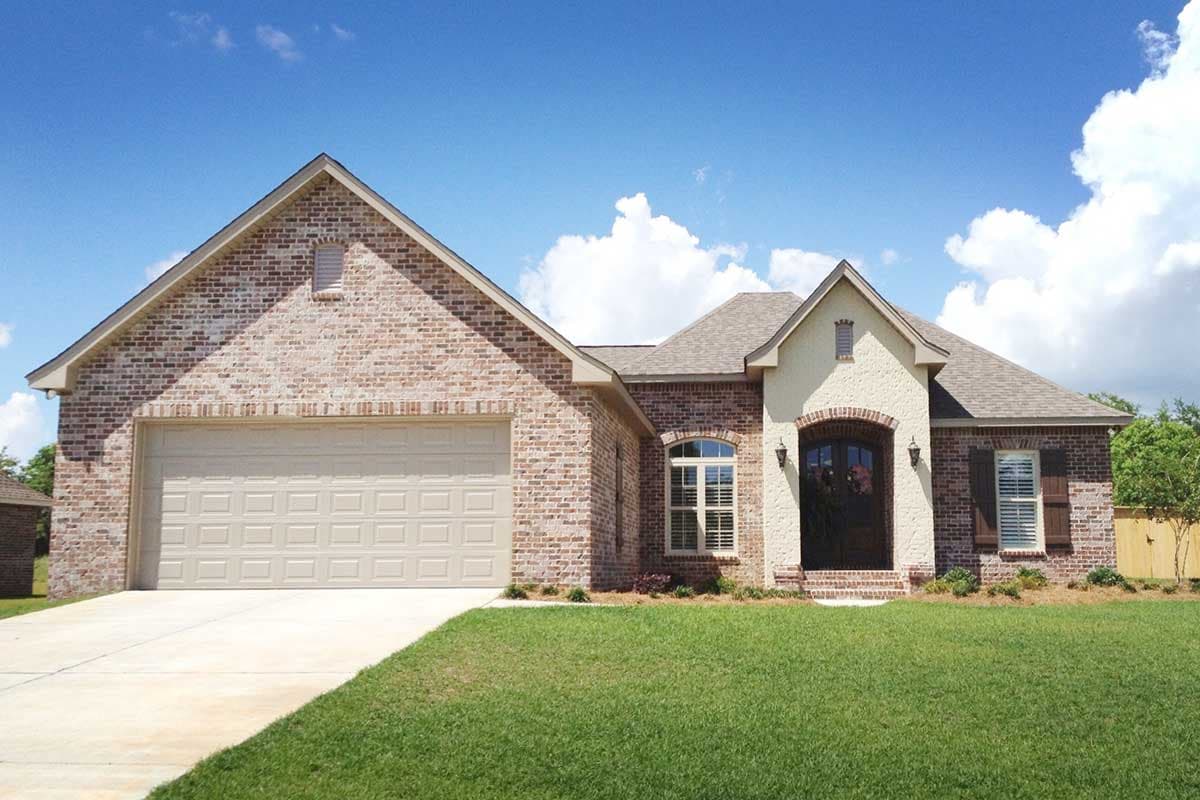

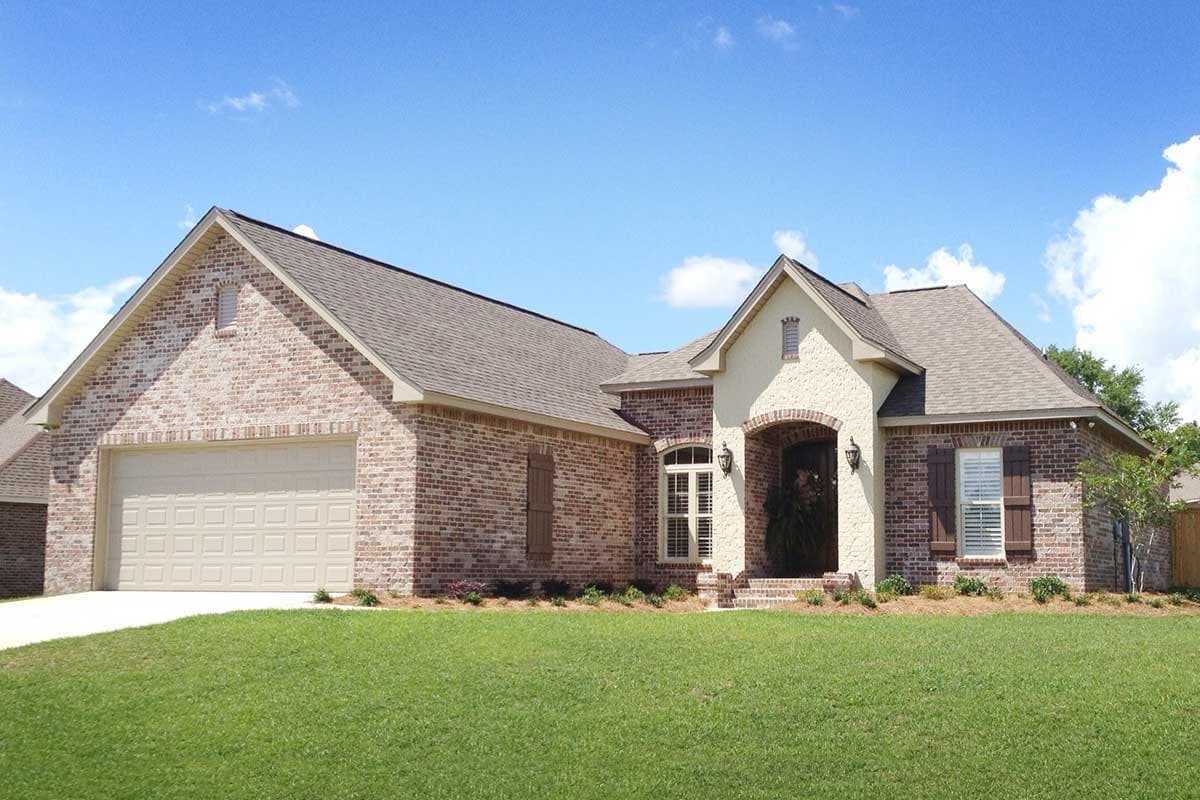

Plan 11769HZ: Secluded Master Suite - Floor Plan - Main Level - Ranch, Southern, Traditional

Plan Details

  • An amazing master suite awaits you in this one-level home plan.
  • Tray ceilings and a huge bathroom with double sinks and a soaking tub are just the beginning.
  • The master walk-in closet is huge and the quiet location of the suite is ideal.
  • In the main living area, an open floor plan maximizes the space and the views.
  • A rear covered porch shelters you from the hot sun.
  • Two family bedrooms are on the opposite side of the home.
  • Related Plan: Get a different exterior and skip the study with house plan 11770HZ.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

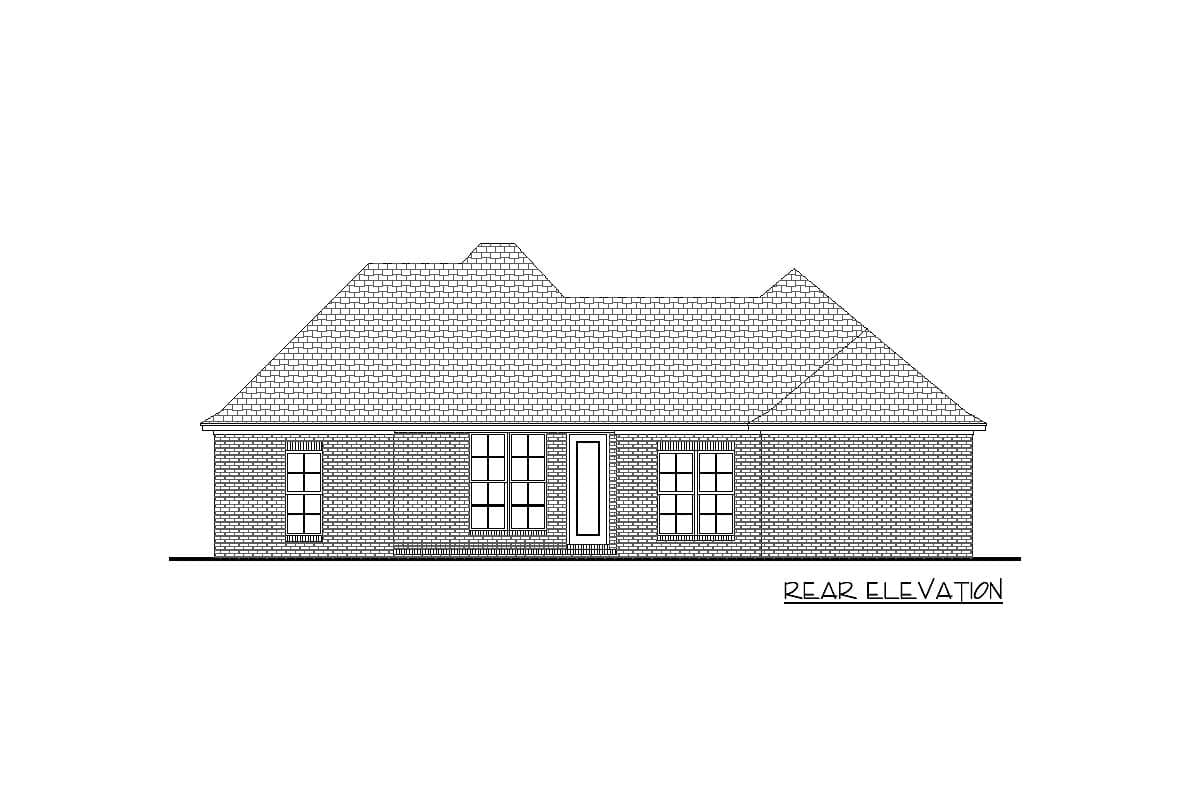

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.
