Plan 11770HZ

Secluded Master Suite

Heated S.F.

1,764

Beds

3

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

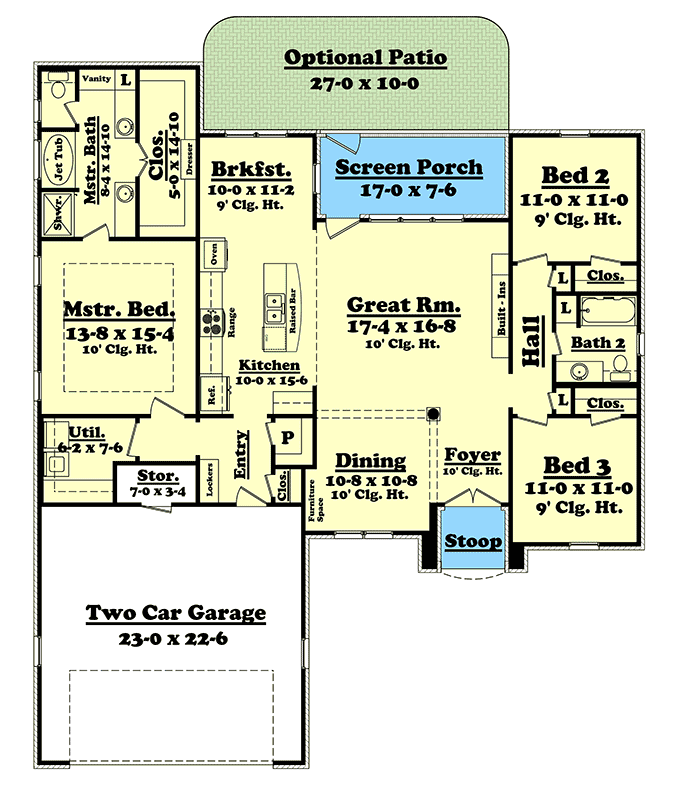

Secluded Master Suite - 11770HZ floor plan - Main Level

Plan Details

An amazing master suite awaits you in this one-level home plan.
Tray ceilings and a huge bathroom with double sinks and a soaking tub are just the beginning.
The master walk-in closet is huge and the quiet location of the suite is ideal.
In the main living area, an open floor plan maximizes the space and the views.
A rear screened porch shelters you from the hot sun.
Two family bedrooms are on the opposite side of the home.
Related Plan: Get a different exterior and gain a study with house plan 11769HZ.

What's Included

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Square Footage Breakdown

Total Heated Area:

1,764 sq. ft.

1st Floor:

1,764 sq. ft.

Storage:

26 sq. ft.

Porch, Combined:

170 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Crawl, Slab

Optional Foundations:

Basement, Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

53' 4"

Depth:

61' 10"

Max Ridge Height:

21' 6"

Garage

Type:

Attached

Area:

540 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch:

7 on 12

Framing Type:

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor
