Plan 56314SM

Secluded Master Suite

2,466 4 2.5 1 2
Pageloader

Secluded Master Suite

Plan 56314SM

  • 2,466

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Set off by itself on the right side of this French Country home plan, the master suite gains quiet and privacy.
  • A pocket door in one of the master closets opens to the laundry room.
  • Brick arches separate the formal dining room from the foyer, adding a unique touch.
  • The efficient kitchen has a walk-in pantry and a raised eating bar that overlooks the nook and family room with fireplace.
  • Three other bedrooms are on the opposite side of the home.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Floor Plan

Plan details



Secluded Master Suite

  • 2,466

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $975
  • 6 Sets $1,075
  • CAD $1,875
  • View all purchase option online

About This Plan

  • Set off by itself on the right side of this French Country home plan, the master suite gains quiet and privacy.
  • A pocket door in one of the master closets opens to the laundry room.
  • Brick arches separate the formal dining room from the foyer, adding a unique touch.
  • The efficient kitchen has a walk-in pantry and a raised eating bar that overlooks the nook and family room with fireplace.
  • Three other bedrooms are on the opposite side of the home.

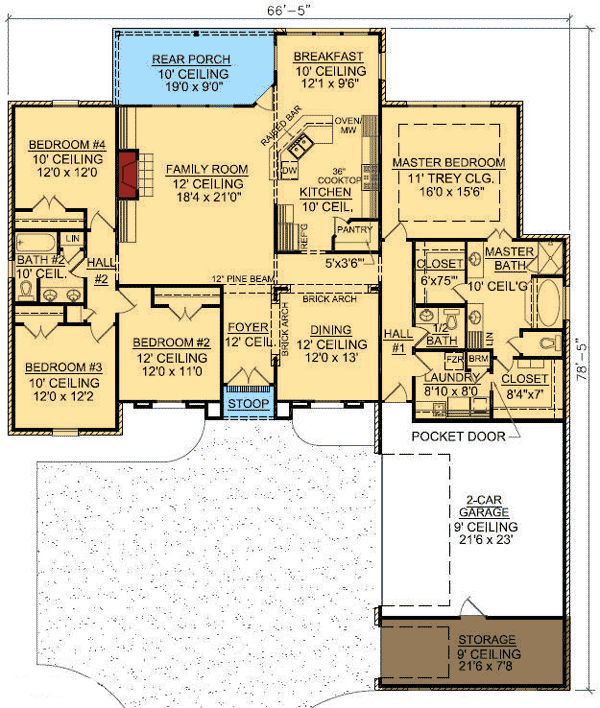

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,466 sq. ft.
  • 1st Floor: 2,466 sq. ft.
  • Storage: 165 sq. ft.
  • Porch, Front: 30 sq. ft.
  • Porch, Rear: 171 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 66' 5"
  • Depth: 78' 5"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
