Plan: 82031KA

Secluded Master Suite

2,159 3 2 1 2
Pageloader

Secluded Master Suite

Plan 82031KA

  • 2,159

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This house plan was designed in 3 different sizes to meet a wide range of budgets and family sizes. All share this attractive exterior and secluded master suite topped with a dramatic vaulted ceiling.
  • Bedroom 3 is bright and airy with three beautiful arched windows to bring in light.
  • Elegant columns separate the huge living and dining room from the foyer.
  • The nook and great room have 10' ceilings and the marvelous kitchen is vaulted and has a peninsula eating bar that lets you see into the huge vaulted family room. Bedroom 4 in back enjoys great privacy and has outdoor access.
  • Sliding glass doors take you out to the rear covered lanai.
  • Related Plans: Downsize with house plans 82029KA (1,850 sq. ft.) and 82027KA (1,769 sq. ft.).

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

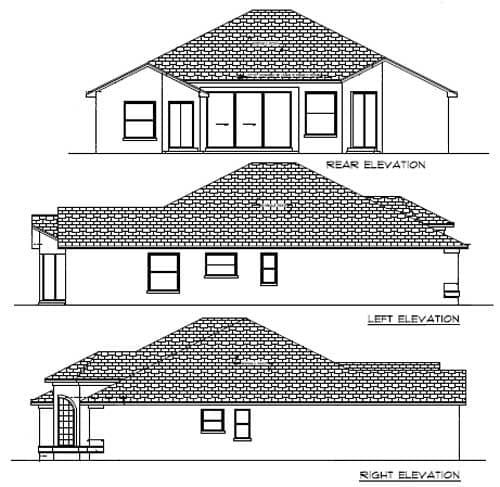

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Plan details

Architectural Style



Secluded Master Suite

  • 2,159

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,215
  • 8 Sets $1,290
  • PDF - single-use $1,425
  • CAD $1,425
  • View all purchase option online

About This Plan

  • This house plan was designed in 3 different sizes to meet a wide range of budgets and family sizes. All share this attractive exterior and secluded master suite topped with a dramatic vaulted ceiling.
  • Bedroom 3 is bright and airy with three beautiful arched windows to bring in light.
  • Elegant columns separate the huge living and dining room from the foyer.
  • The nook and great room have 10' ceilings and the marvelous kitchen is vaulted and has a peninsula eating bar that lets you see into the huge vaulted family room. Bedroom 4 in back enjoys great privacy and has outdoor access.
  • Sliding glass doors take you out to the rear covered lanai.
  • Related Plans: Downsize with house plans 82029KA (1,850 sq. ft.) and 82027KA (1,769 sq. ft.).

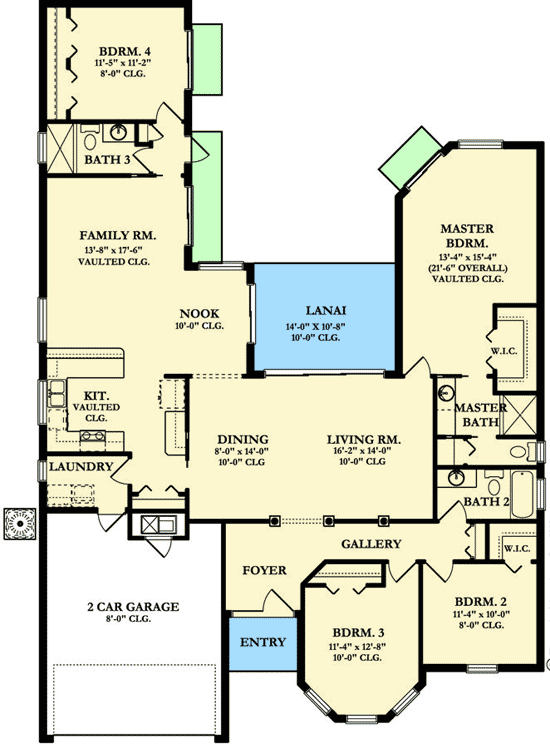

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,159 sq. ft.
  • 1st Floor: 2,159 sq. ft.
  • Porch, Front: 35 sq. ft.
  • Porch, Rear: 149 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 49' 10"
  • Depth: 73' 4"
  • Max ridge height: 19' 6"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Florida
  • Southern

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
