Plan 82052KA
Secluded Owner's Suite
Heated S.F.
1,612
Beds
3
Baths
2
Stories
1
Cars
2

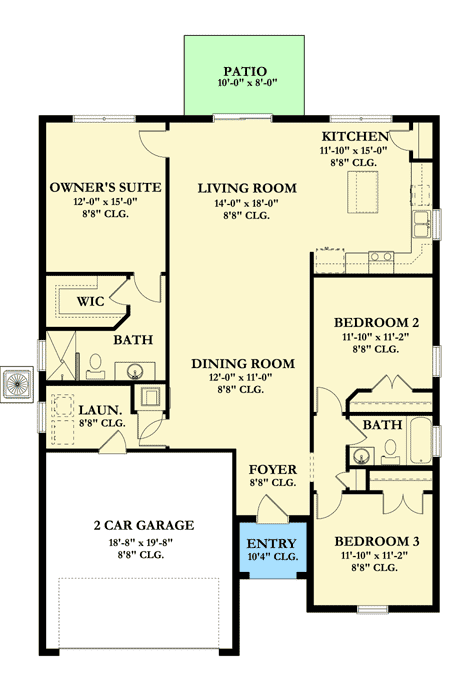

Floor Plan

Plan 82052KA

Main Level
slide image 0

Plan 82052KA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Economical to build due to its uncomplicated foundation and roofline, this Florida home has all the basics in a delightful open floor plan.
  • The L-shaped living area gives you an efficient kitchen that overlooks the living room and around the corner, the dining area.
  • Split bedrooms offer privacy to the owner's suite, keeping the family/guest bedrooms on the oppsite side of the home.
  • Sliding glass doors in the living room take you out to the rear patio.
  • Related Plan: Get an alternate exterior with house plan 82051KA.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,612 sq. ft.

1st Floor

1,612 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

54' 0"

Max Ridge Height

17' 4"

Garage

Type

Attached

Area

402 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 8"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,612 sq. ft.

1st Floor

1,612 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

54' 0"

Max Ridge Height

17' 4"

Garage

Type

Attached

Area

402 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 8"

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
