Shingle-and-Stone Cottage with Vaulted Living Room - 1648 Sq Ft
Heated S.F.
1,648
Beds
2
Baths
2
Stories
2
What's Included
Plan Details
  • This shingle-and-stone cottage house plan has a side and rear porch that give you fresh air space to enjoy in addition to the 1,648 square feet of heated living space inside.
  • Inside, the living room with fireplace is open tot he dining room and kitchen and has a vaulted ceiling. French doors open to the 14'-deep covered patio. The island kitchen features a nearby pantry and has seating for three.
  • The primary bedroom is on the main floor and has a walk-in closet. Upstairs, a loft space can be used as a bedroom and Bed 2 has 7' walls and a vaulted ceiling with room for a bunk bed and a walk-in closet.
  • Related Plans: Get an alternate exterior with house plan 270087AF and a smaller version with house plan 270055AF (1,364 sq. ft.). Get more room - and a garage - with house plan 270082AF (1,662 sq. ft.).
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Shingle-and-Stone Cottage with Vaulted Living Room - 1648 Sq Ft

  • 1,648

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

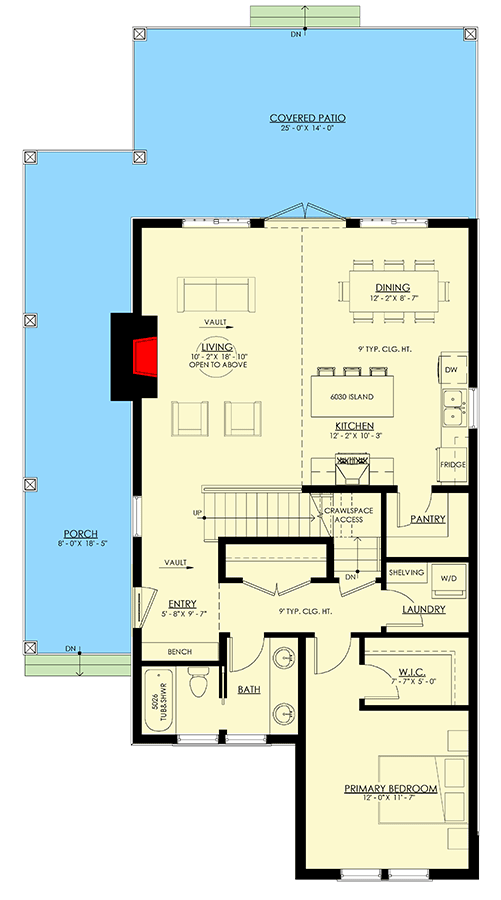

Floor Plan
