Side-By-Side Craftsman Duplex House Plan - 1422 Sq Ft 3 Bed Units

Heated S.F.
2,844
Units
2
Width
Depth

Floor Plan

Plan 67717MG

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 67717MG

M-F 9am-5pm EST |

1-203-761-8500

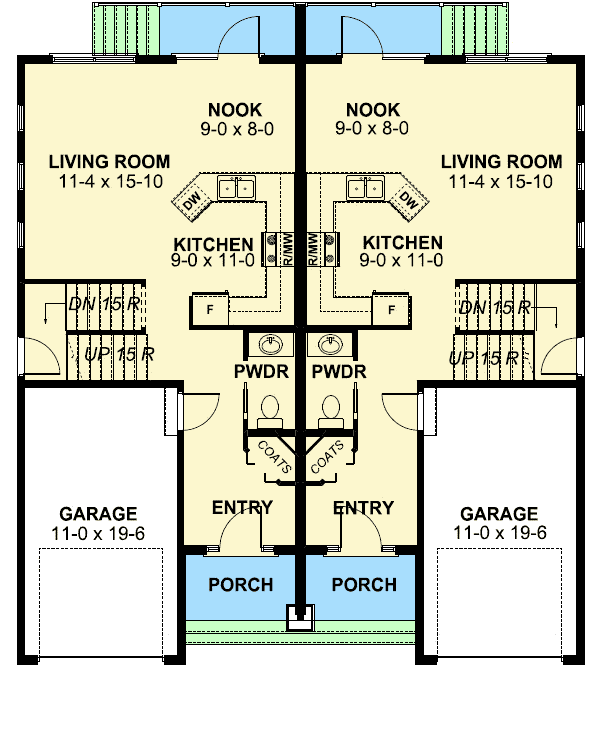

Main Level

Plan 67717MG: Side-By-Side Craftsman Duplex House Plan - 1422 Sq Ft 3 Bed Units - Floor Plan - Main Level - Craftsman, Traditional

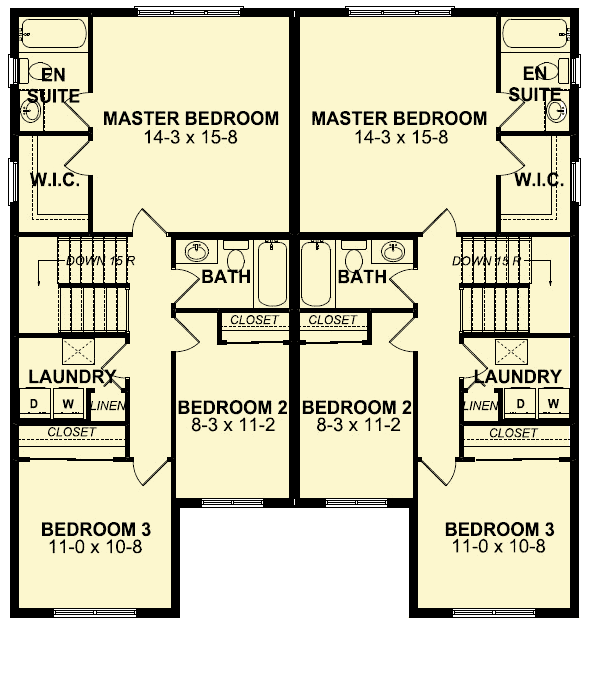

2nd Floor

Plan 67717MG: Side-By-Side Craftsman Duplex House Plan - 1422 Sq Ft 3 Bed Units - Floor Plan - 2nd Floor - Craftsman, Traditional

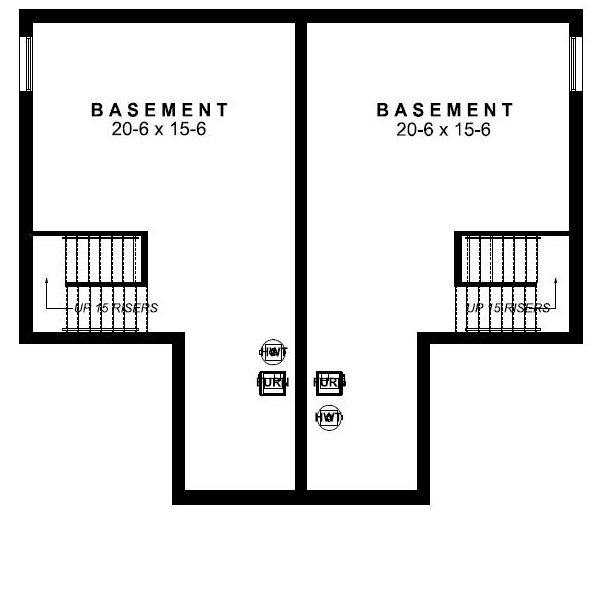

Basement

Plan 67717MG: Side-By-Side Craftsman Duplex House Plan - 1422 Sq Ft 3 Bed Units - Floor Plan - Basement - Craftsman, Traditional

Plan Details

  • This side-by-side Craftsman duplex home plan features a modern and open layout designed for comfortable living.
  • Each 1.422 square foot 3 bed, 2.5 bath unit has 588 square feet on the main floor and 834 square feet on the second floor. The basement adds 588 square feet of additional space per unit and the garages are each 246 square feet.
  • The master bedroom is complete with a walk-in closet and en suite, and the two other bedrooms make it perfect as a home for family life.
  • Each unit features its own single car garage, laundry room, and main floor powder room.
  • An optional unfinished basement foundation also gives the option of a recreation room or extra bedrooms.
  • The roof has a 6:12 pitch.
Unit A
Heated Area
1,422Sq. Ft.
588 Sq. Ft. 1st
834 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
246 Sq. Ft.
Dimensions
20' 6"width
46'depth
31' 6"height
Unfinished Areas
246 Sq. Ft. Garage
588 Sq. Ft. Basement Unfinished
Unit B
Heated Area
1,422Sq. Ft.
588 Sq. Ft. 1st
834 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
246 Sq. Ft.
Dimensions
20' 6"width
46'depth
31' 6"height
Unfinished Areas
246 Sq. Ft. Garage
588 Sq. Ft. Basement Unfinished

What's Included

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,844 sq. ft.

1st Floor

1,176 sq. ft.

2nd Floor

1,668 sq. ft.

Basement Unfinished

1,176 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

46' 0"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

492 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,844 sq. ft.

1st Floor

1,176 sq. ft.

2nd Floor

1,668 sq. ft.

Basement Unfinished

1,176 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

46' 0"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

492 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans
