Side-By-Side Craftsman Duplex House Plan

Plan 67719MG

  • 2,842

    Heated s.f.

  • 2

    Units

  • 43'

    Width

  • 56'

    Depth

  • This side-by-side Craftsman-style duplex house plan features a modern and open layout designed for comfortable living.
  • The master bedroom is complete with a walk-in closet and ensuite, and the two other bedrooms make it perfect as a home for family life.
  • Each unit features its own single car garage, laundry room, and main floor powder room. An optional unfinished basement foundation also gives the option of a recreation room or extra bedrooms.
  • Floor areas per unit: Main Floor: 1176 sq. ft. (588 per unit) Second Floor: 1666 sq.ft. (833 per unit) Garage Area: 588 sq.ft. (294 per unit).
  • Related Plan: Get an alternate exterior with house plan 67718MG.

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • 4 elevations
  • Cross section
  • Wall details, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Unit Details

A
1,421 Sq. Ft.
588 Sq. Ft. 1st Floor
833 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
294 Sq. Ft.
21' 6" w 56' d 27' h
B
1,421 Sq. Ft.
588 Sq. Ft. 1st Floor
833 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
294 Sq. Ft.
21' 6" w 56' d 27' h
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

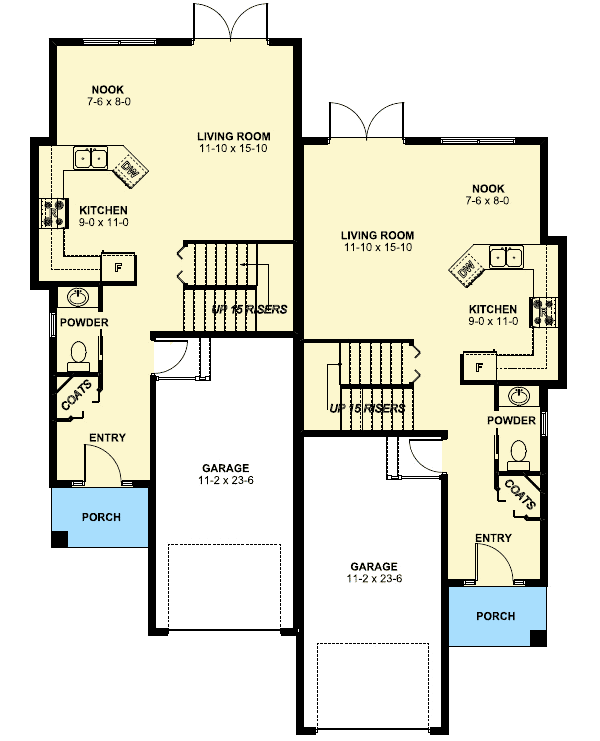

Side-By-Side Craftsman Duplex House Plan - 67719MG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

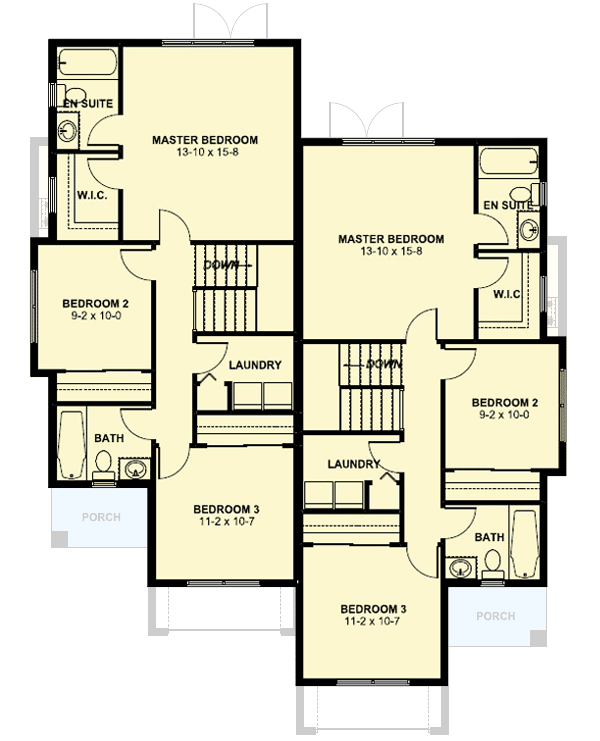

Side-By-Side Craftsman Duplex House Plan - 67719MG floor plan - 2nd Floor
