Plan 22688DR

Single Bay Boat Garage with Covered Terrace and Outdoor Fireplace

Heated S.F.
0
Beds
0
Baths
0.5
Stories
1
Cars
1

Floor Plan

Plan 22688DR

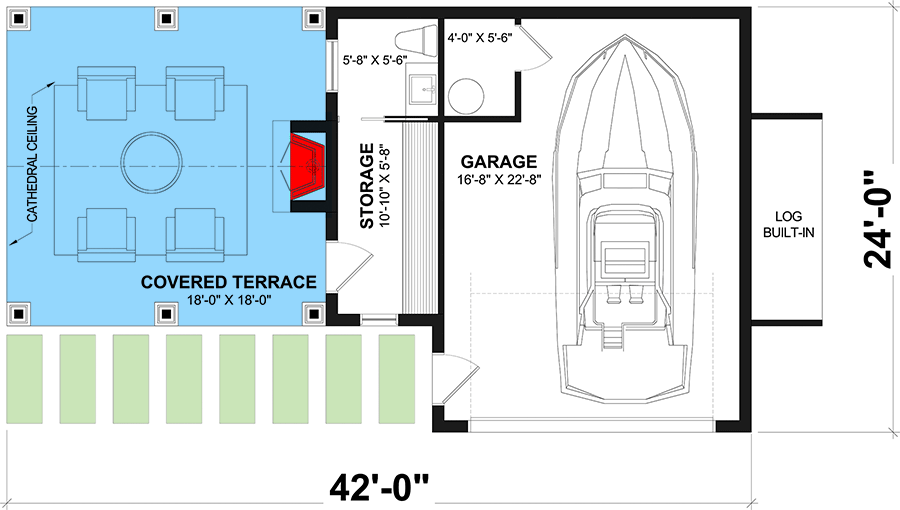

Main Level
Main Level

Plan 22688DR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 22688DR: Single Bay Boat Garage with Covered Terrace and Outdoor Fireplace - Floor Plan - Main Level - Craftsman, Farmhouse

Plan Details

  • The bathroom and storage area are conveniently accessible from the covered terrace.
  • The covered terrace (324 sq. ft.), features a cathedral ceiling reaching 19'-6'' and a charming fireplace, providing ample space for an outdoor living area.
  • Additionally, a small sheltered wood storage area is located on the opposite side of the garage.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

324 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

24' 0"

Max Ridge Height

24' 4"

Garage

Type

Detached

Area

540 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 8"

Roof Details

Primary Pitch

12 on 12

Architectural Style

Craftsman

Farmhouse

Special Features

Outdoor Fireplace

Plan Collections

Canadian House Plans

Pool House
