Single-Level Craftsman Ranch Home Plan with Split Bed Layout - 1703 Sq Ft

Heated S.F.
1,703
Beds
2
Baths
2
Stories
1
Cars
3

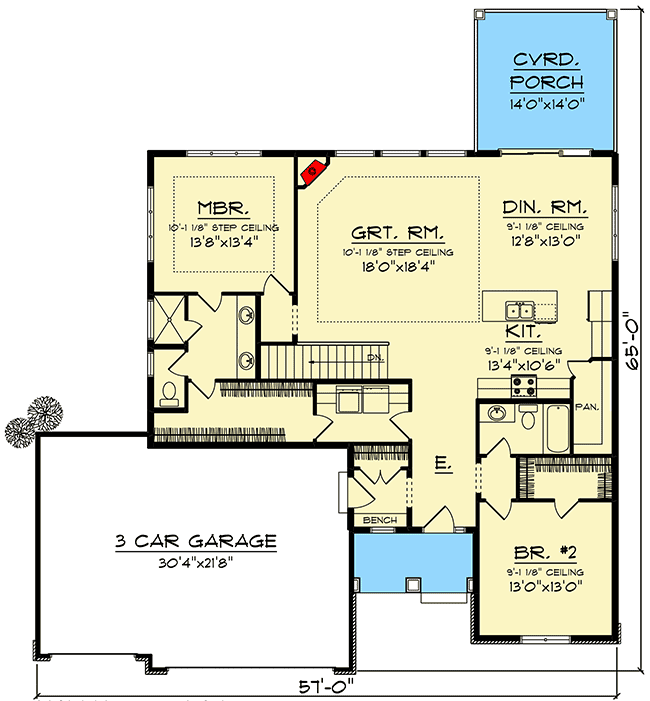

Floor Plan

Plan 890077AH

Main Level
Main Level

Plan 890077AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 890077AH: Single-Level Craftsman Ranch Home Plan with Split Bed Layout - 1703 Sq Ft - Floor Plan - Main Level - Craftsman, Ranch

Plan Details

  • This Craftsman ranch house plan gives you single level with 2 beds, 2 baths and 1,703 square feet of heated living space.
  • This floor plan features a spacious great room, kitchen, and dining area that will occupy the whole family.
  • A covered porch is accessed off the dining room at the back of the home.
  • To the right of the home a large bedroom with a walk-in closet lie with a bathroom right off of the hallway.
  • The master bedroom, located behind the garage, features a huge walk-in closet and dual sinks.
  • This design tops off with a 3-stall garage.
  • Related Plan: Get a finished lower level with 2 more beds and a large family room with wet bar with house plan 890127AH.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,703 sq. ft.

1st Floor

1,703 sq. ft.

Porch, Combined

268 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

65' 0"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

682 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,703 sq. ft.

1st Floor

1,703 sq. ft.

Porch, Combined

268 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

65' 0"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

682 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Plan Collections

Photo Gallery
