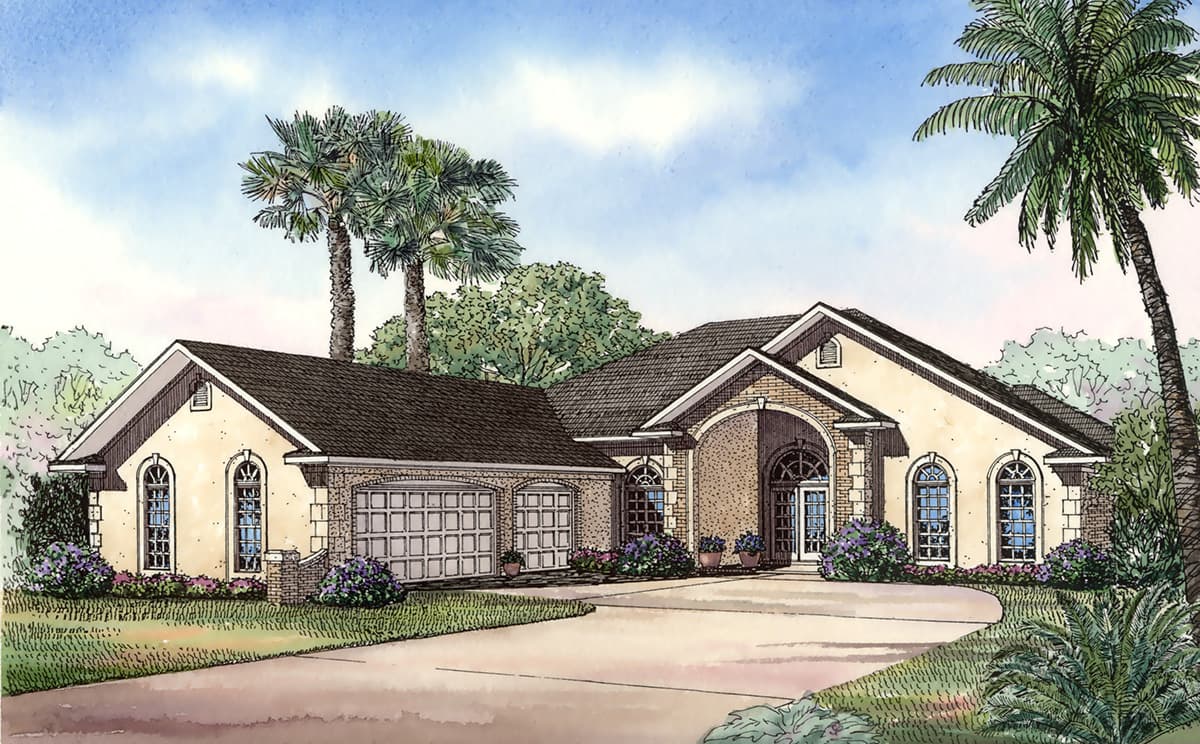

Plan 59171ND
Single Level Florida Home Plan
Heated S.F.
3,167
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • A family home achieved in a single level house plan. Columns an pan ceilings accent the main living areas, which faces the kitchen through arched cased openings.
  • A large gathering room at the back of the house features a fireplace and entry to the covered porch.
  • The split-bedroom plan gives each secondary bedroom its own bath, while the master bedroom dominates the right wing of the house.
  • A 3 car garage and a laundry room with a sink and counter space help with storage.
  • Twin walk-around-in closets, a huge master bath and an adjoining nursery or study round out the suite.
  • Note: Exterior framing is 8" concrete
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Single Level Florida Home Plan

  • 3,167

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

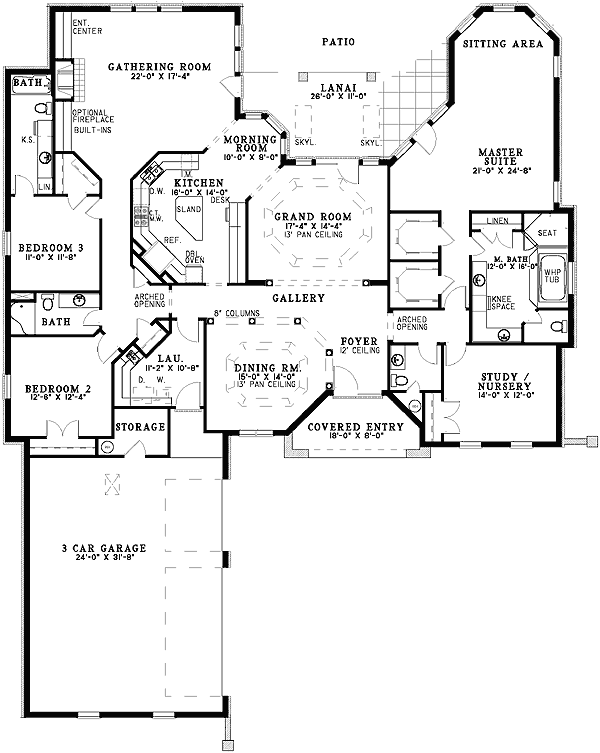

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,167 sq. ft.
  • 1st Floor: 3,167 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 88' 6"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 819 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 4"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
