Single-Story European House Plan with Courtyard and Outdoor Fireplace
Heated S.F.
2,682
Beds
3
Baths
2.5
Stories
1
Cars
4
Tour
Flyer
Videos
What's Included
Plan Details
  • This 3 bed, 2.5 bath Transitional European-style house plan gives you 2,682 square feet of heated living and a 2-car front-facing garage (1,435 square feet). As you step into the house, the entryway has views of the great room with cathedral ceiling ahead. The kitchen is to the right and bedrooms to the left. into the heart of the home.
  • Bathed in natural light, the spacious kitchen boasts a large sliding glass door that opens up to a courtyard complete with a cozy fireplace. The kitchen has ample counter space an efficient layout and a large walk-in pantry with sink and second refrigerator.
  • A graceful dining room is open to the kitchen and has access to the covered patio through a large sliding glass door. The hearth room and great room are on either side, each with a fireplace and views to the back.
  • The master bedroom has an 11' tray ceiling and an en-suite bathroom with direct access to a private covered patio. Two additional bedrooms share a hall bathroom, catering both to the needs of family members and guests. For added convenience and versatility, there is an additional hall bathroom that also serves as a pool bath.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Single-Story European House Plan with Courtyard and Outdoor Fireplace

  • 2,682

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

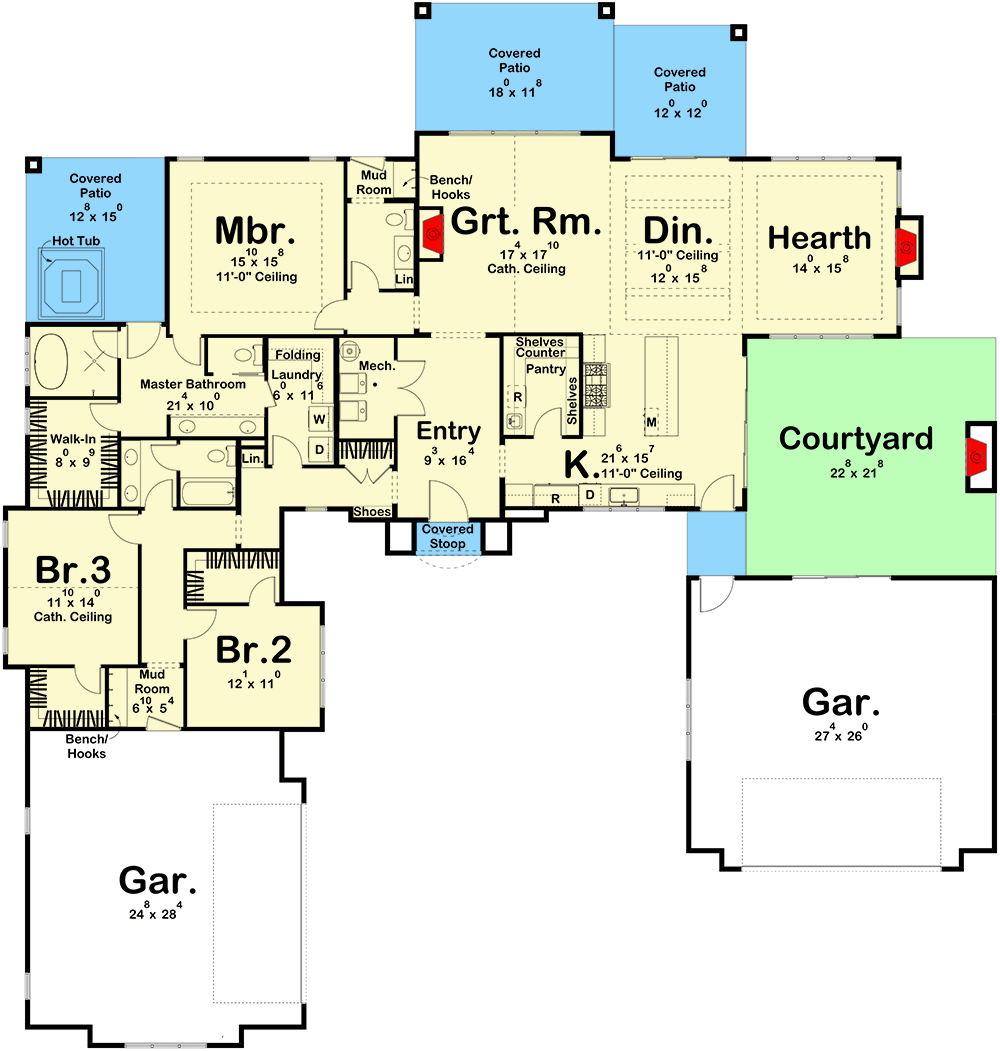

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,682 sq. ft.
  • 1st Floor: 2,682 sq. ft.

Dimensions

  • Width: 90' 0"
  • Depth: 94' 8"
  • Max ridge height: 28' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1435 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard, Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 14 on 12
