Plan 430102LY

Single-Story Hill Country Ranch House Plan with Home Office- 3082 Sq Ft

Heated S.F.
3,082
Beds
3 - 4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 430102LY

Main Level
Main Level

Plan 430102LY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

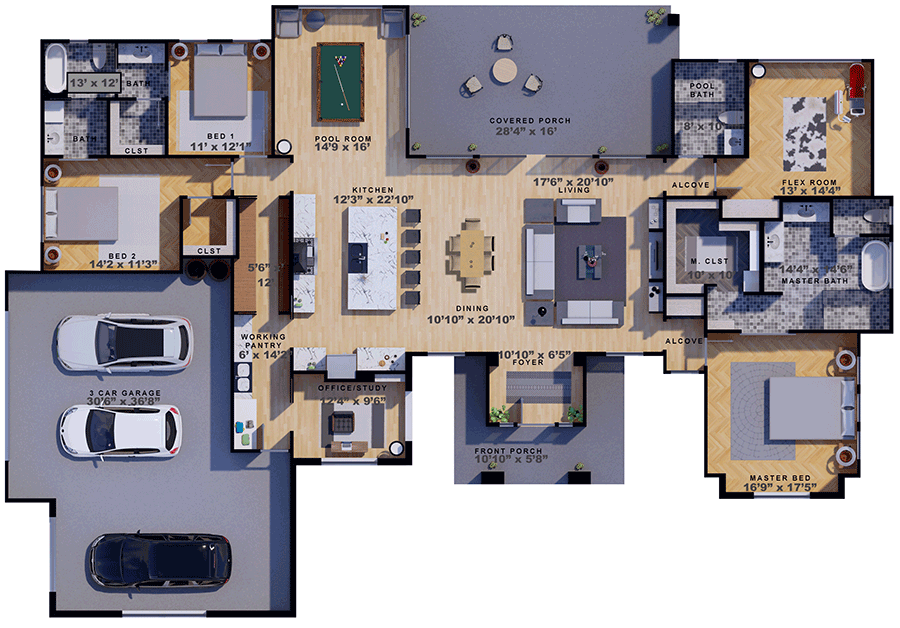

Plan 430102LY: Single-Story Hill Country Ranch House Plan with Home Office- 3082 Sq Ft - Floor Plan - Main Level - Hill Country, Ranch, Transitional

Plan Details

  • This hill country ranch house plan offers you 3,082 square feet of heated living space with 3 beds, 3 baths and a 961 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
